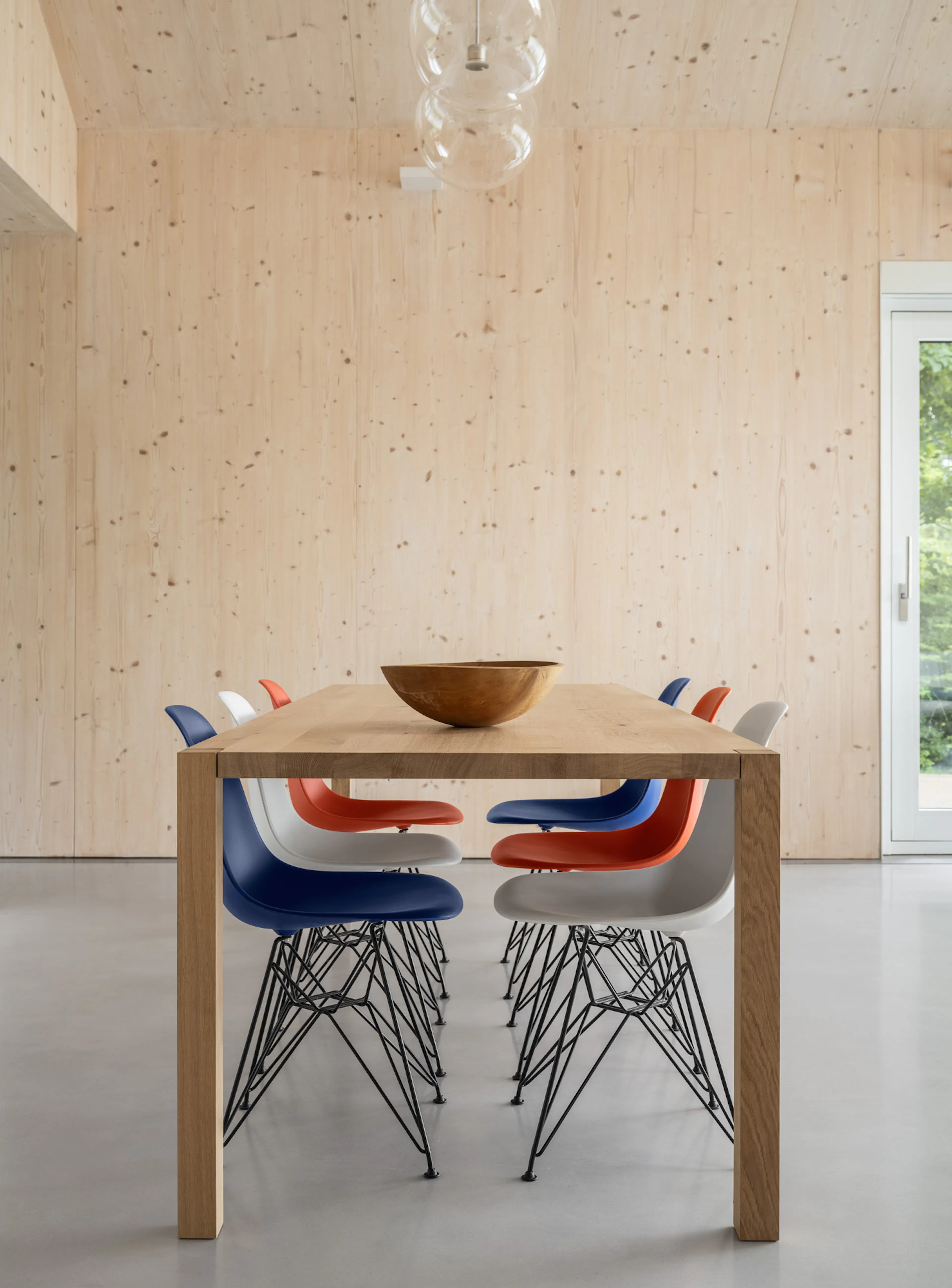

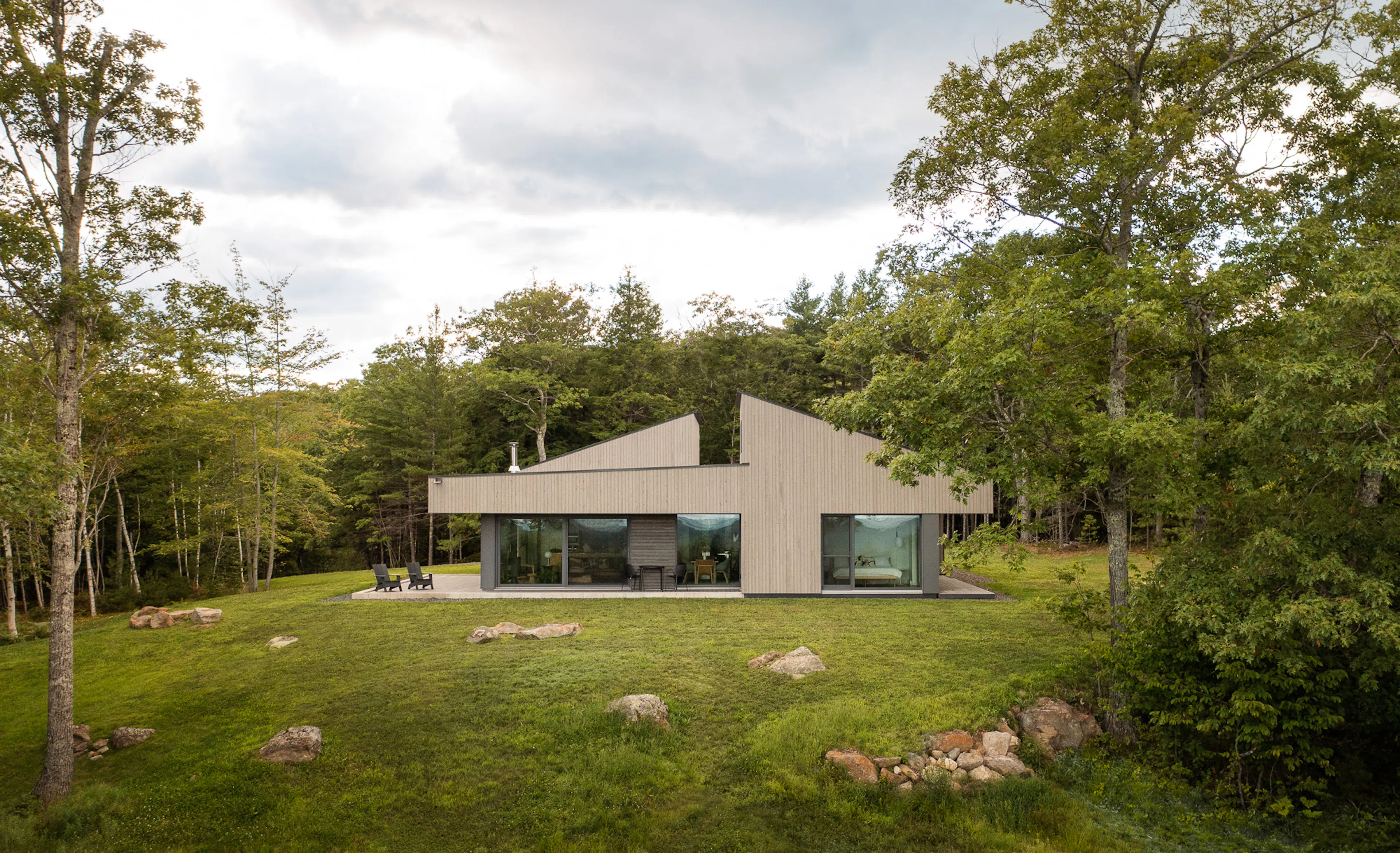

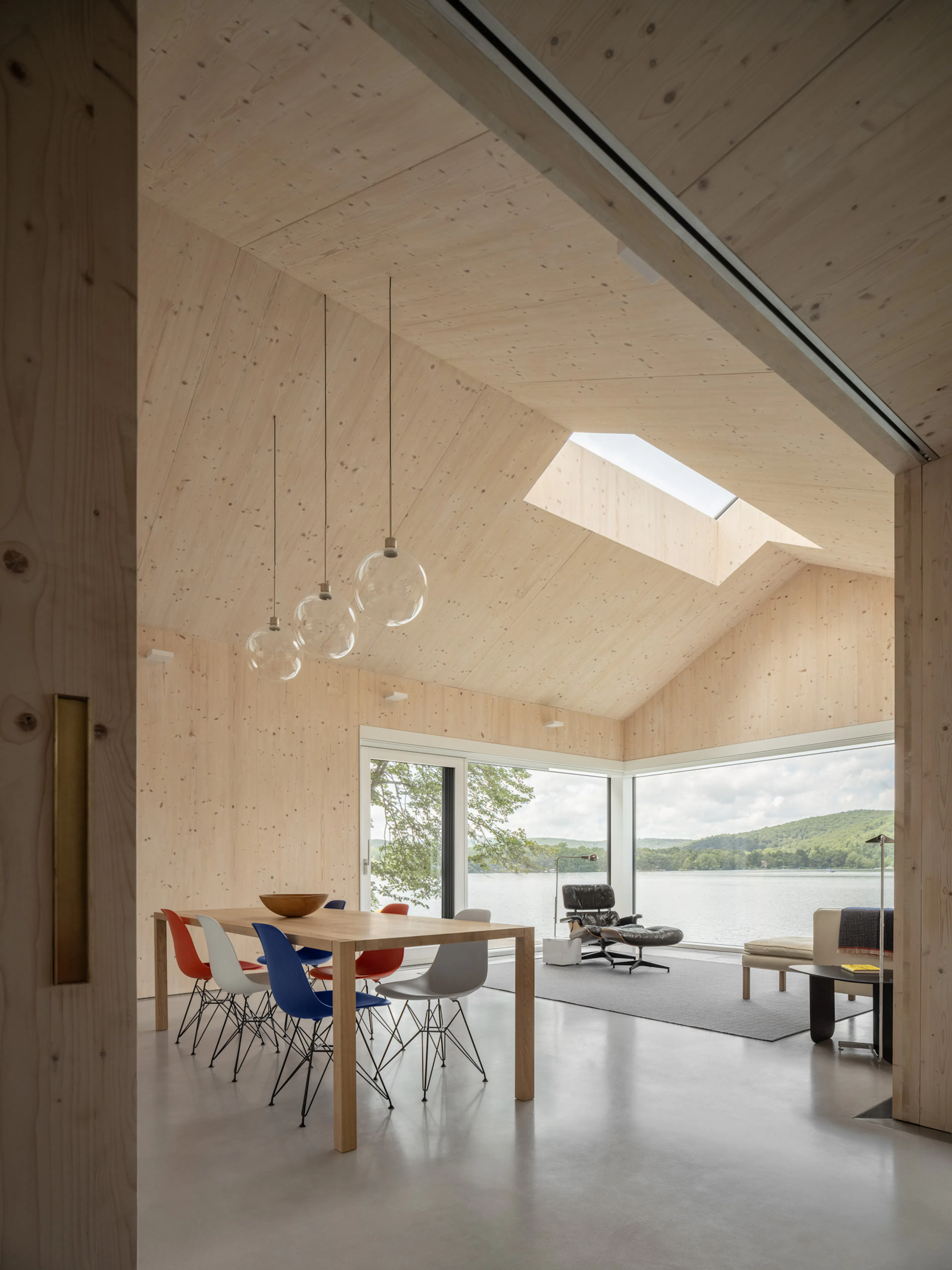

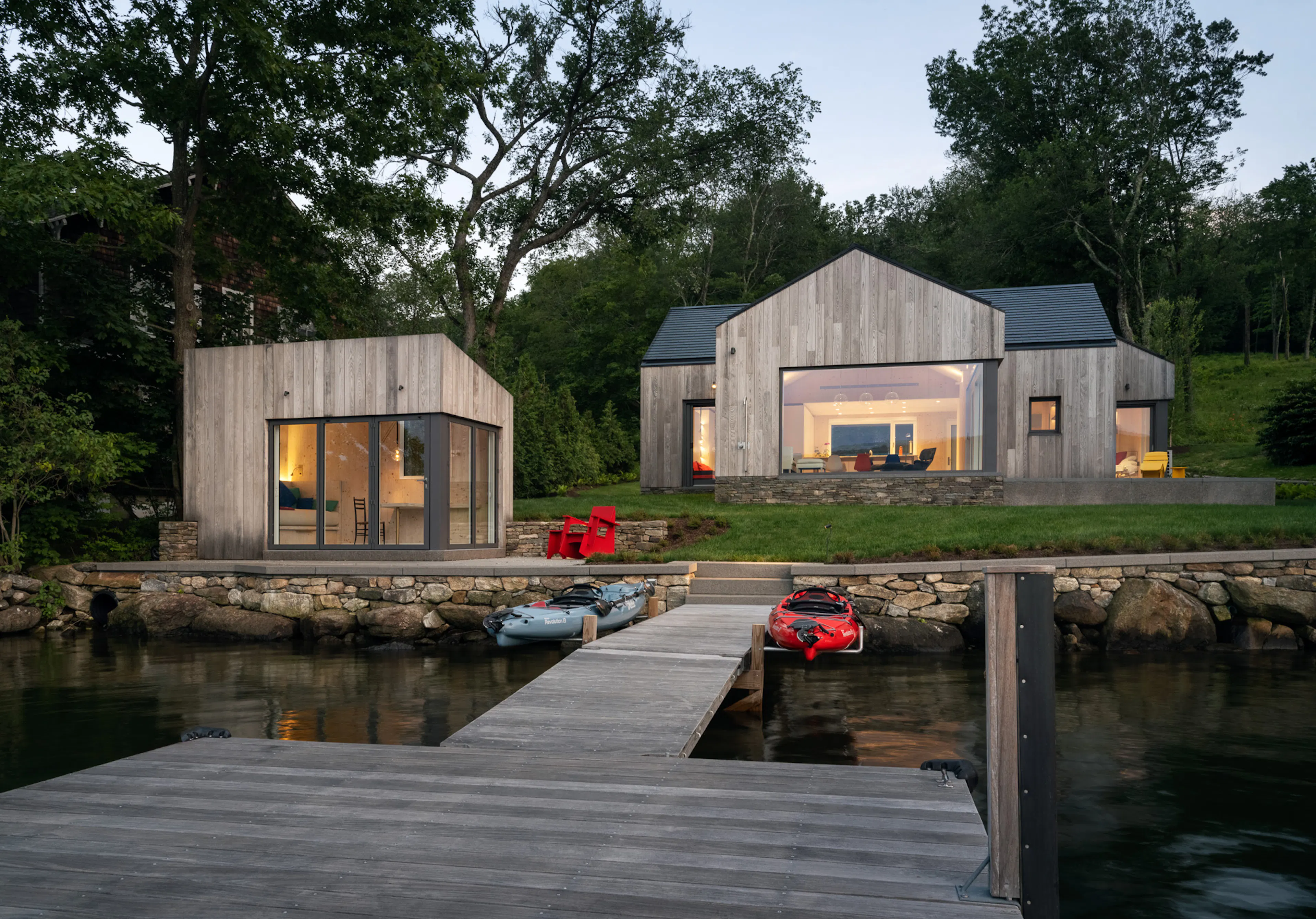

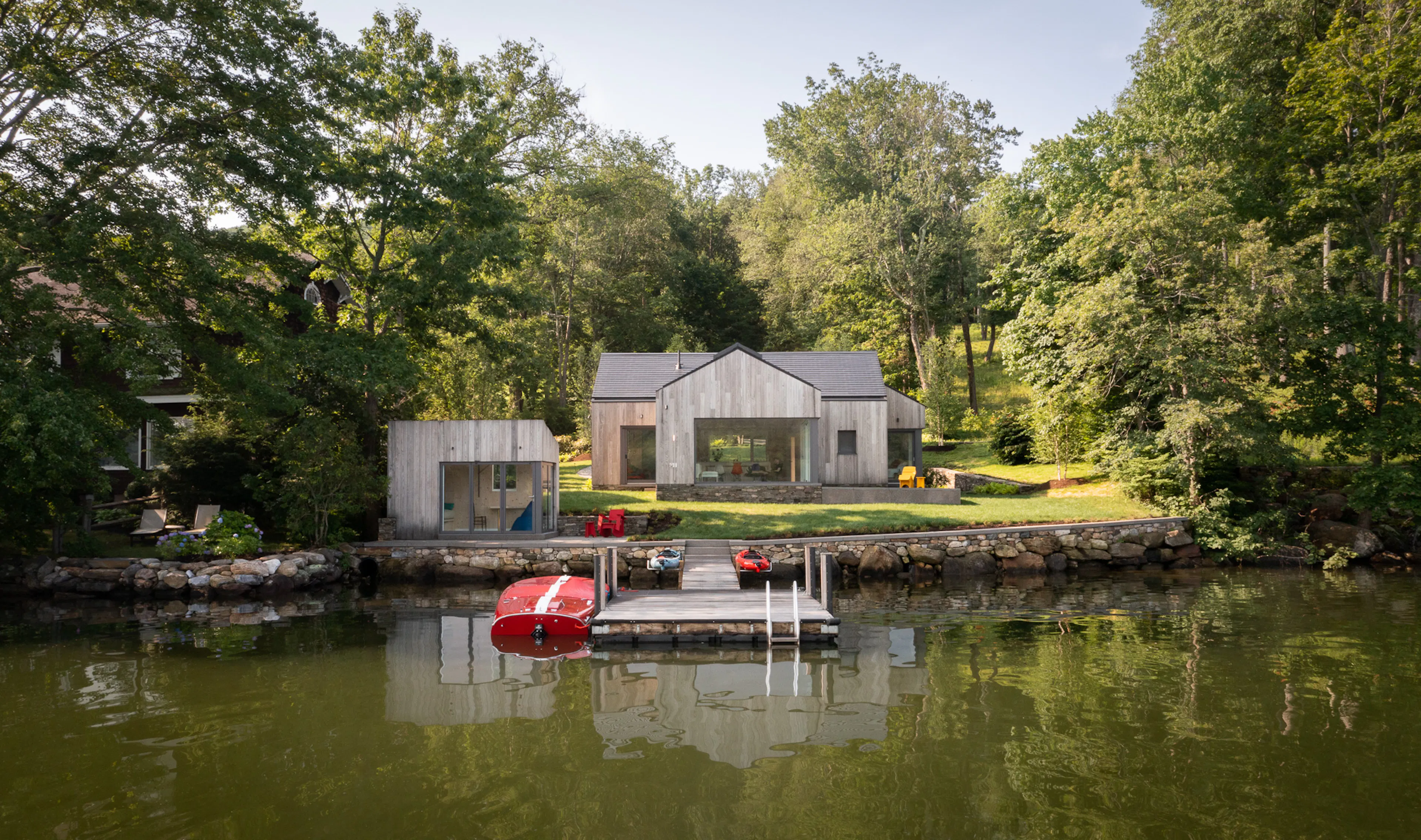

With a cross-laminated timber (CLT) structural system and wood fiber-based products for all of its above-grade insulation, it is as close as we’ve come yet to an all-wood building. Designed to replace a seasonal cottage on a south-facing lot wedged between the road and the lakeshore, the building was subject to strict limits on its footprint and overall height. We responded to those constraints with a single-level design that concentrates its volume in a combined kitchen, dining, and living space.

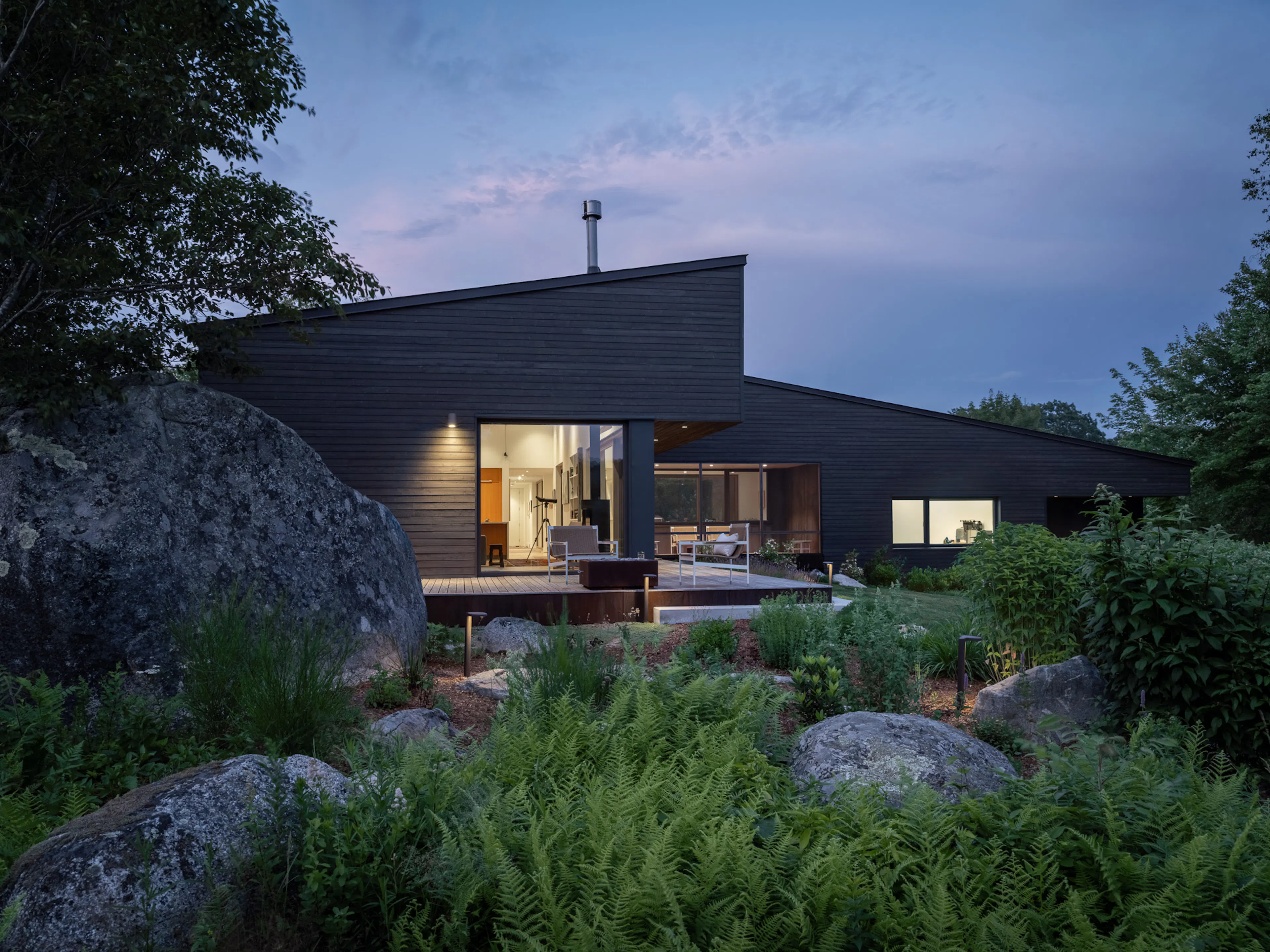

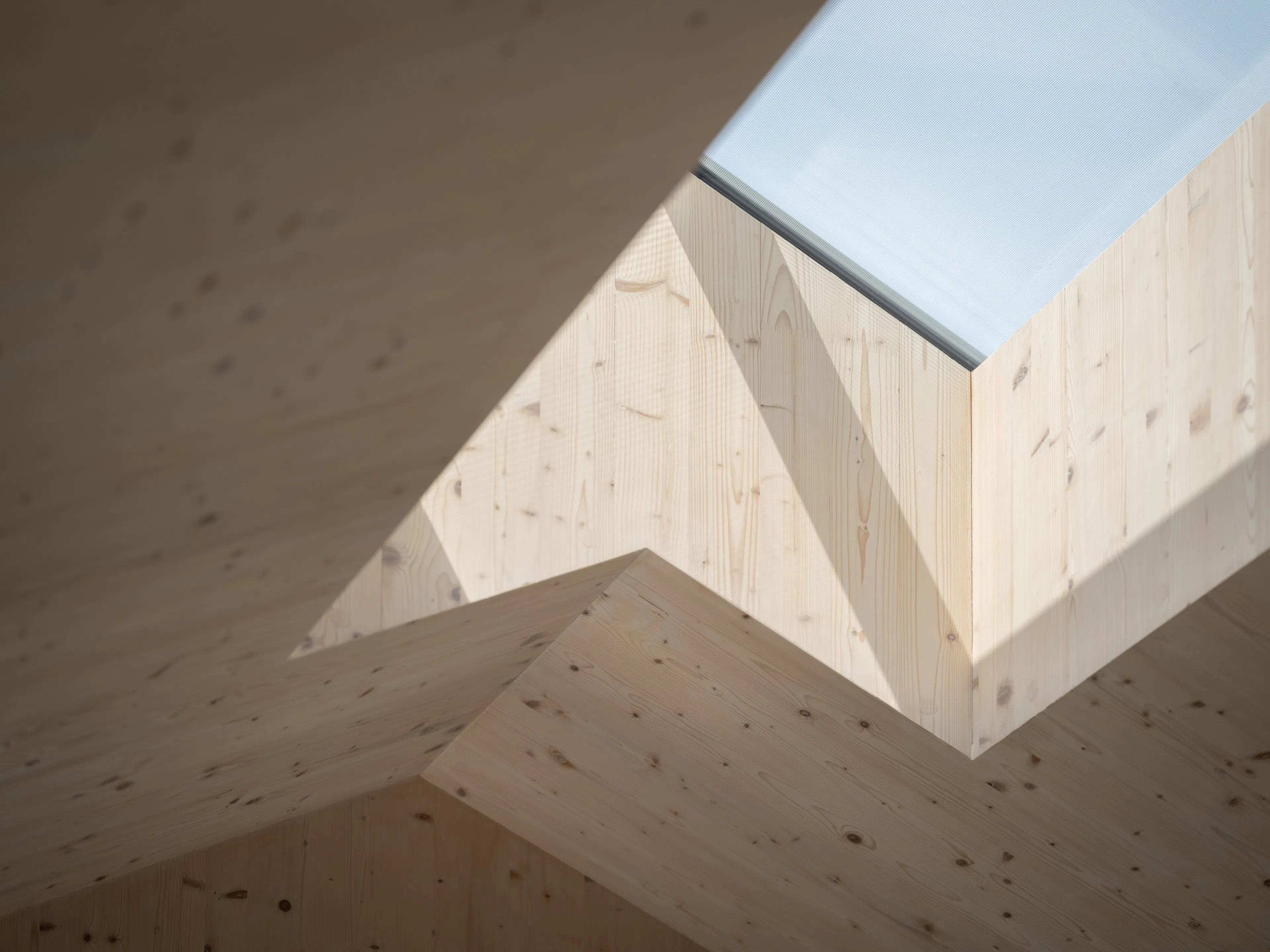

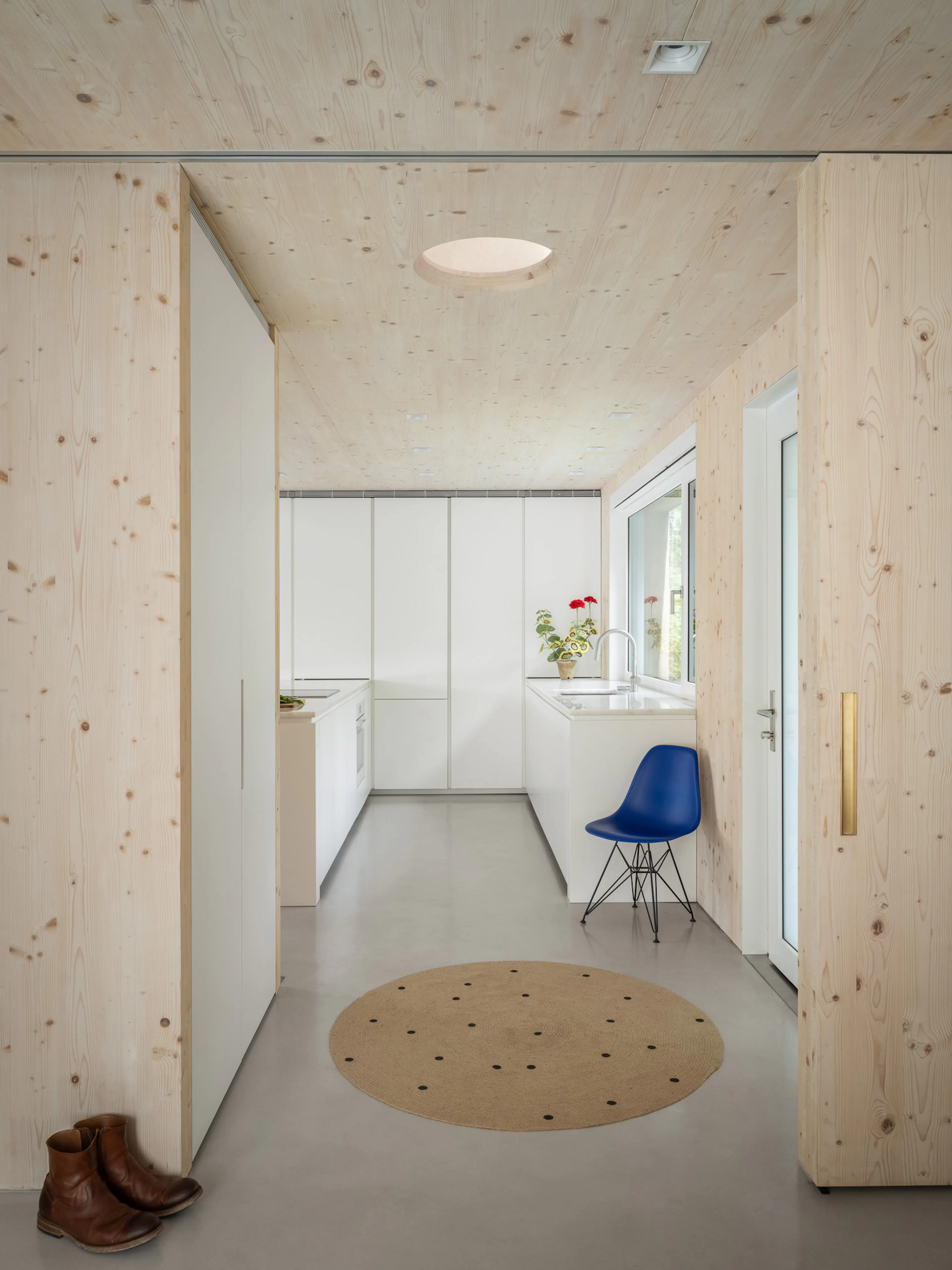

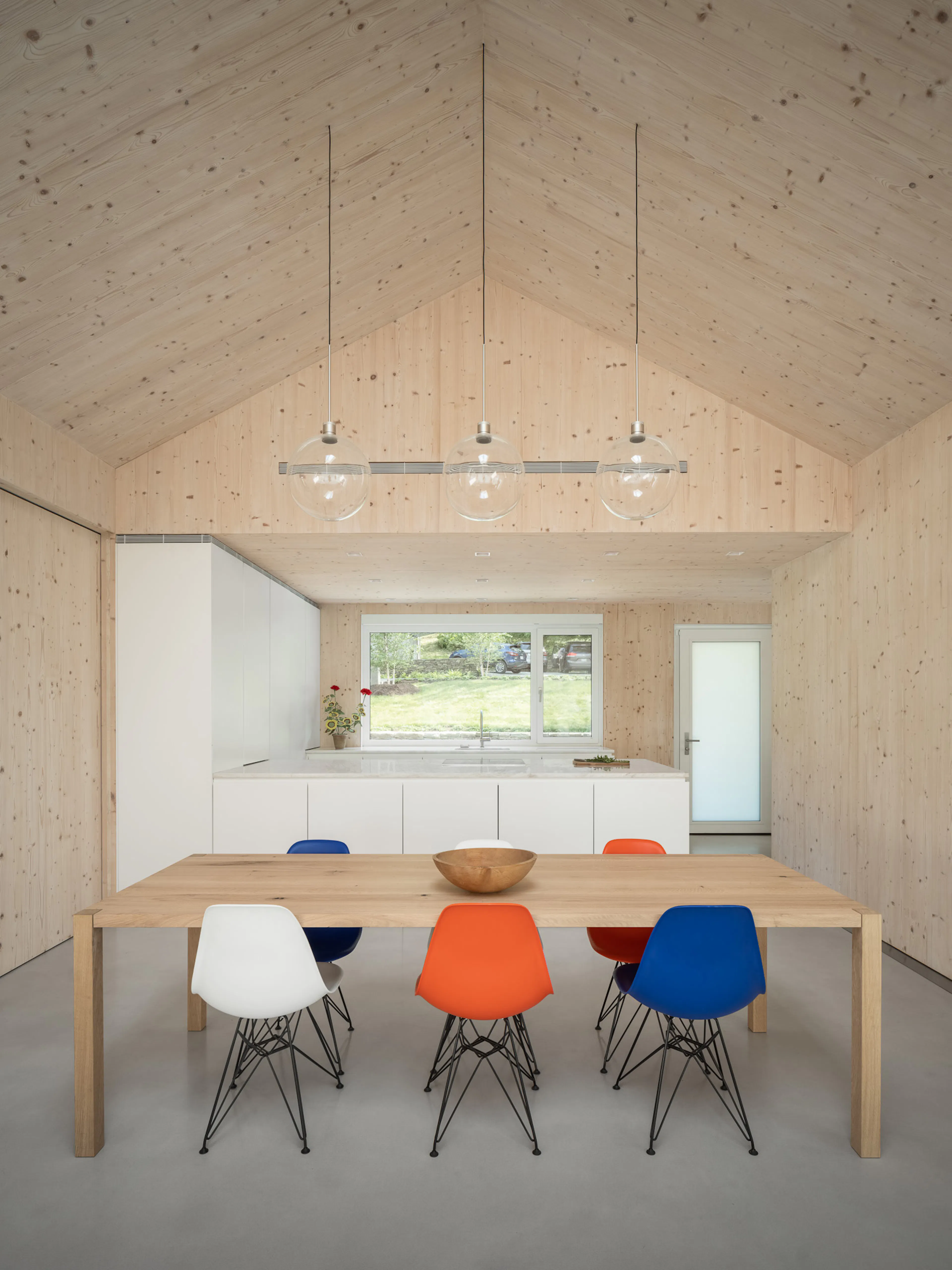

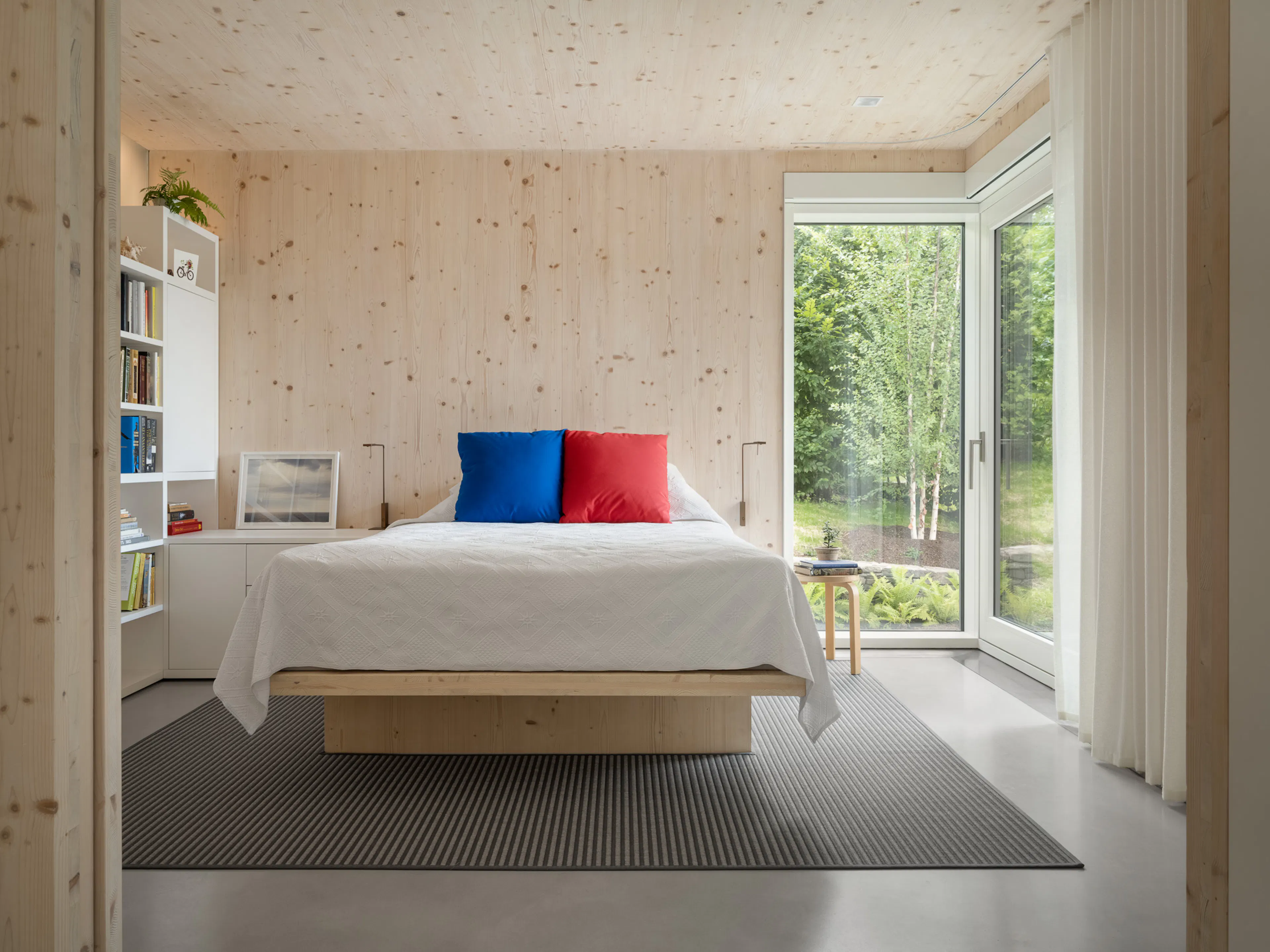

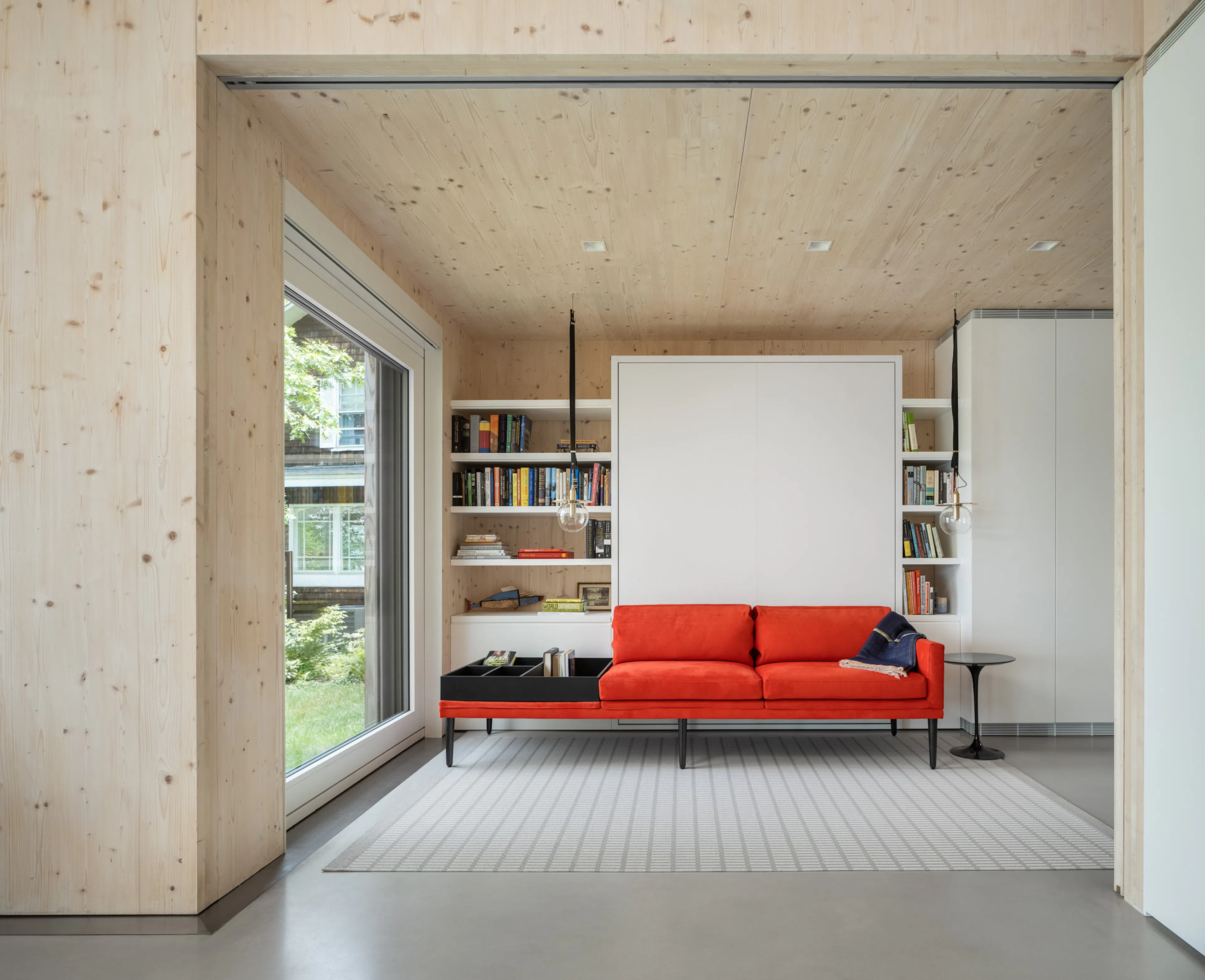

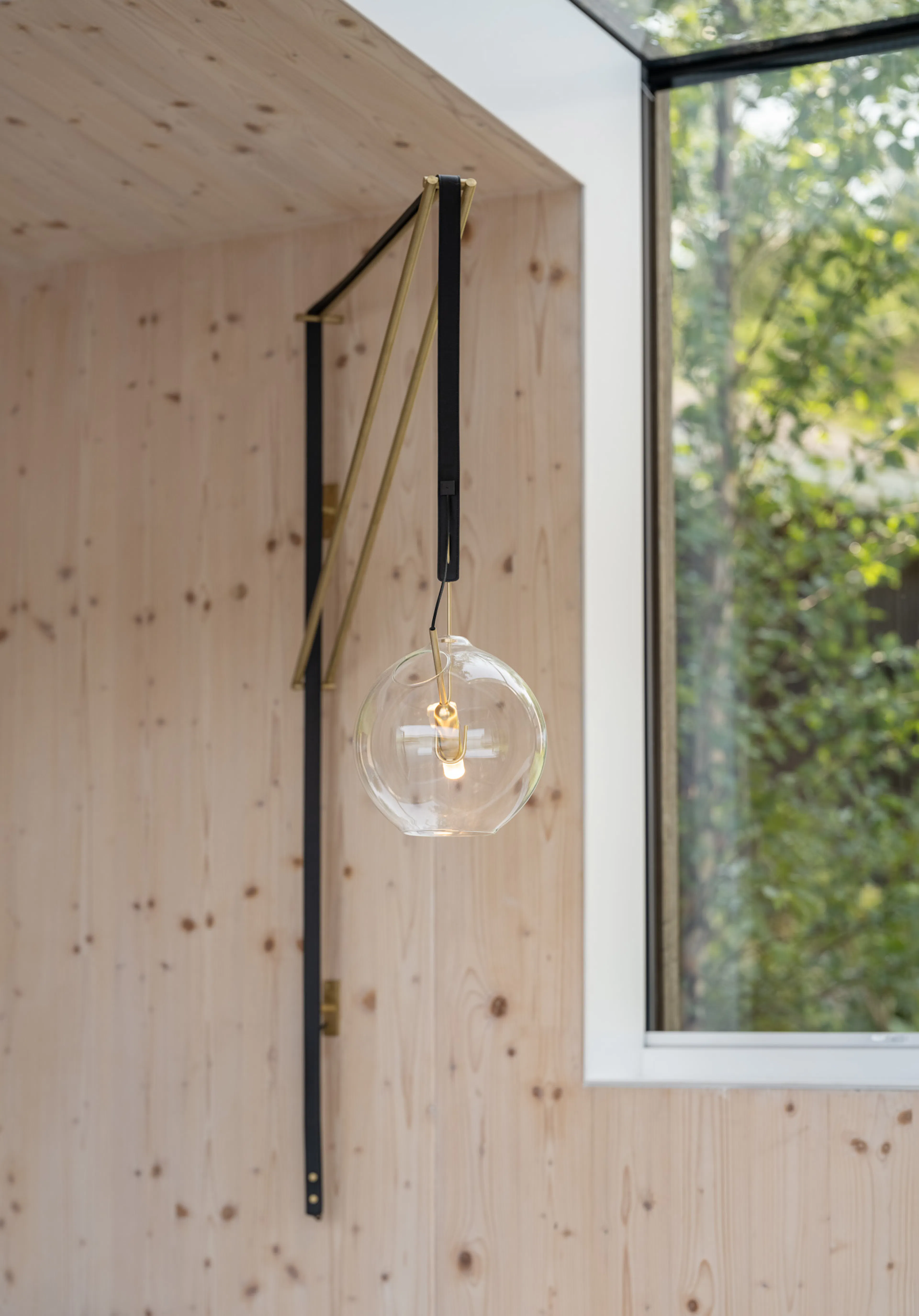

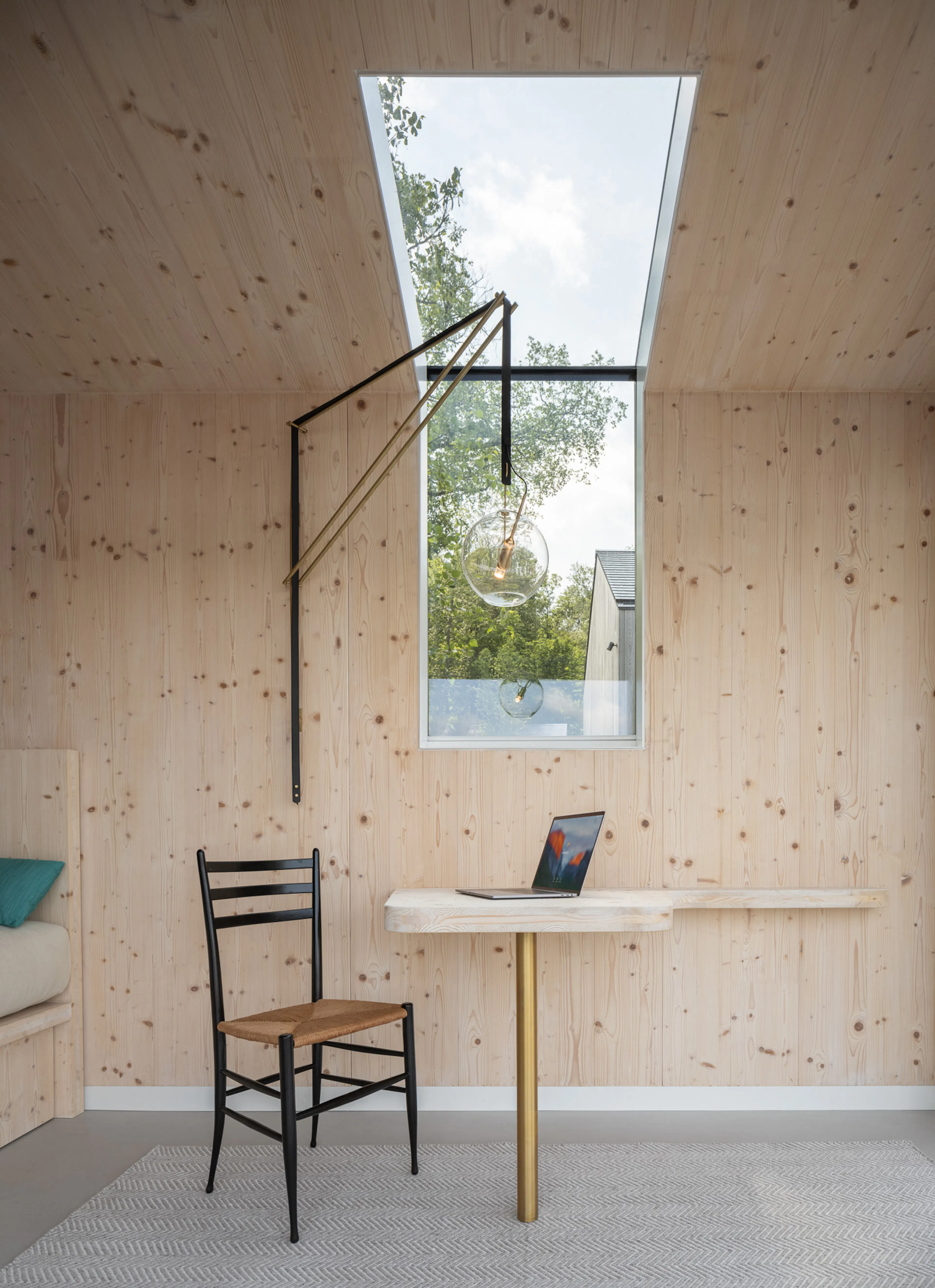

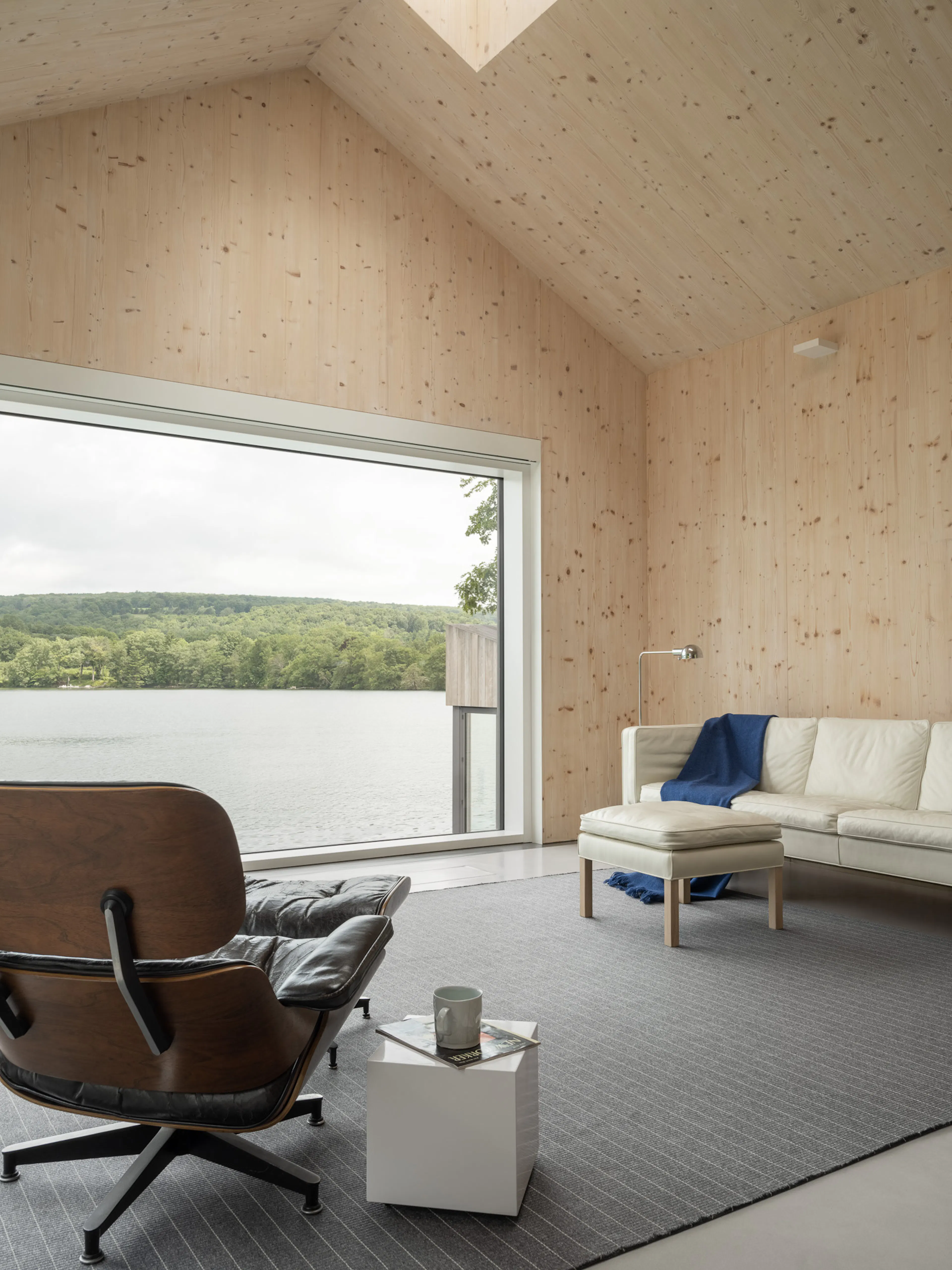

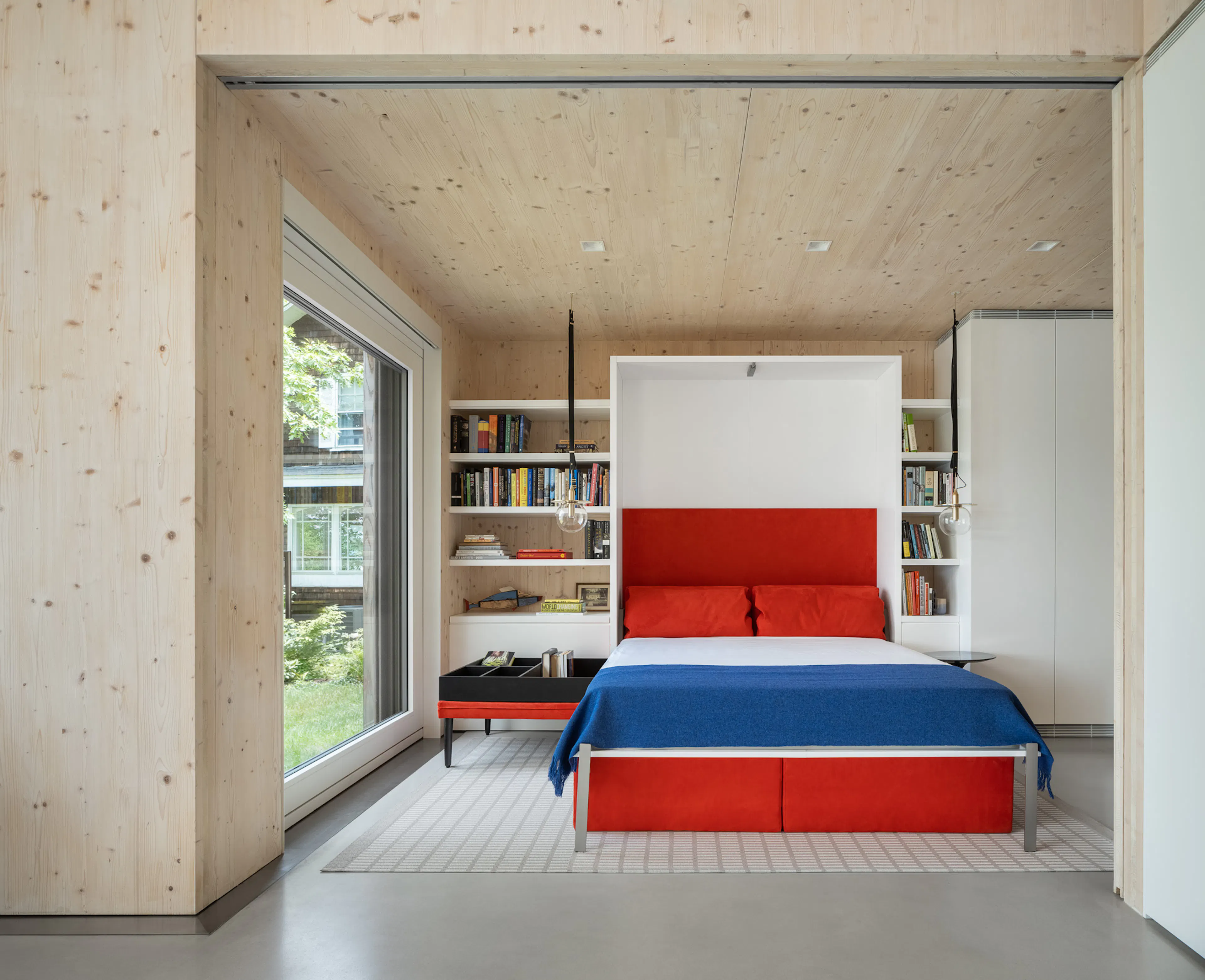

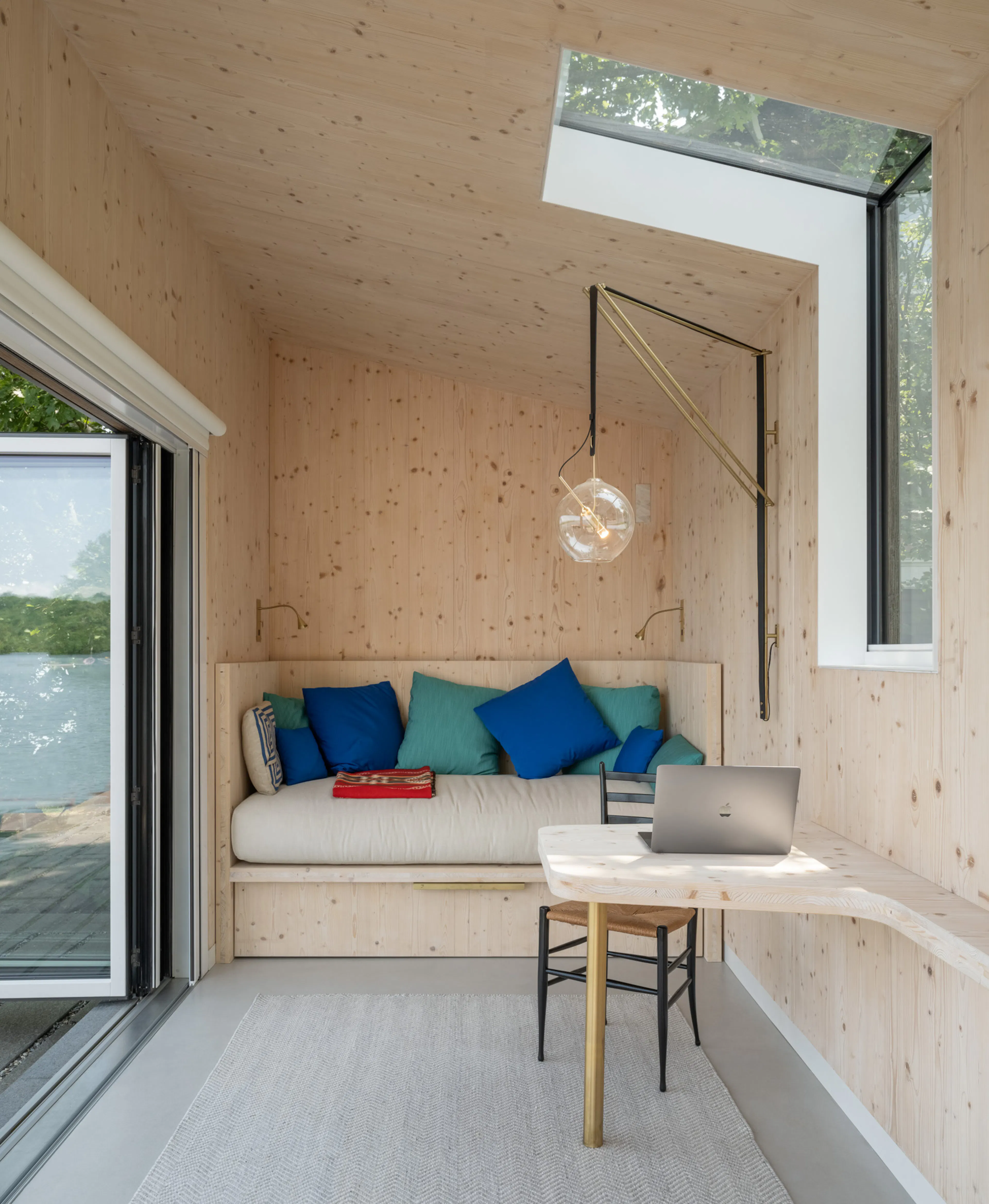

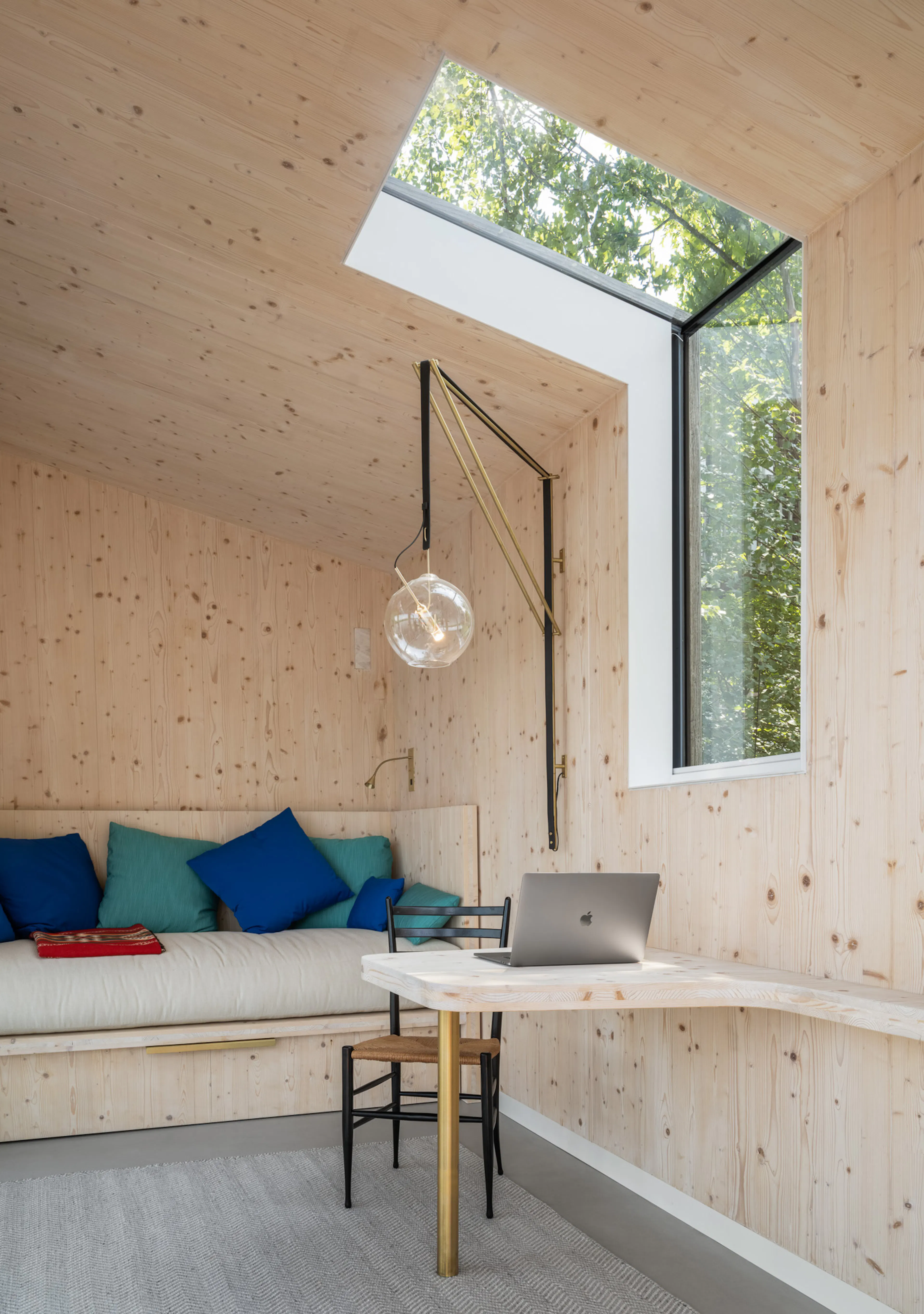

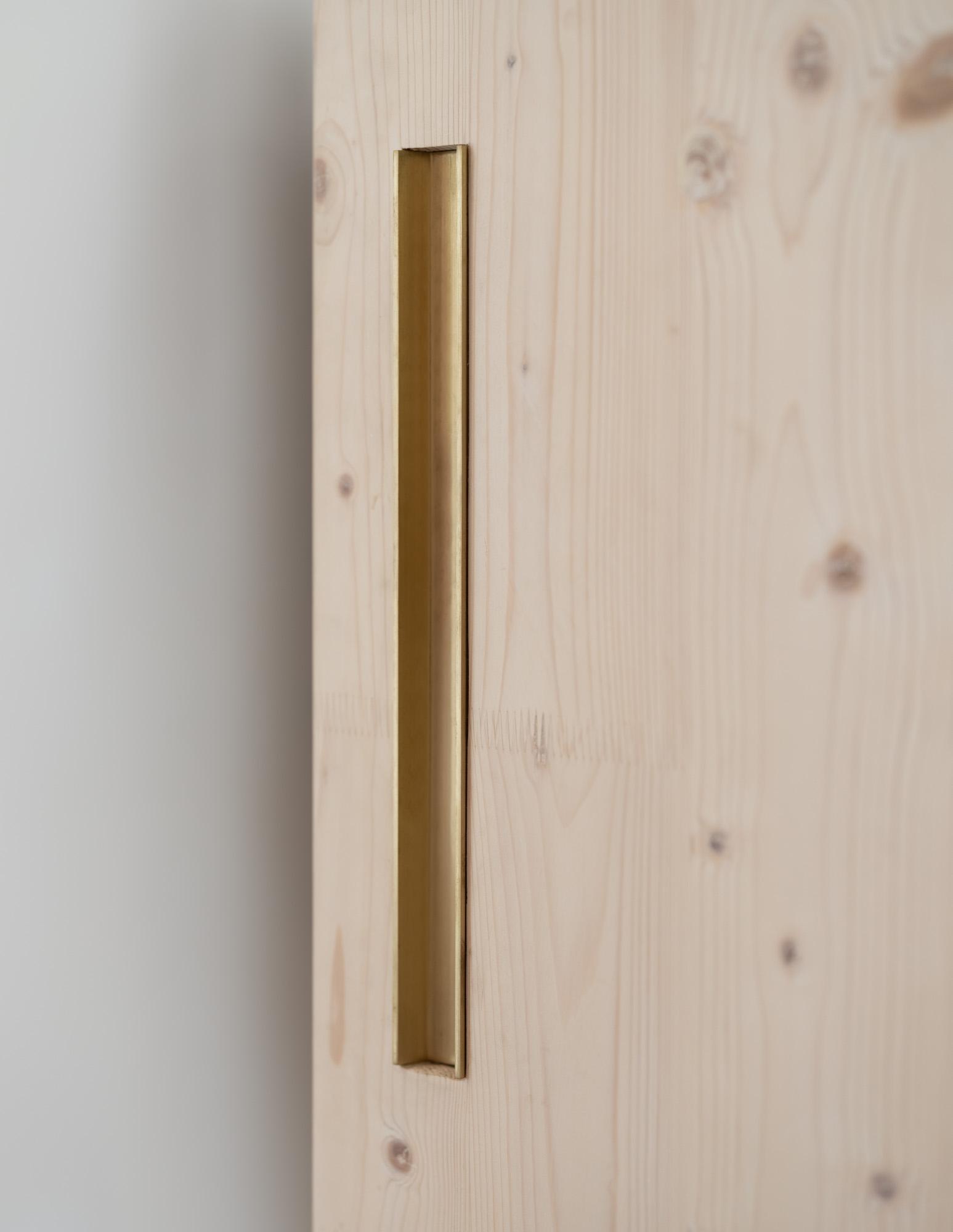

Two super-efficient private spaces—a primary bedroom suite and a study/guest room with a second bath—spread out to the west and east, respectively. A stepped façade gives every major space a view of the lake. The house’s complex geometry presented a challenging test case for CLT construction, but careful detailing allowed us to specify prefabricated, solid-lumber panels for the building’s structural walls, ceilings, and roof. Left exposed on the interior, the panels also constitute the finish surfaces at the walls and ceilings.

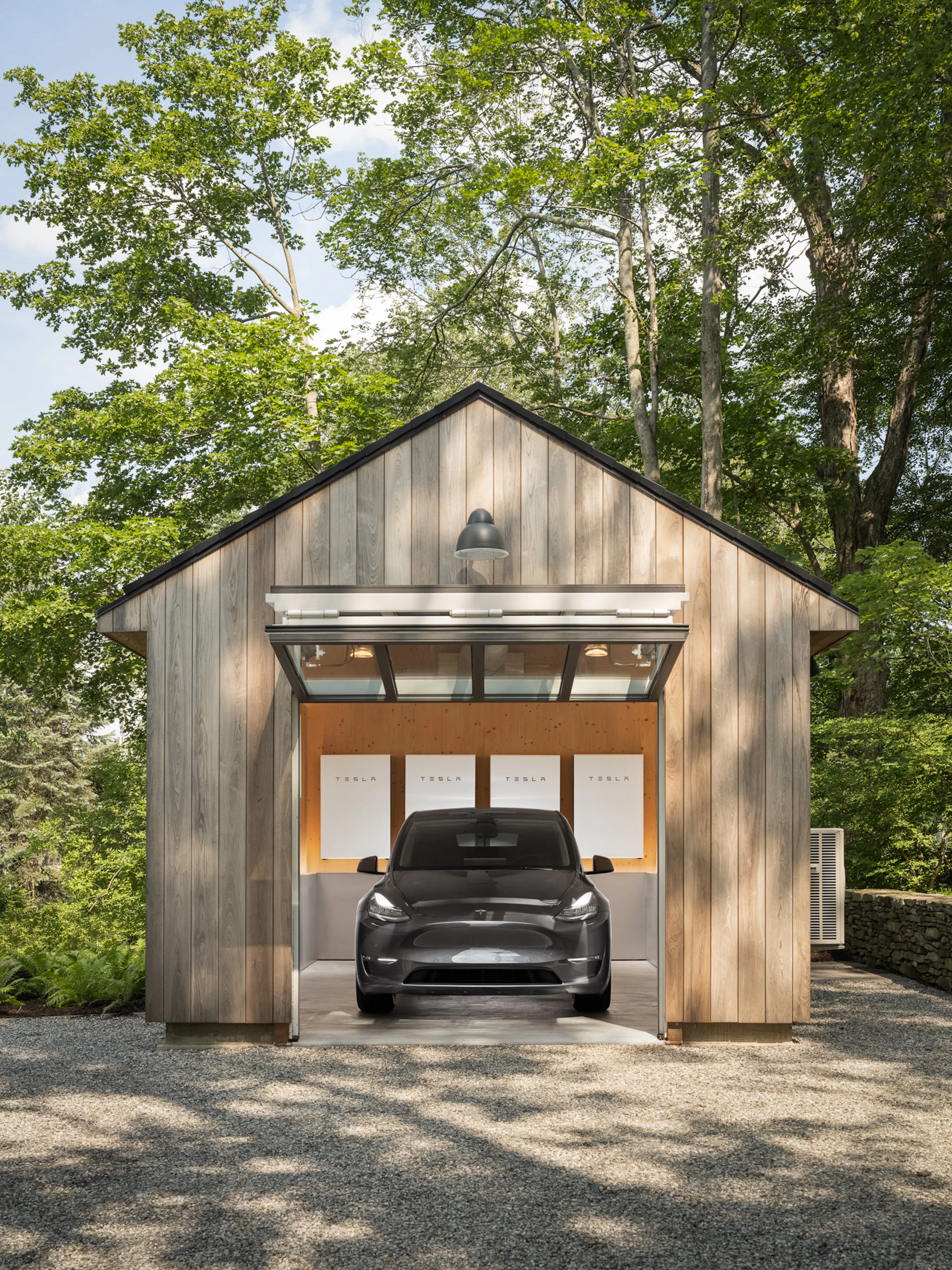

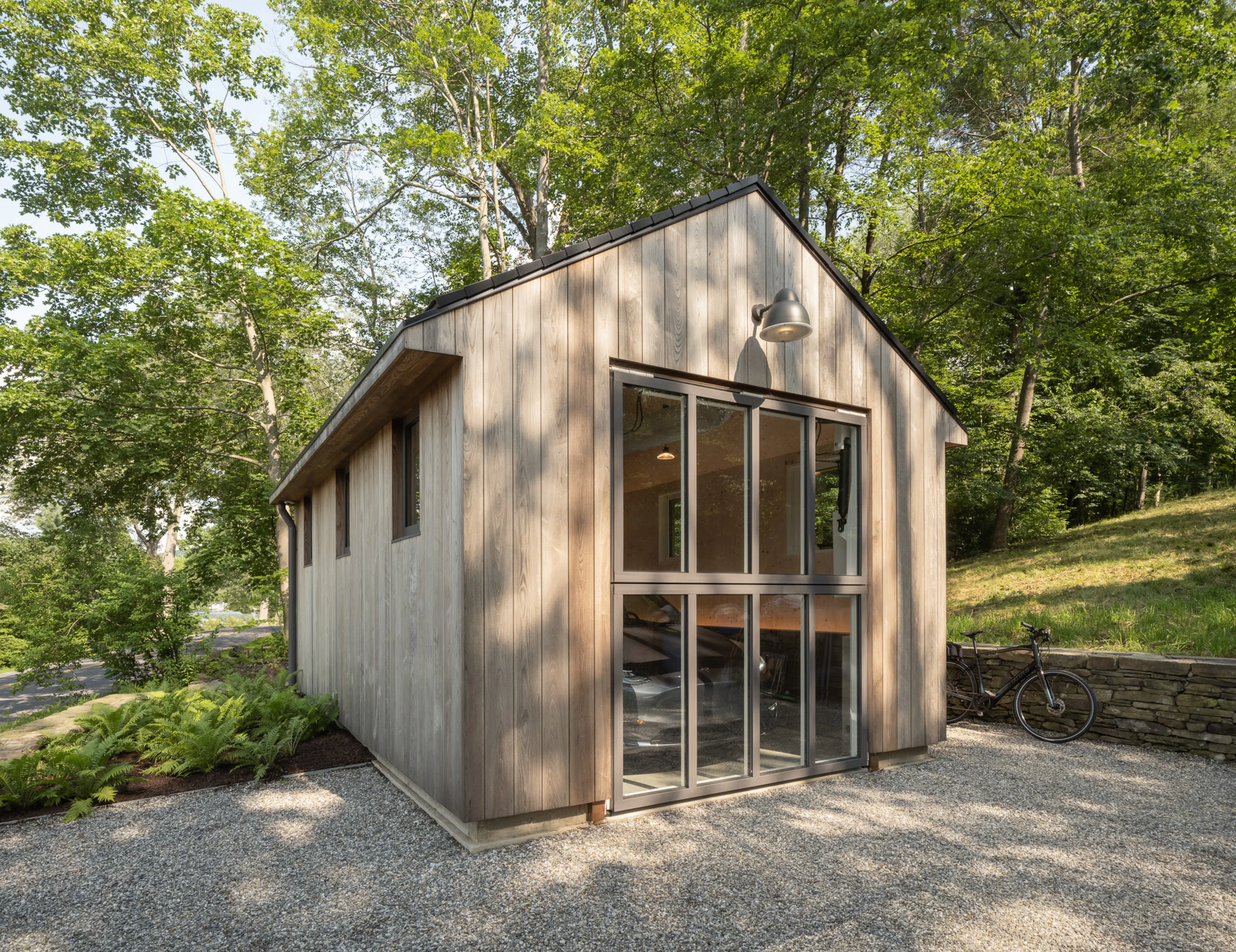

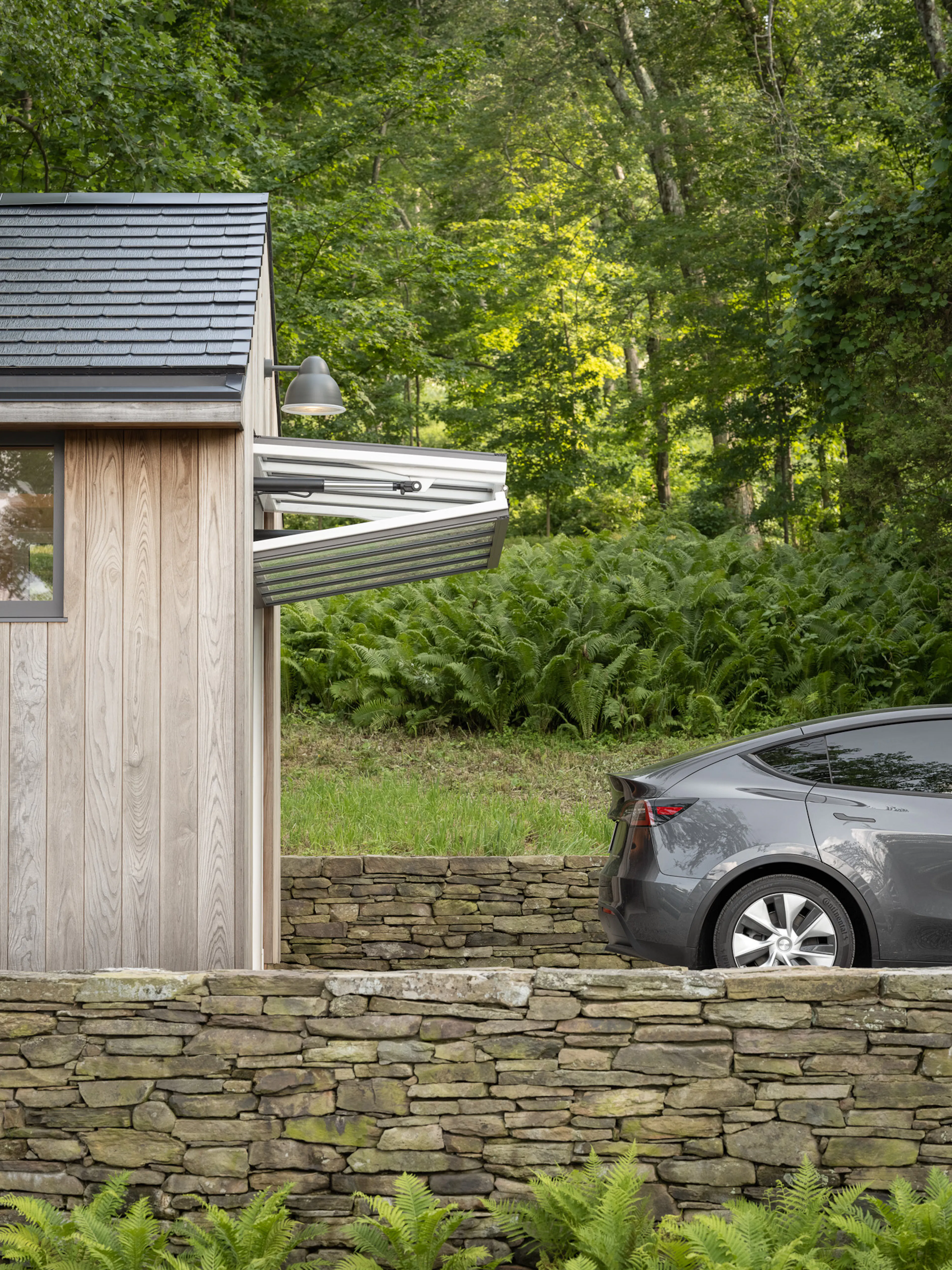

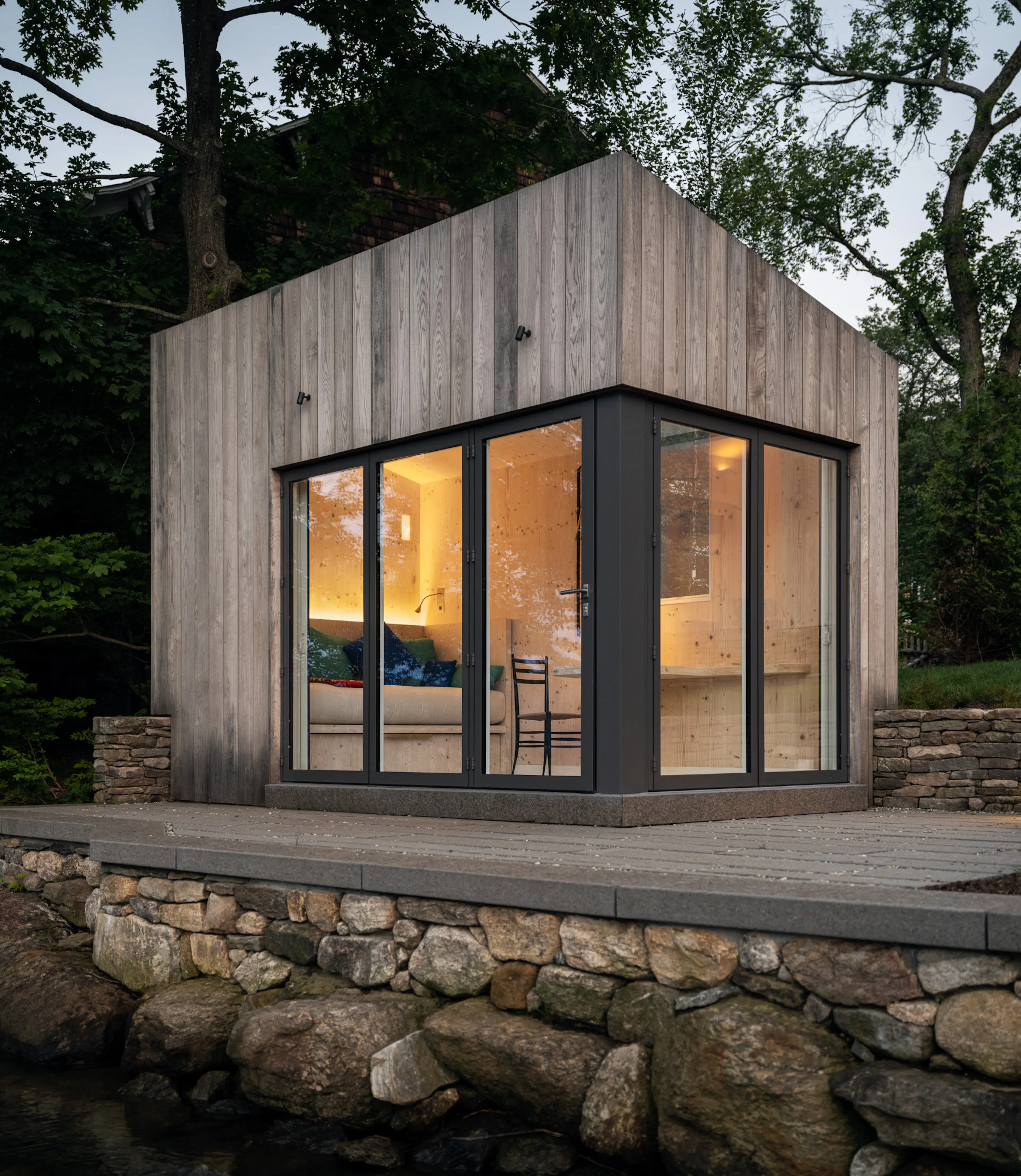

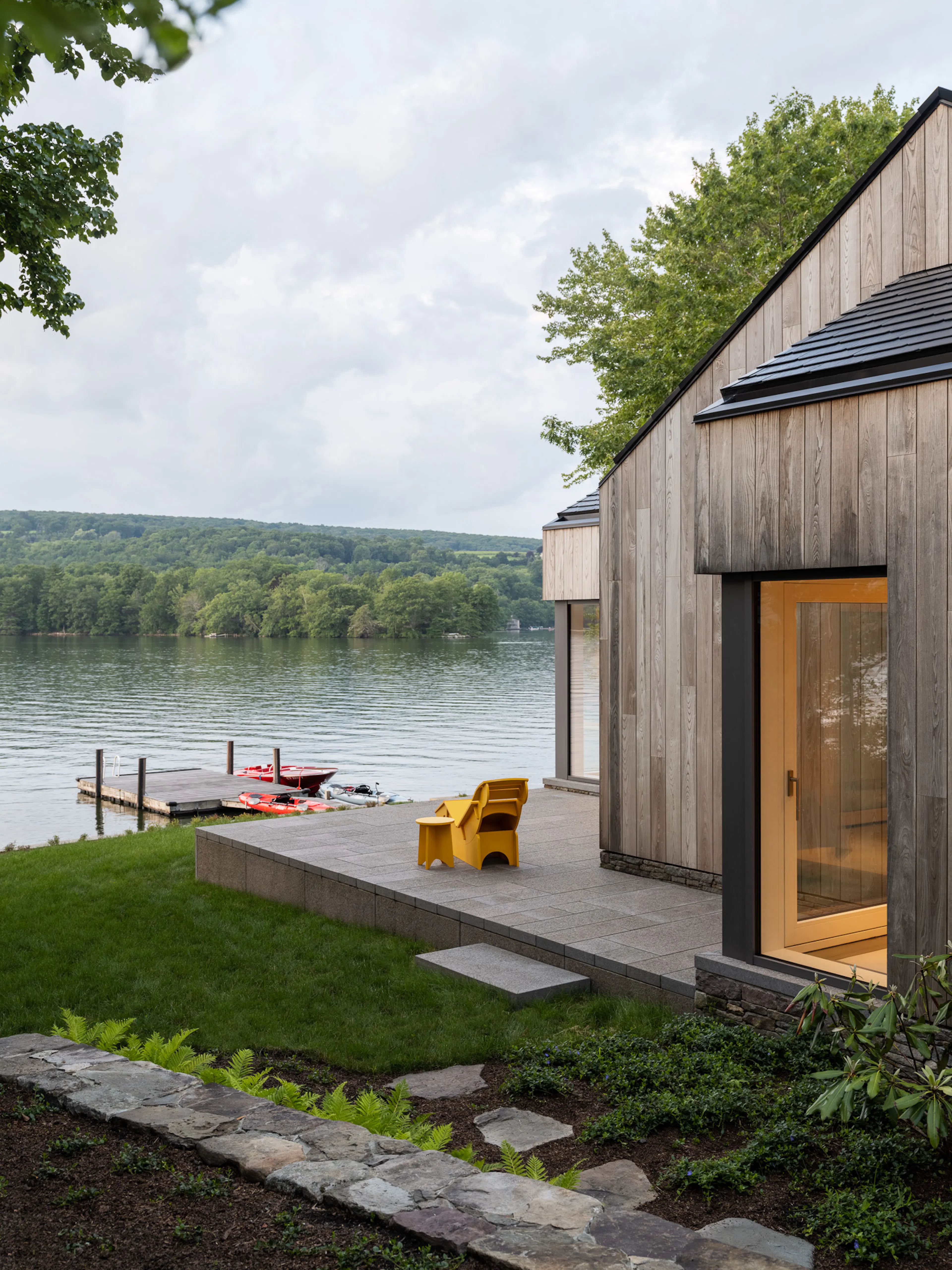

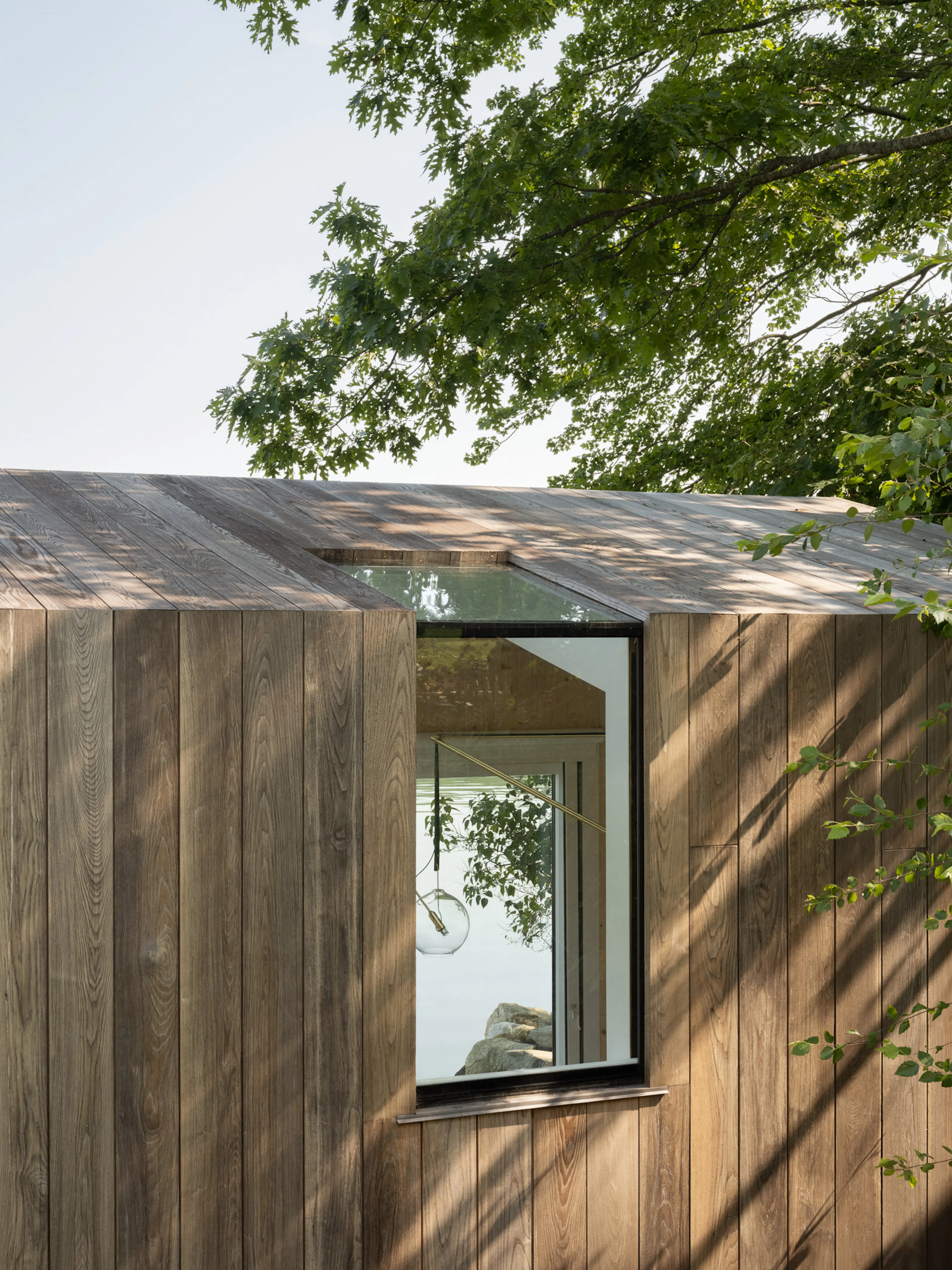

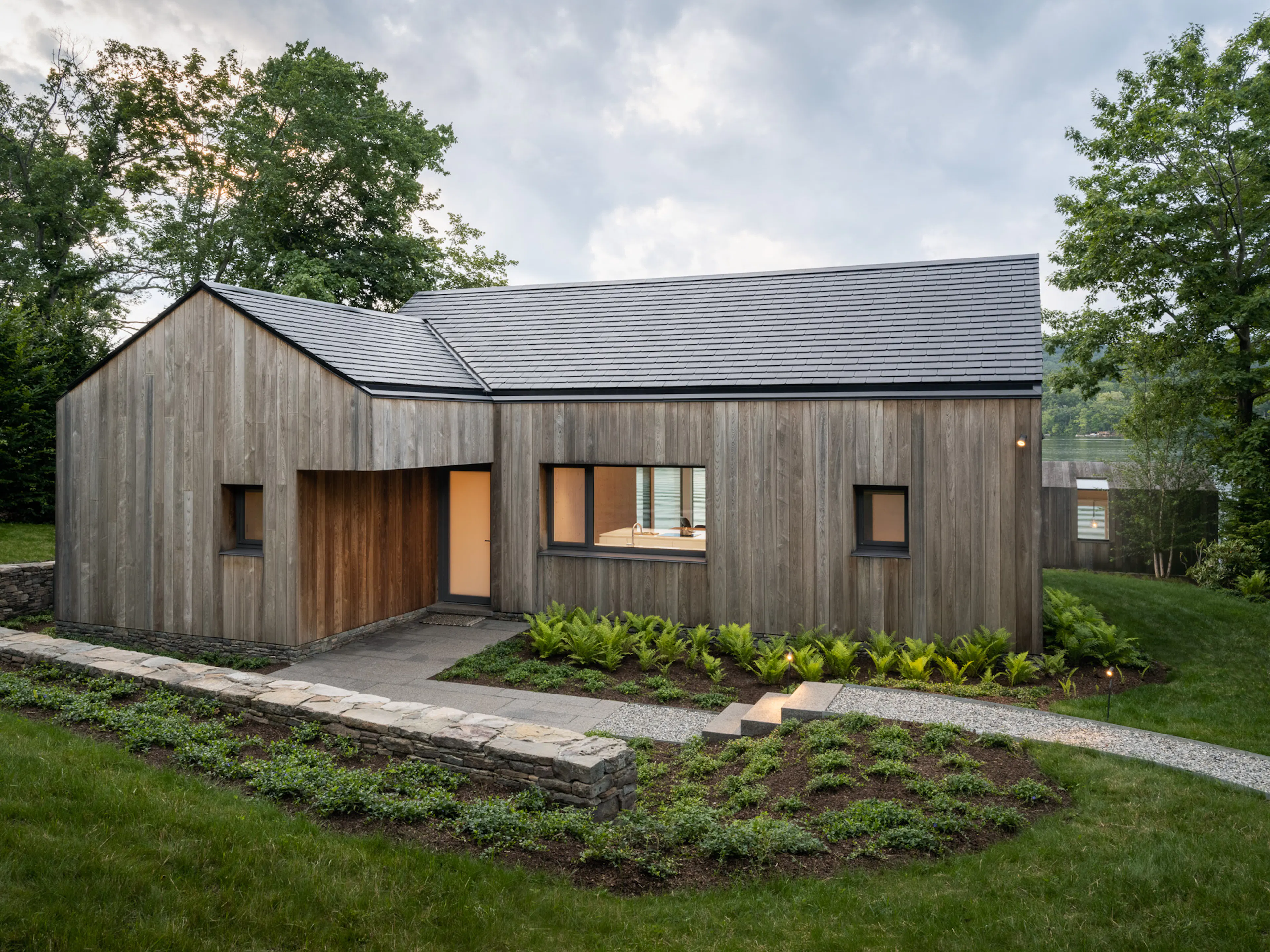

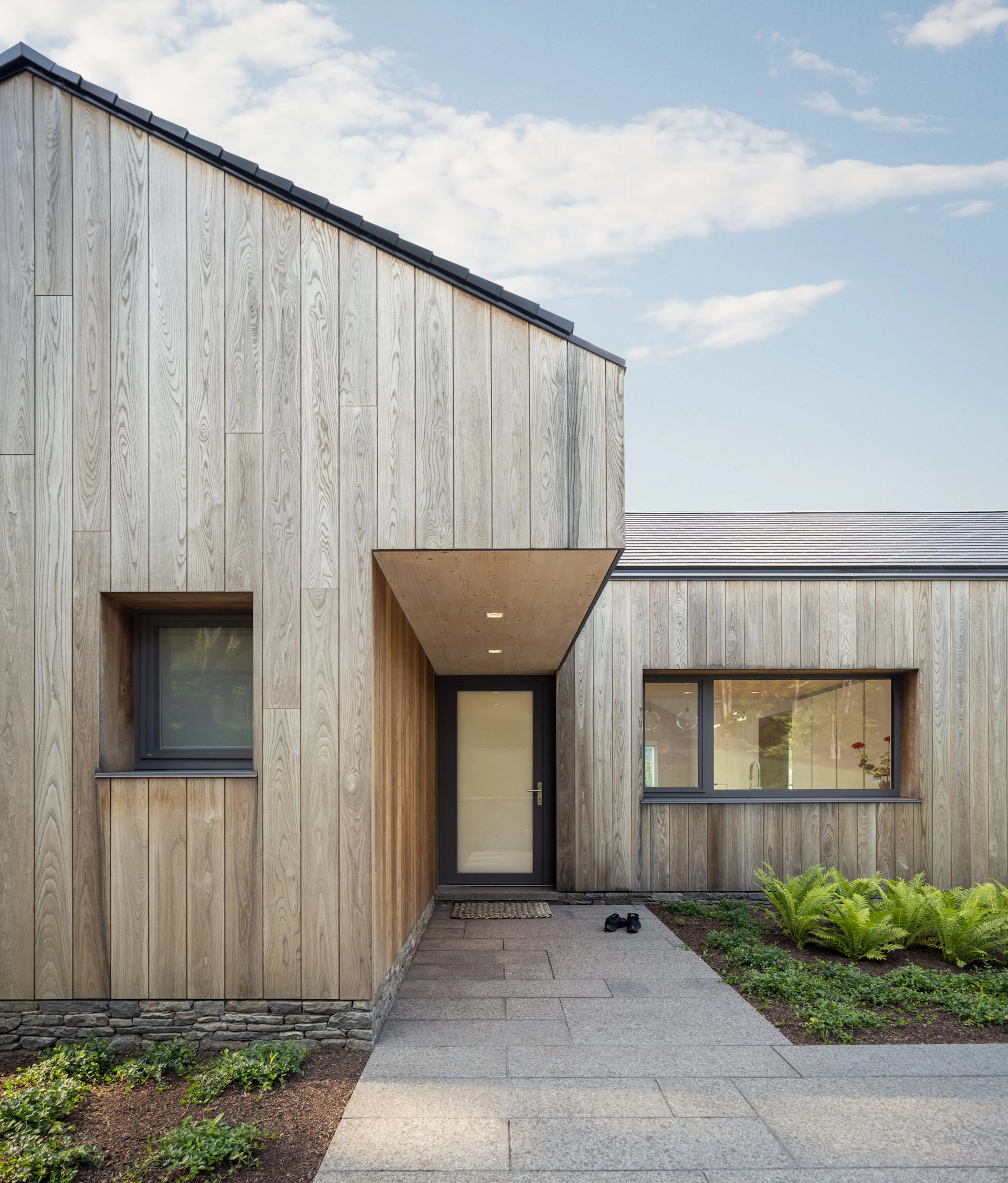

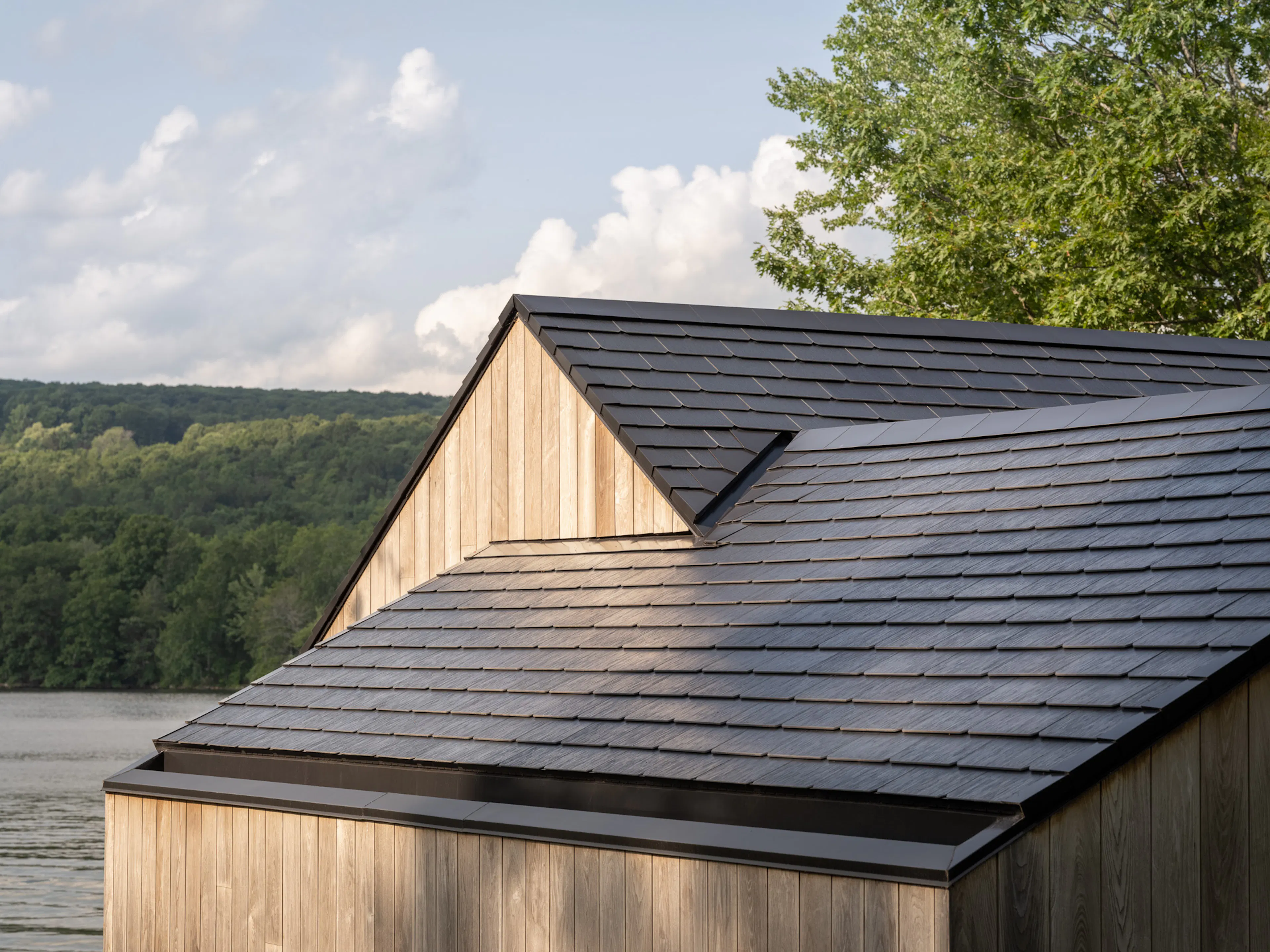

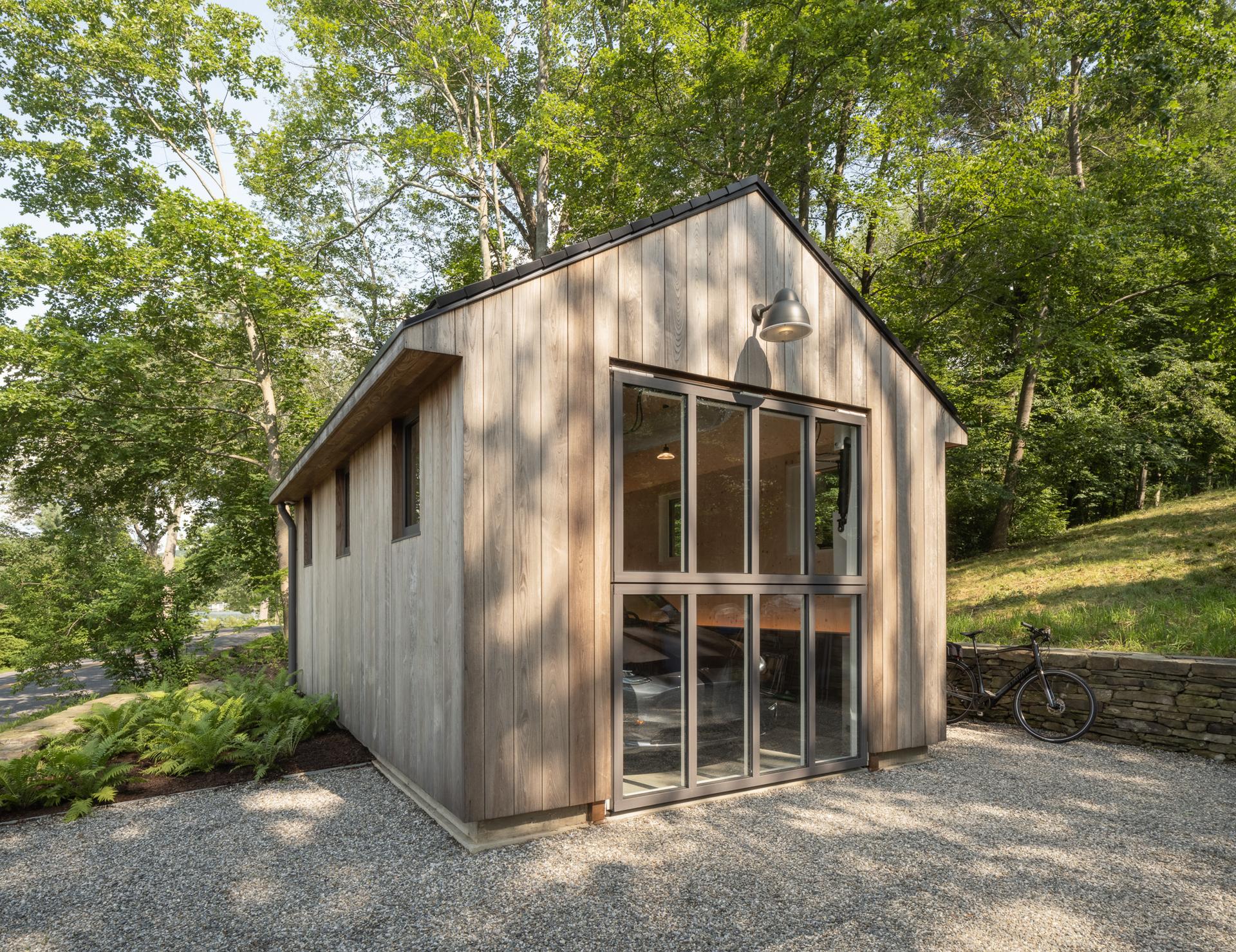

This solid CLT building shell is encased with rigid wood fiber insulation boards—yielding a Passive House level of energy efficiency—and sheathed in prefinished ash siding and exterior trim. Because the shell has no conventional stud or rafter cavities, utility runs were affixed to the exterior of the CLT panels and the insulation boards carved and fitted around them. To minimize dependency on the power grid, the project incorporates Tesla’s Solar Roof and Powerwall technology to generate and store electricity.
