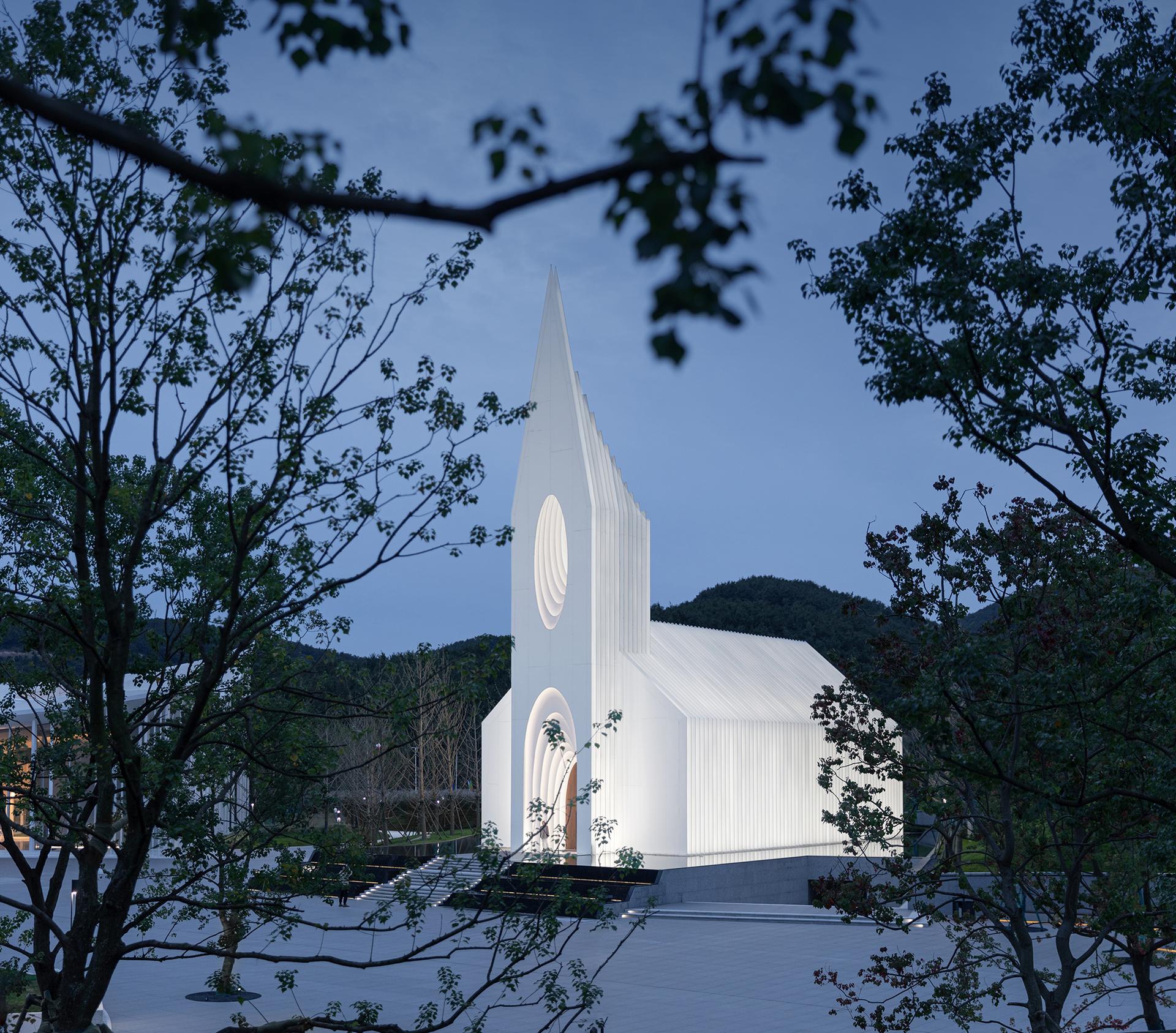

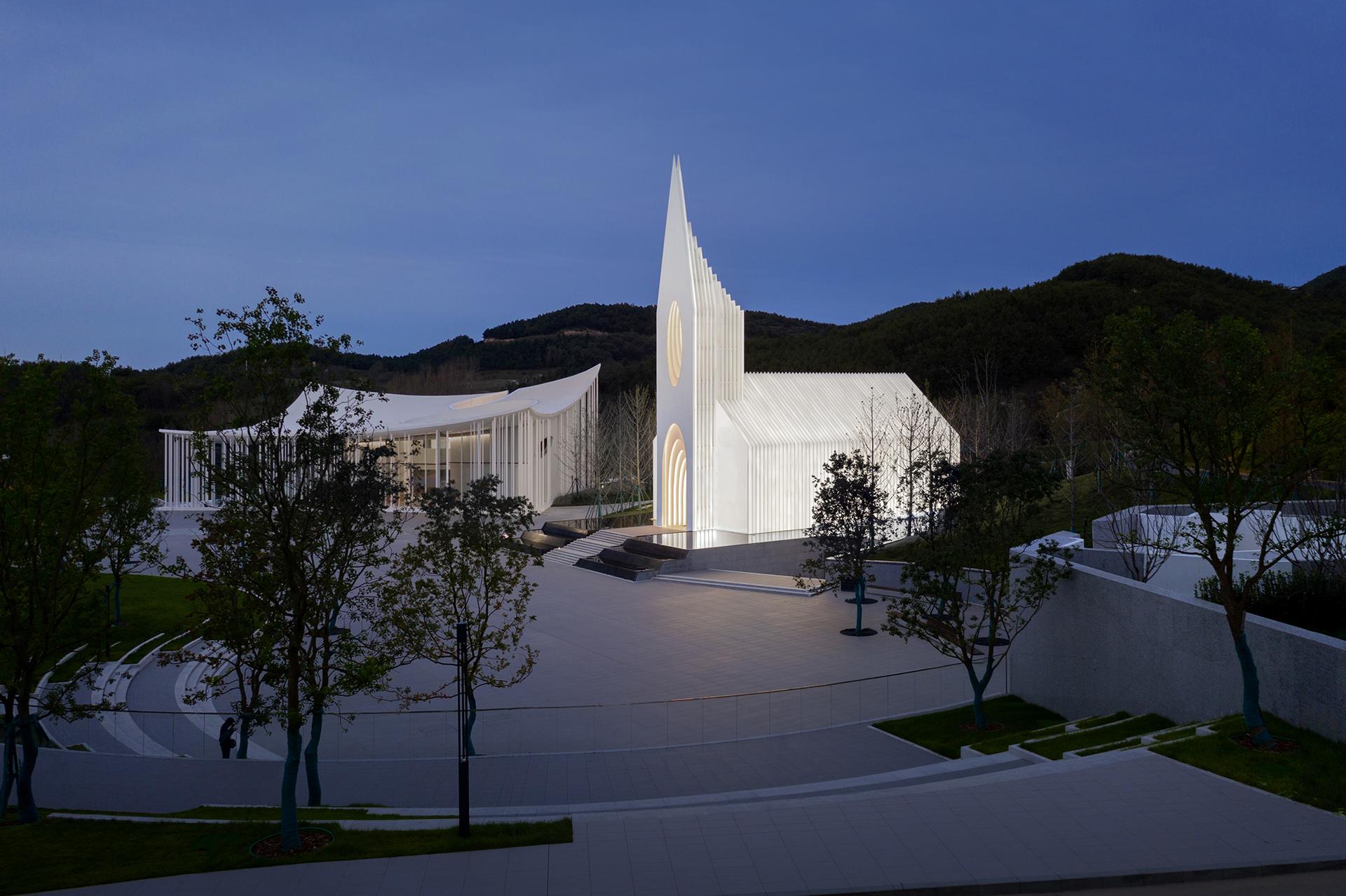

The light on the spire of the bell tower of the chapel is the brightest. This is a highlight of sacred temperament, showing the direction of building to divinity. We conducted many rounds of lighting tests on site to confirm the most appropriate position of the floodlight. Floodlights project from both sides of the building, so that the light spot formed on the building surface will be more uniform. As the height of the illuminated surface is high, we chose a lamp with a power of 300W and an angle of 8° angle for light displaying.

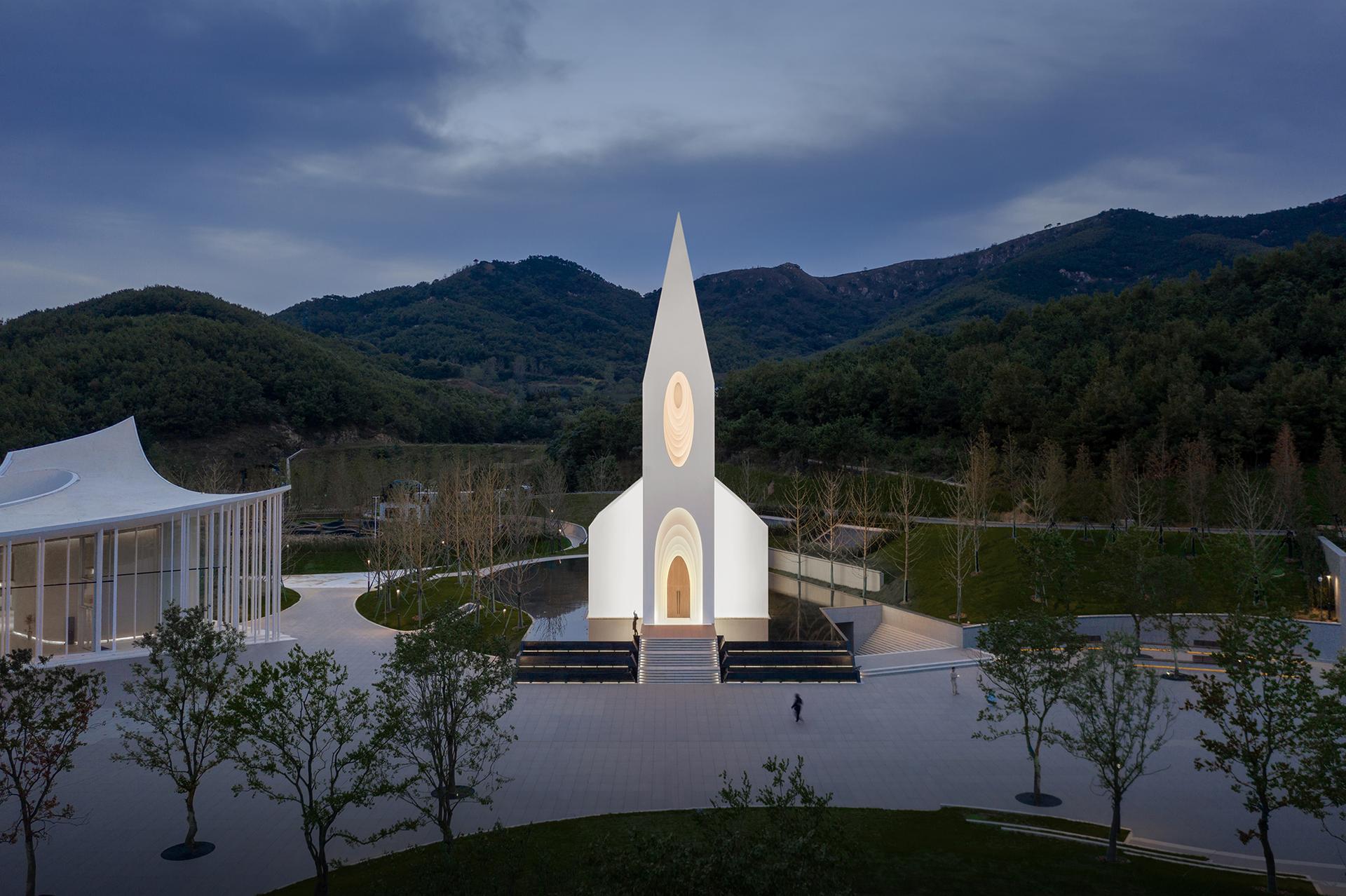

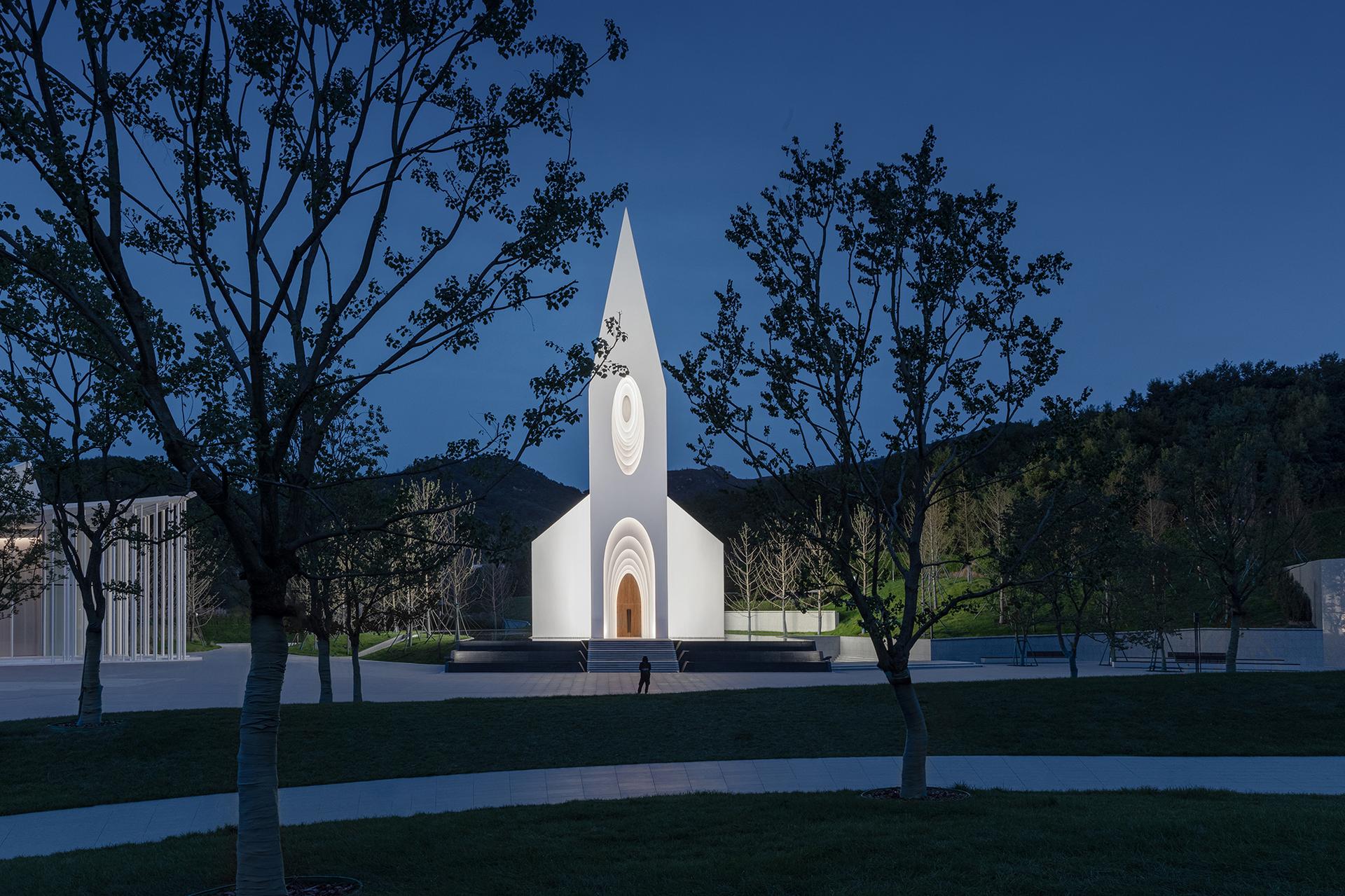

The installation of the lamps is close to the human, so we installed anti-glare honeycomb nets on the lamps, which greatly reduces the glare effect of lights on pedestrians. We chose warm yellow to describe the entrance of the chapel that people pass by, and the "hole" on the spire of the chapel's bell tower. The reason why the warm color temperature is chosen is to make the building look "warmer", to increase people's sense of security, and to make the light of the building richer with more layers.

We used linear light sources to conceal the “slices” of the lamps, so that while the light is evenly sprinkled on the “slices”, the lamps are not seen, achieving the effect of “seeing the light but not the lamps”. For the lamps here, we chose neon strips with silicone sleeves, the power is 10W/m, and the light-emitting surface emits light evenly, which can hide the lamp beads to the greatest extent. The lamps are set between the divided "slices", and the appropriate lamp power and angle will illuminate each layer of the board.

During the day, natural light enters the building through the gaps of these "slices", and when night falls, artificial light still starts here. We chose 4000K white light to express its purity and tranquility. To hide the lamps, we chose the underground lamps. The space scale here is small and it is relatively close to people, so the underground lamps need to be in the form of deep tubes, and the surface needs to be added with anti-glare honeycomb mesh to weaken the glare through these double measures.

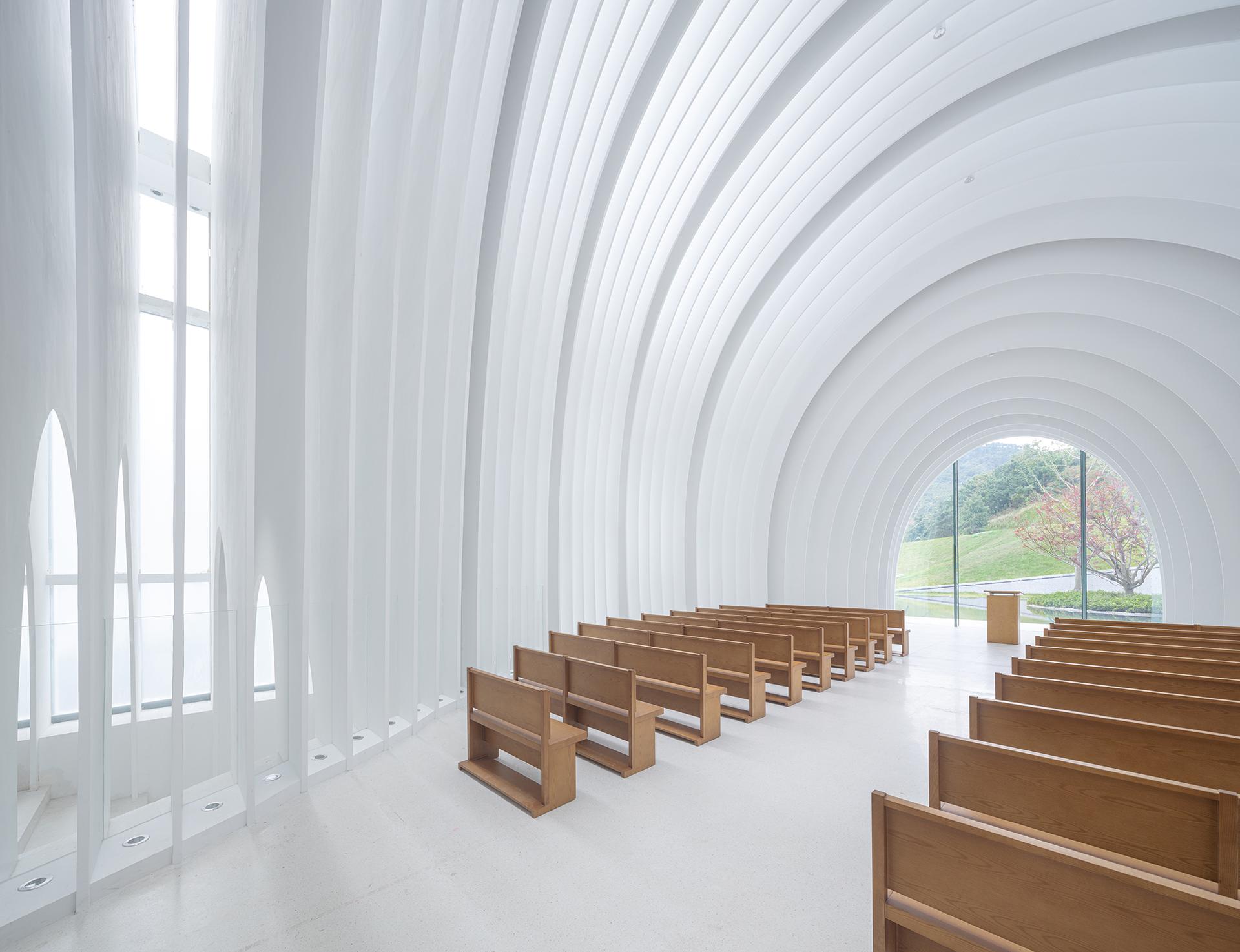

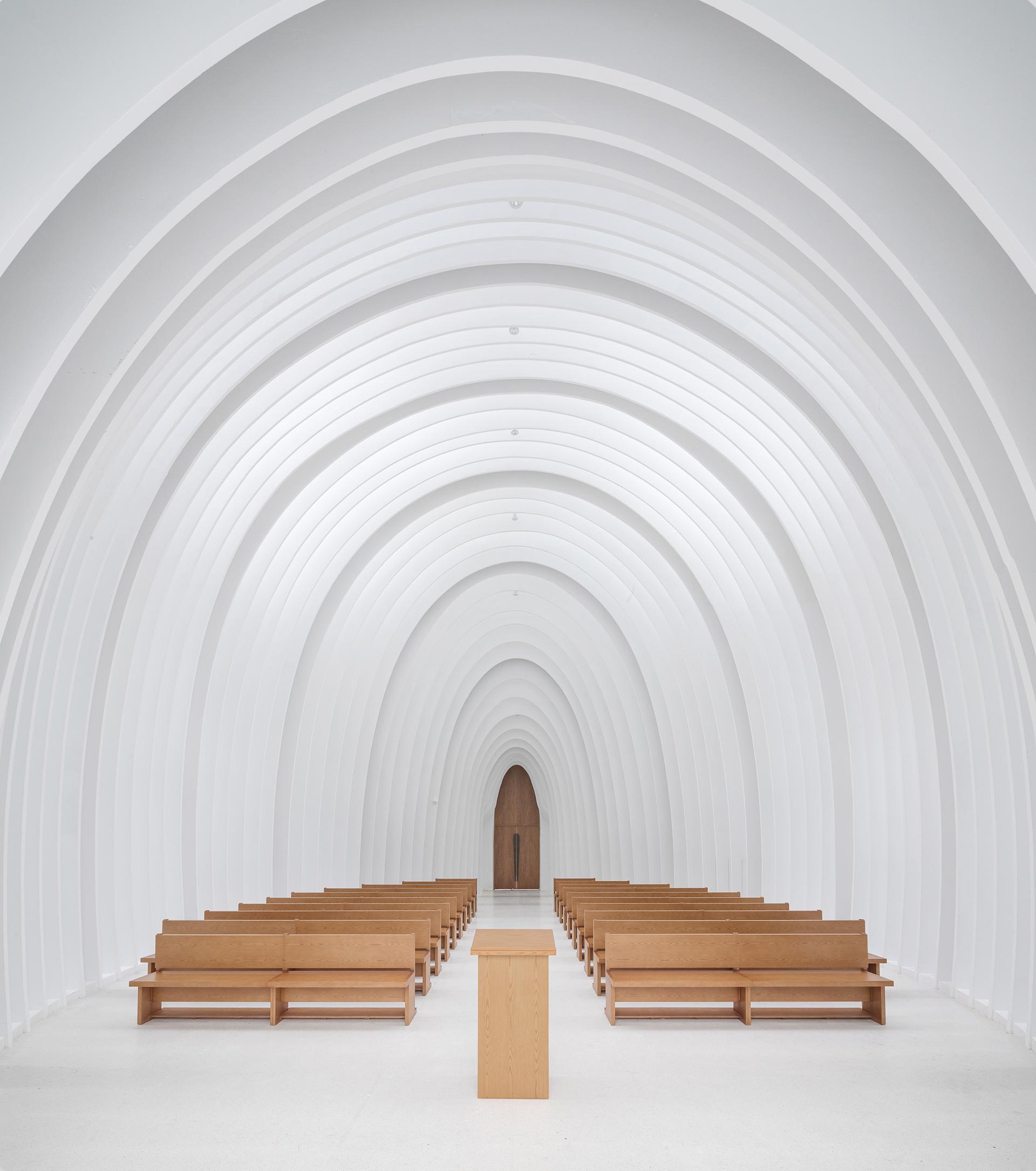

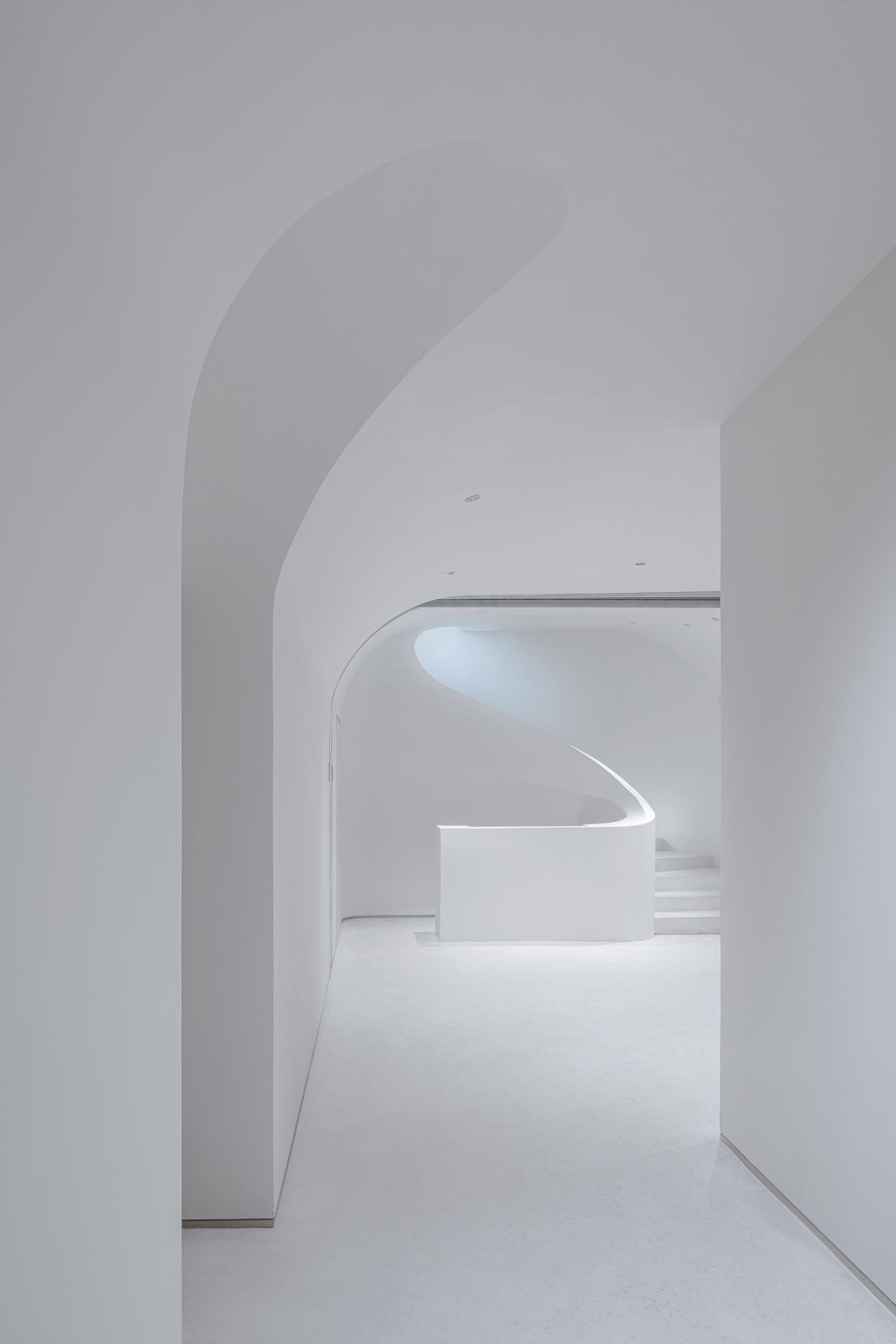

In order to express the "slice" as much as possible, and at the same time, to maintain the brightness not too high, we chose a lamp with a power of 12W and an angle of 10°. The interior of the chapel continues the curved shape. We simulate the illuminance relationship of the space through illuminance calculation. The arc shape in the space is warm and soft. We place the light at the turning point of the arc, so that the natural retreat of the light occurs naturally in the shape of the space. Since the installation surface is curved, ordinary downlights cannot meet the installation effect.

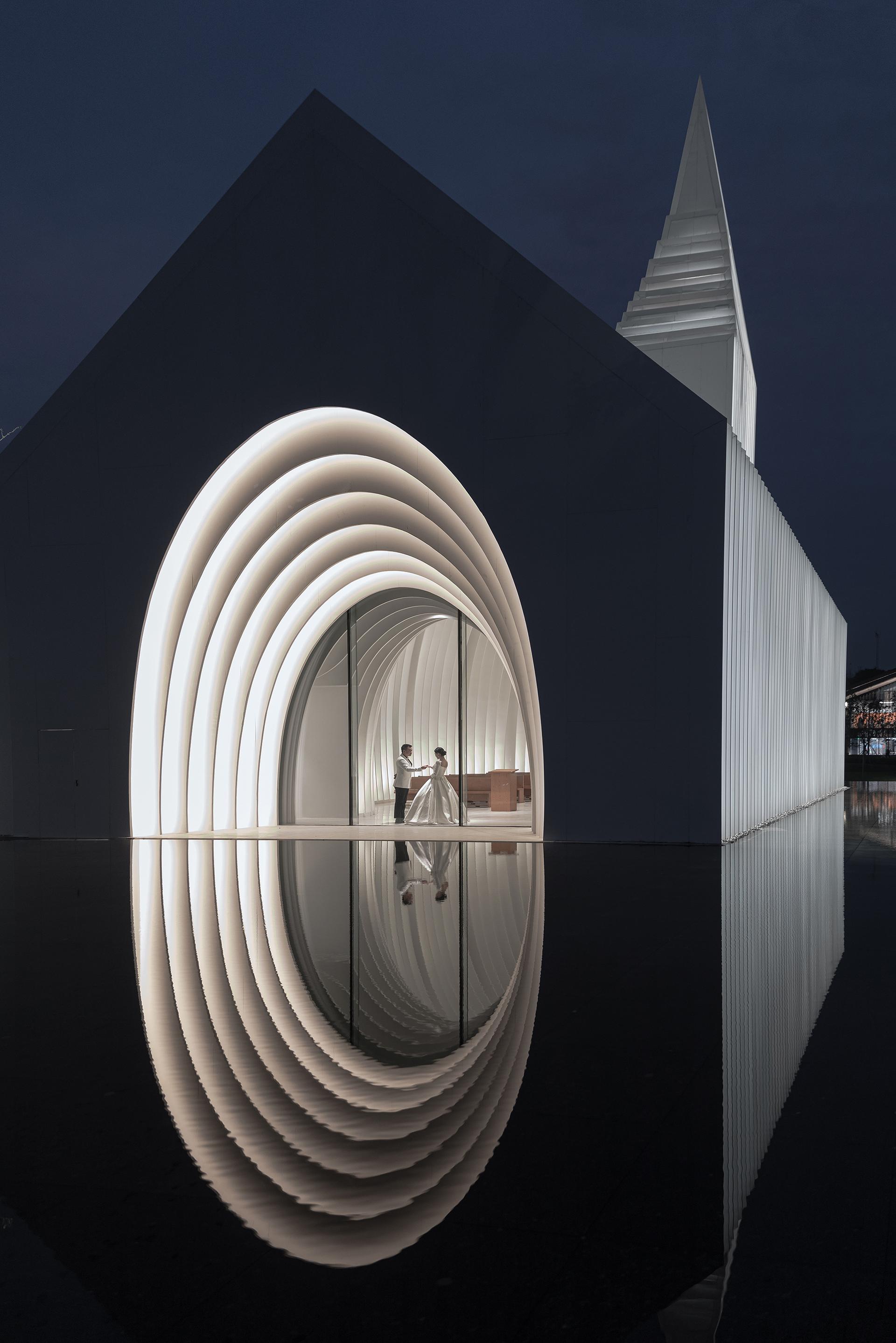

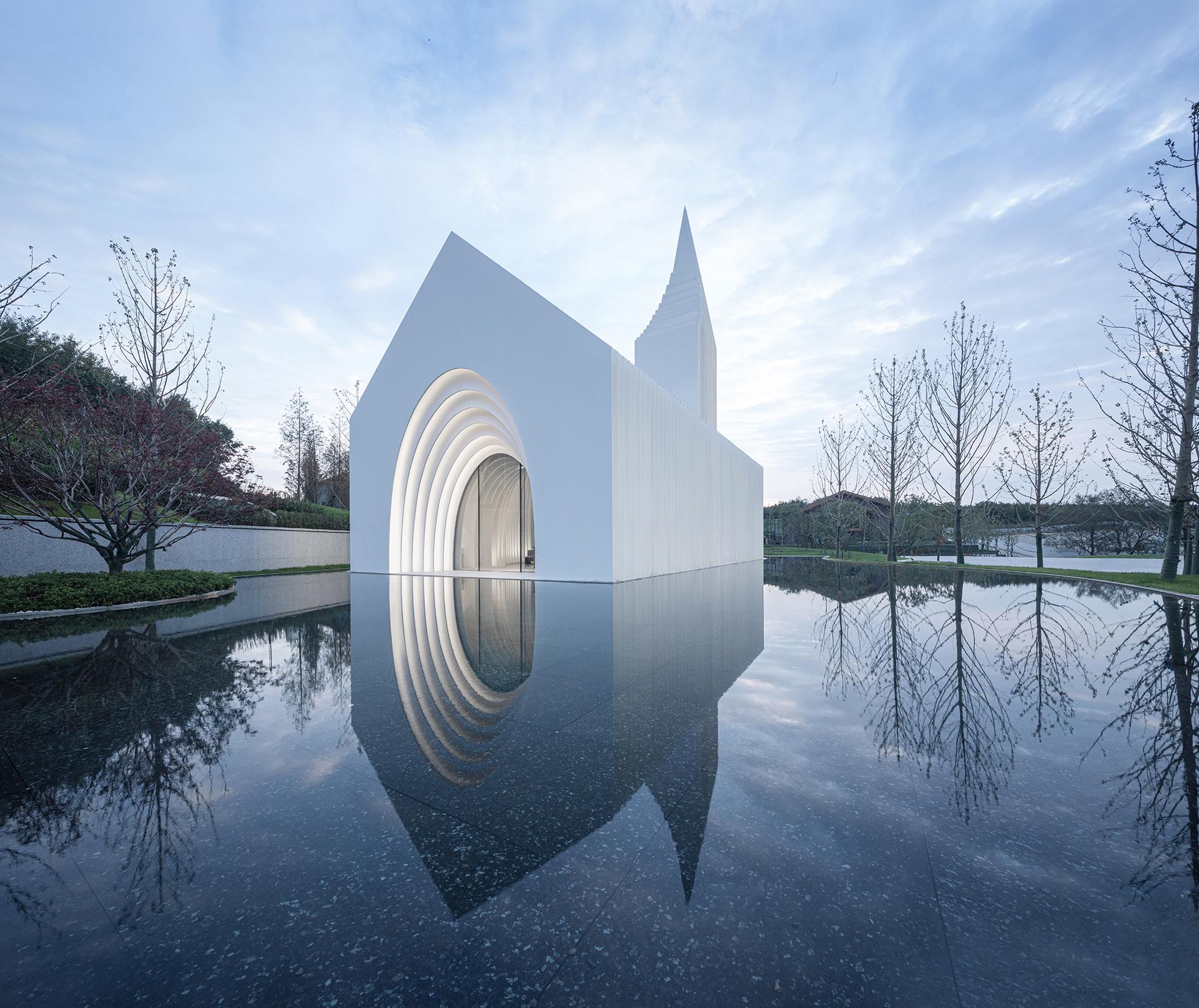

After comparison, we have partially adopted frameless downlights with customized curved surface, so as to make sure the ceiling is as clean as possible. Between the boards, in addition to the above-illuminated underground lights, there are also linear lamps. In this way, the shape of the chapel has been more accurately portrayed. There is a quiet water pool around the chapel. We did not set up a light source inside. At night, it is just a pure mirror reflecting the chapel and the activities of people in the chapel.
