The first CURA pod was made available to admit patients on April 19th, 2020 at a new temporary hospital set up in Turin, northern Italy, one of the world’s hardest-hit regions by the pandemic. CURA was designed and produced in four weeks as a result of the joined effort of an international task force. The group includes, among the others, designers at Carlo Ratti Associati with Italo Rota, engineers at Jacobs, and health technology company Philips for medical equipment supply. The first prototype in Turin has been developed with the financial sponsorship of the Pan European bank UniCredit.
CURA is supported by the World Economic Forum (COVID-19 Action Platform and Cities, and Infrastructure and Urban Services Platform). The list of contributors feature Humanitas Research Hospital (Medical Engineering), Policlinico di Milano (Medical Consultancy), MIT Senseable City Lab (Research), Studio FM Milano (Visual Identity & Graphic Design), Squint/Opera (Digital Media), IEC Engineering (Fulvio Sabato - Safety and Certifications), Alex Neame of Team Rubicon UK (Logistics), Ivan Pavanello of Projema (MEP Engineering), Dr.
Maurizio Lanfranco of Ospedale Cottolengo (Medical Consultancy), Gruppo Boero (Painting Products). In the last months, hospitals in the countries most affected by COVID-19 have been struggling to increase their ICU capacity to admit a growing number of patients suffering from severe respiratory diseases, who are in need of ventilators. CURA aims to improve the efficiency of the existing design solutions of field hospitals, producing a compact ICU pod that is quick-to-deploy and safe to work in for medical professionals.

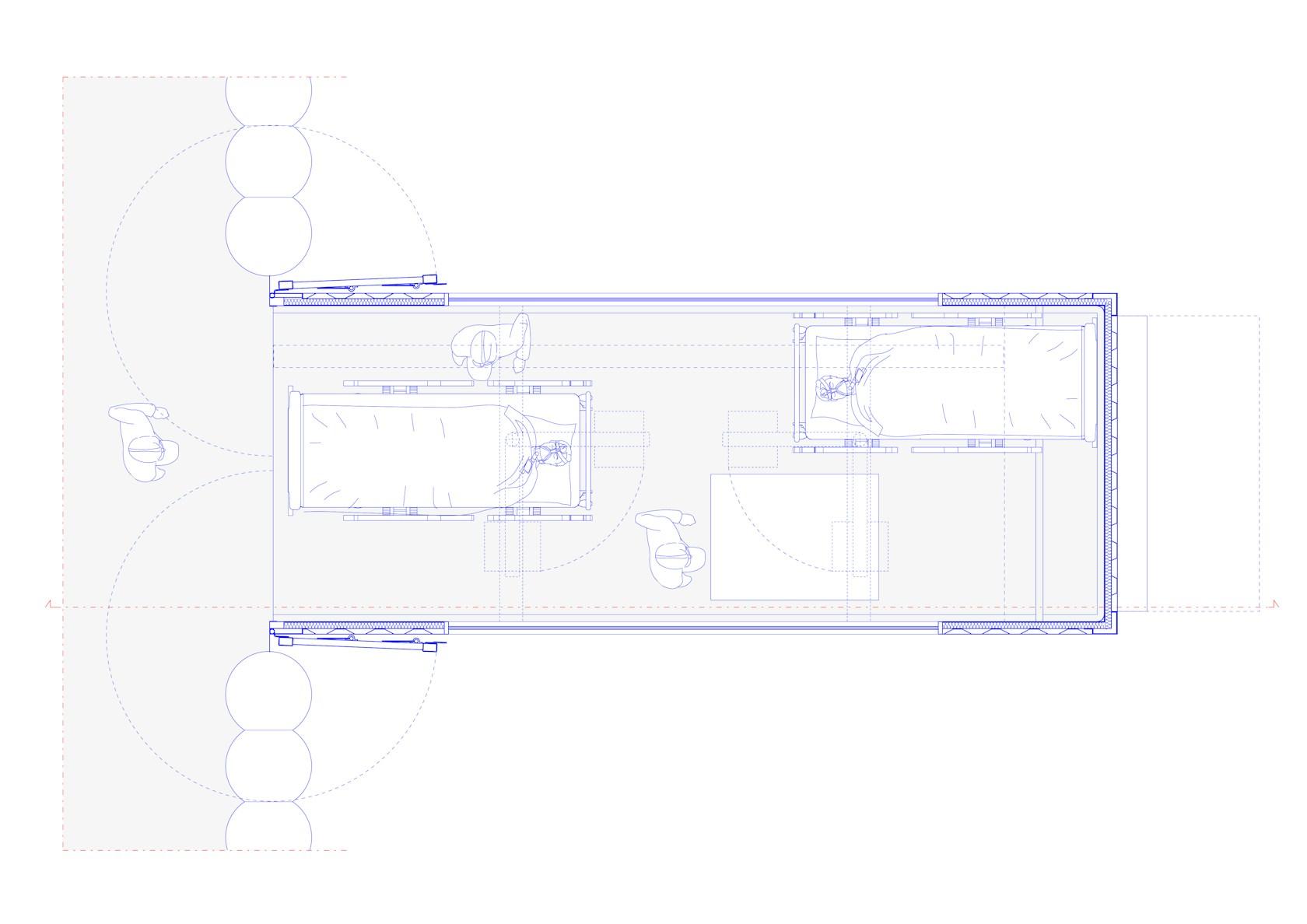

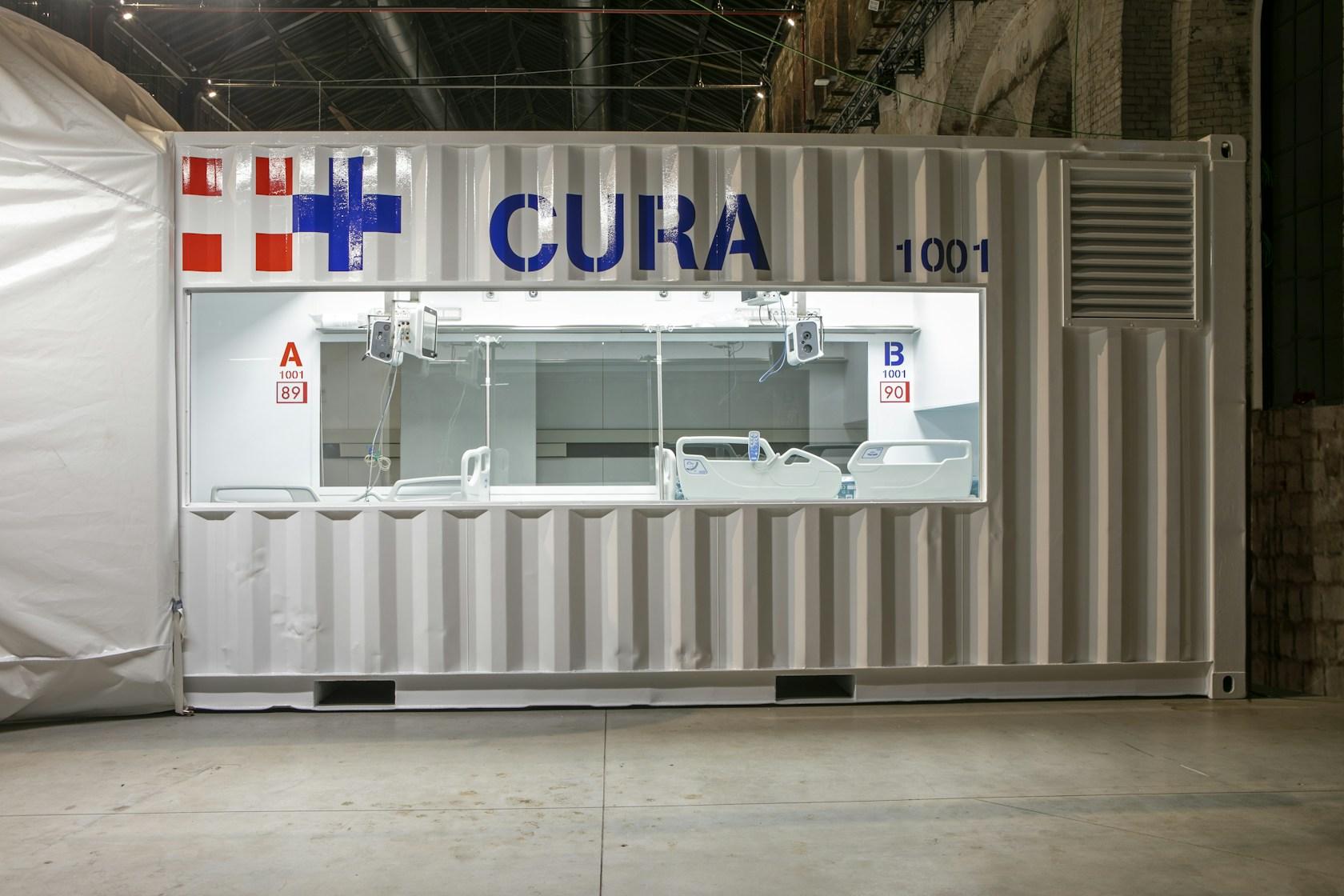

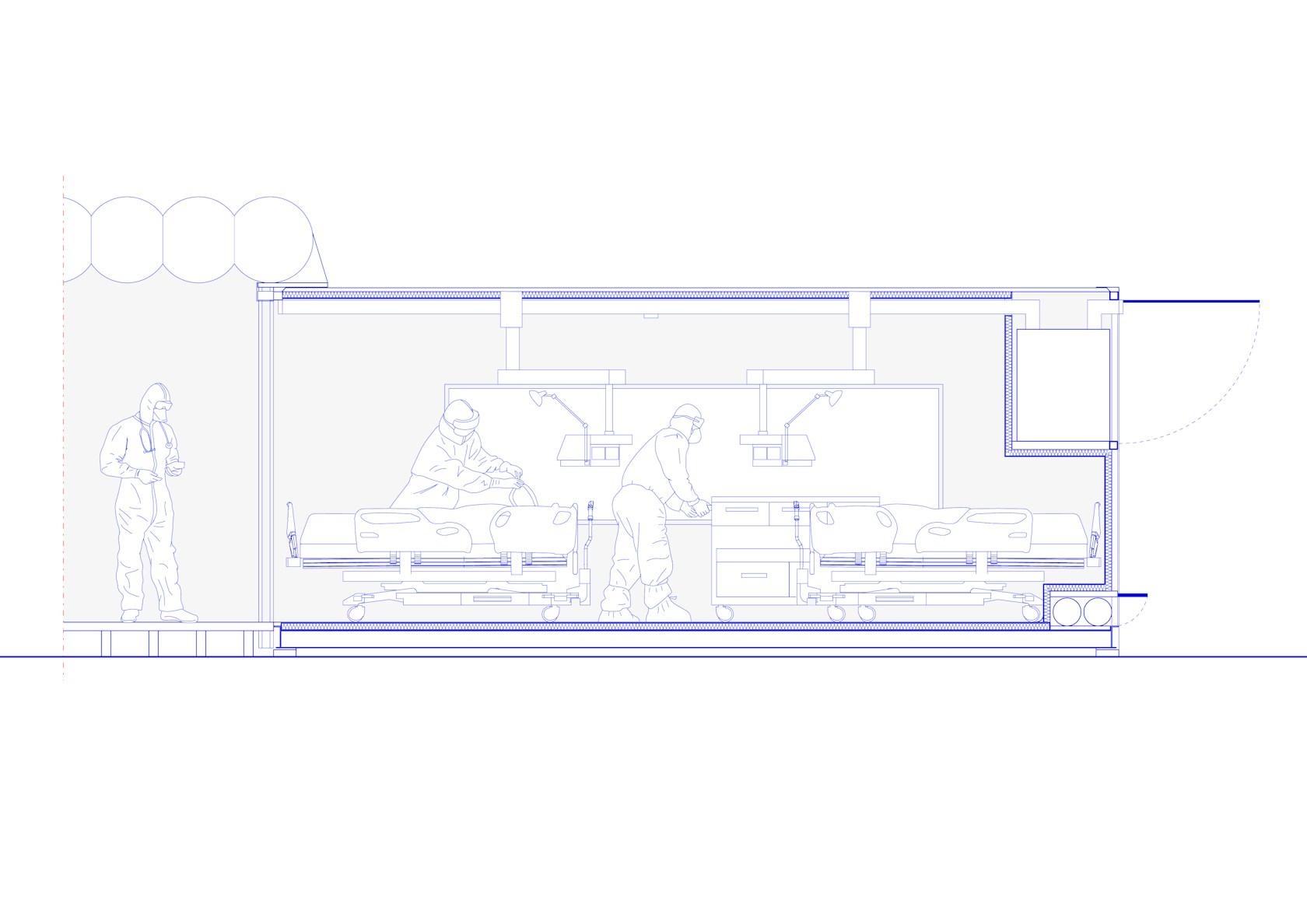

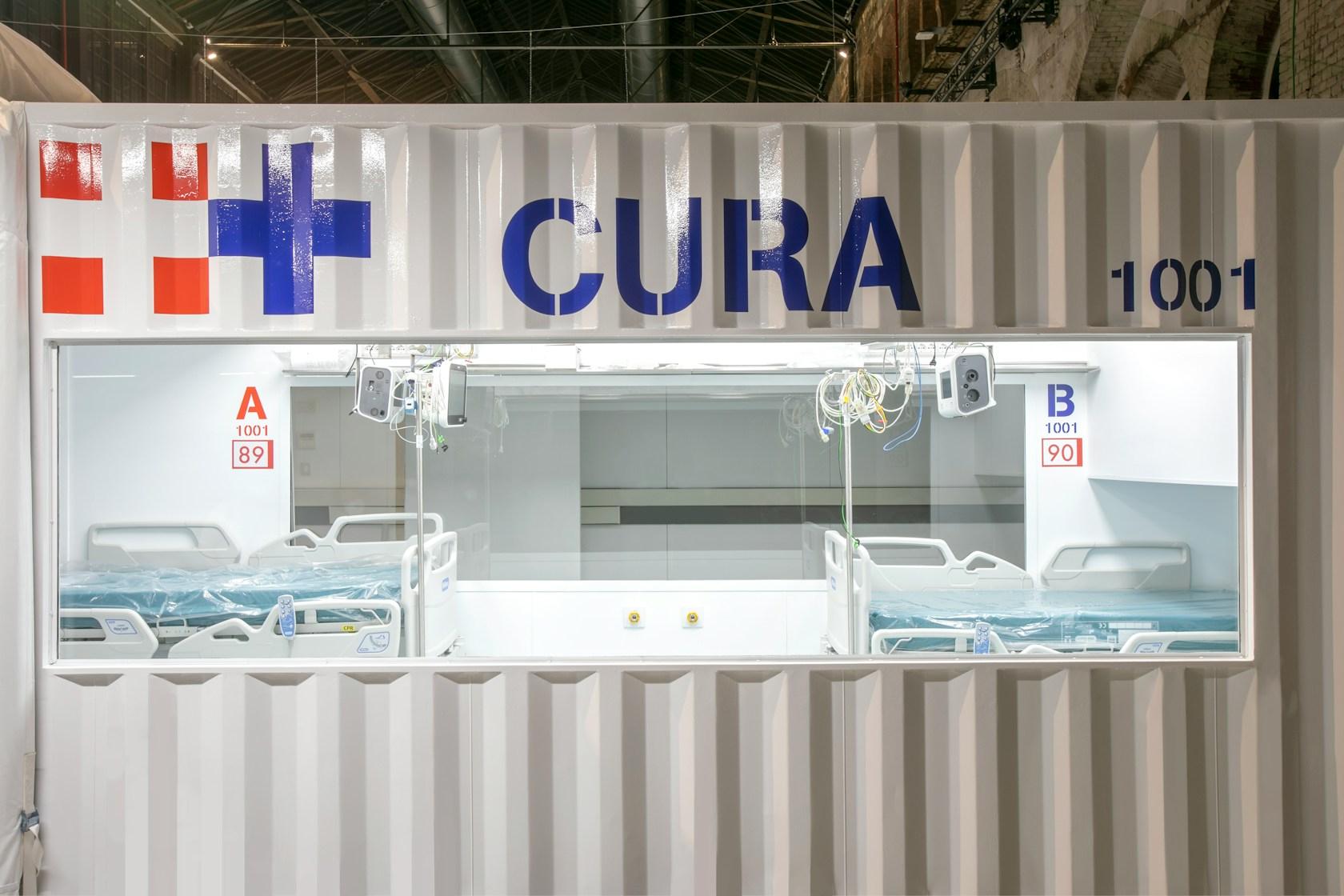

Each CURA unit is hosted in a 20-foot intermodal container, repurposed with biocontainment equipment. An extractor creates indoor negative pressure, complying with the standards of Airborne Infection Isolation Rooms (AIIRs). Two glass windows carved on the opposite sides of the containers are meant for doctors to always get a sense of the status of patients both inside and outside the pods. Also, this would potentially allow external visitors to get closer to their relatives in a safer and more humane setting.

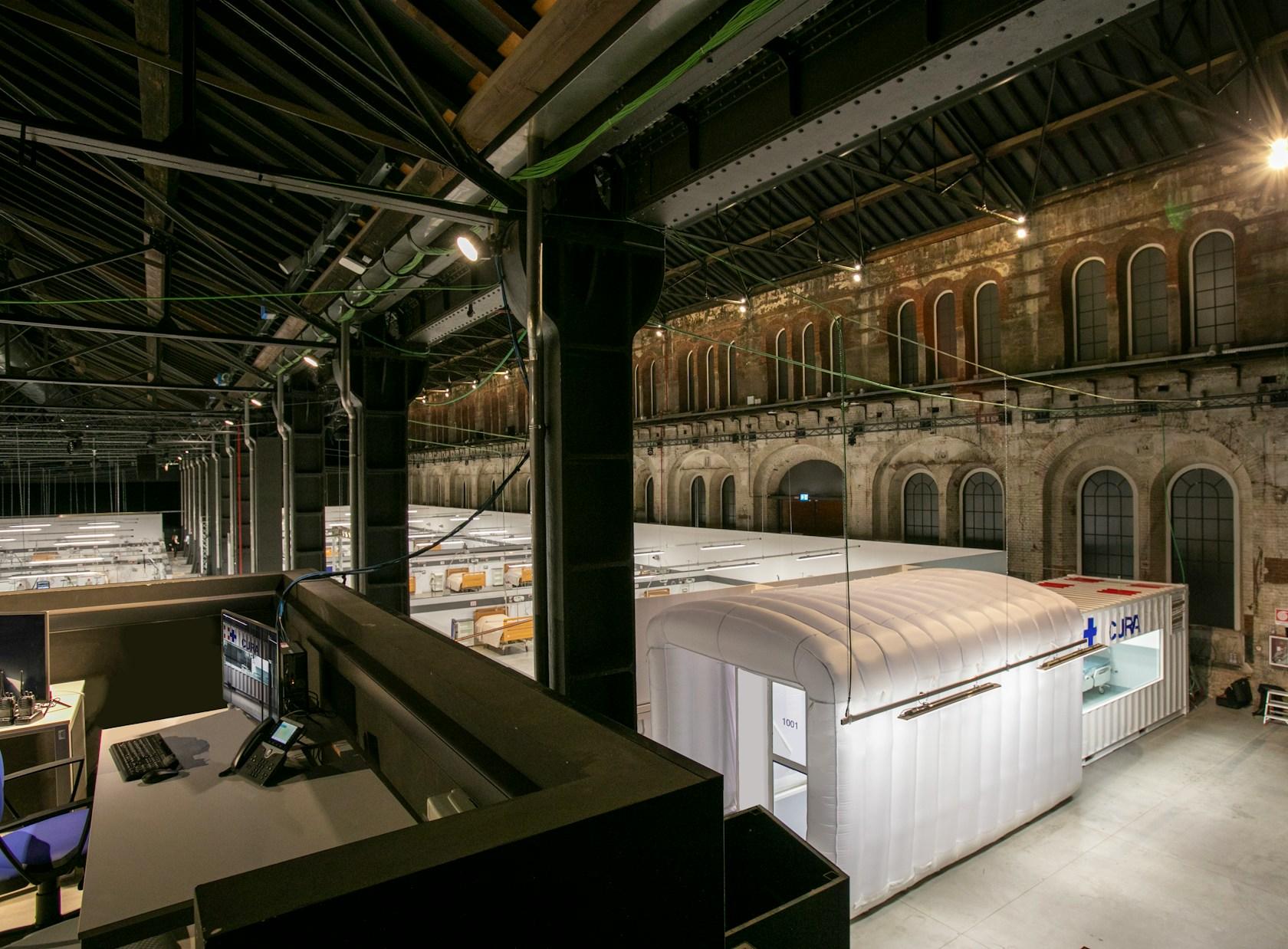

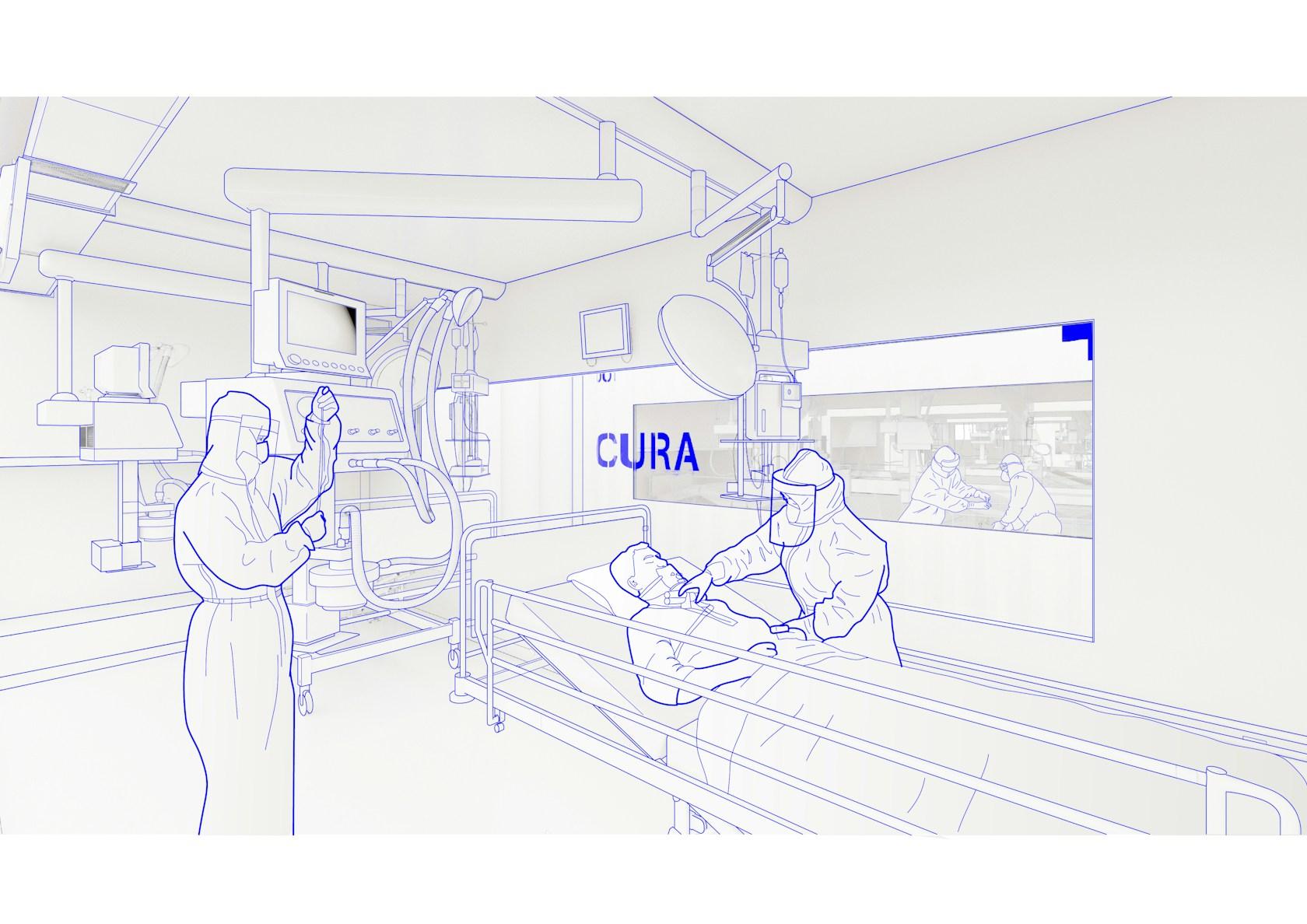

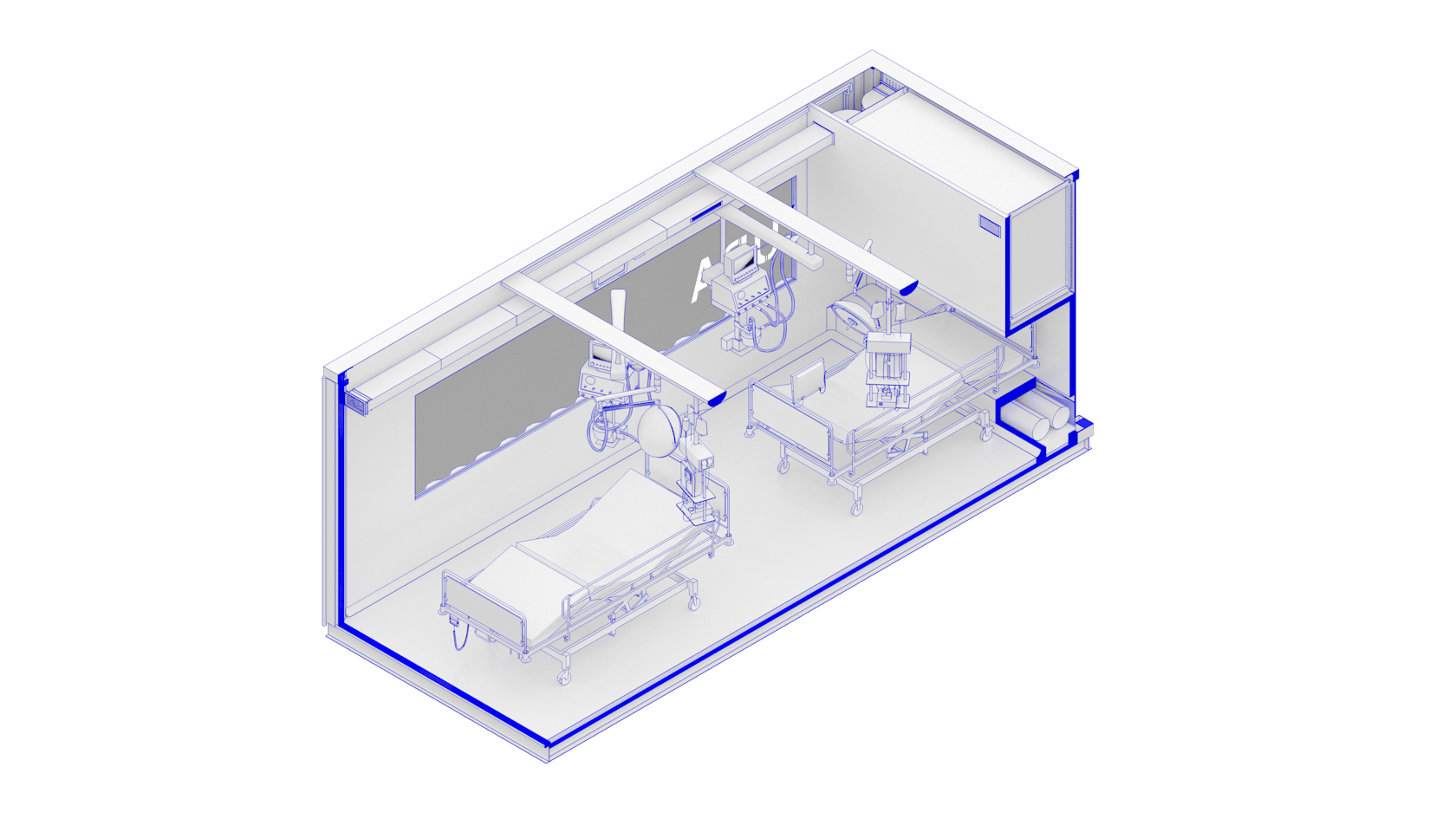

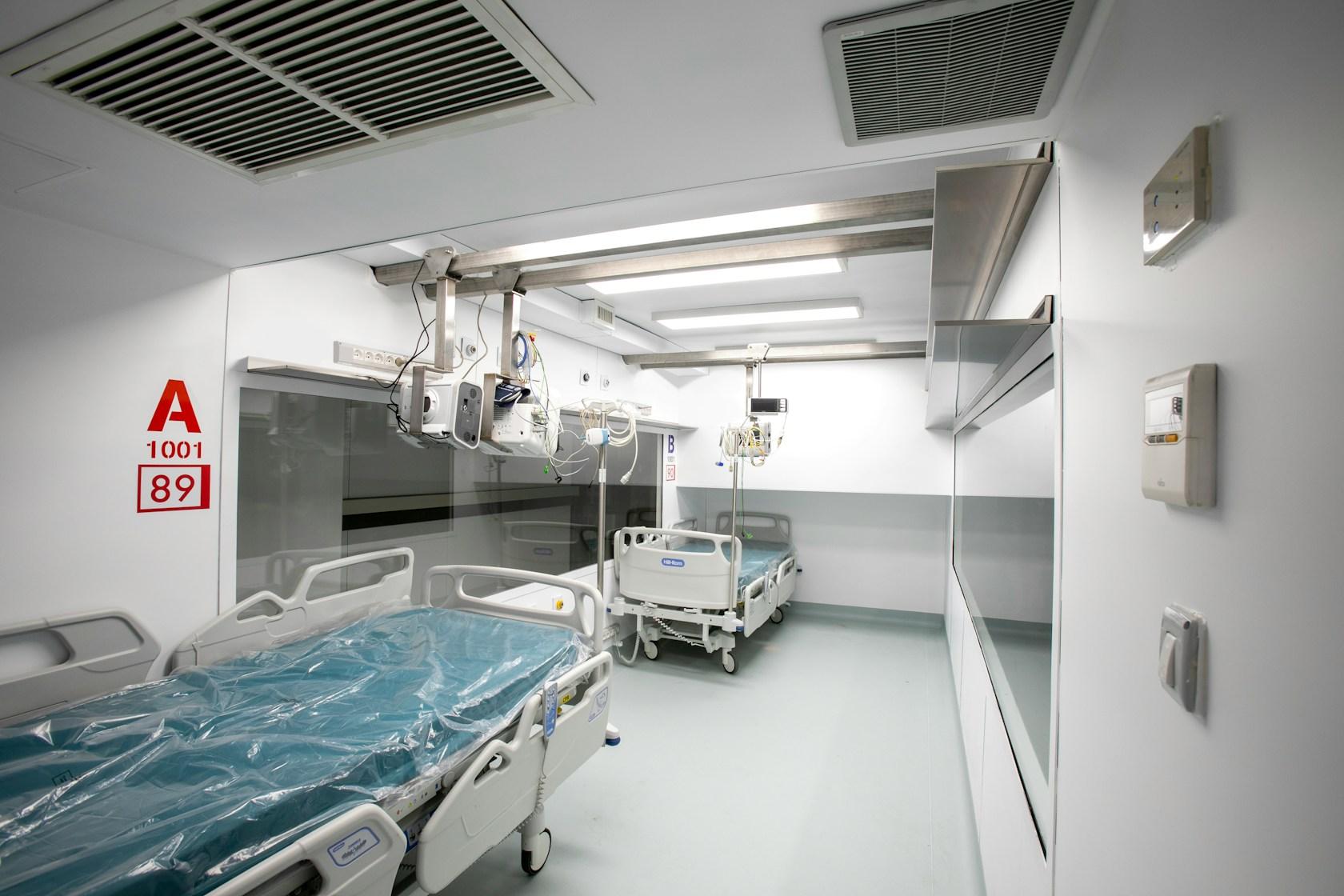

Each pod works autonomously and can be promptly shipped to any location around the world, adapting to the needs of the local healthcare infrastructure. The first CURA pod was built and installed in the framework of the temporary hospital set up by top Italian health authorities in the former OGR industrial complex in the city of Turin (more info about the hospital below). CURA provided ICUs for the hospital, which has about 90 beds for patients affected by coronavirus. The pod contains all the medical equipment needed for two ICU patients, including ventilators and monitors as well as intravenous fluid stands and syringe drivers.

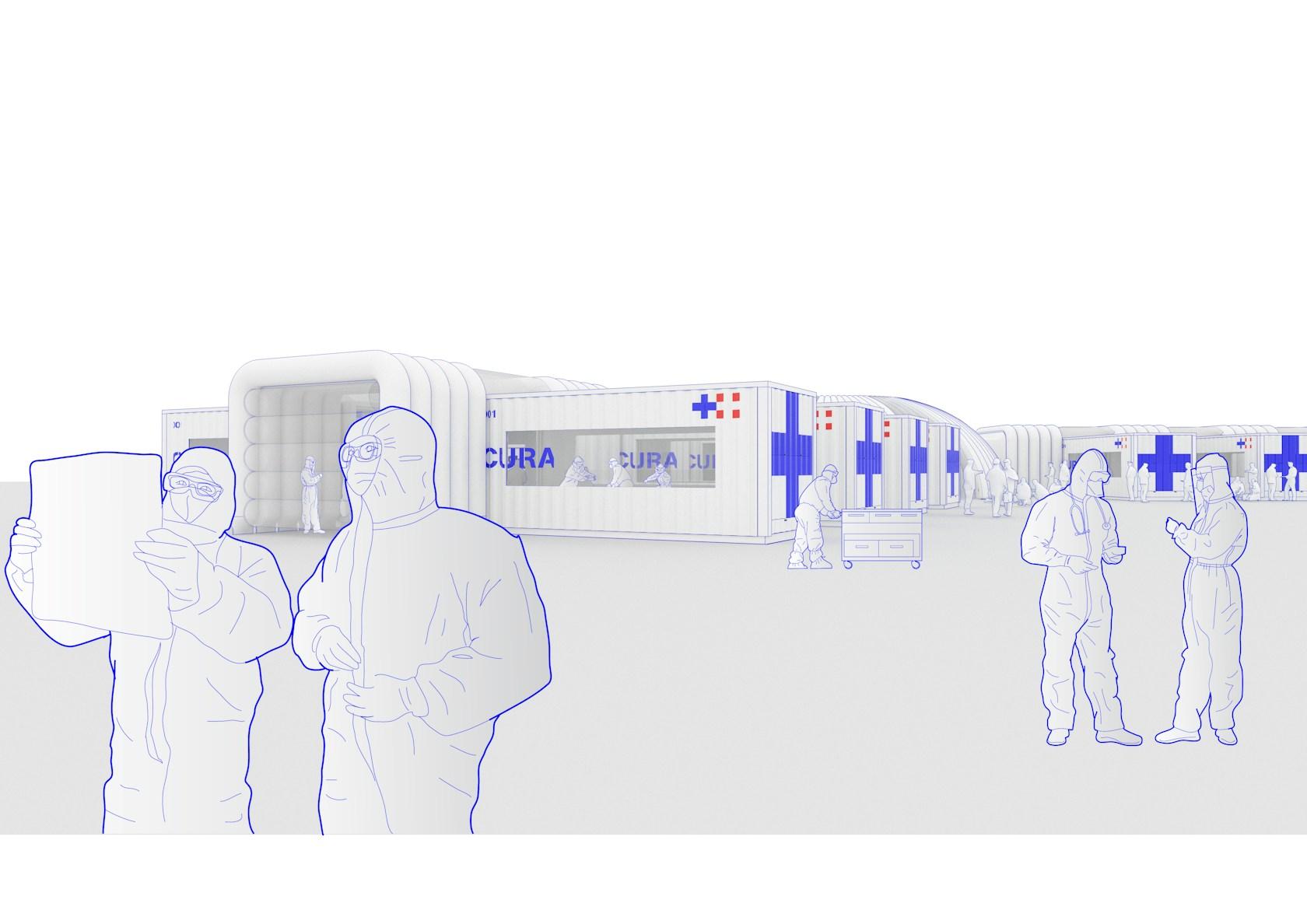

The unit is connected to the rest of the hospital by an inflatable structure, which serves as storage and changing room. Potentially, the inflatable unit can be used to connect more than one pod to create multiple modular configurations, either in proximity to a hospital or as a self-standing field hospital. CURA was developed as an open-source project, with its tech specs, drawings and design materials made accessible for everyone online on https://curapods.org/open-source-files. Such collective endeavor has also created an opportunity for testing new methods for international design collaboration.
Since the project’s launch, in late March, more than two thousand people showed an interest and contacted the CURA team to join the project, reproduce it, or provide technical advises. While the first prototype becomes operative in Italy, more units were under construction in other parts of the world, from UAE to Canada. Credits: - Studio FM Milano - Visual Identity & Graphic Design - Ospedale Cottolengo - Medical Consultancy - Maurizio Lanfranco - Gruppo Boero - Painting Products - Jacobs - Master Planning, Design, Construction and Logistics Support Services - Alberto Riva - MIT Senseable City Lab - Research - Policlinico di Milano - Medical Consultancy - Carlo Ratti Associati - Design & Innovation - Carlo Ratti - Philips - Medical Equipment Supply - Squint/Opera - Digital Media - Studio Italo Rota & Partners - Design & Innovation - Italo Rota - Team Rubicon UK - Logistics - Alex Neame - Projema - MEP Engineering - Ivan Pavanello - Humanitas Research Hospital - Medical Engineering - IEC Engineering - Safety & Certifications - Fulvio Sabato
