Federation of Korean Industries
- Year
- 2013
- Type
- Commercial
- Status
- Built
- Location
- Seoul, South Korea

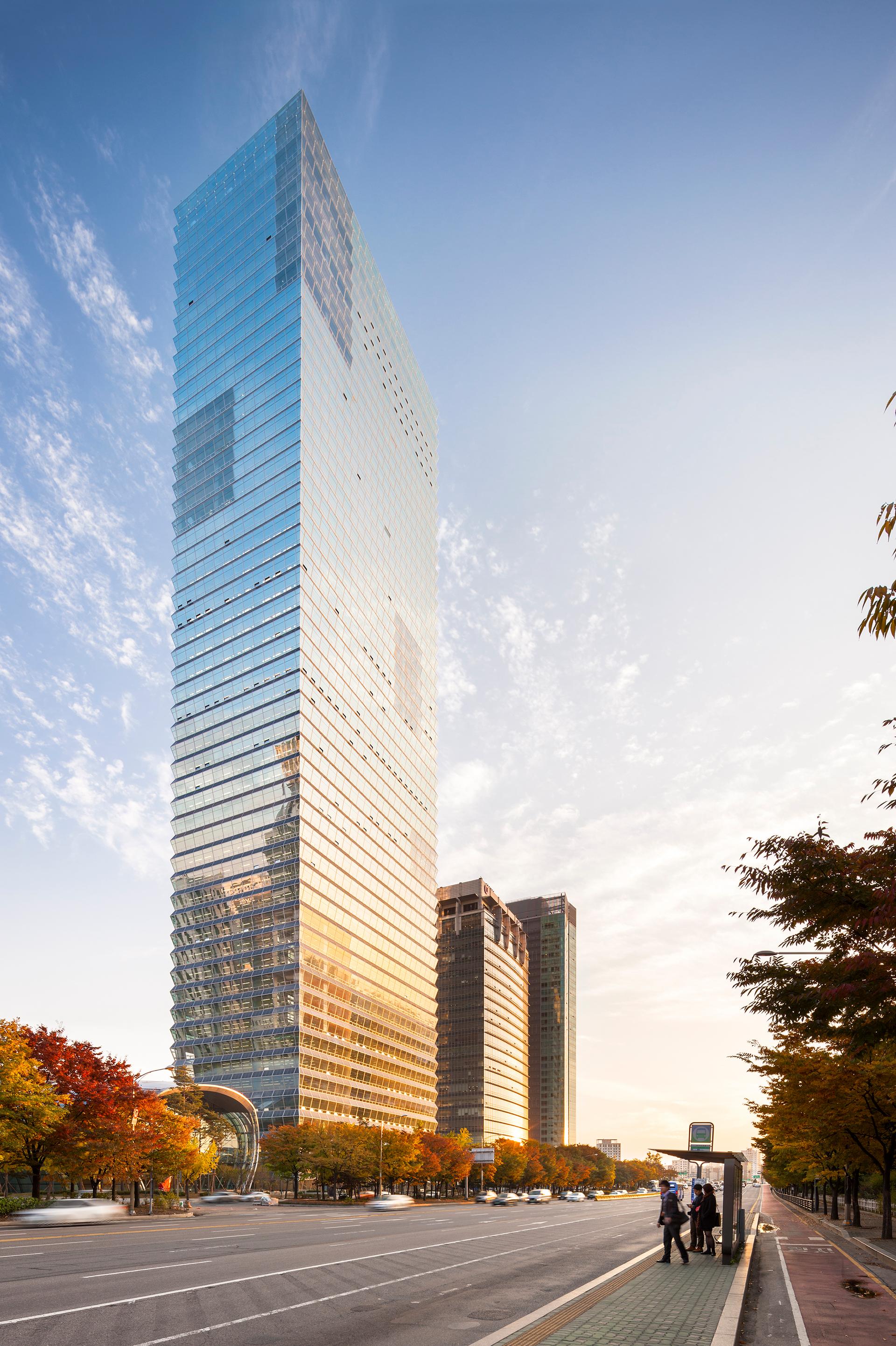

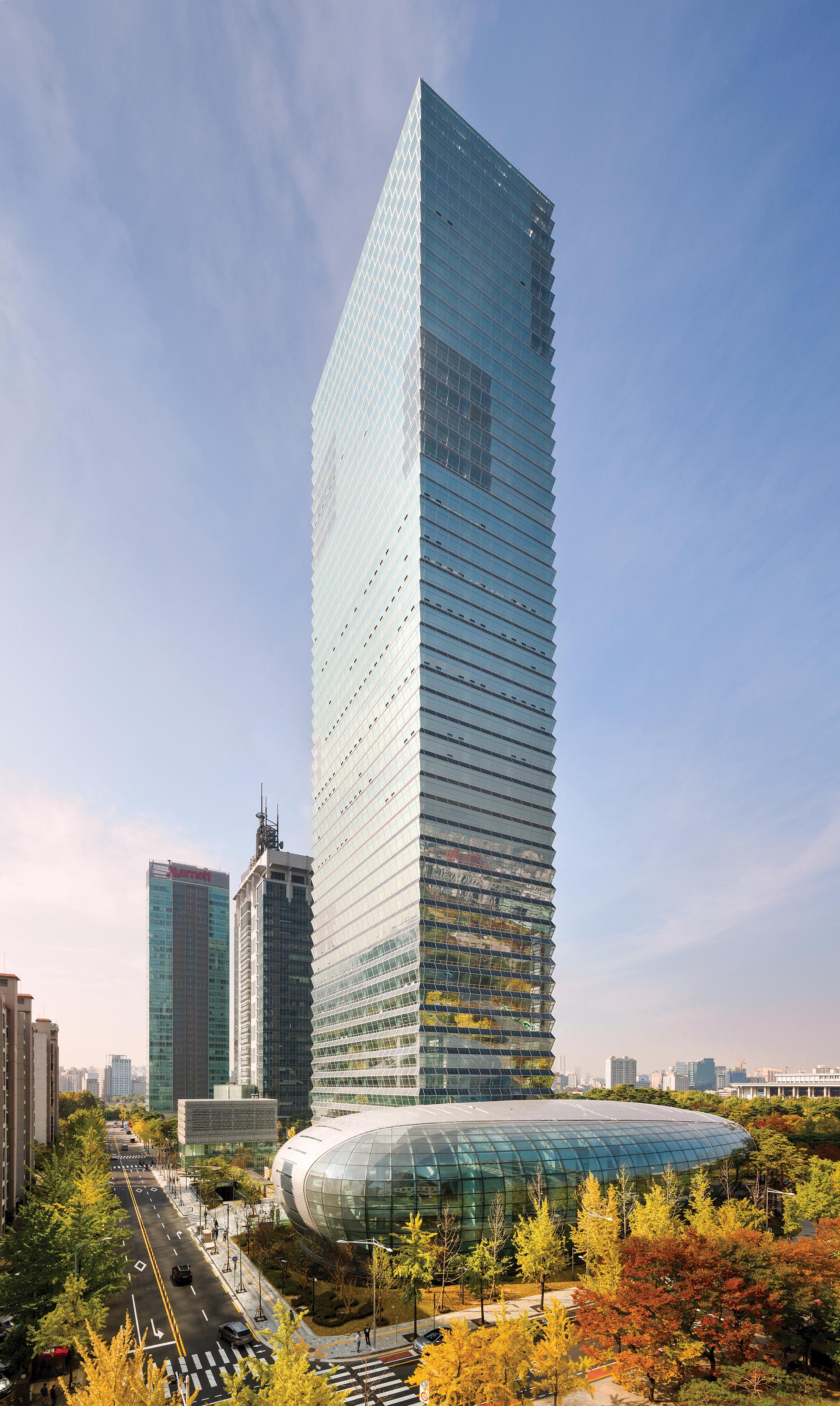

Completed in November 2013, the new head office building for the Federation of Korean Industries (FKI) is a major new addition to the skyline of Seoul, Korea. AS+GG won an international competition to design the building in 2009. The 50-story, 240-meter tower features an innovative exterior wall, designed specifically for the project. The building’s unique skin helps reduce internal heating and cooling loads and collects energy through photovoltaic panels that are integrated into the spandrel areas of the southwest and northwest facades.
FKI represents major Korean companies such as Samsung, LG and Hyundai Motors. The headquarters is located on Yeoi-Dae-Roh, the main through-road in Seoul and is now a prominent fixture among the wall of marquee buildings along the road, directly across the street from Yeoido Park. The tower’s position guarantees spectacular views on all sides, adding to the world-class setting similar to New York’s Central Park or Chicago’s Magnificent Mile. The concept for FKI was developed by combining the client’s request for a building that was contextual to the predominantly orthogonal architecture of the Yeoido District and the city’s requirement that all new large-scale commercial buildings generate a minimum of 5% of their energy onsite.
The design team developed a strategy that would meet both requirements as well as reduce the amount of energy that the building used for its heating and cooling loads. The use of building integrated photovoltaic panels (BIPV) was seen as an architecturally appealing way to meet the strict zoning requirement, while the optimization of the panels became a driving factor in developing the architectural expression. Another deciding design factor happened early in the process when the design team learned that the local electric utility company (KEPCO) would provide a favorable 5 to 1 buy back rate for onsite green-energy generation.
The payback for the BIPV panels, which would have typically been 30- 35 years, was reduced to about 7 years due to these incentives. As part of the initial design process, an Ecotech® model was used to determine the optimal areas for BIPV on an orthogonal building, given the surrounding buildings which partially shade the site. It was determined that BIPV would be best used on the southeast and southwest faces above Level 14. The detailing of the spandrel panels are interchangeable with PV, which allows the design to be flexible for future changes.

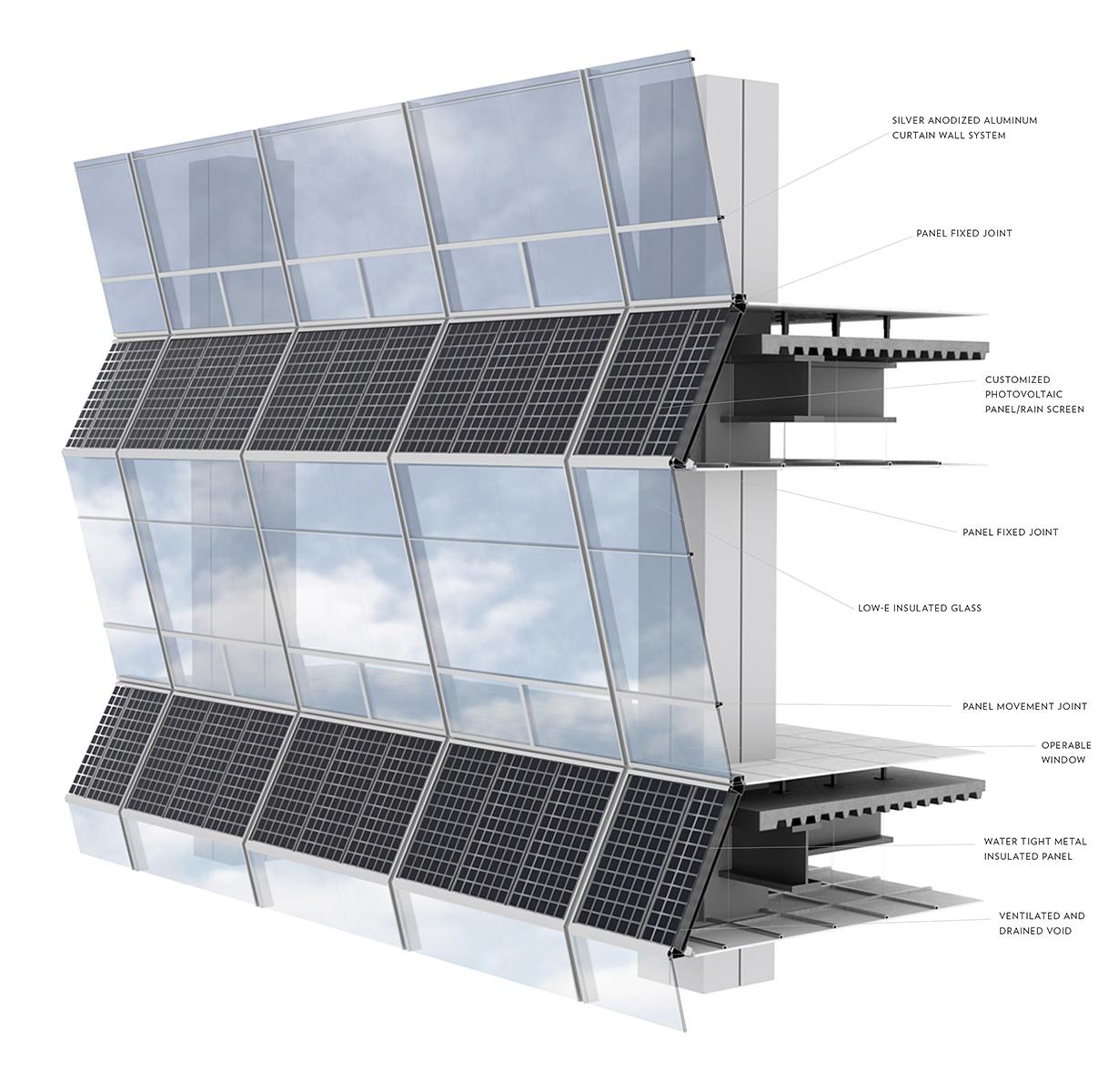

Not all sides of the building are currently suitable for BIPV, therefore it was important to design the panels that were interchangeable with insulated spandrel panels for maximum flexibility without a significant change in the symmetry of building expression. The design also allows for the panels to be replaced as new technology that can take advantage of indirect light becomes available. FKI’s unique exterior wall system combines maximum access to views, energy efficiency strategies and energy generation technologies.

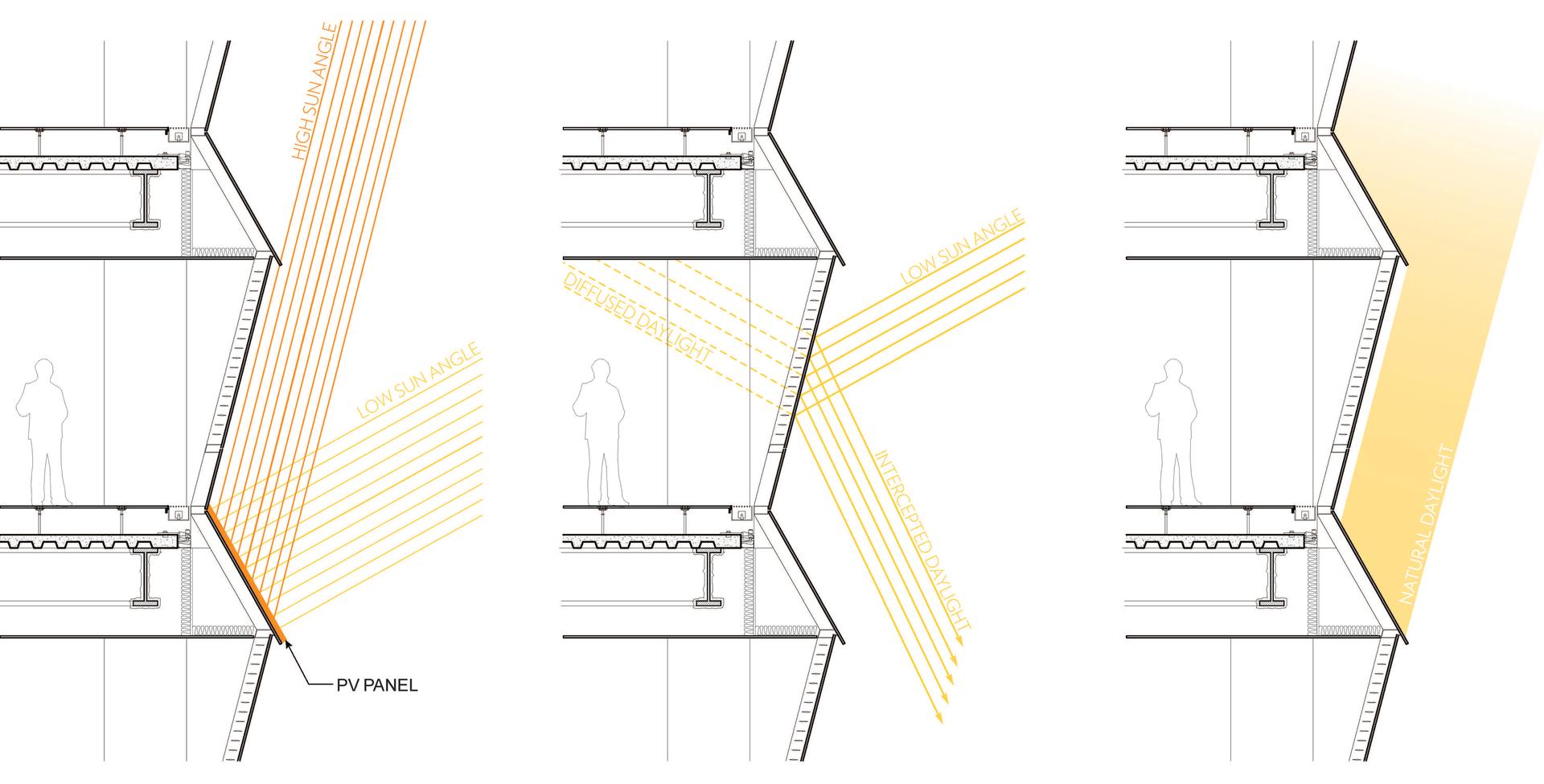

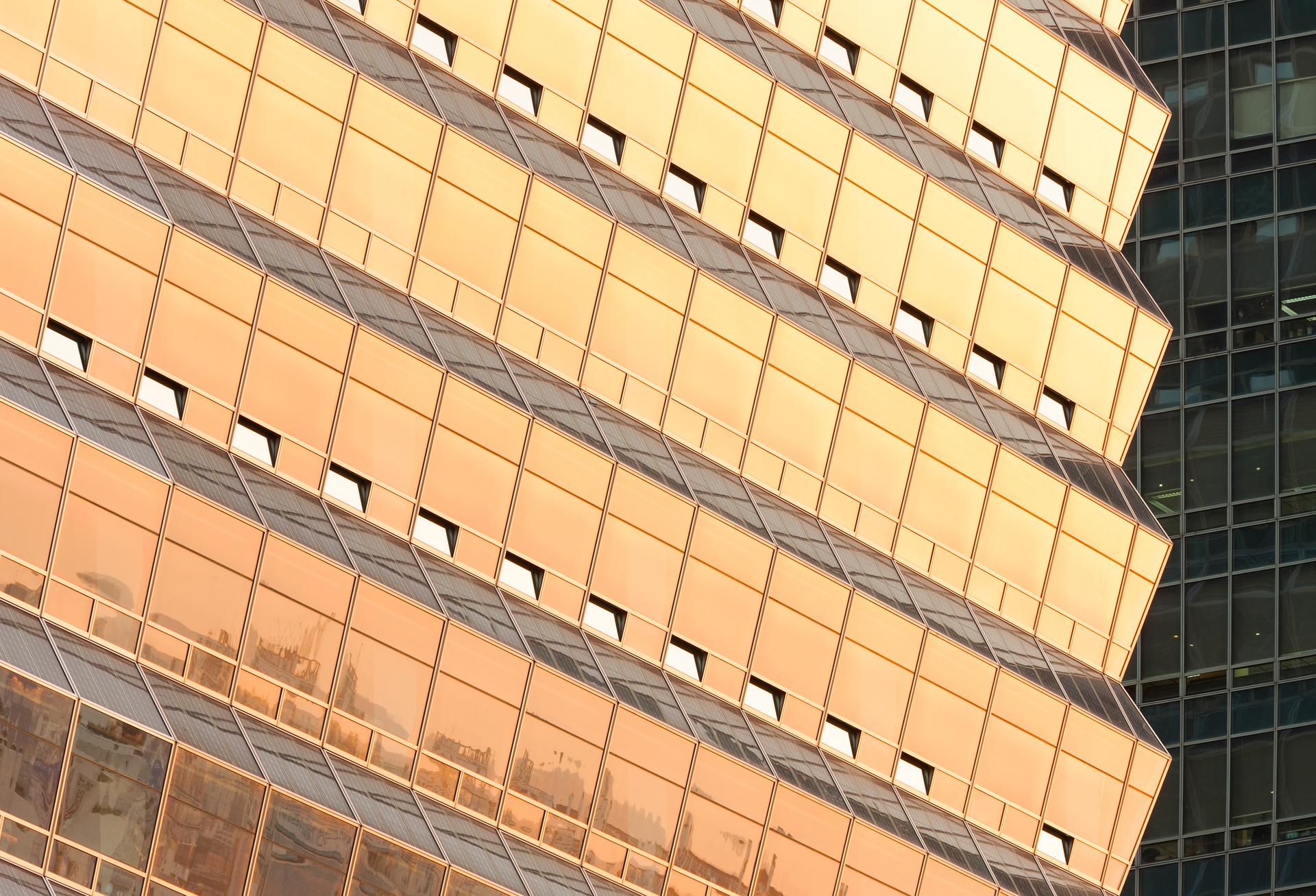

By angling the spandrel panels 30 degrees toward the sun, the amount of energy collected by the photovoltaic panels is maximized. Below the spandrel panels, the vision panels are angled 15 degrees toward the ground, minimizing the amount of direct sun radiation and glare. The result is a unique folded exterior texture that is both purposeful and visually distinctive. Benefits include a reduction of glare and heat gains from direct sunlight, while maintaining a high level of indirect light. With the exception of the early morning and the late afternoon periods, the building is able to use the geometry of the exterior wall to self-shade the perimeter spaces that would normally be inundated with direct sunlight.

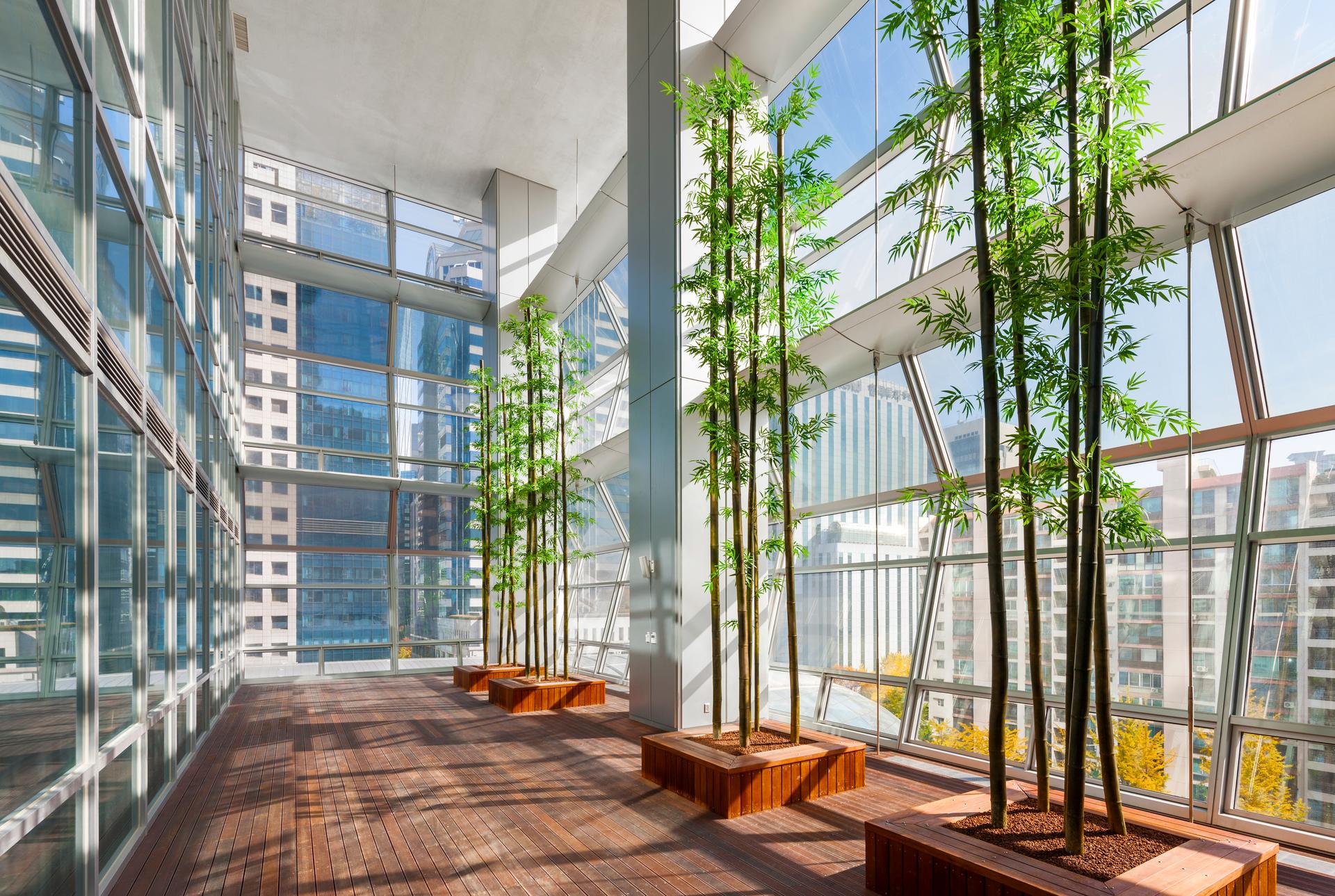

This gives the building occupants the flexibility to open the shades and allow indirect natural light. With a maximum lease span of 12meters the majority of the building occupants benefit from the increase natural light. The tower includes several indoor garden/atrium spaces that enhance the workplace environment with natural elements of wood, bamboo and other native plants. The interior of the building takes advantage of the floor-to-ceiling windows of the exterior wall, offering an abundance of natural light to office spaces and corridors as well as extensive views of neighboring Yeoido Park, the Han River and the surrounding city.

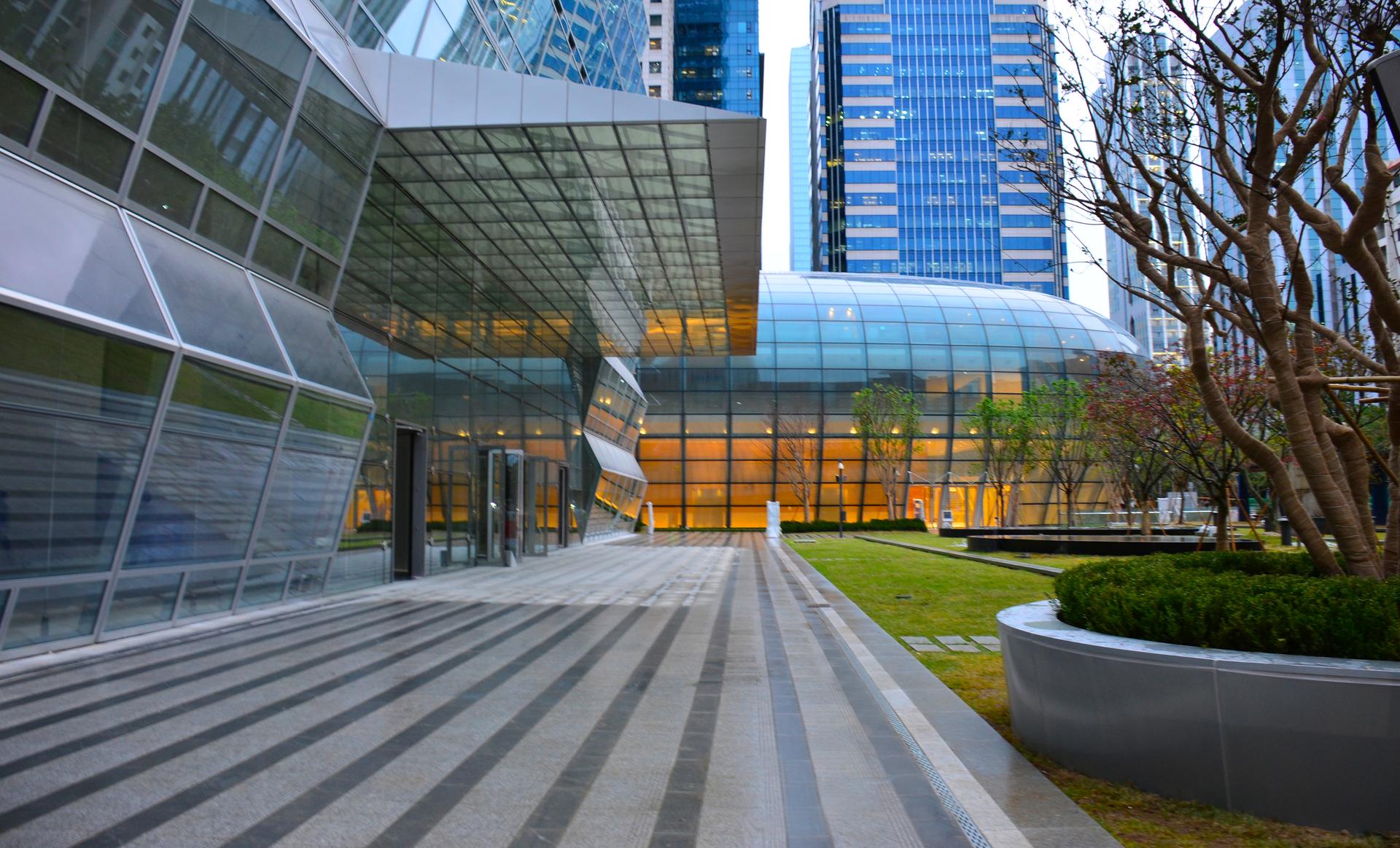

The site organization was rearranged from the original competition brief by sliding the tower to the west. This opened up more site frontage and allowed the podium to be closer to the street. This positioning gave the podium a presence and identity unavailable if it was located behind the tower. The new arrangement also allows more space for outdoor landscaped courtyards for public use. The building’s site takes advantage of the neighboring parks, positioned so that arrival sequences for pedestrians, subway commuters and VIP parkers are landscaped to extend the park setting into the building ground plane.

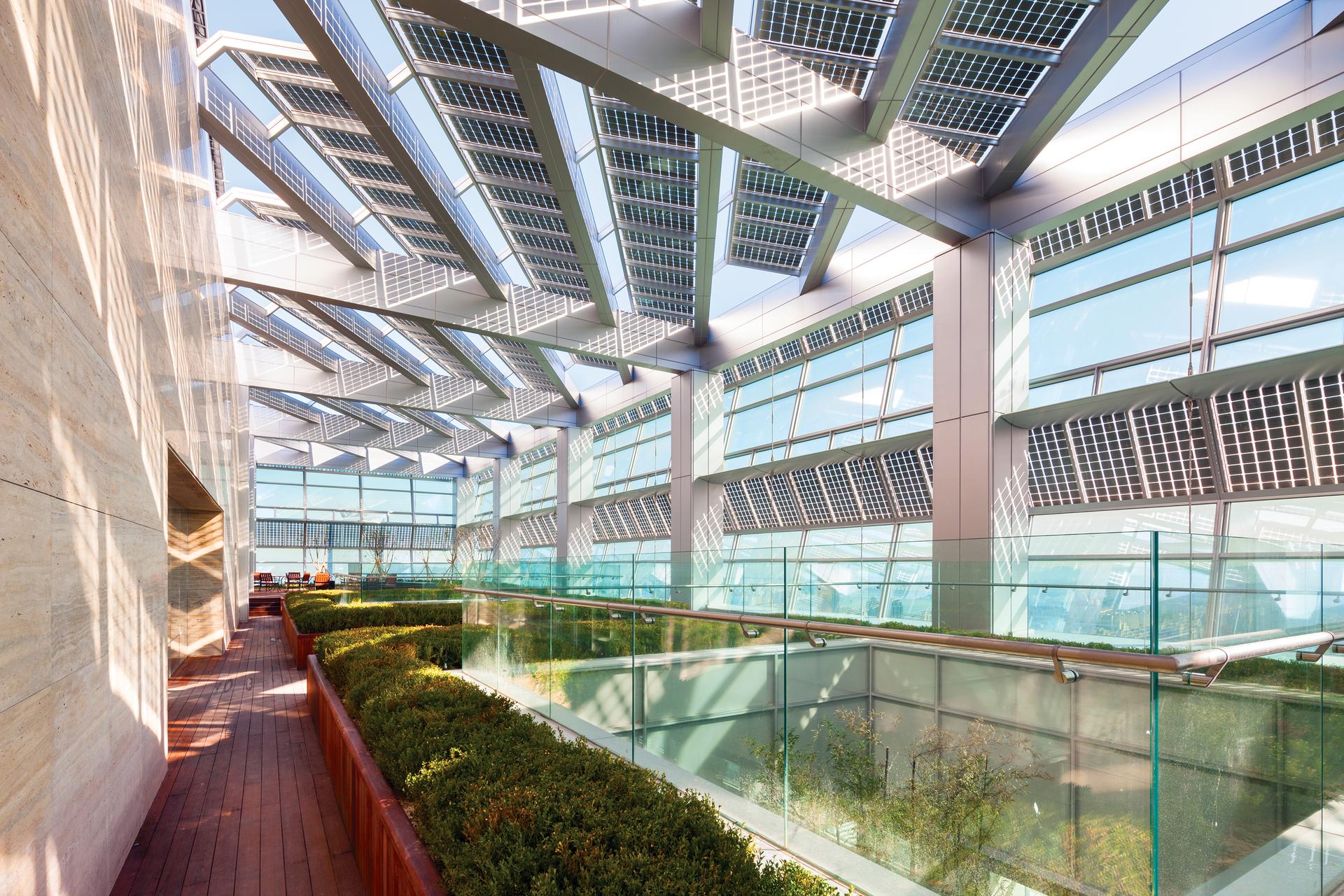

FKI features an expansive rooftop atrium garden that also has custom photovoltaic panels. As with the exterior wall panels, the ideal angle of the panel placement on the roof was studied in detail. In a relatively unconfined space photovoltaic panels are angled upward at 30 degrees but within the limited area of FKI’s roof, it was determined that a 10-degree angle allowed for more panels to be installed closer together, minimizing the effect of the panels casting shadows on each other and ultimately producing more solar energy for the building.
When analyzing the roof skylight photovoltaic panels, it was equally important to account for self-shading so that enough natural light would be let into the sky garden below. The garden is planted with Korean Boxwood, a lush and hearty shrub that is also low-maintenance. The rooftop atrium also has several seating and viewing areas that tenants can sit and enjoy views of the surrounding city. The sculptural podium piece is located on central Yeoi-Dae-Ro Avenue, further promoting the tower’s public identity.

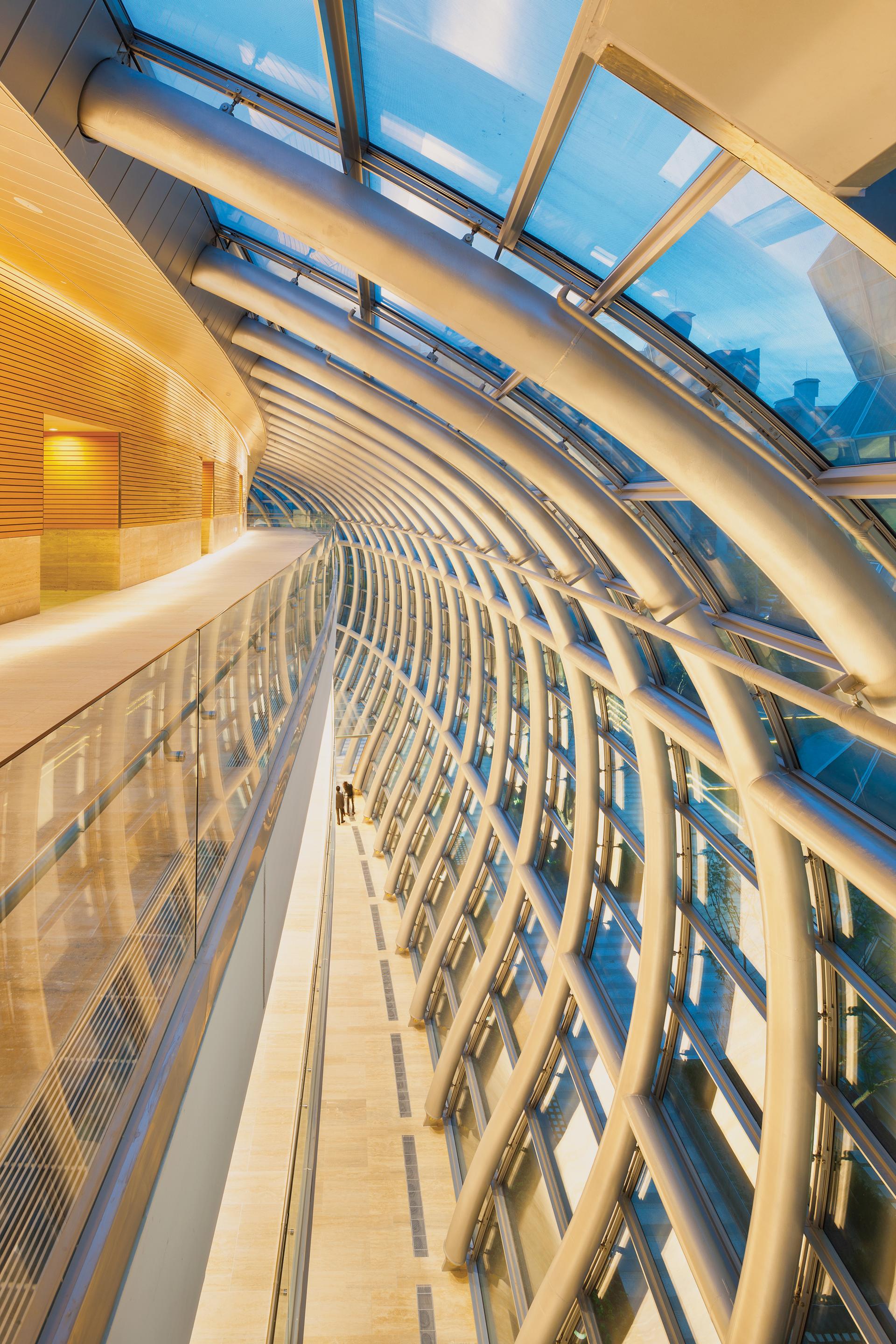

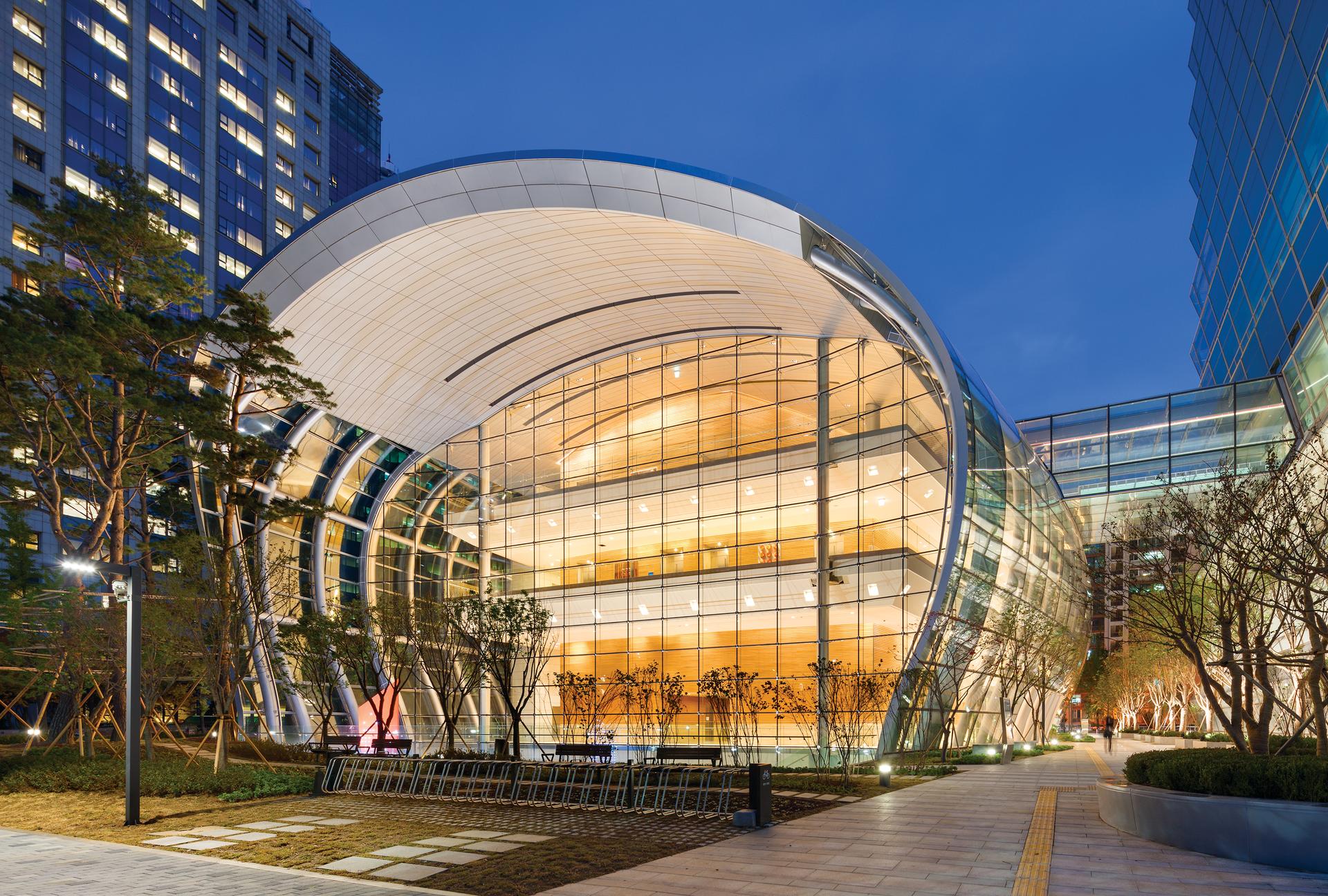

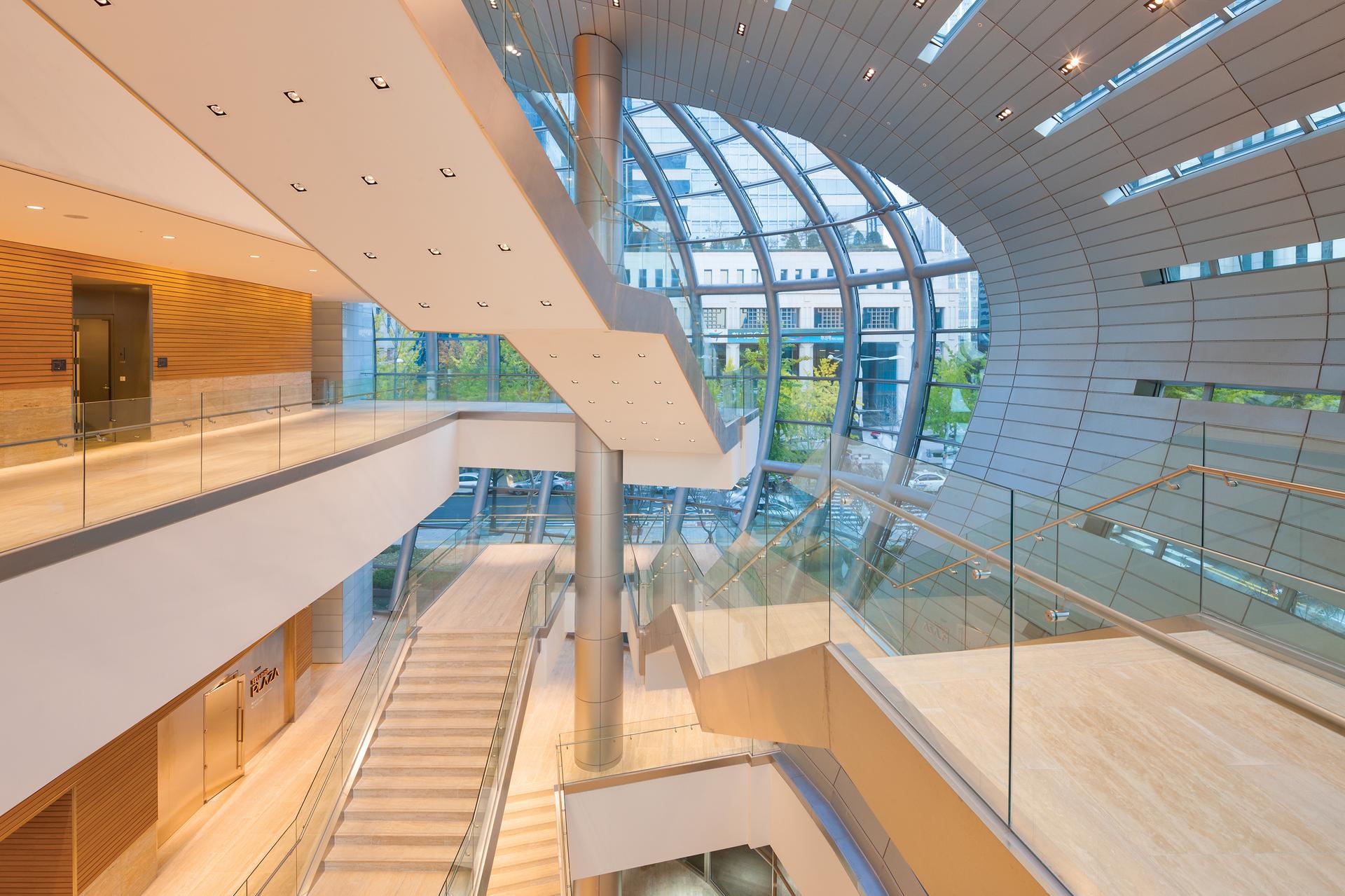

The podium amenities, available for public use, include a banquet hall, a central restaurant and a conference center. The podium is available for international conferences with a large first floor banquet hall and smaller conference rooms of various sizes located on the second and third floors. The multi-purpose nature of the podium is another way that FKI will become a new centerpiece for Seoul. FKI clearly illustrates an advancement in building facades from simple wall systems to high-performance, integrated architectural and engineering design solutions.
The design team worked to create an intelligent, high-performing, forward-looking building that exhibited timeless and enduring qualities. FKI’s grand opening was celebrated in Seoul on December 16, 2013.
