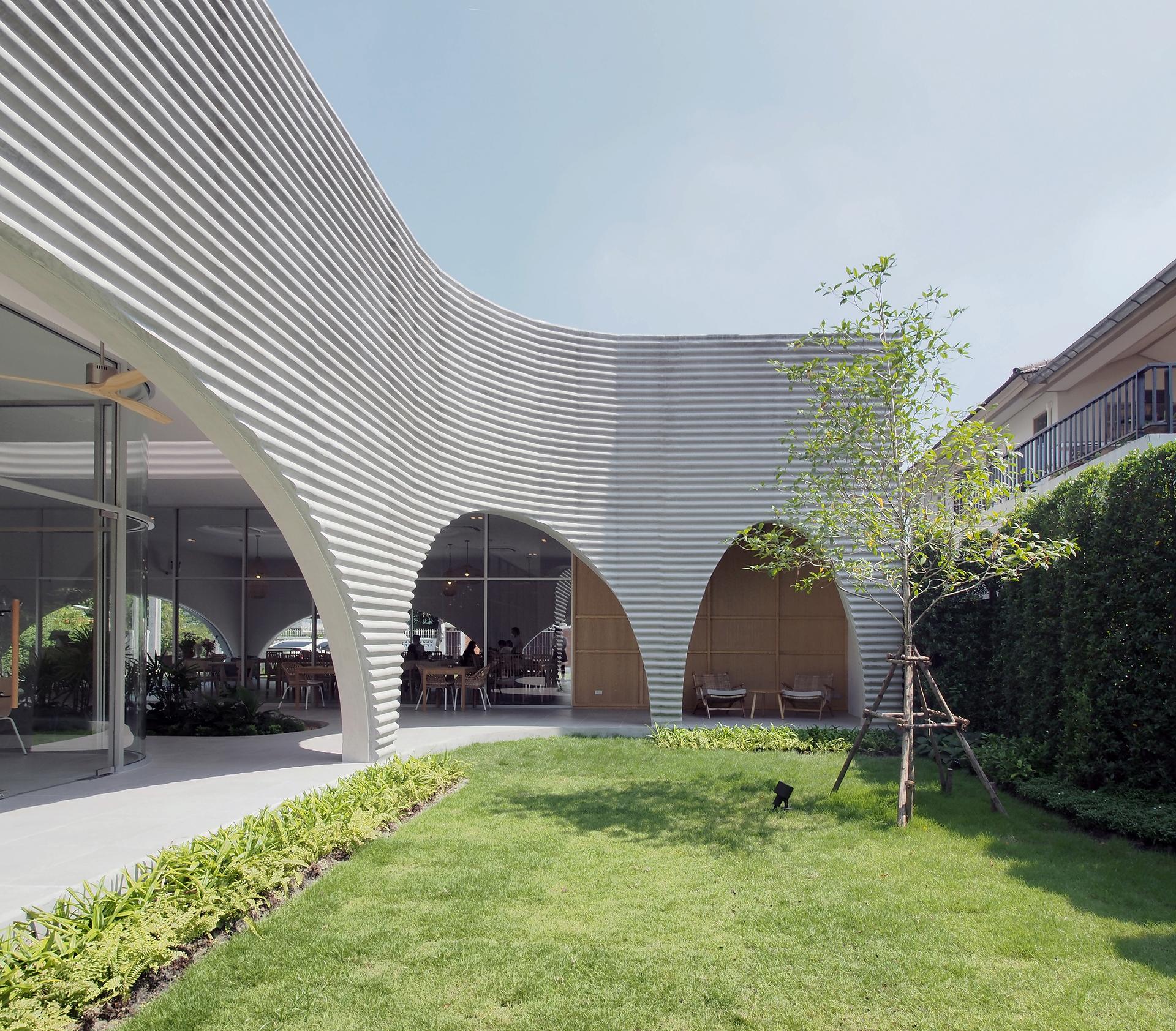

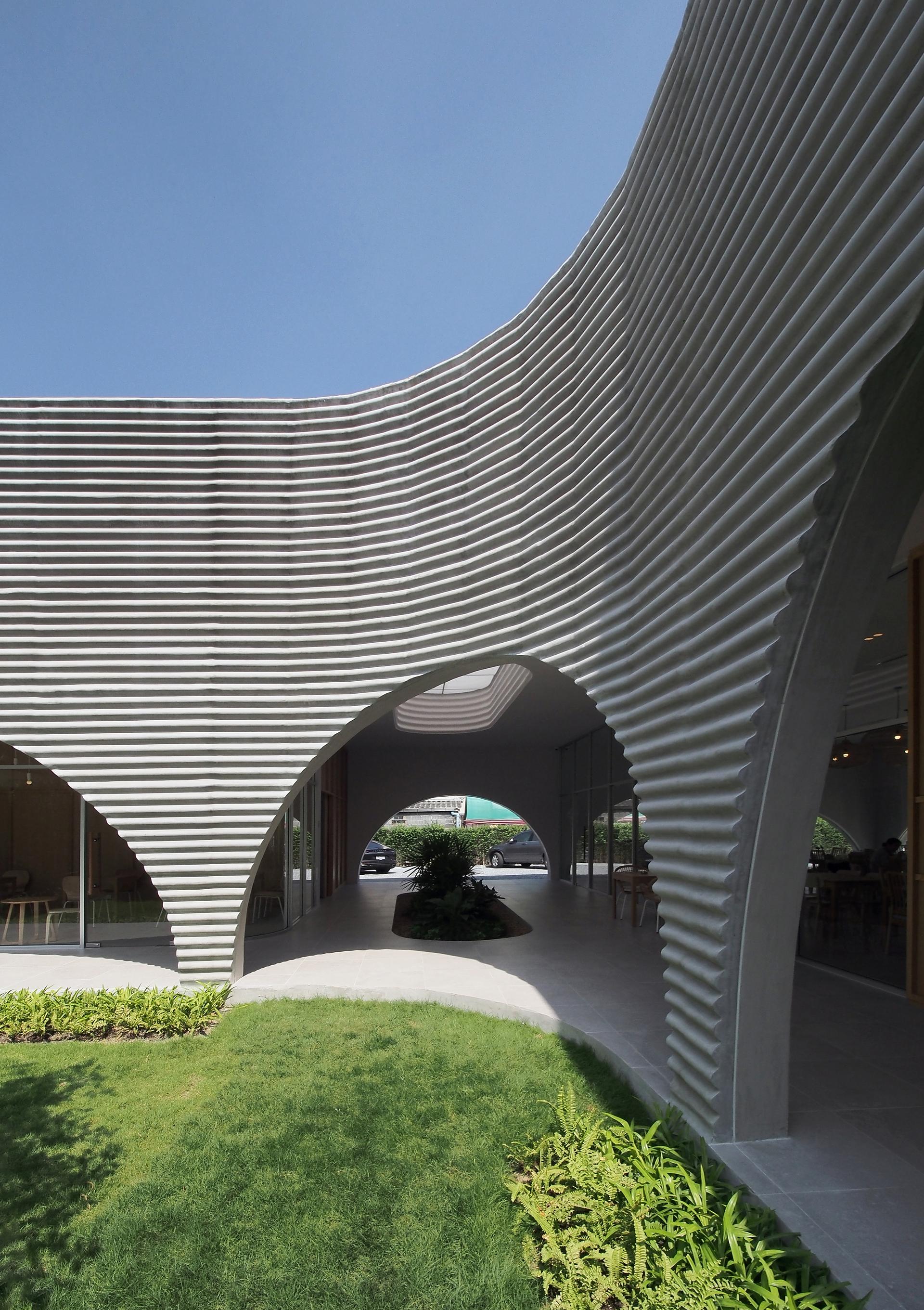

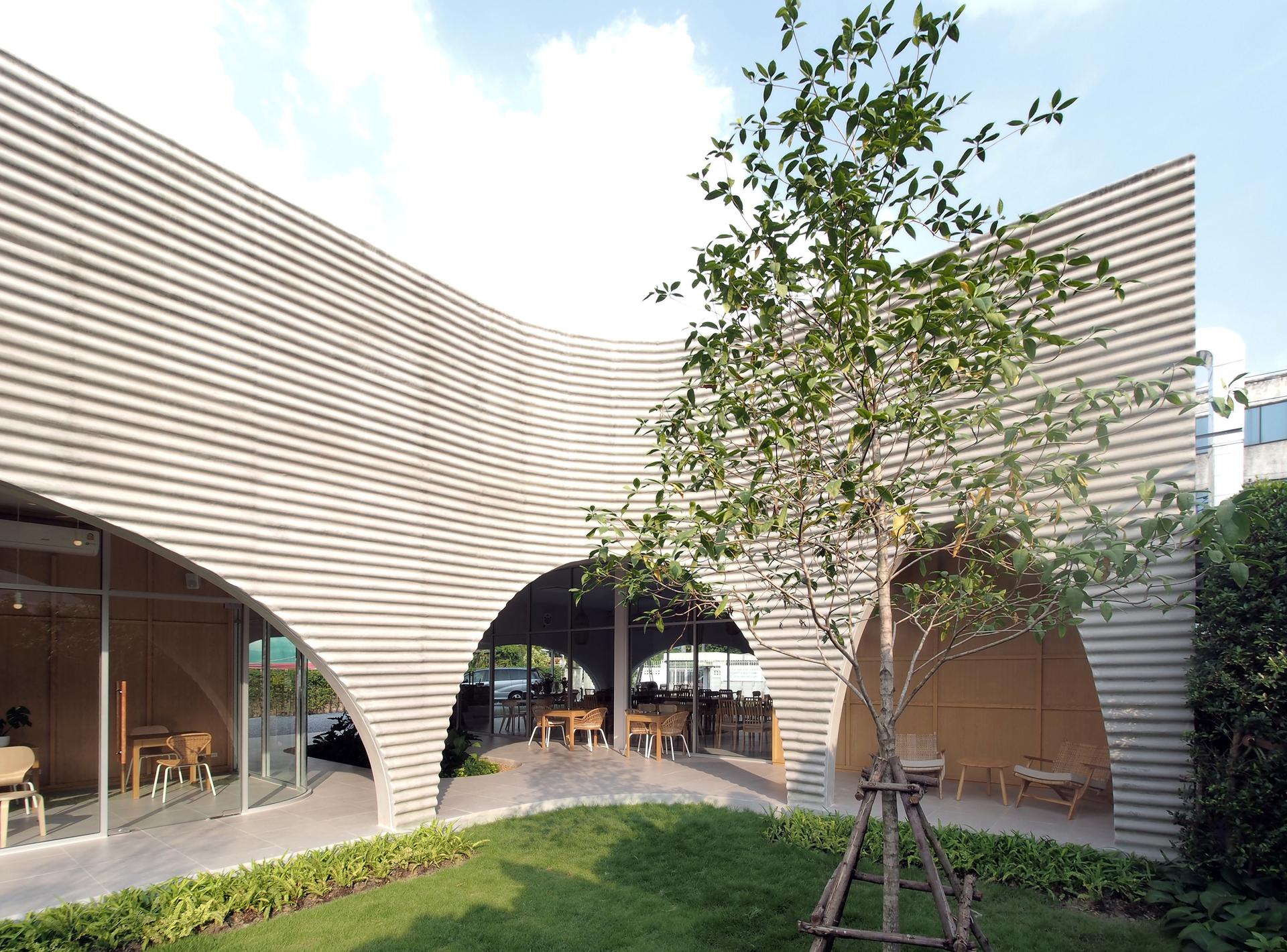

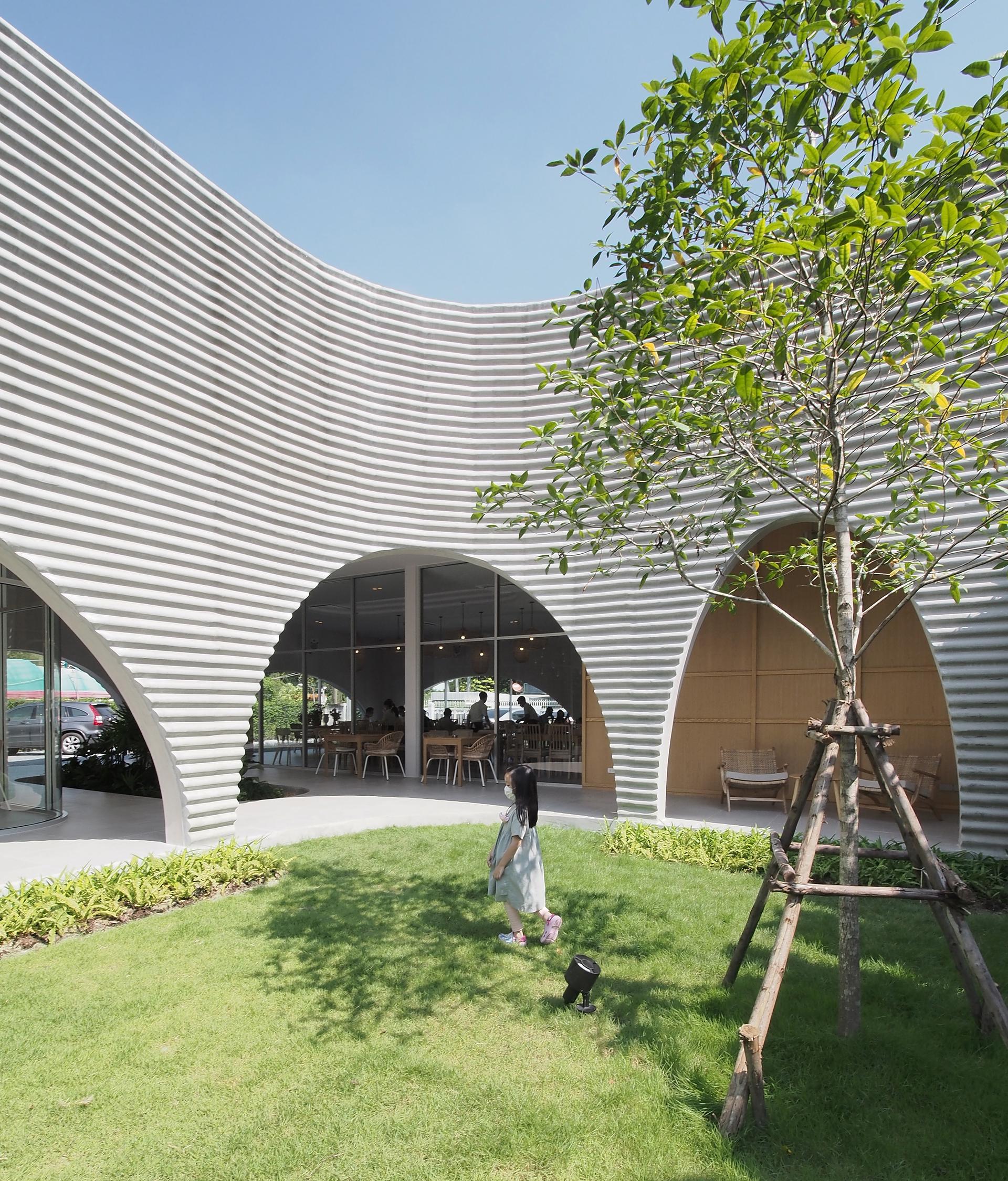

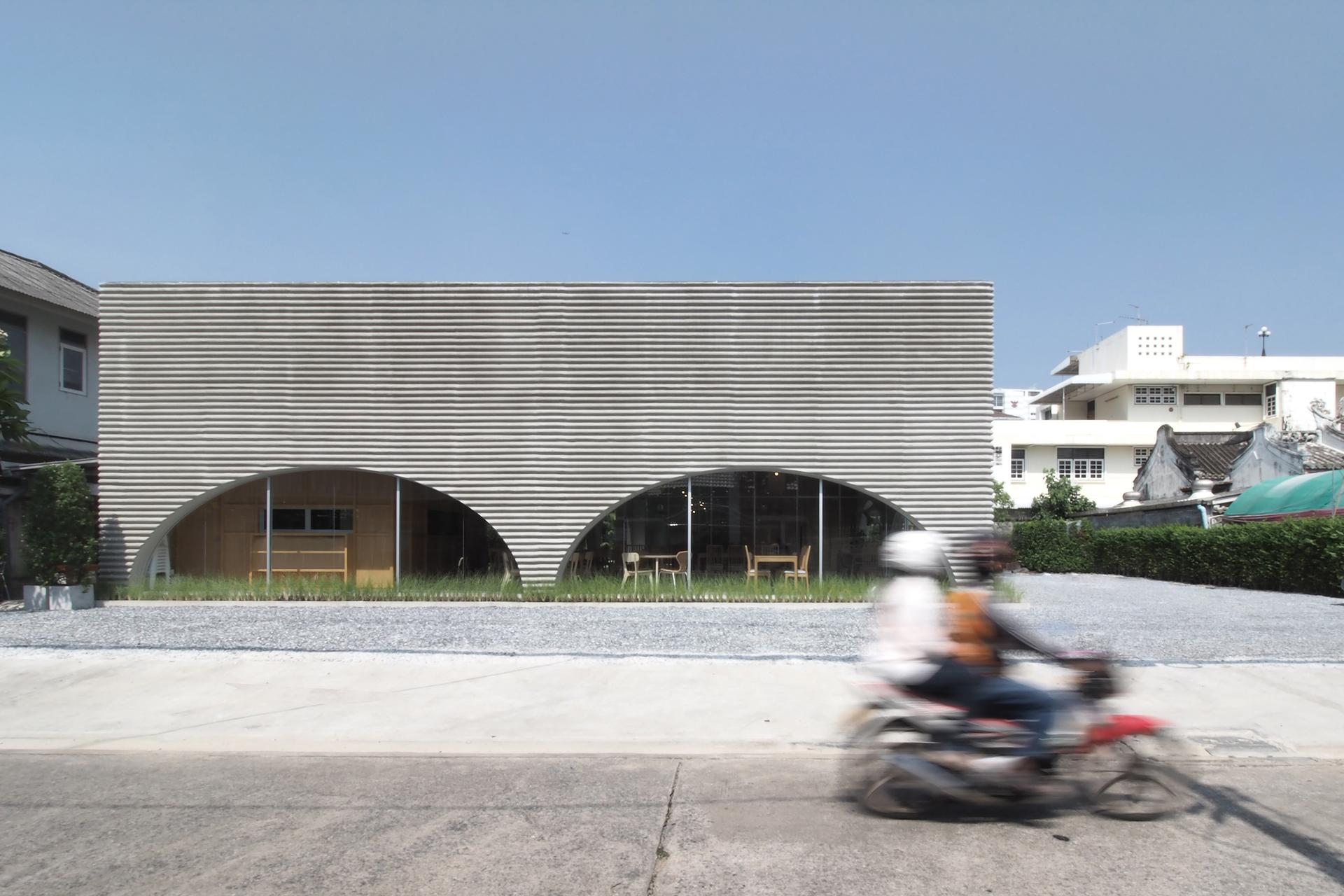

The 6-meter height building can be separated into two main parts by L's legs: the main restaurant with the kitchen and the cafe with all service areas, divided by the central semi-indoor courtyard from the main entrance. At the same time, both spaces can celebrate the view of the enclosed courtyard altogether— this courtyard can arrange small events. Meanwhile, for a cursory glance, the unique facade metaphorically represents the wave-like (Onda means Wave in Italian) all along the building's elevations.

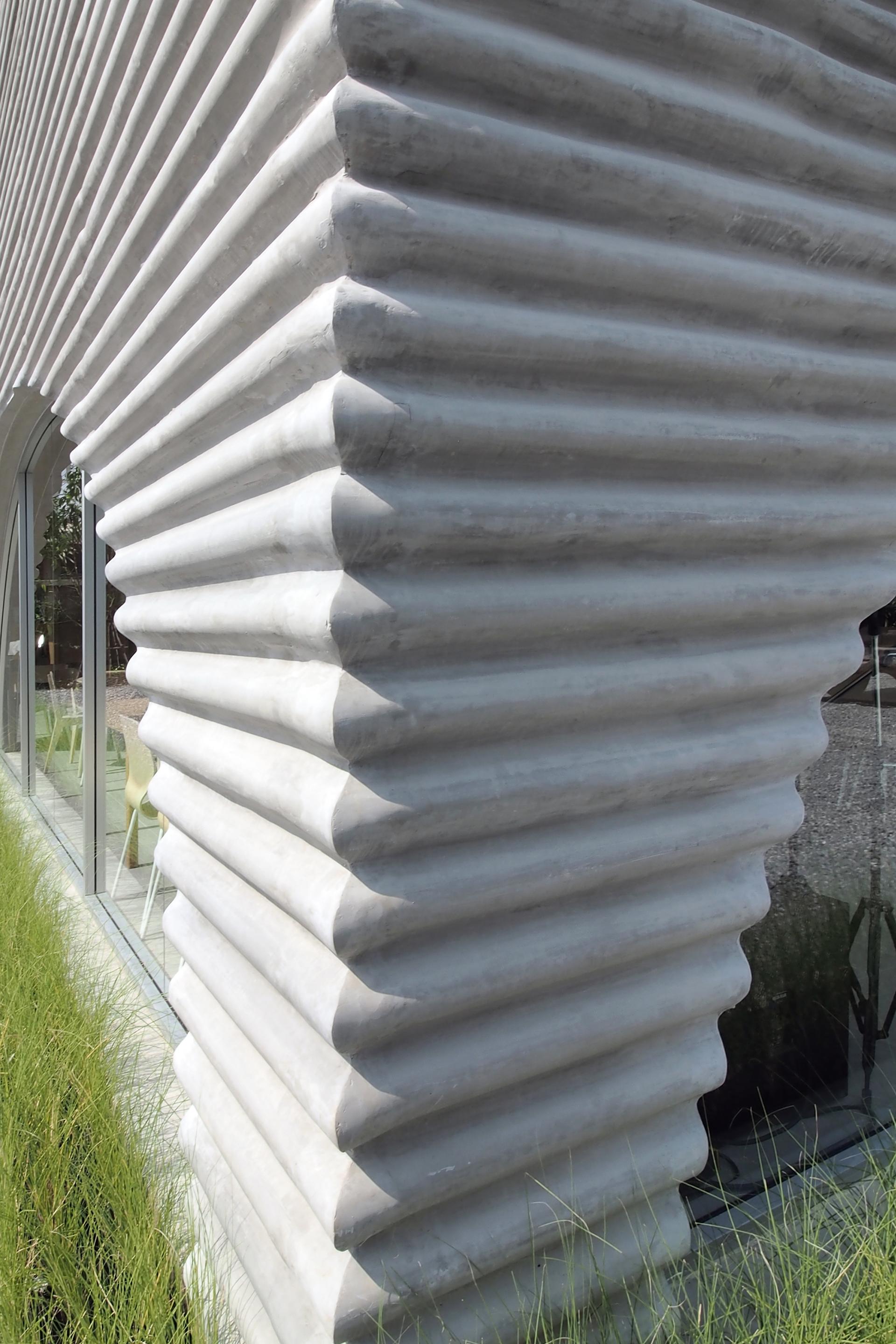

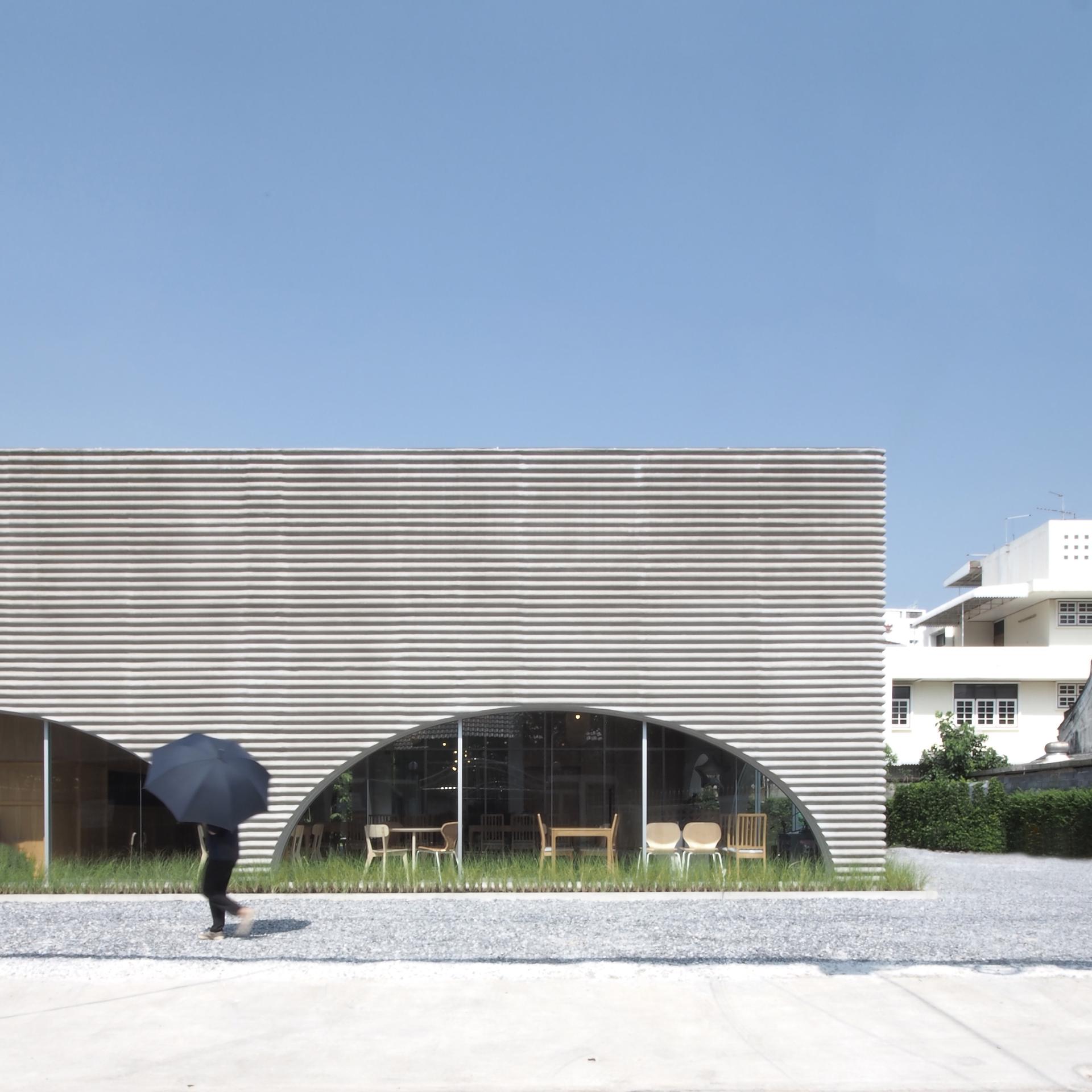

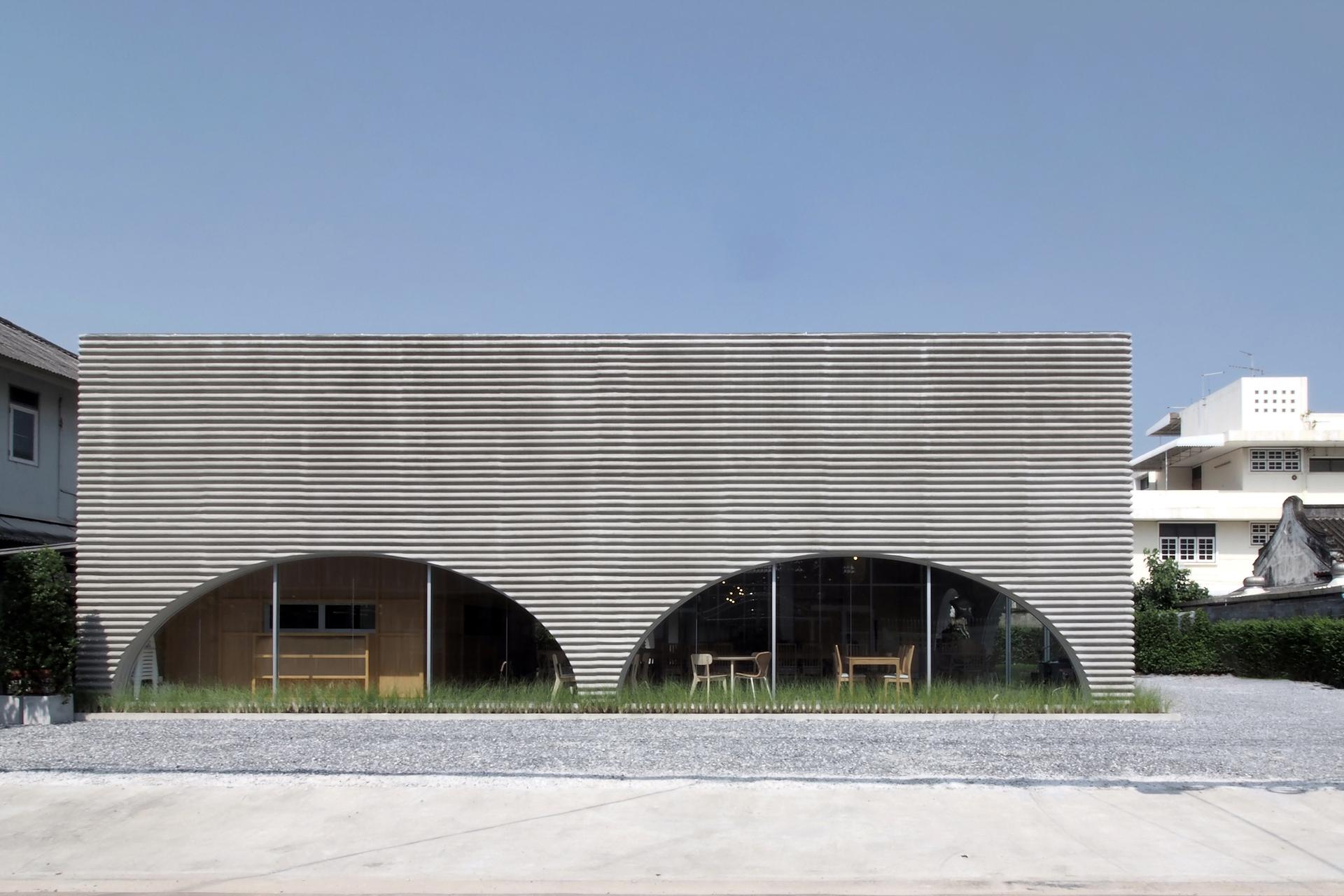

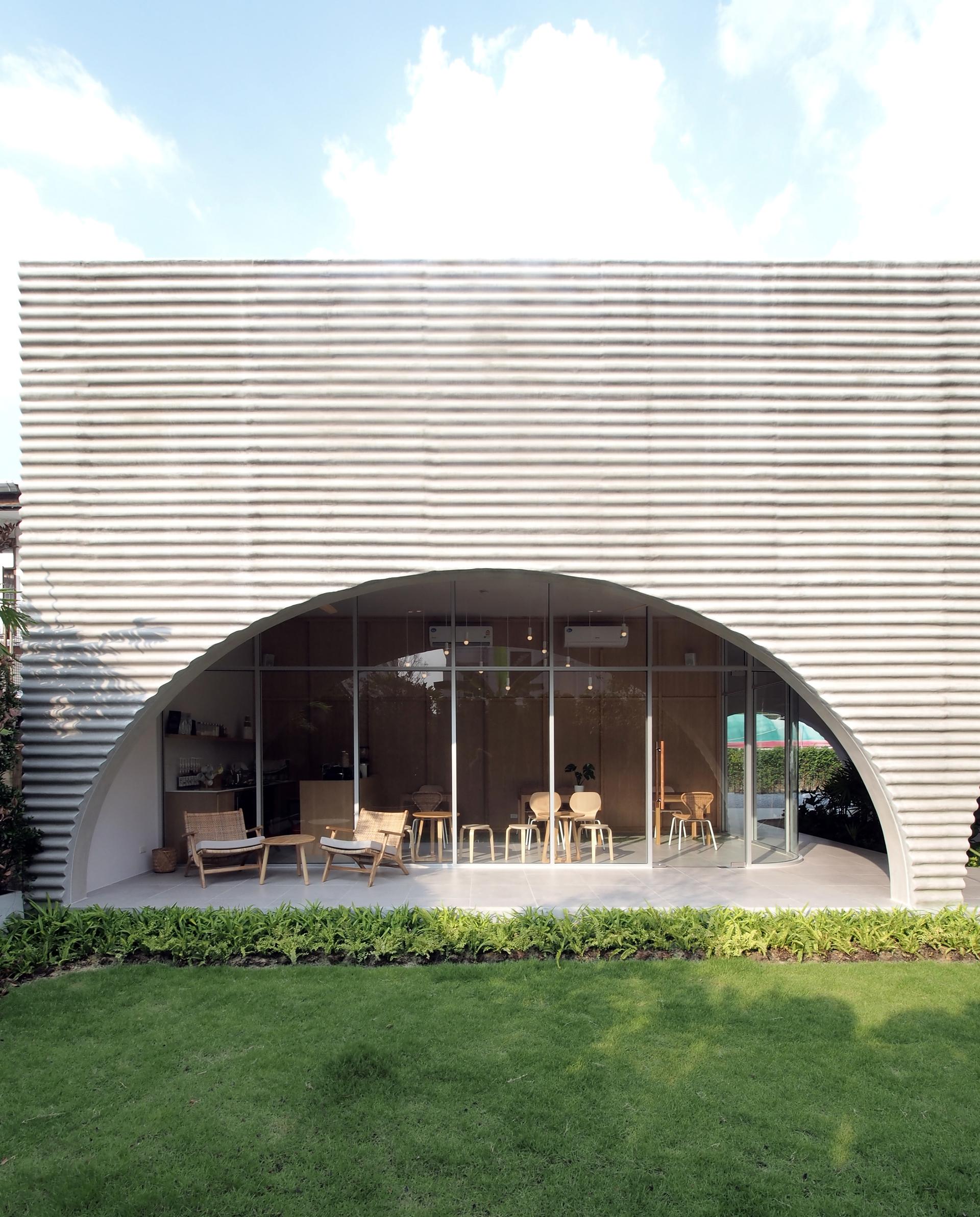

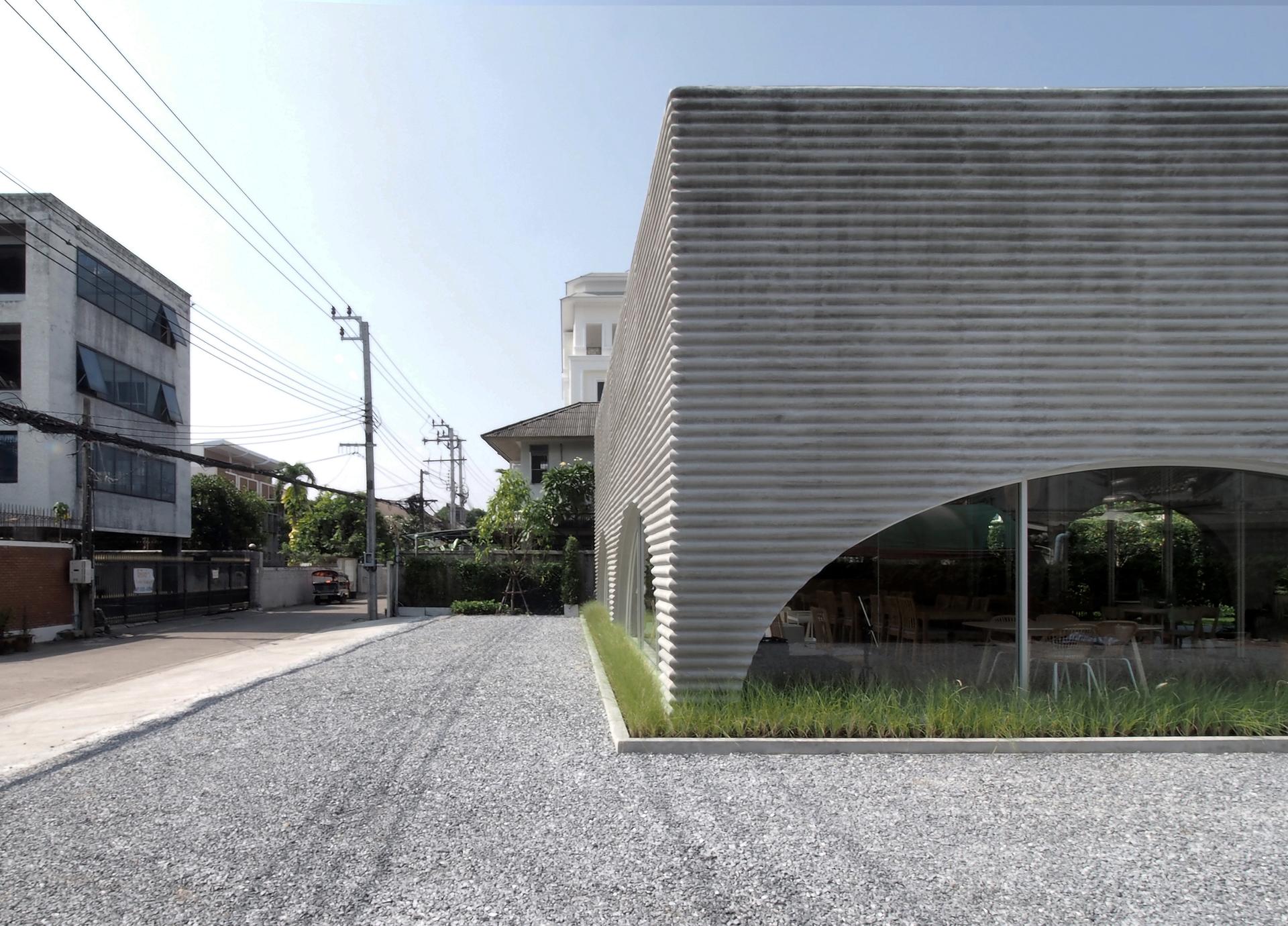

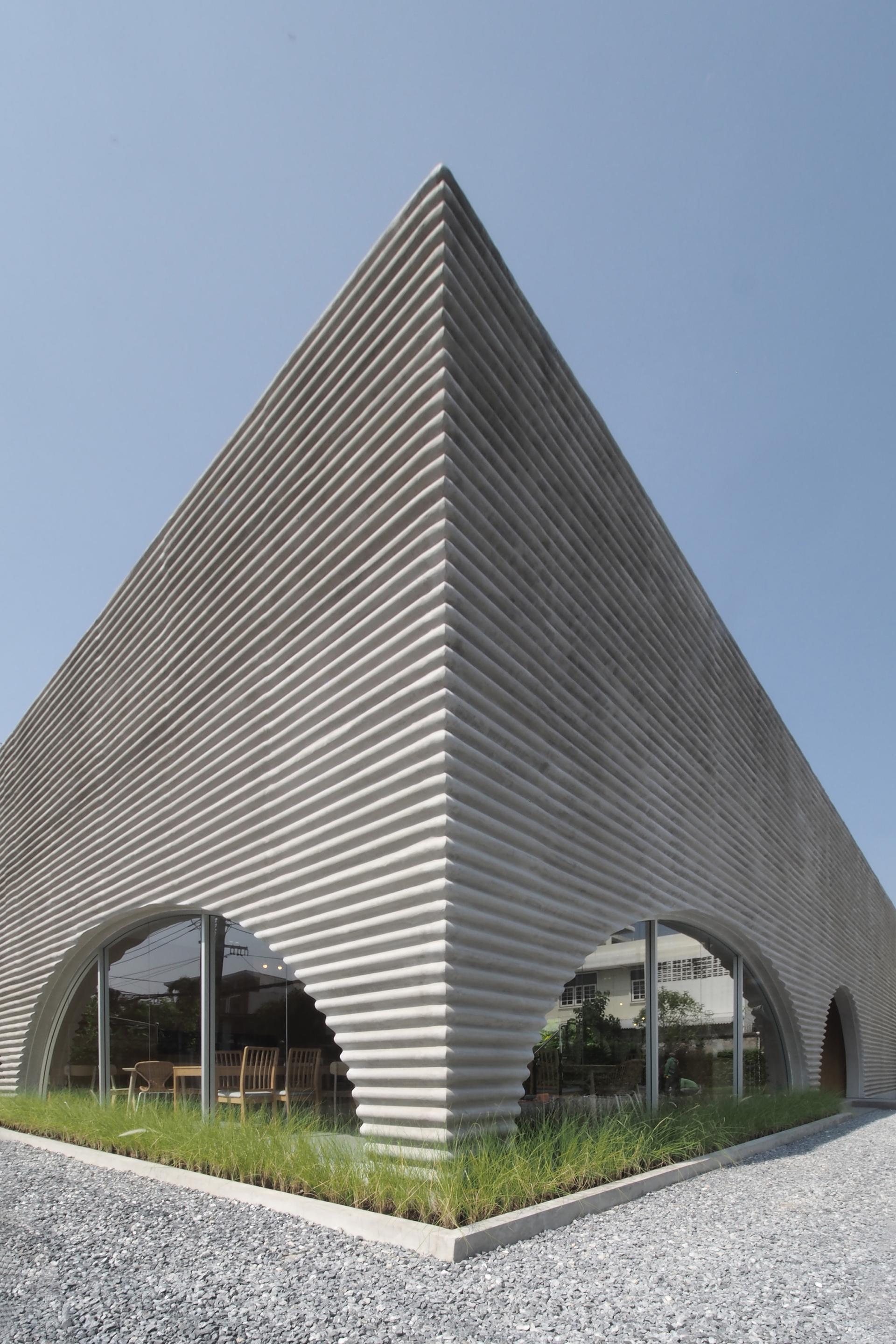

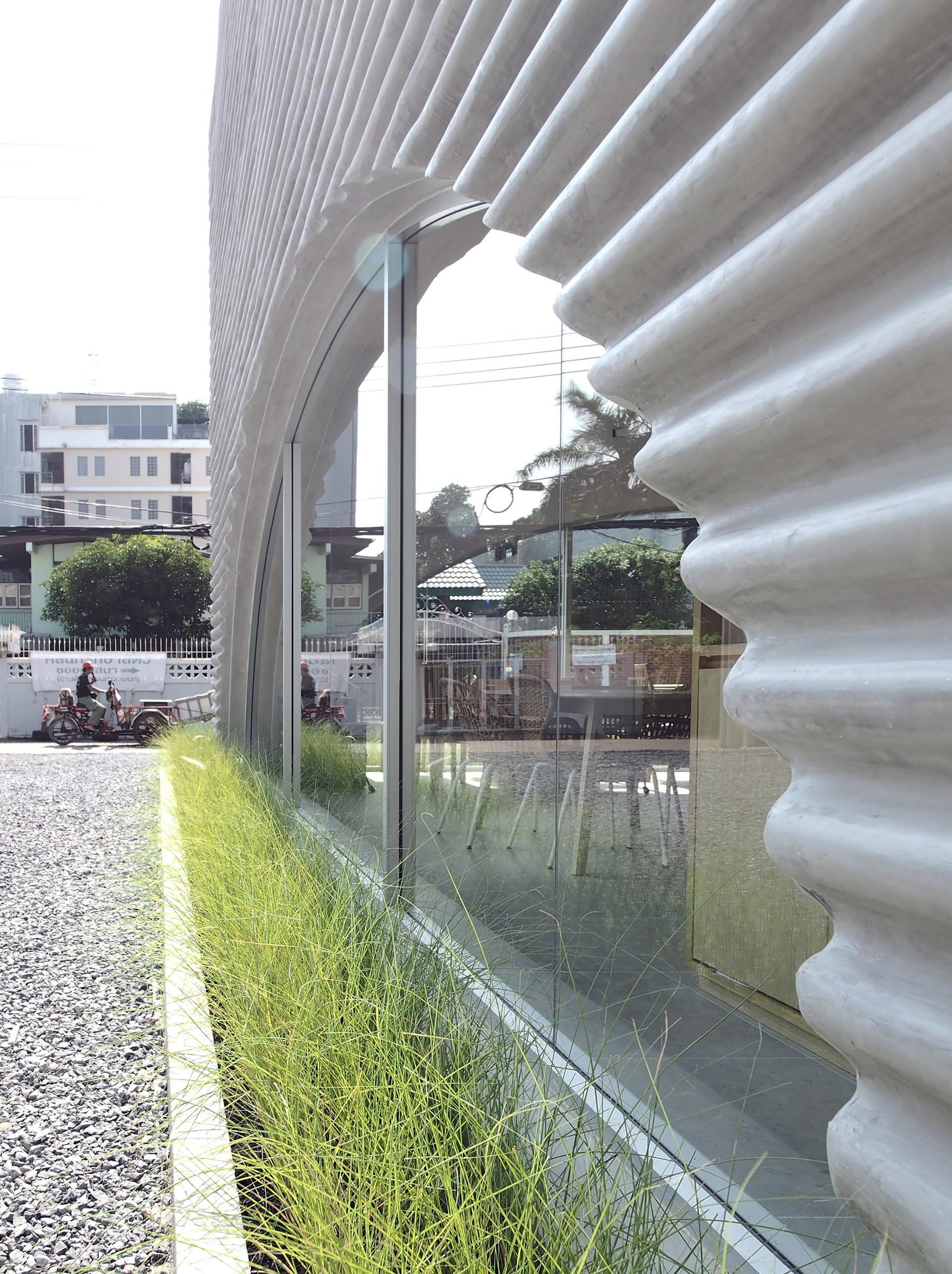

As mentioned before, wavy precast concrete is the main material of this project. In a site experiment, the contractor uses a standard corrugated roof tile as the primary mold casting of 1.20 x 2.40 square meters in a modular size. Then tile modular all together to create a large 6x8 square meters onsite concrete mold on the ground, which operates as a master mold casting to cast all facade panels. Then, the half-circle voids are applied as openings on the facade to scoop out the solidity of concrete, reveal the wooden interior space, and allow the natural light to brighten the space.

Project info: Project name: Khao Niao Restaurant + Onda Cafe Architectural Design: ASWA (Architectural Studio of Work - Aholic) Interior Design: ASWA (Architectural Studio of Work - Aholic) Location: Bangkok, Thailand Area: 290 sq.m. Type: Cafe and restaurant
