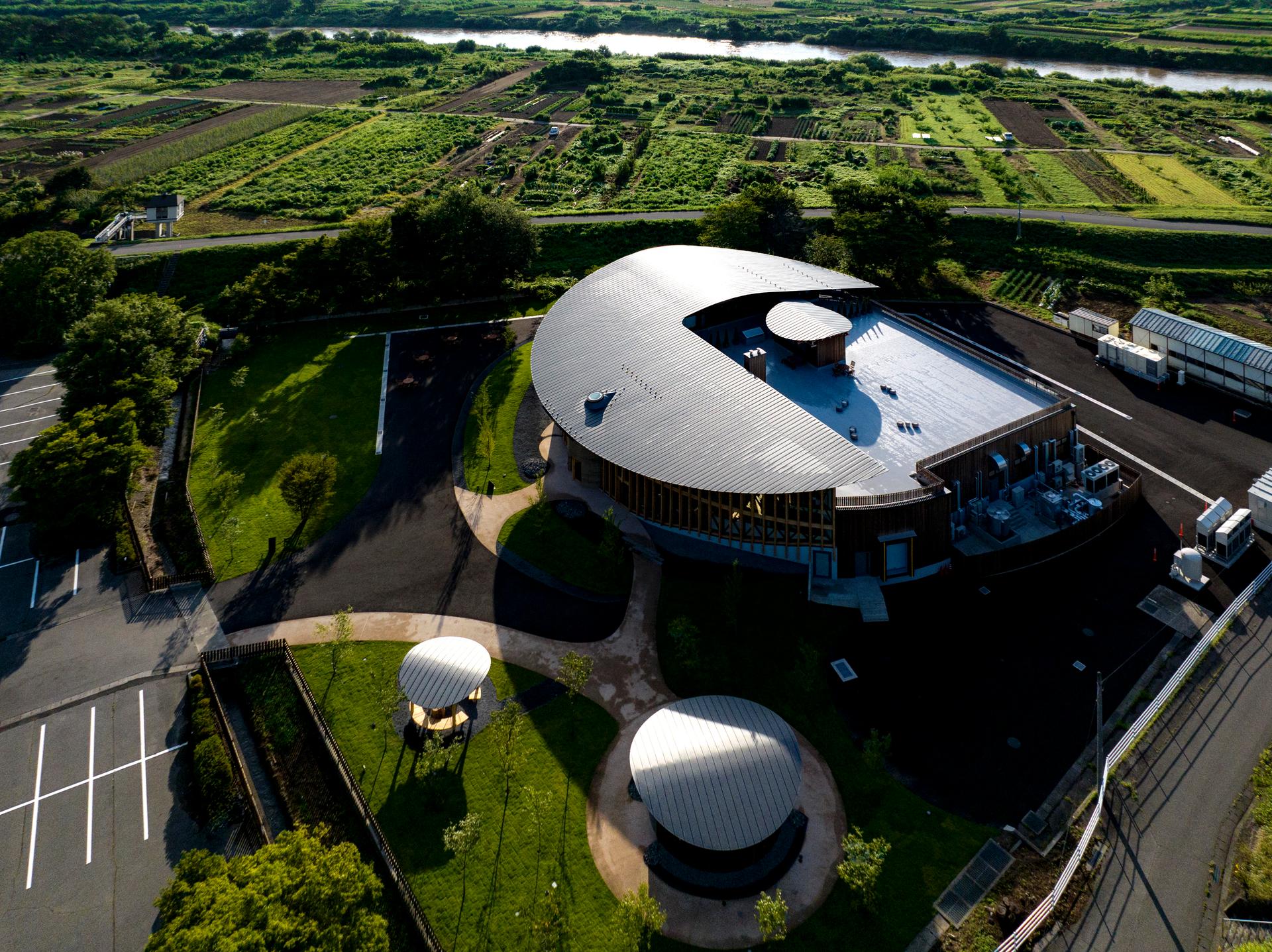

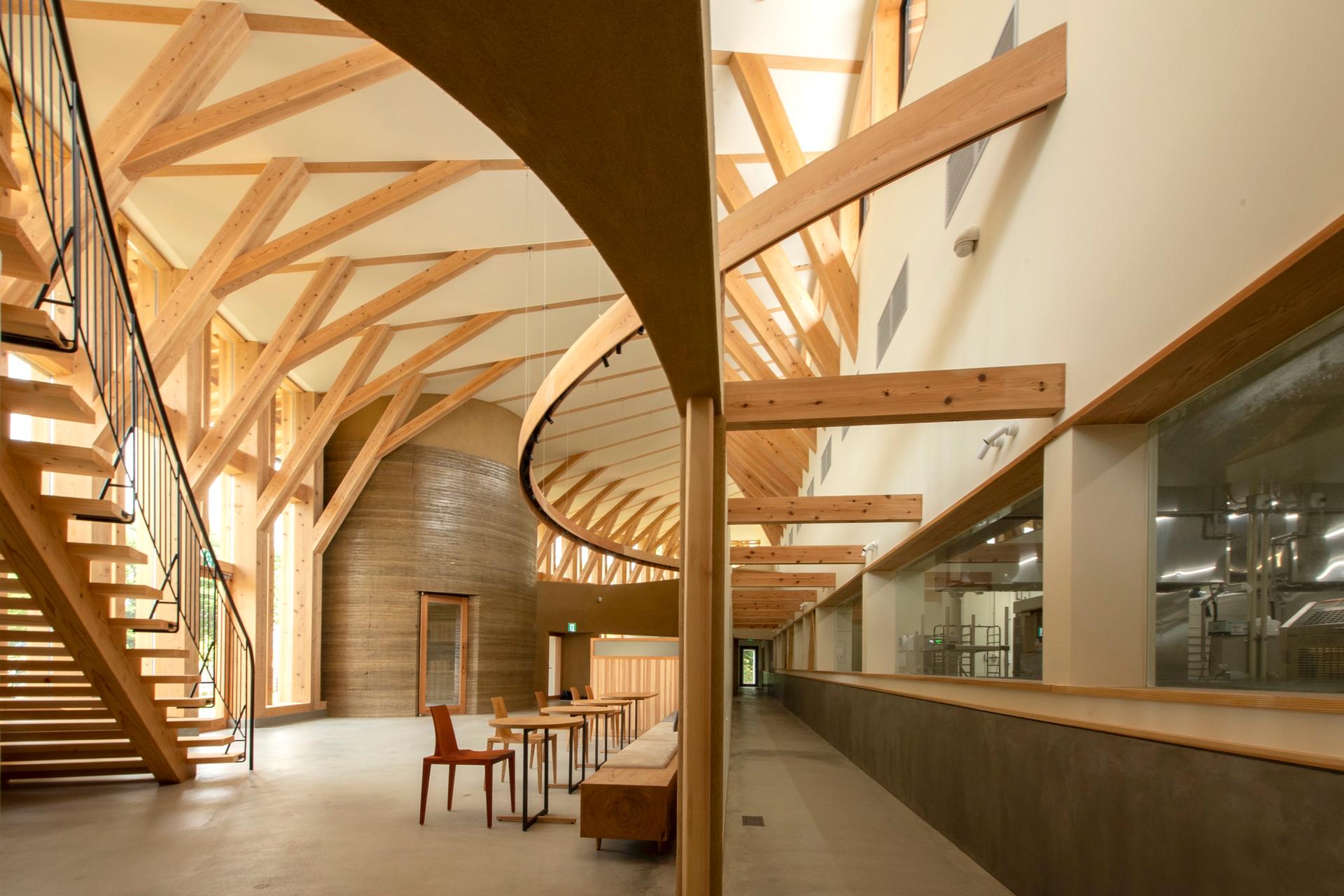

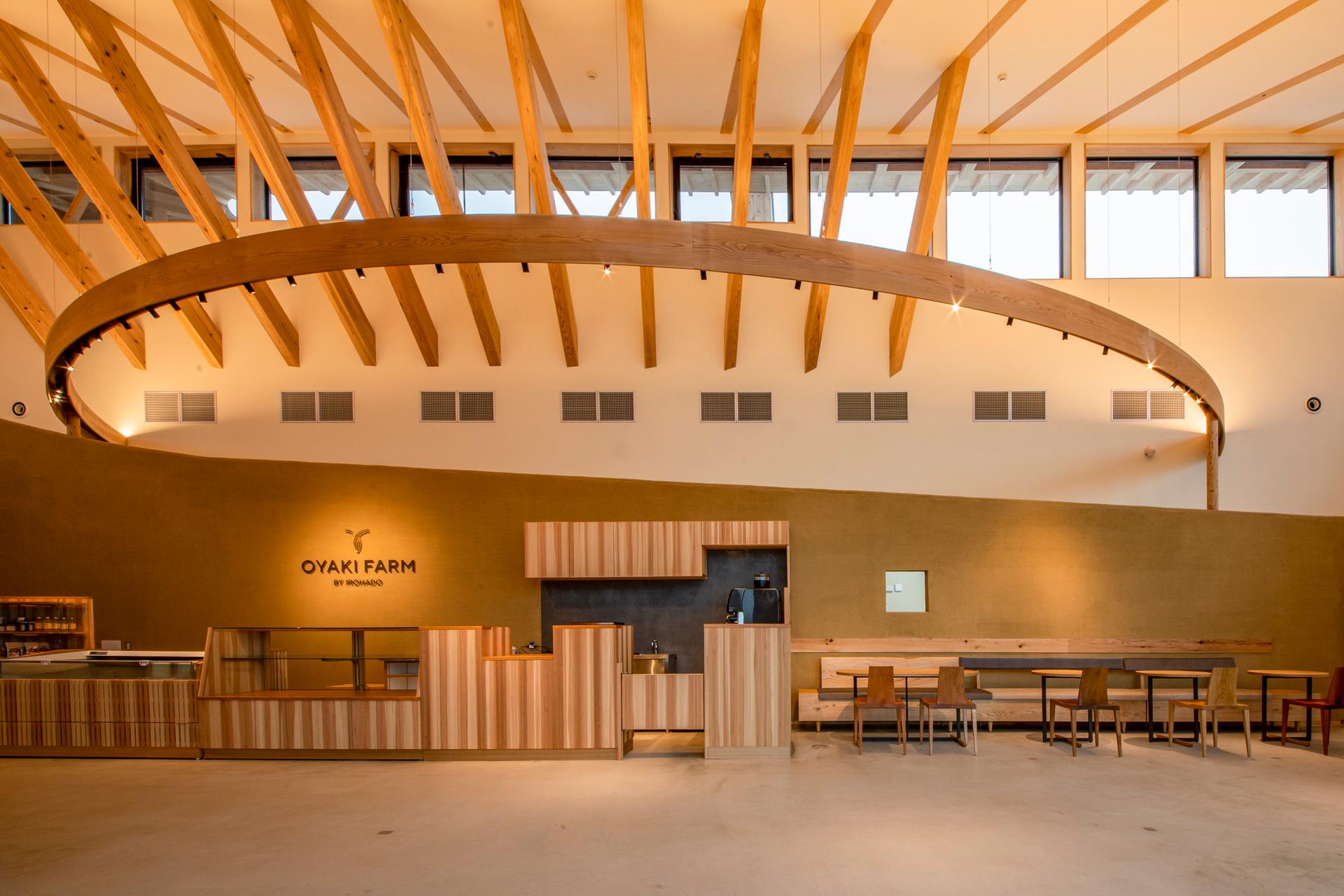

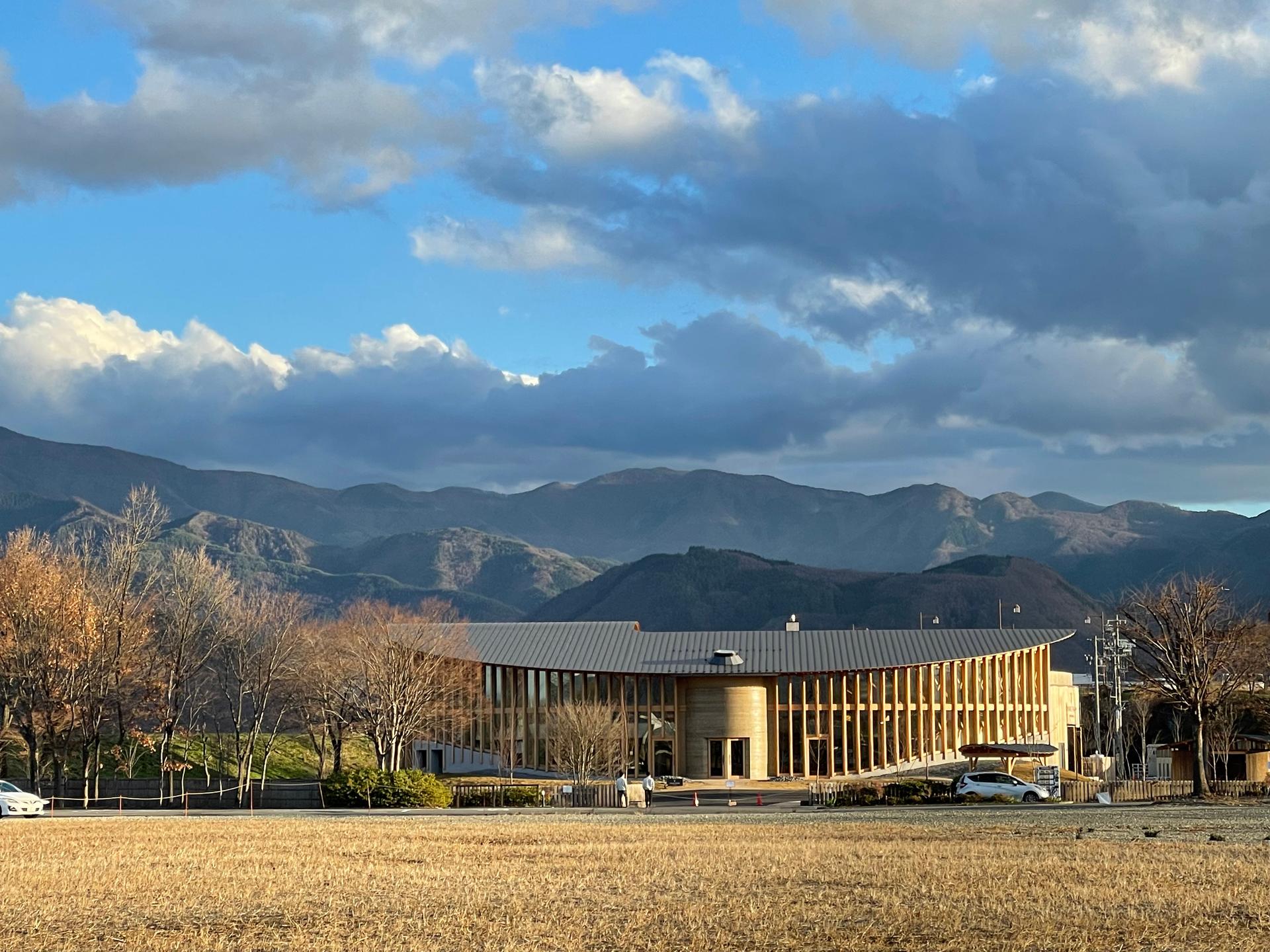

3 Making process: collaboration with design and construction. 4 Uplift of the earth. A place connected to the earth. 5 Movement as a Life-living organism: creation, change, growth, and circulation. The two circles representing the factory/region and the cafe/society overlap and interlock, while the arc-shaped roof resonates with the surrounding mountains built to meet primary energy consumption standards in Japan. The entire building is a 1,500m2 semi-fire-resistant wooden building with structural materials of cedar and cypress.

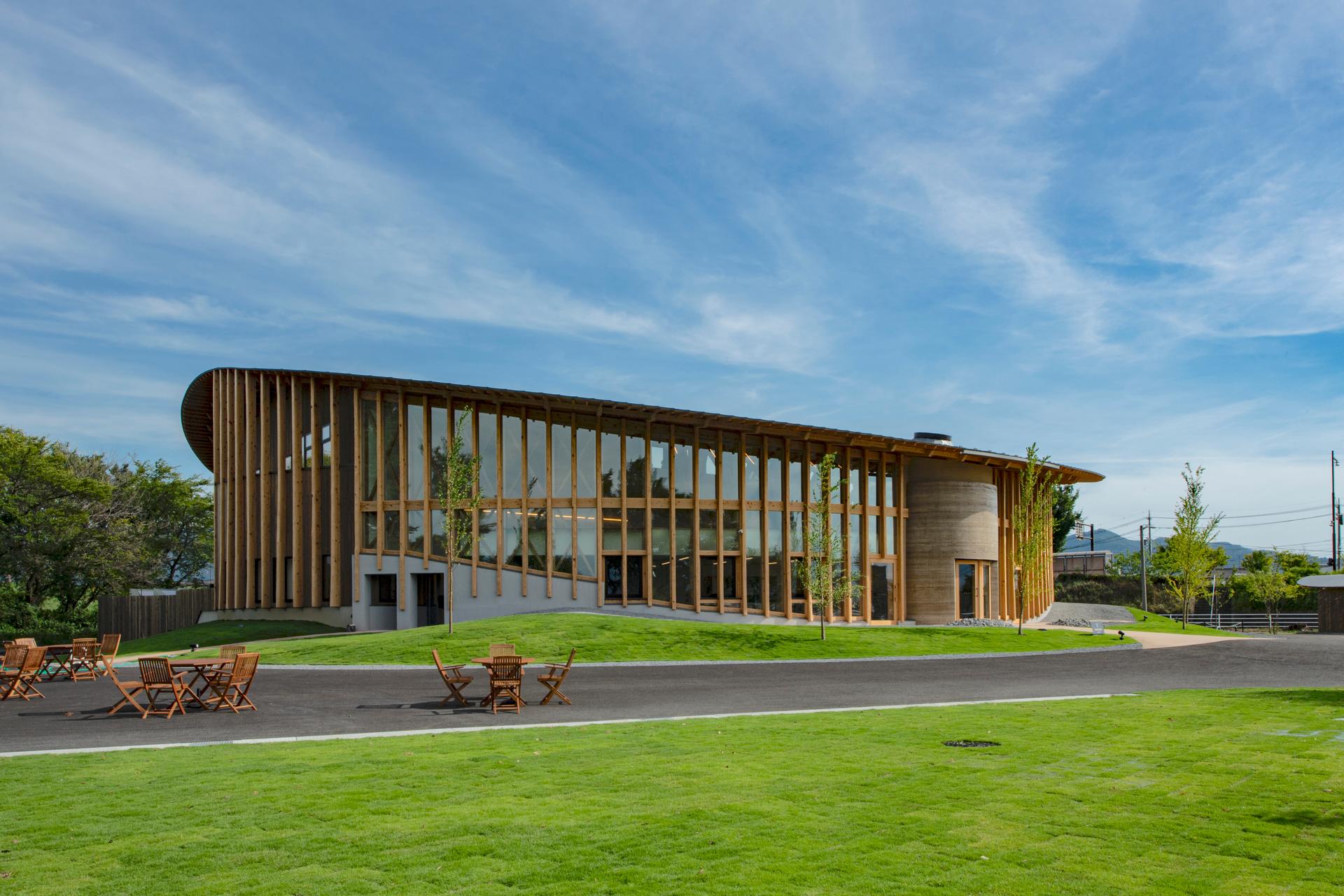

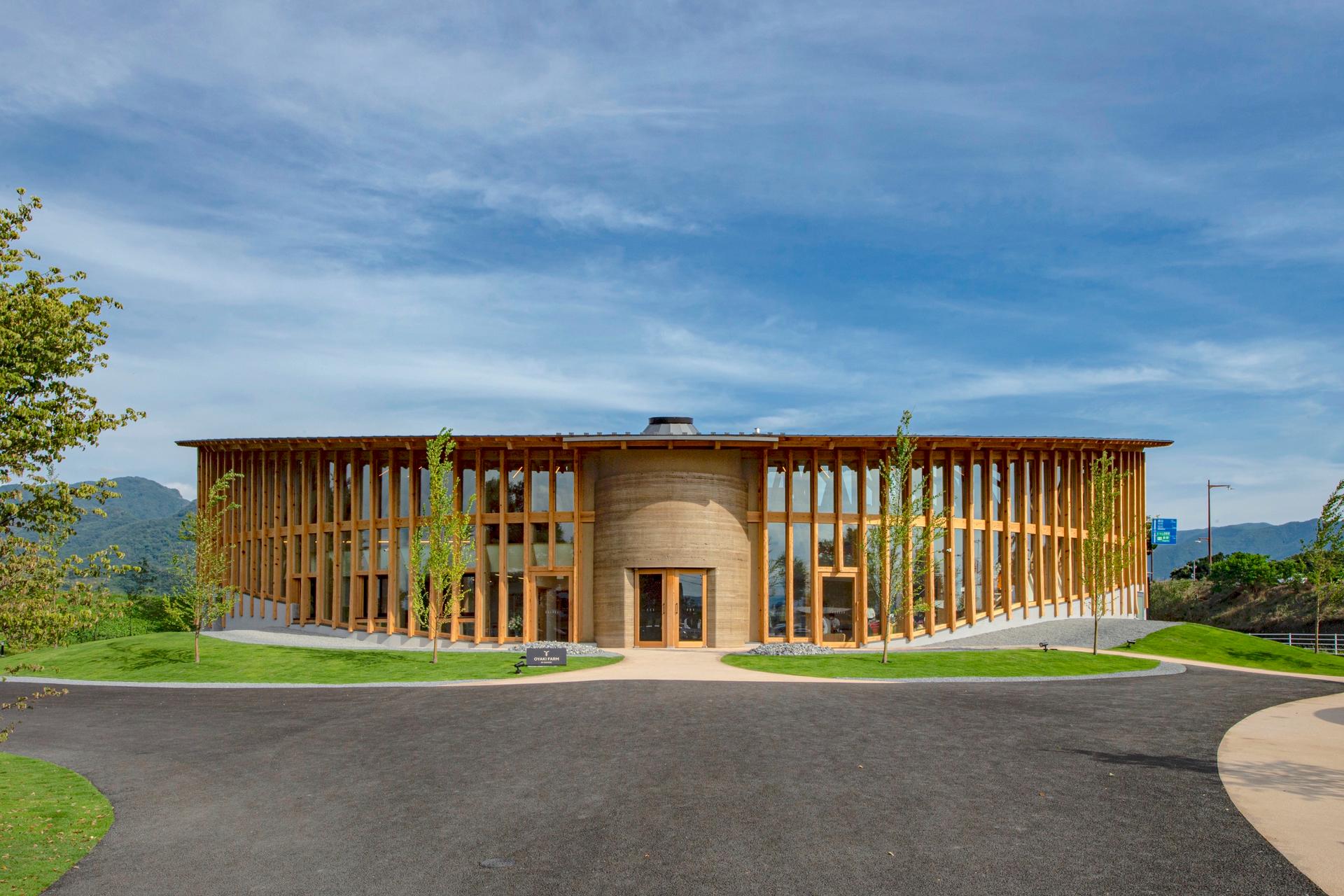

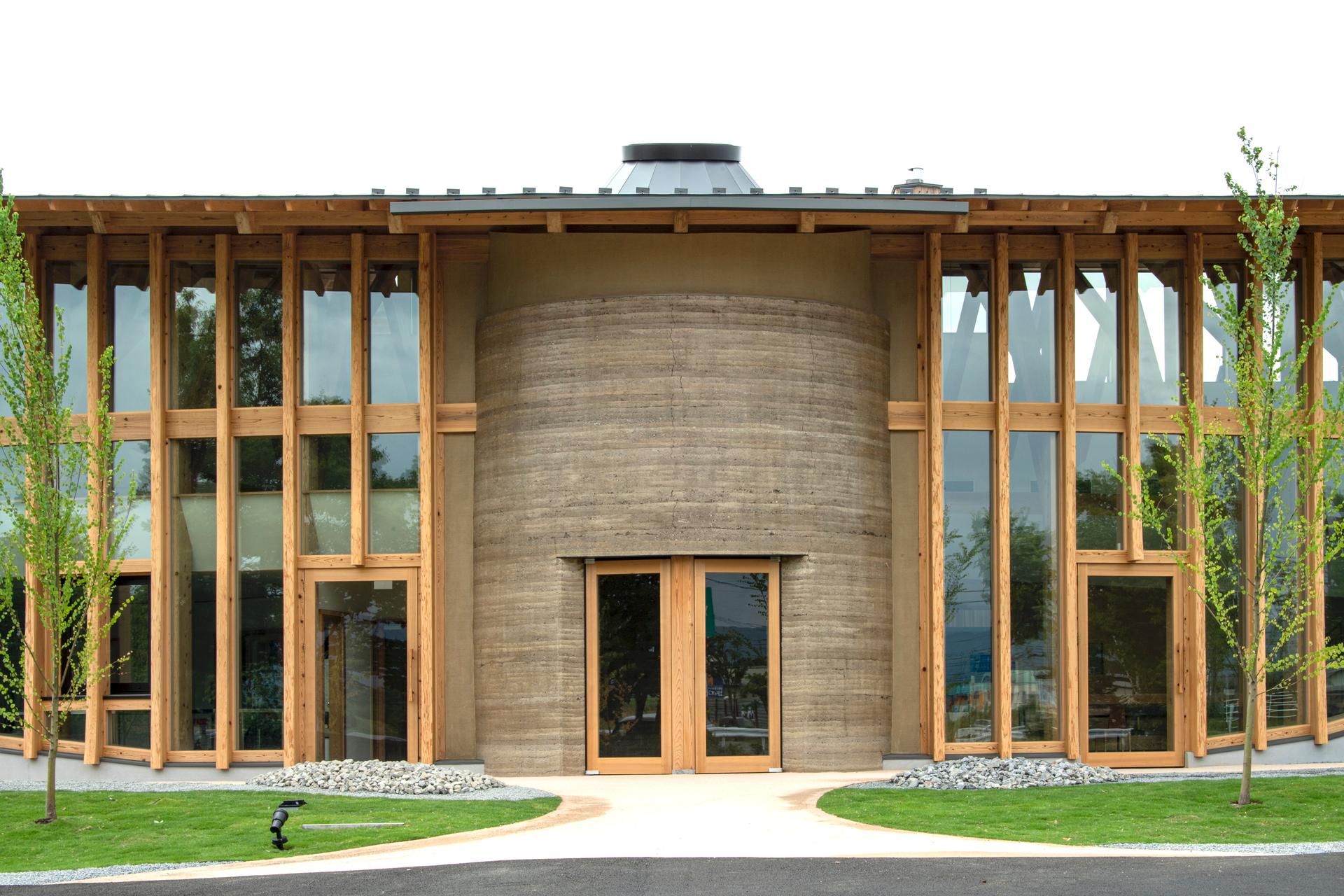

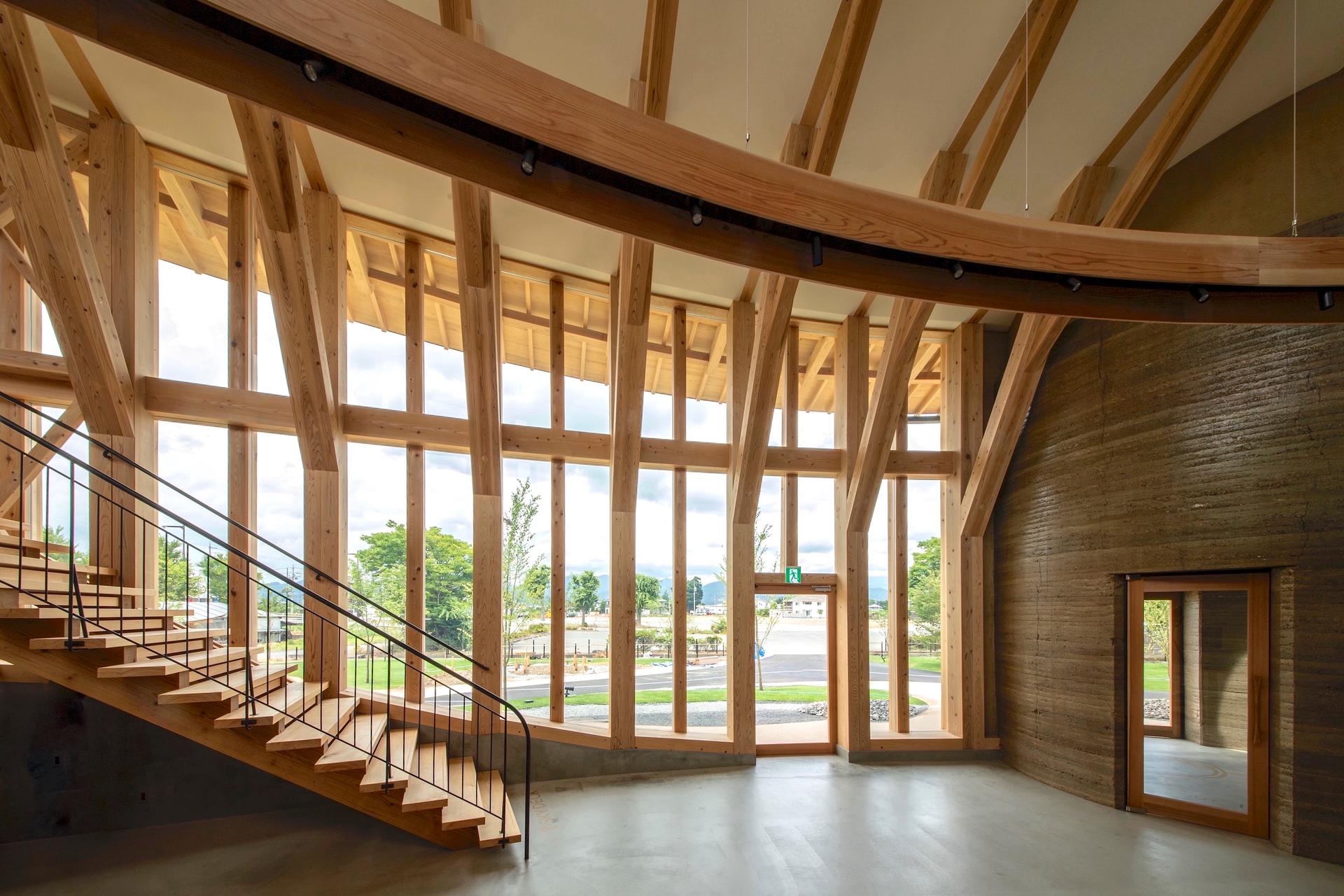

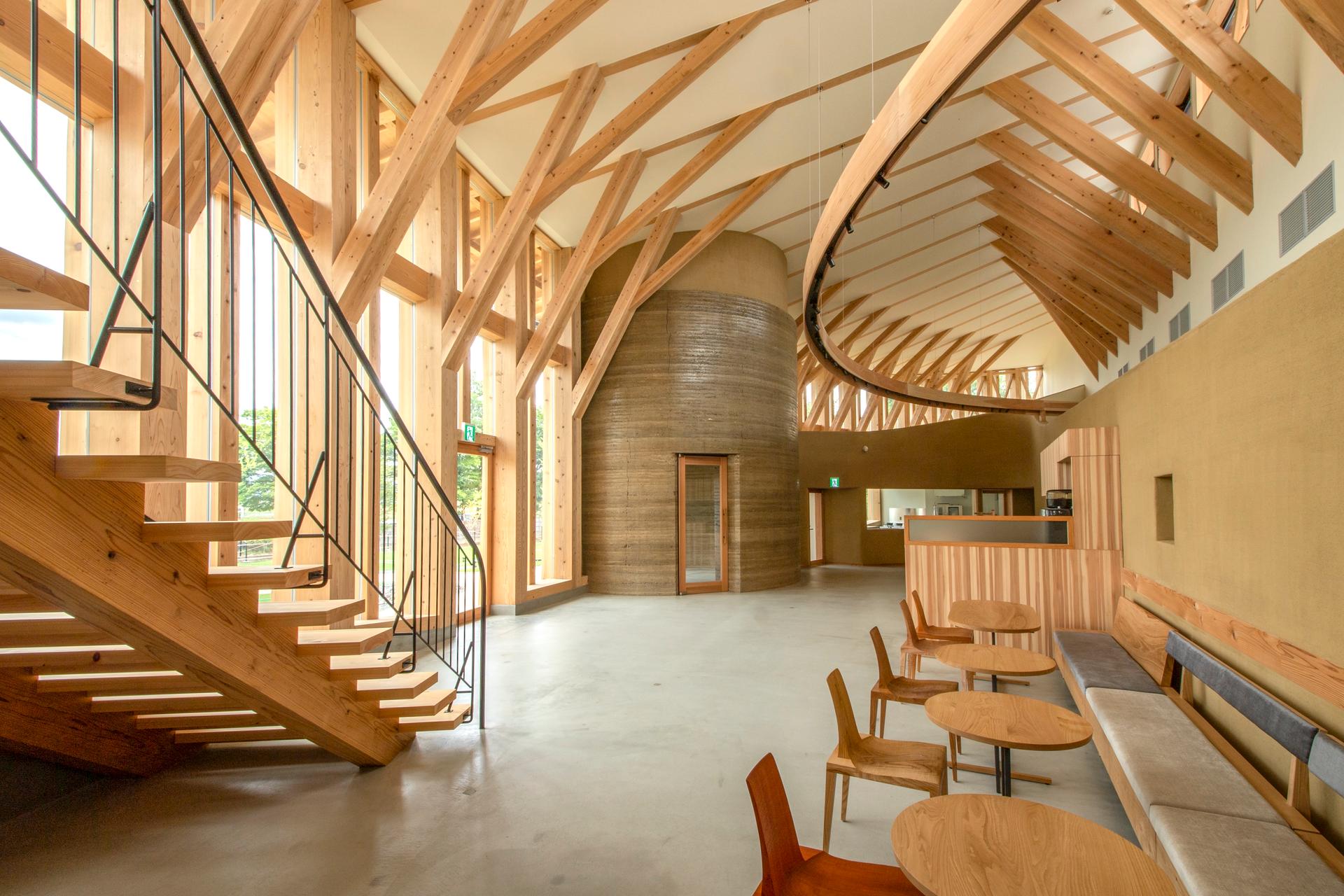

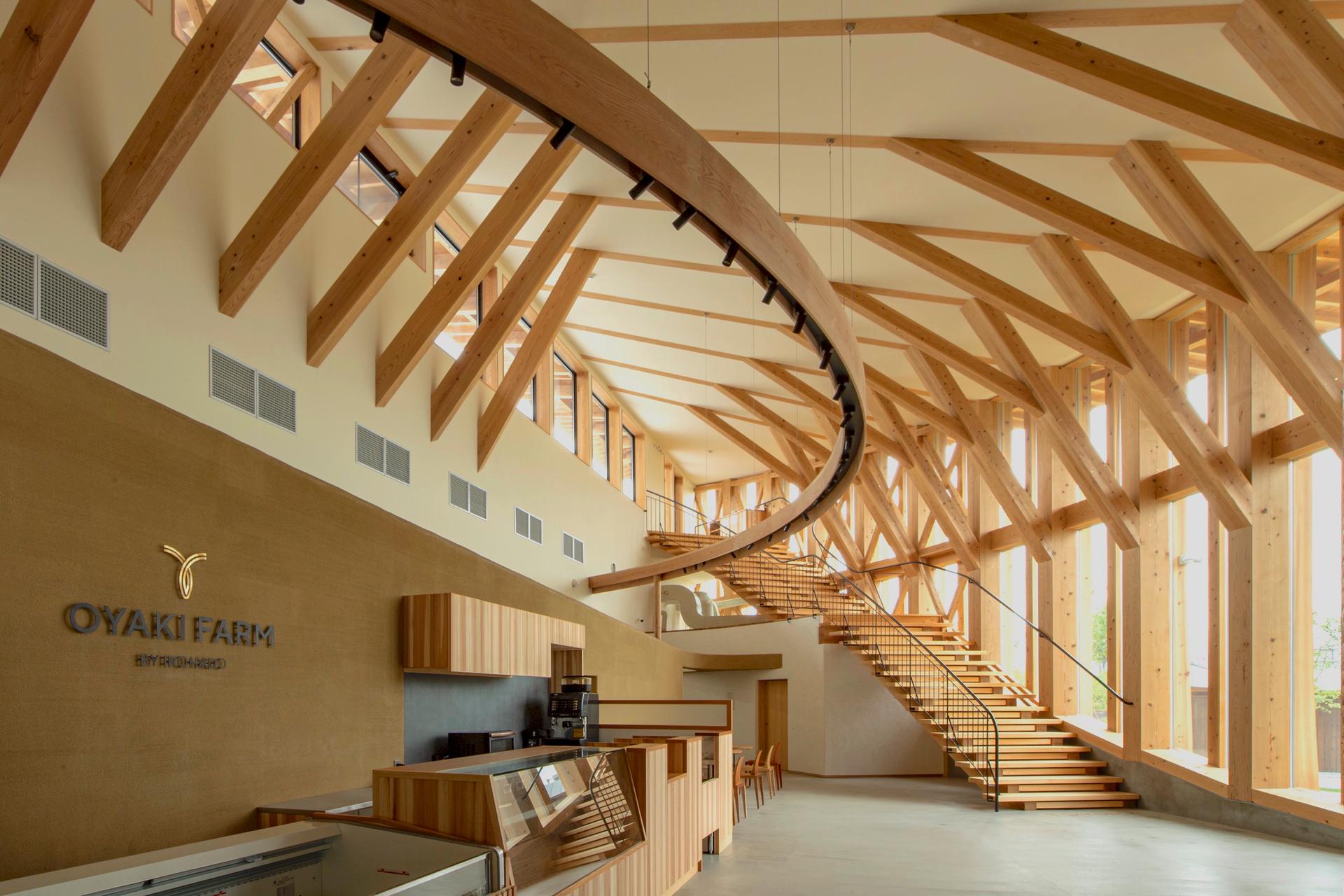

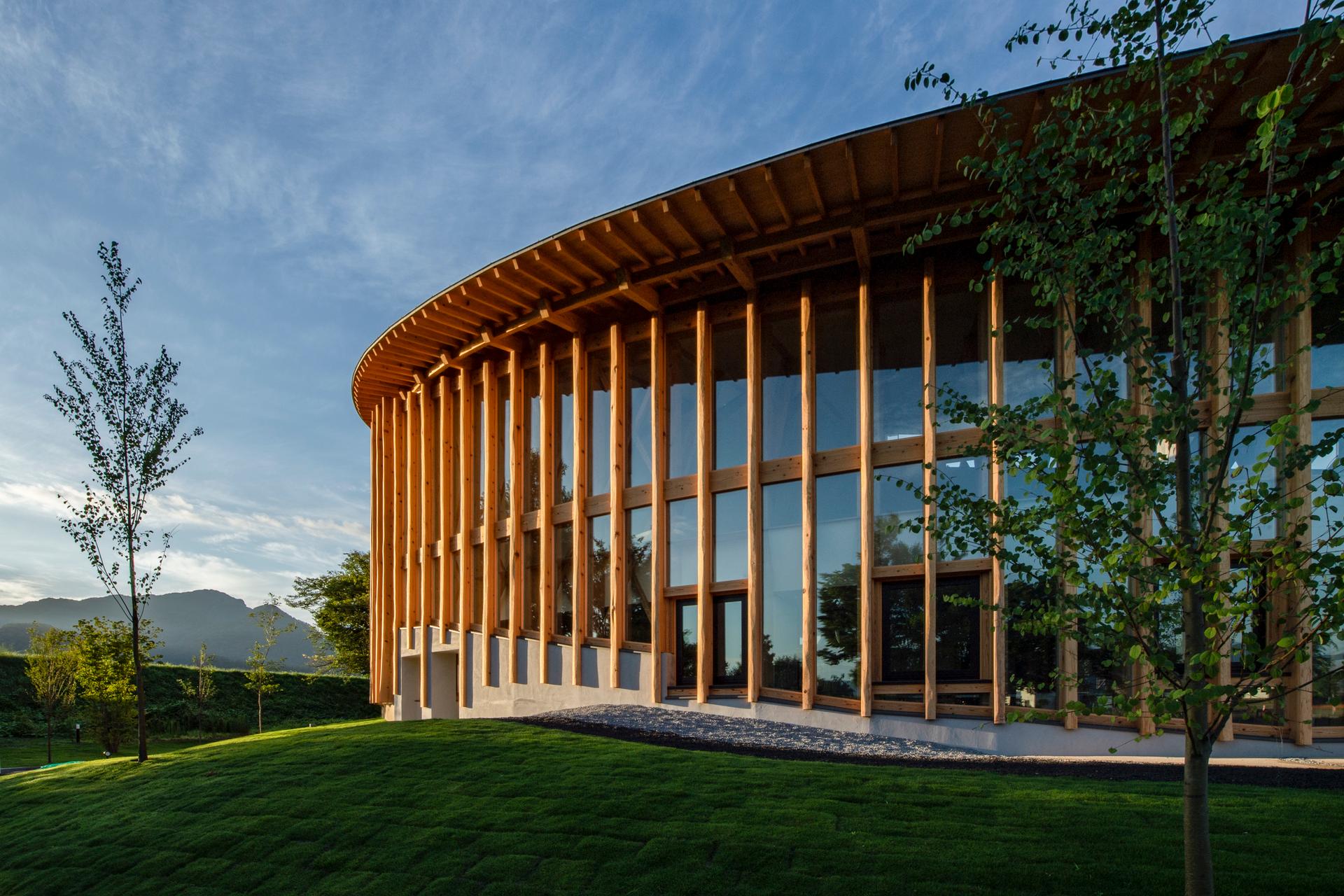

The north side is a glass curtain wall with cedar drum pillars with a maximum length 7m. The Cedar beams and purlin on top of the radiating cypress beams, a rafter and roof with a 3m overhang of the eaves were hand-carved by a local carpenter without the use of a cane.It is done with Japanese traditional craftsmanship method fan rafters in the corner roof . Toplight of rammed earth wall, natural ventilation high side window of the hall , falling rain water from the roof are connecting sky and earth with this architecture and landscape, reducing CO 2 and regenerating earth. ＝＝＝＝＝＝＝＝ ■
Data Oyaki Farm

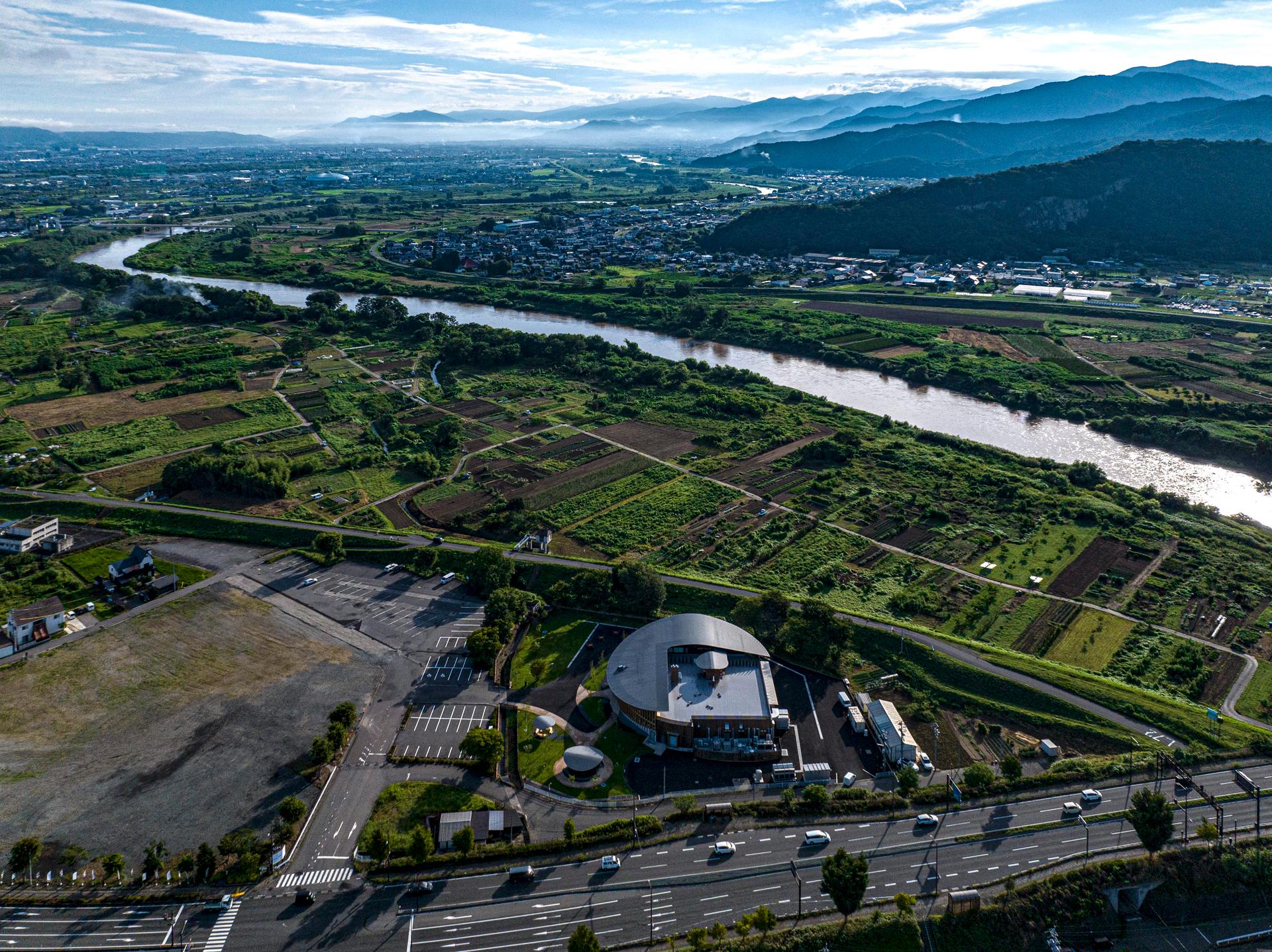

Location : Nagano City Japan Funtion : Factory , drive inn (shop cafe) Owner : Irohado Ltd. Design: Tono Mirai architects Tono Mirai Structural Design: Kishinoue structural office Daisuke Kishinoue Construction: Freezer system / Moriya Corp. ,Terashima construction Ltd., Kyoei Corp, Miumi landscape Site Area 9214.56m2 Building Area 1415.34m2 Floor Area 1733.64m2 building coverage ratio 16.46%（Max：60%） Floor area ratio 18.81%（Max：200%） Stories 2 Structure Wooden Design term Sep. 2020- Oct.2021 Construction term Oct.
2021 - 31 July 2022 Completion 31 July 2022 Max height 10,920mm Eaves height 8,980mm
