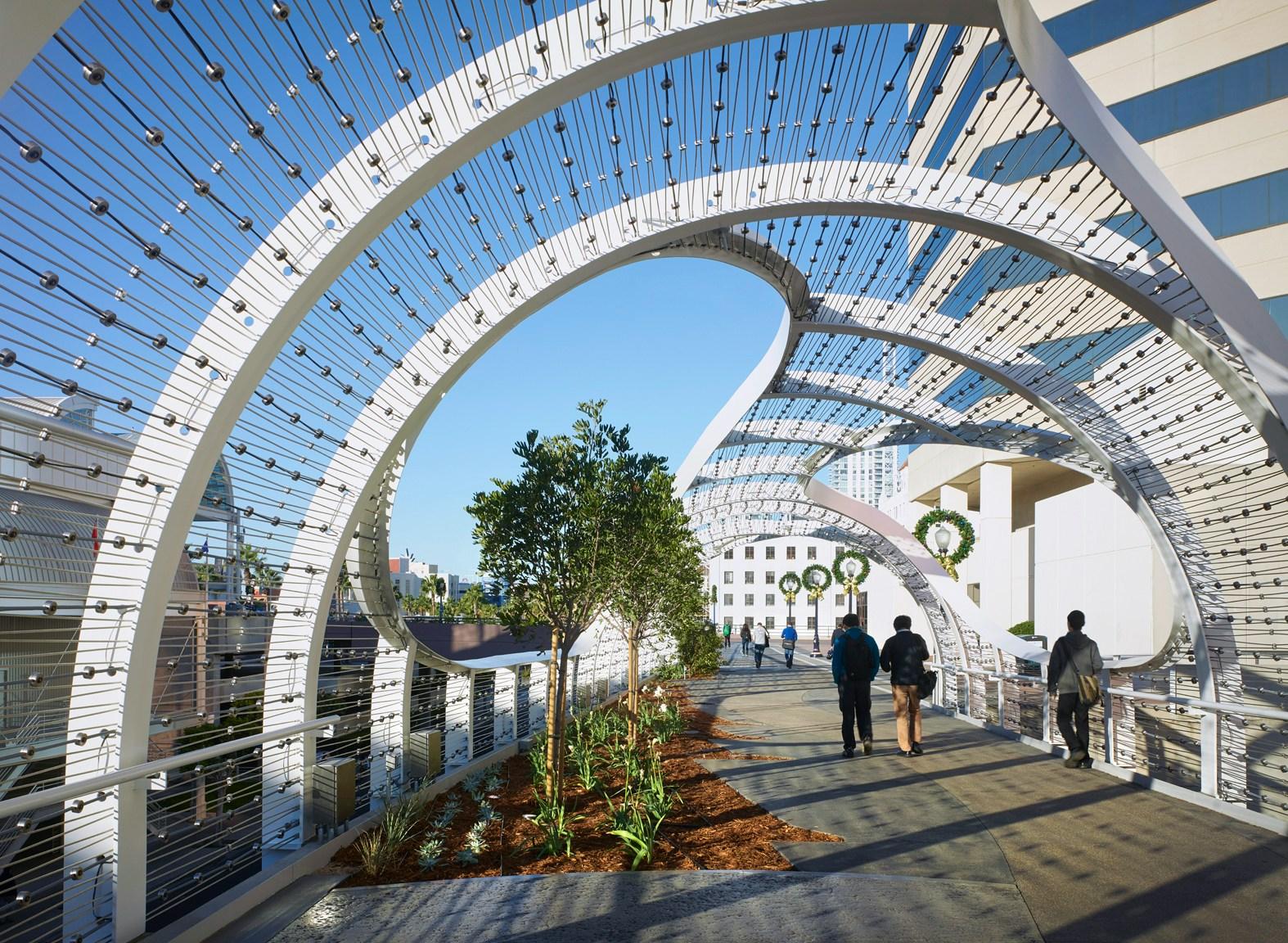

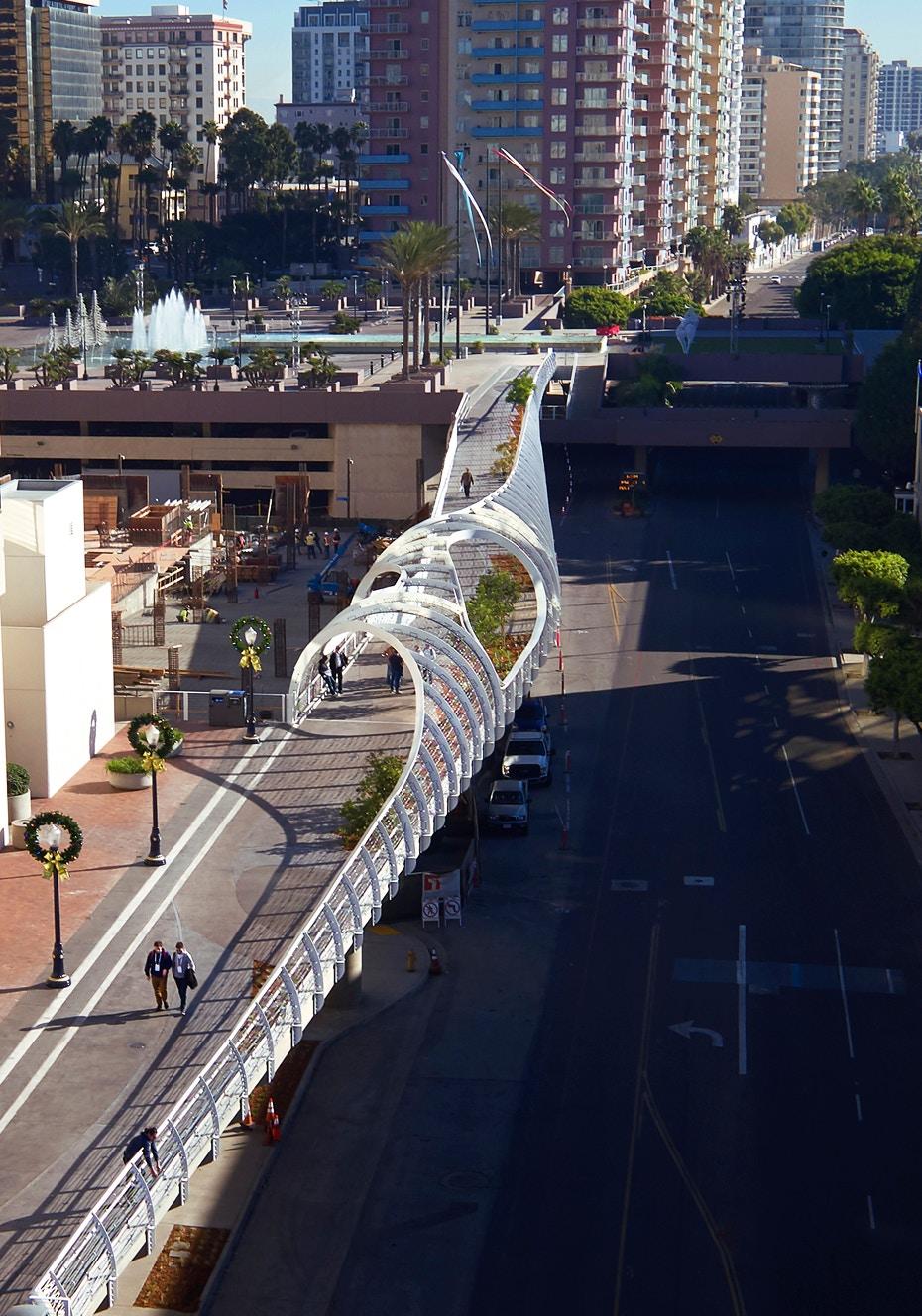

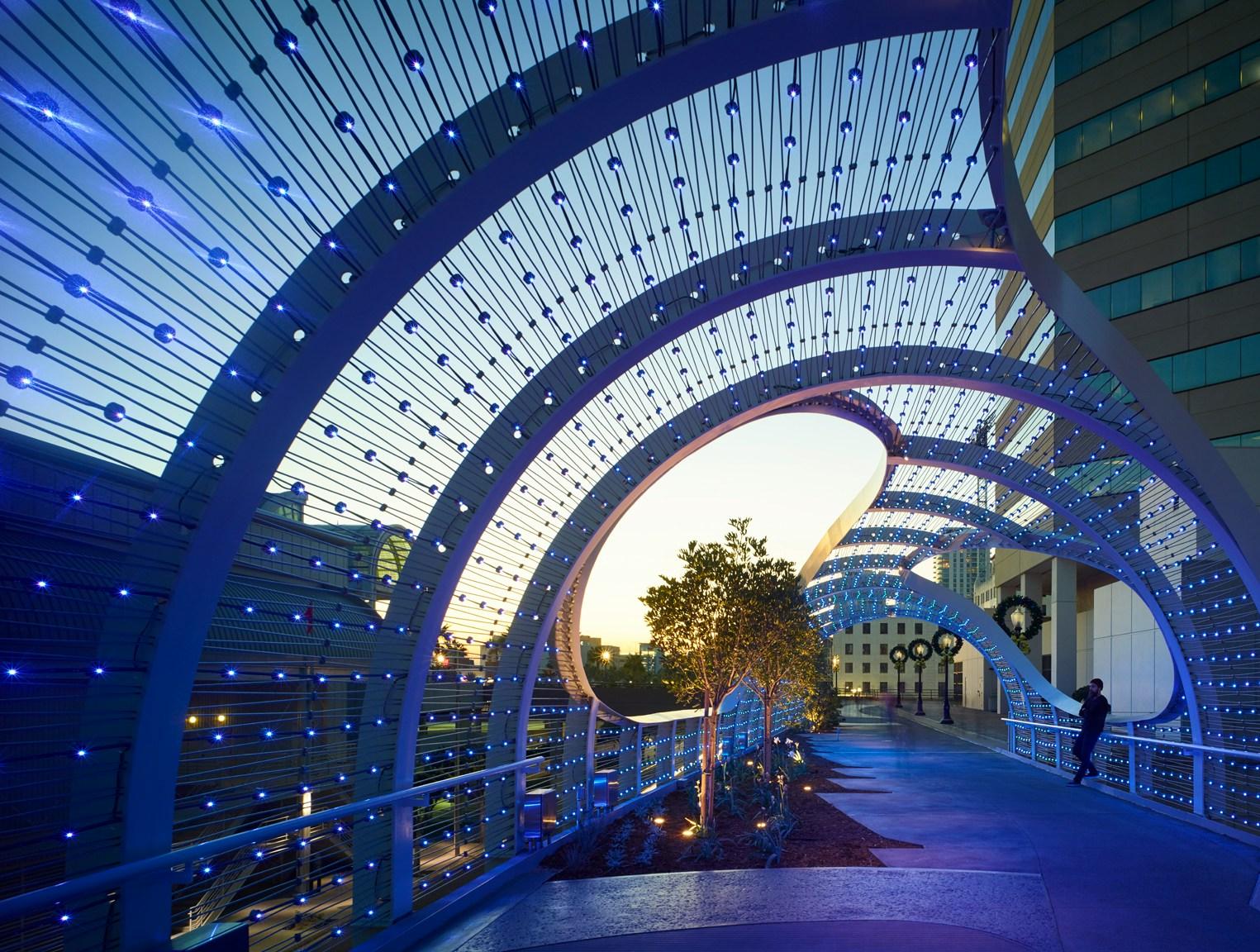

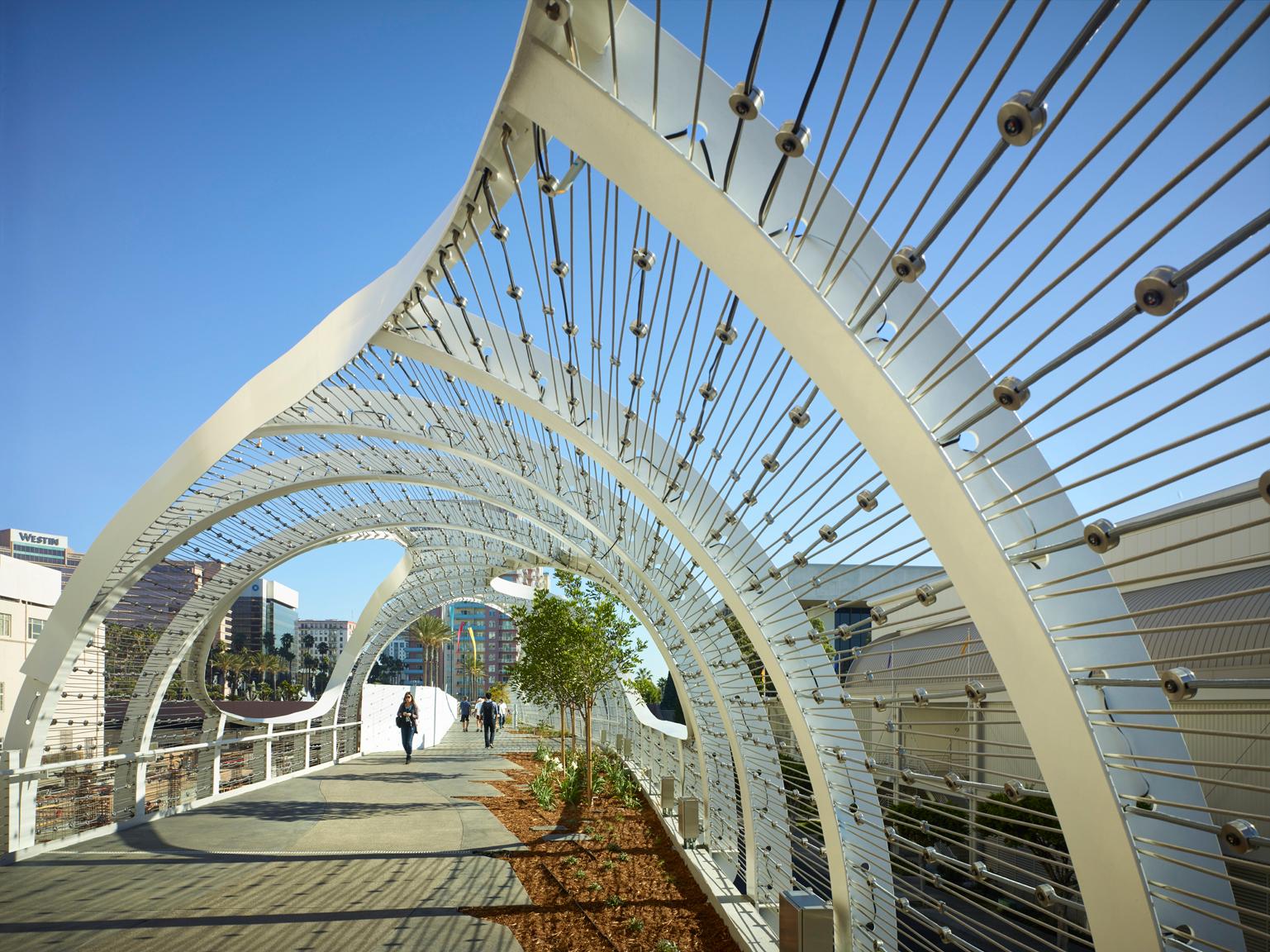

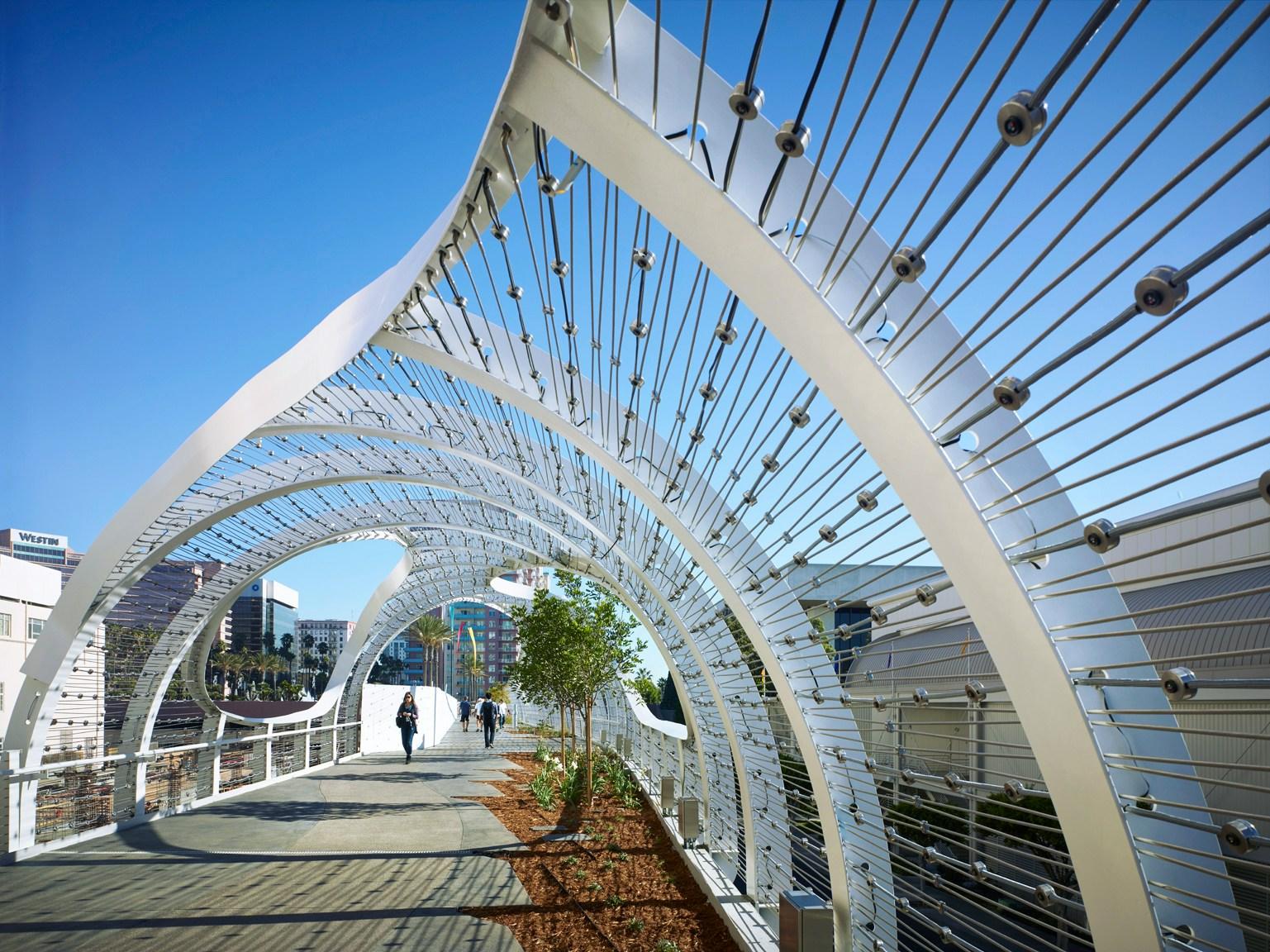

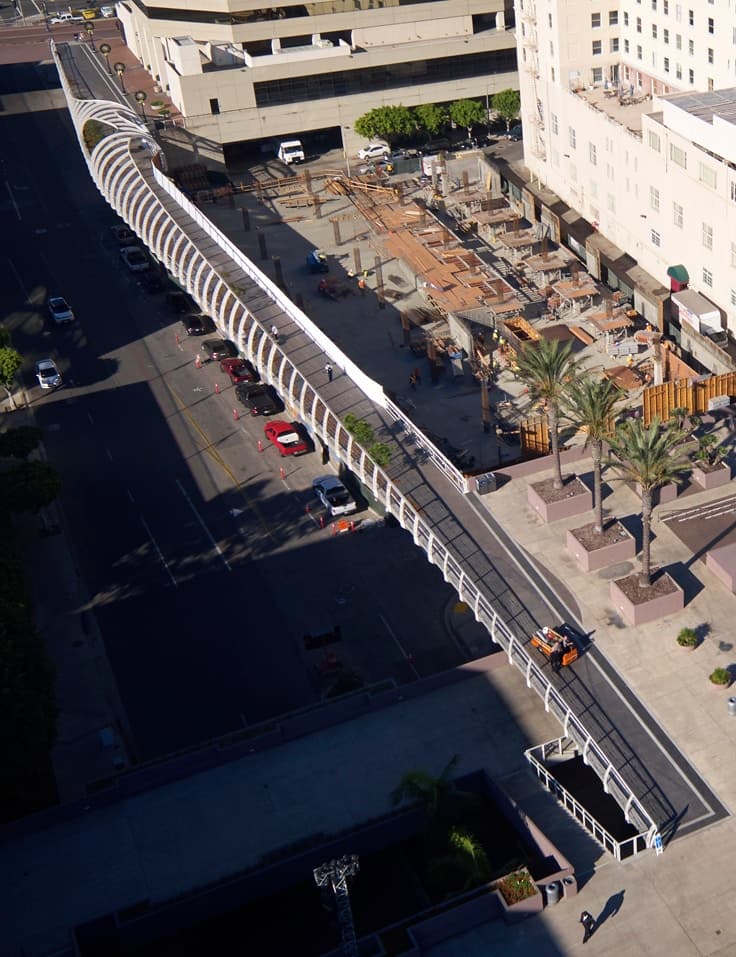

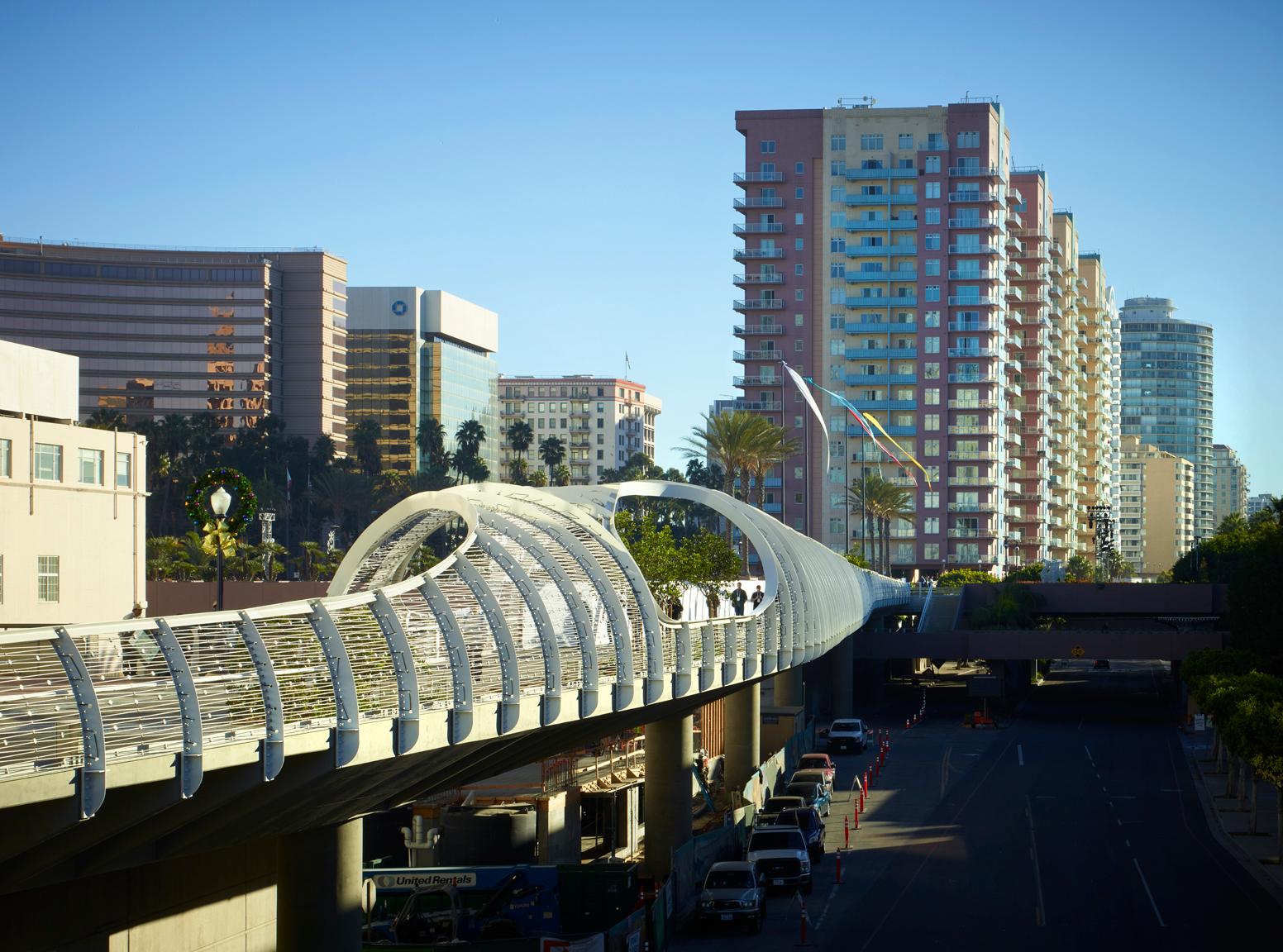

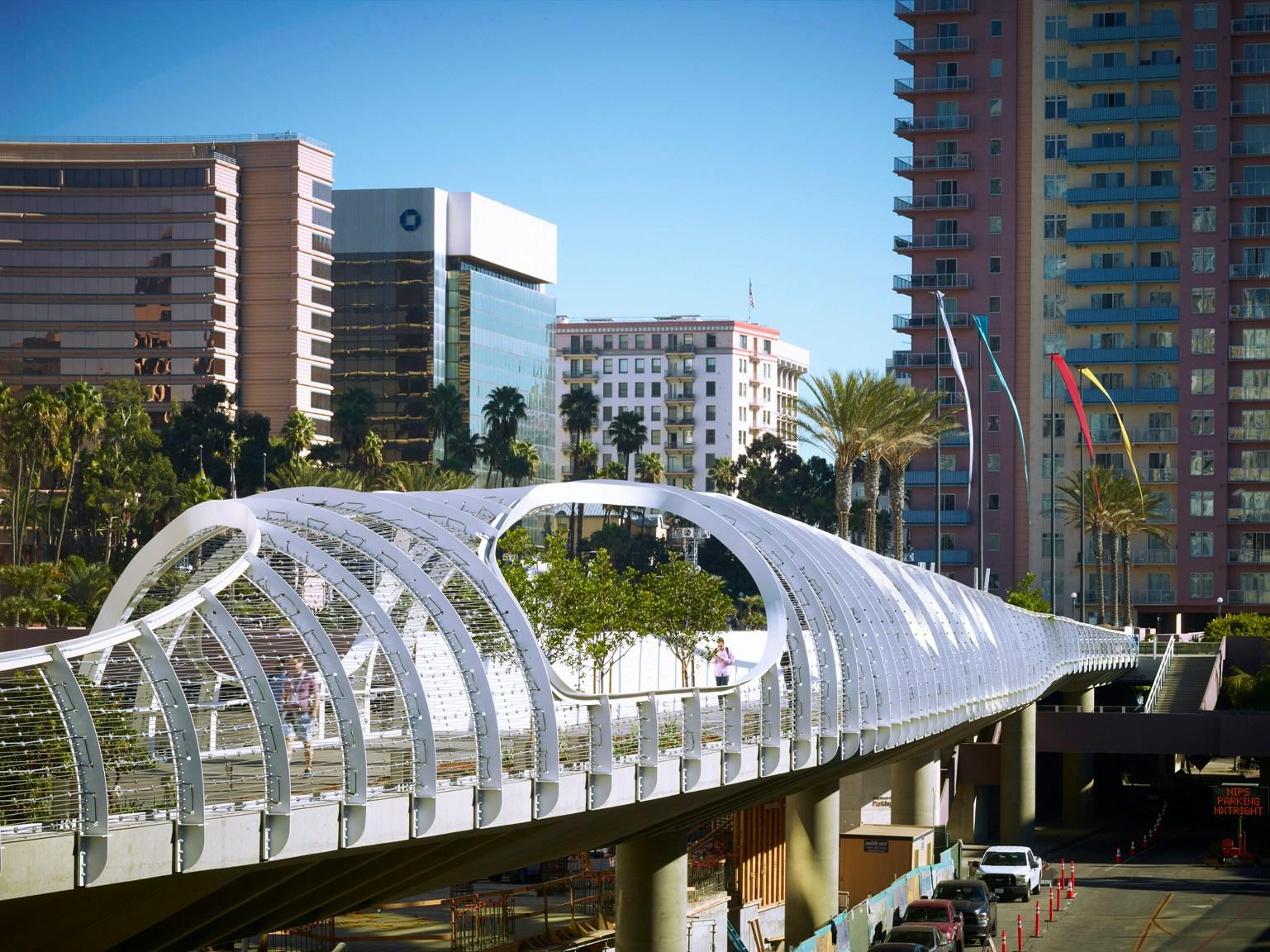

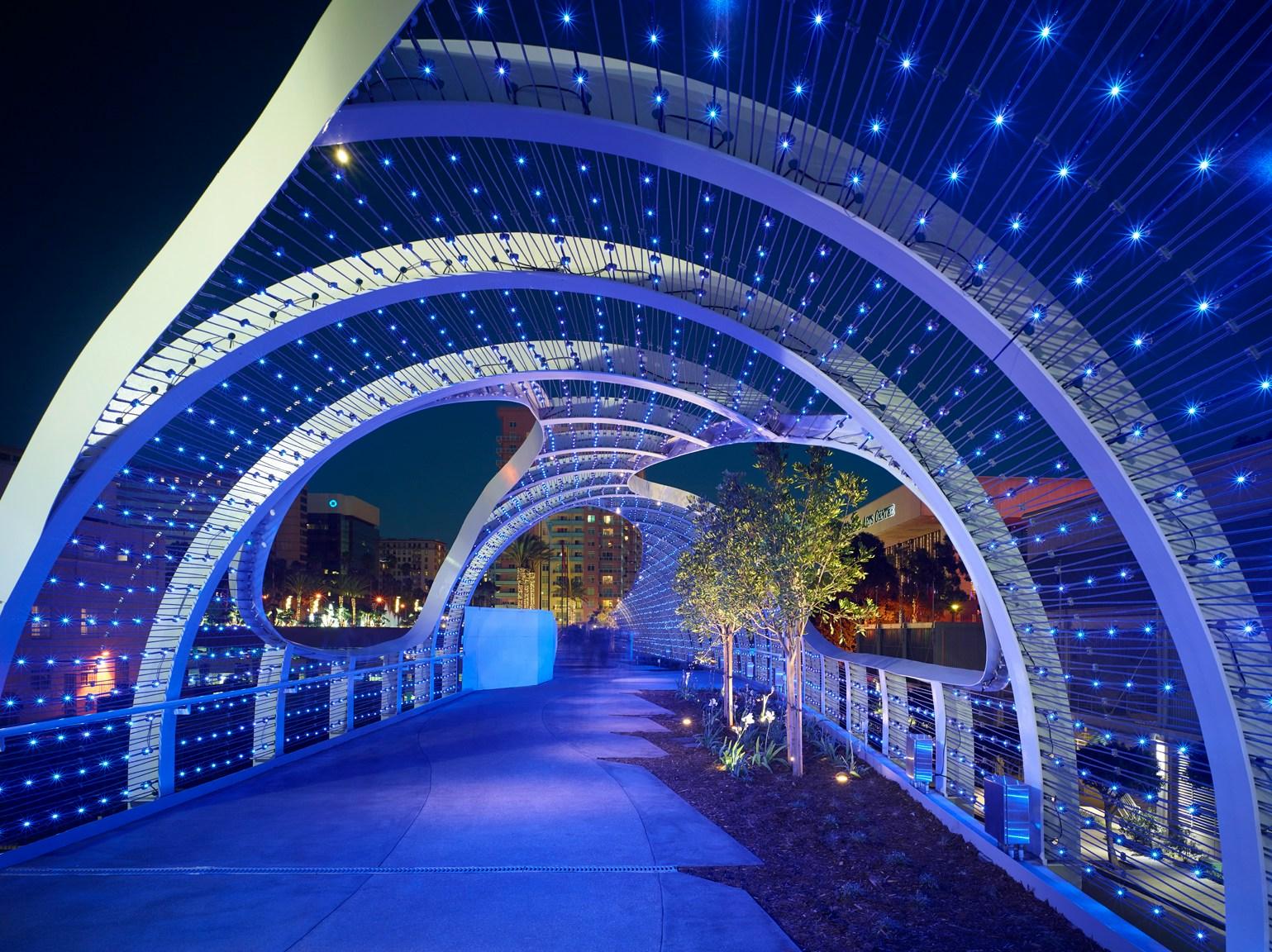

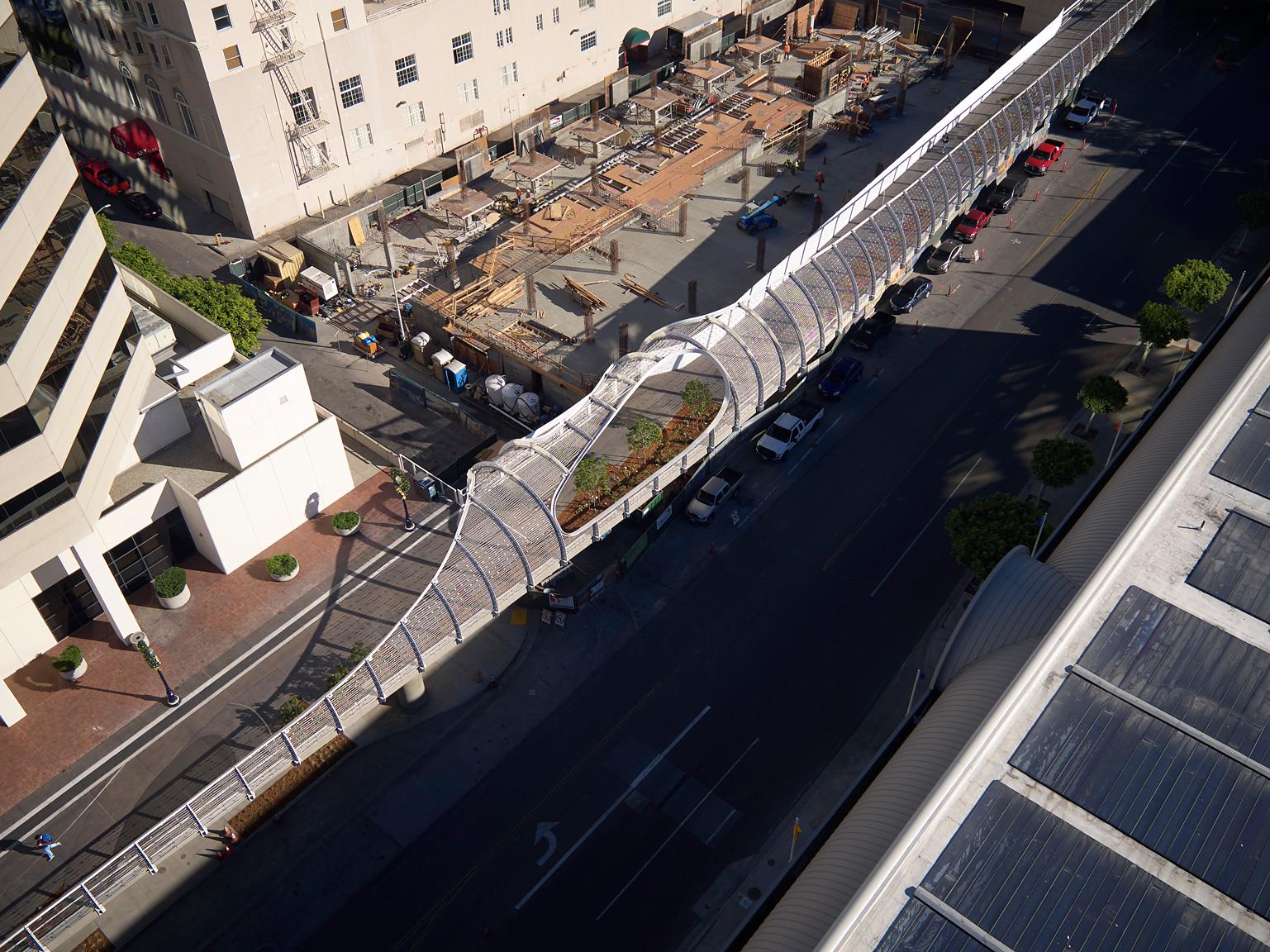

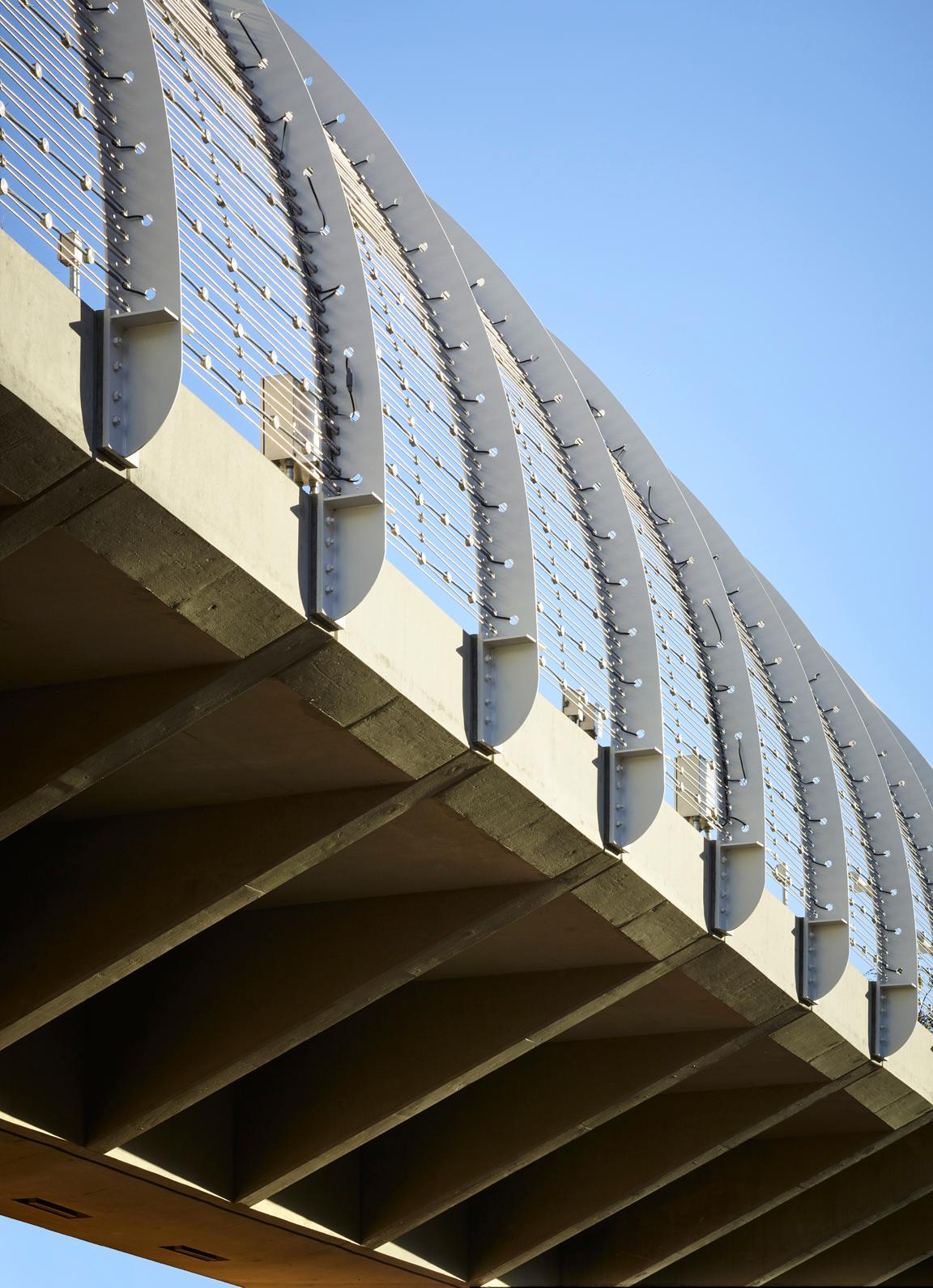

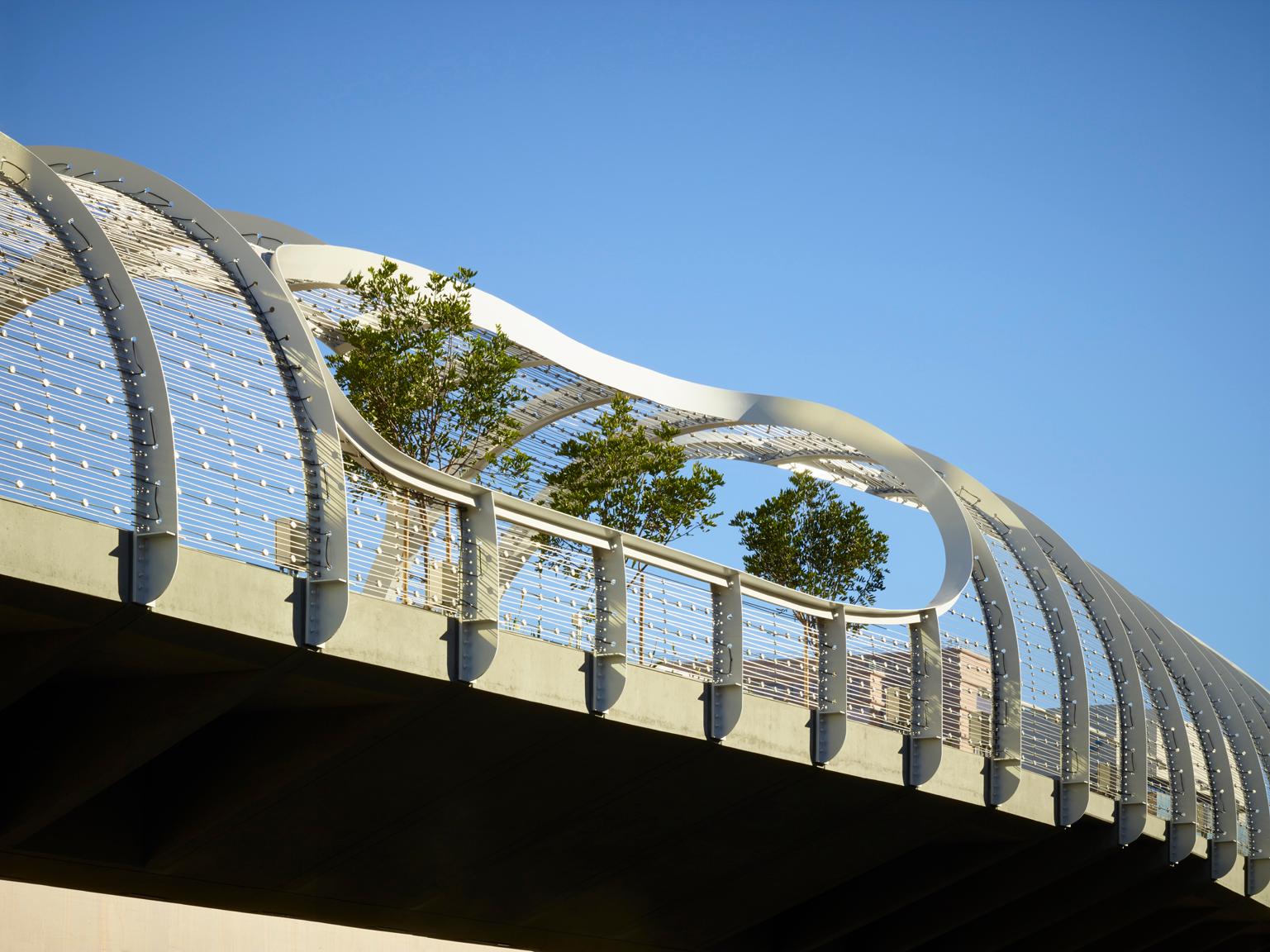

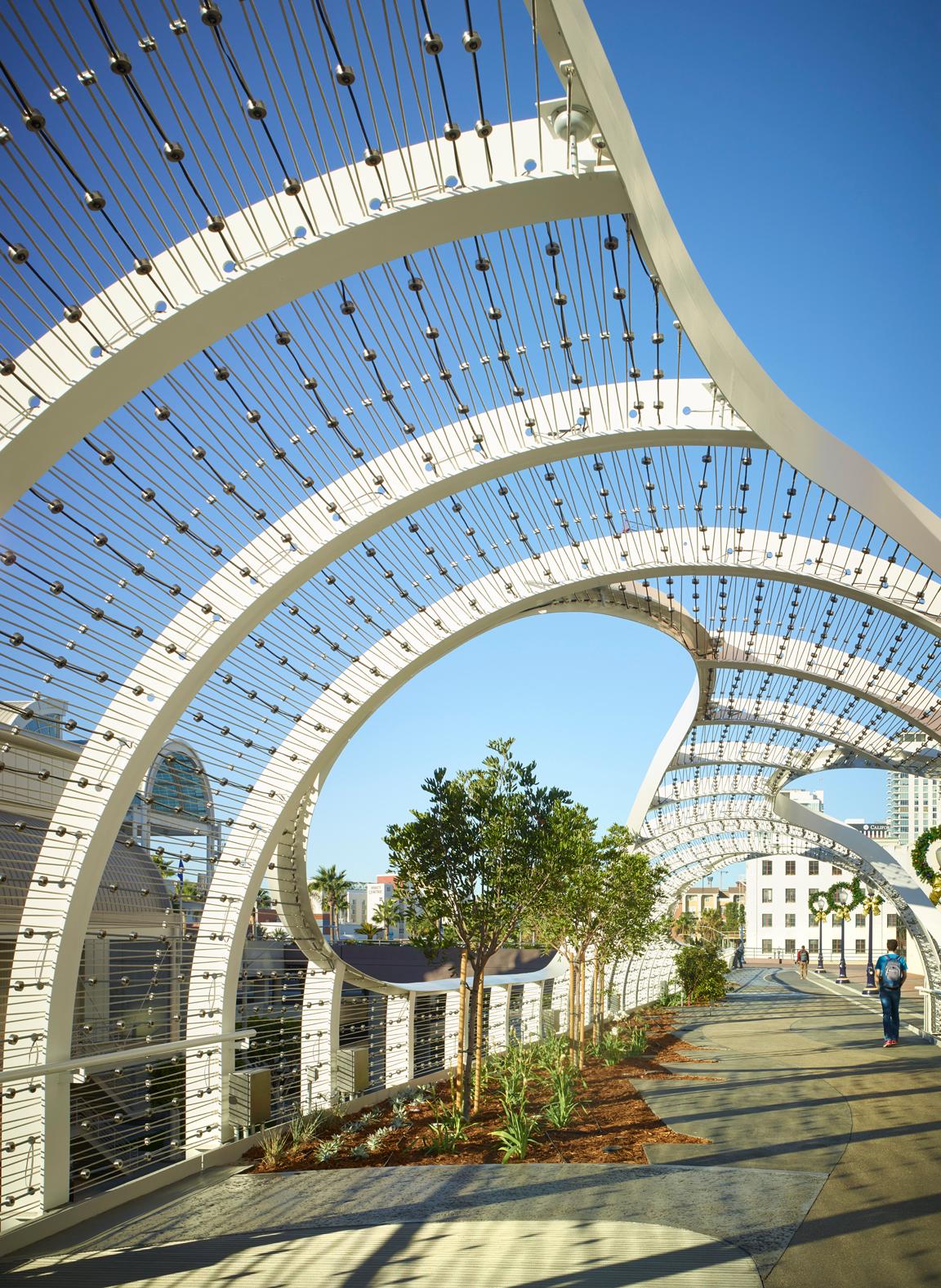

The finished project is a spectacular 600-foot pedestrian bridge consisting of 76 custom-welded bent-steel ribs framing the top, and approximately 1,200 cubic yards of poured-in-place concrete shaping the base. The bridge canopy features 3,500 color-changing LED node lights, 100 downlights, and 70 floodlights, all of which can be programmed and synched to music to create different effects. SPF:a worked closely with Carl Stahl Architektur to create the custom, three-piece, stainless steel node clip that allows for the bridge’s LED wiring to attach to the canopy.

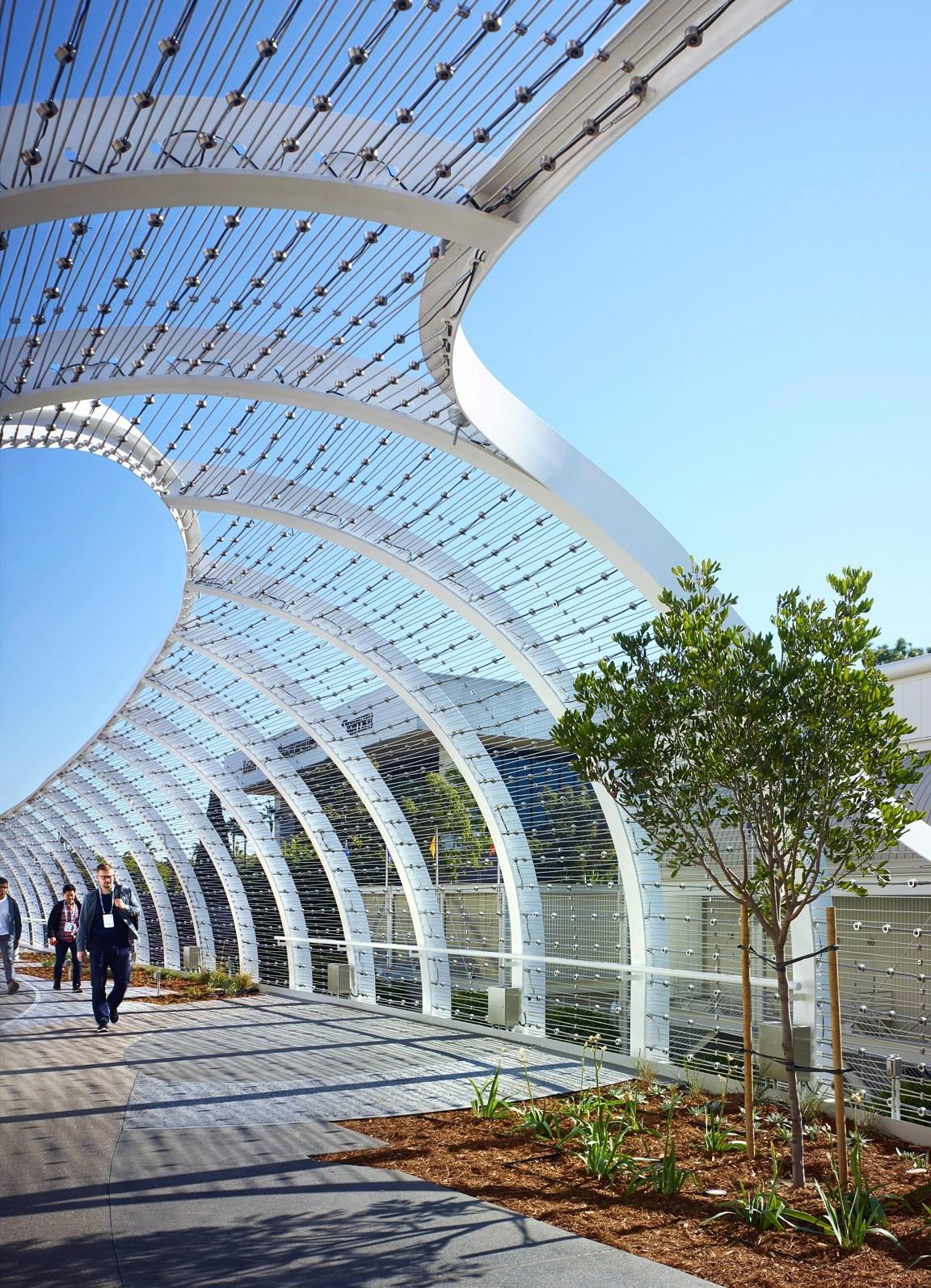

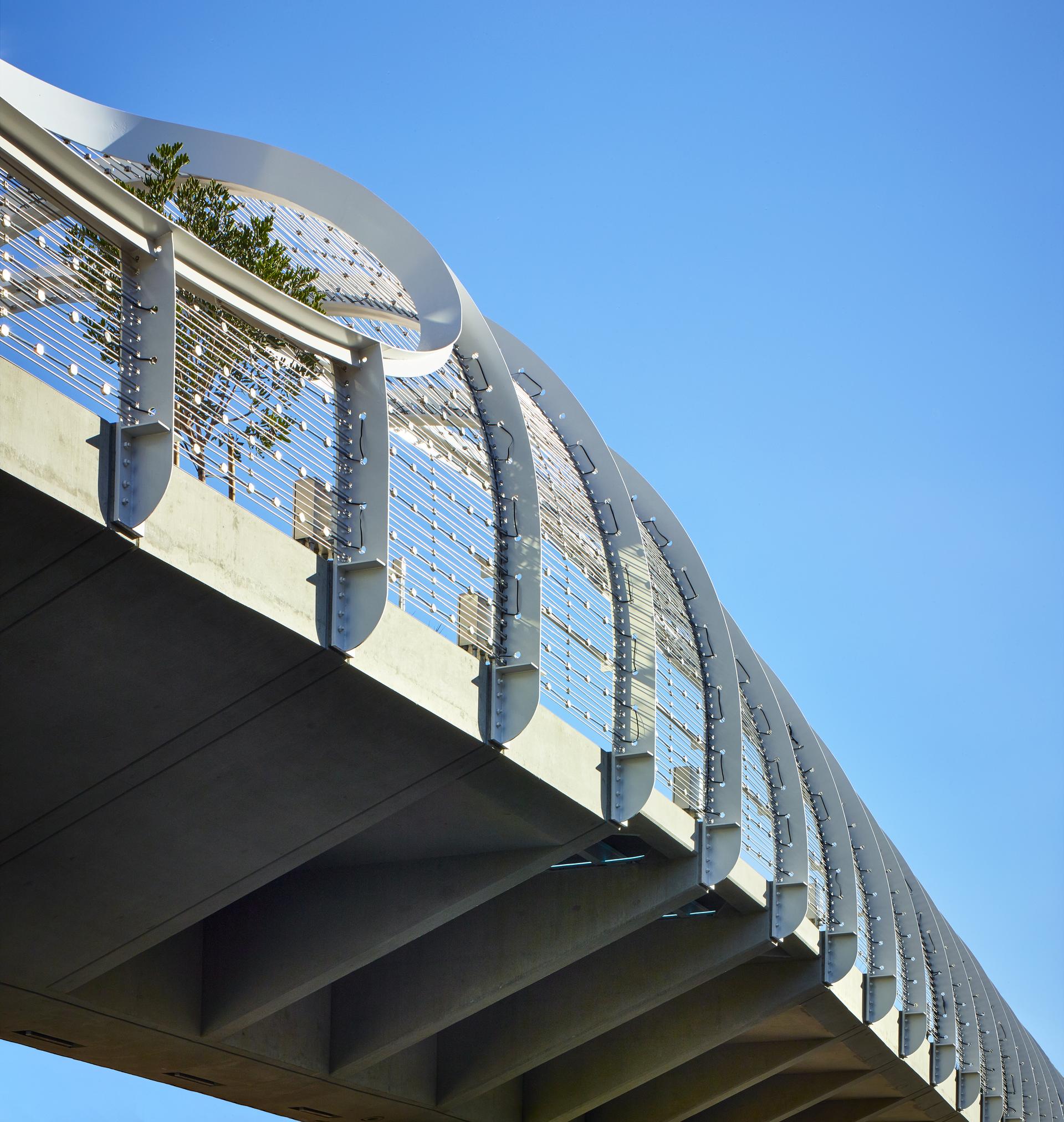

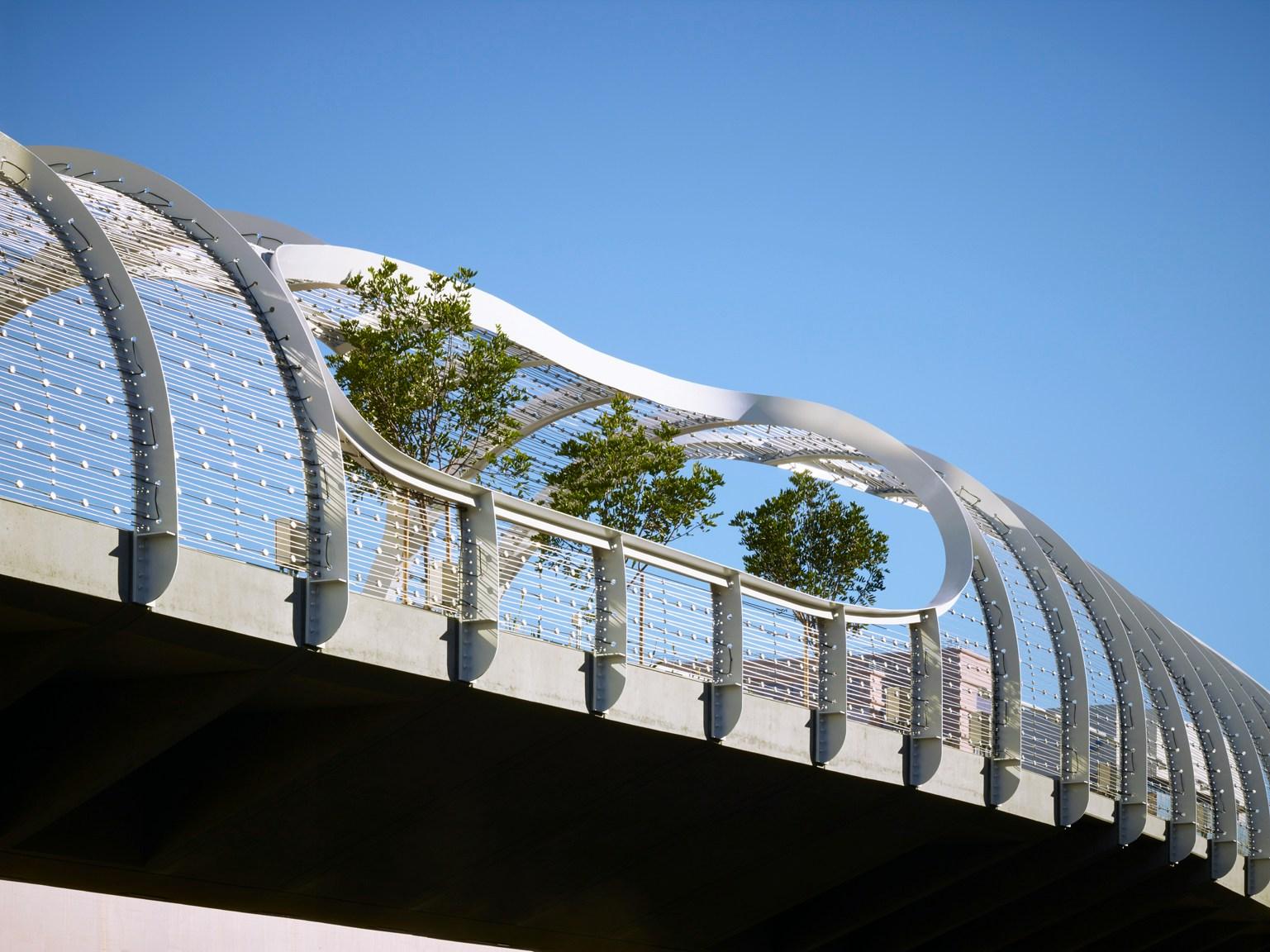

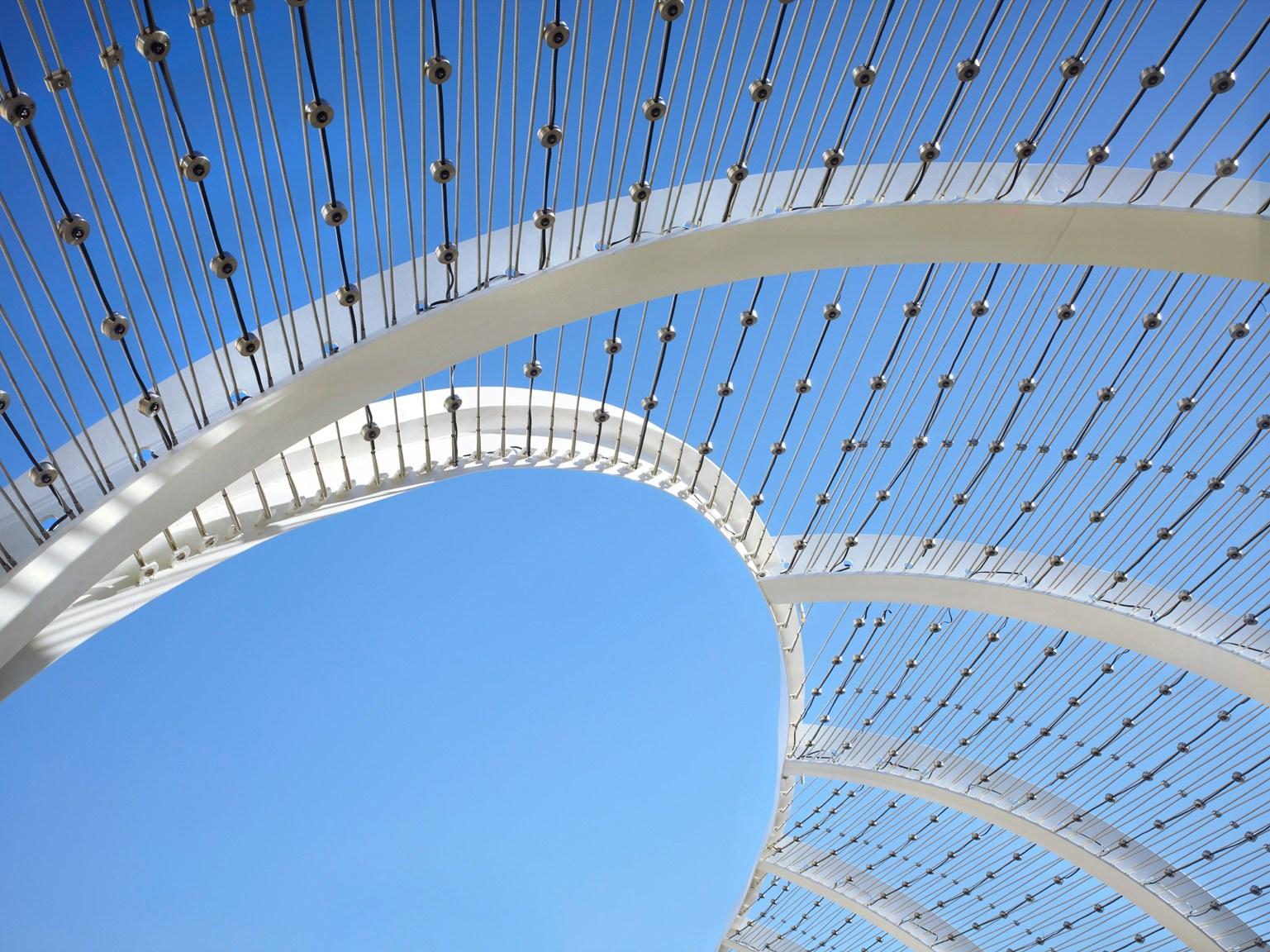

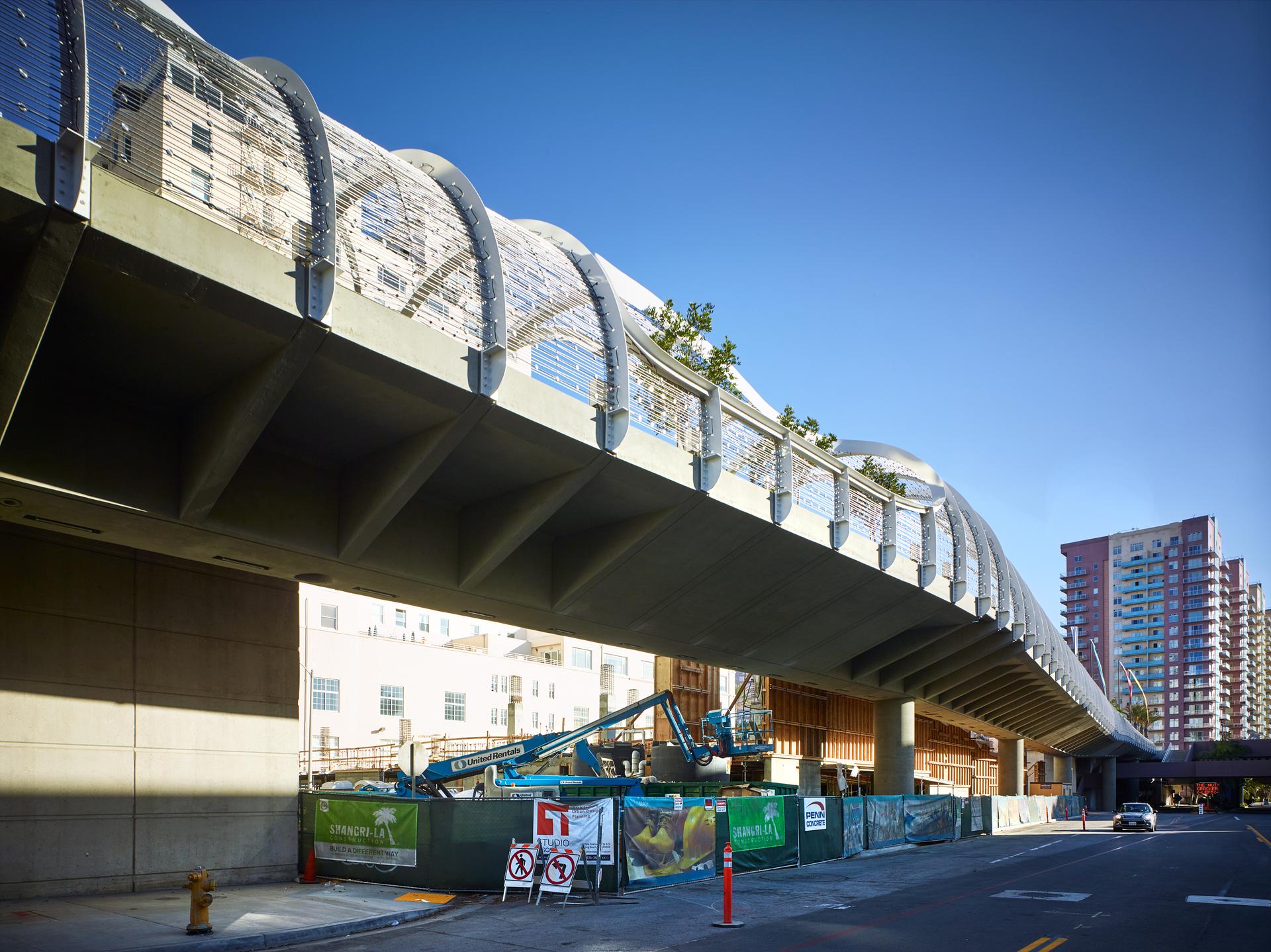

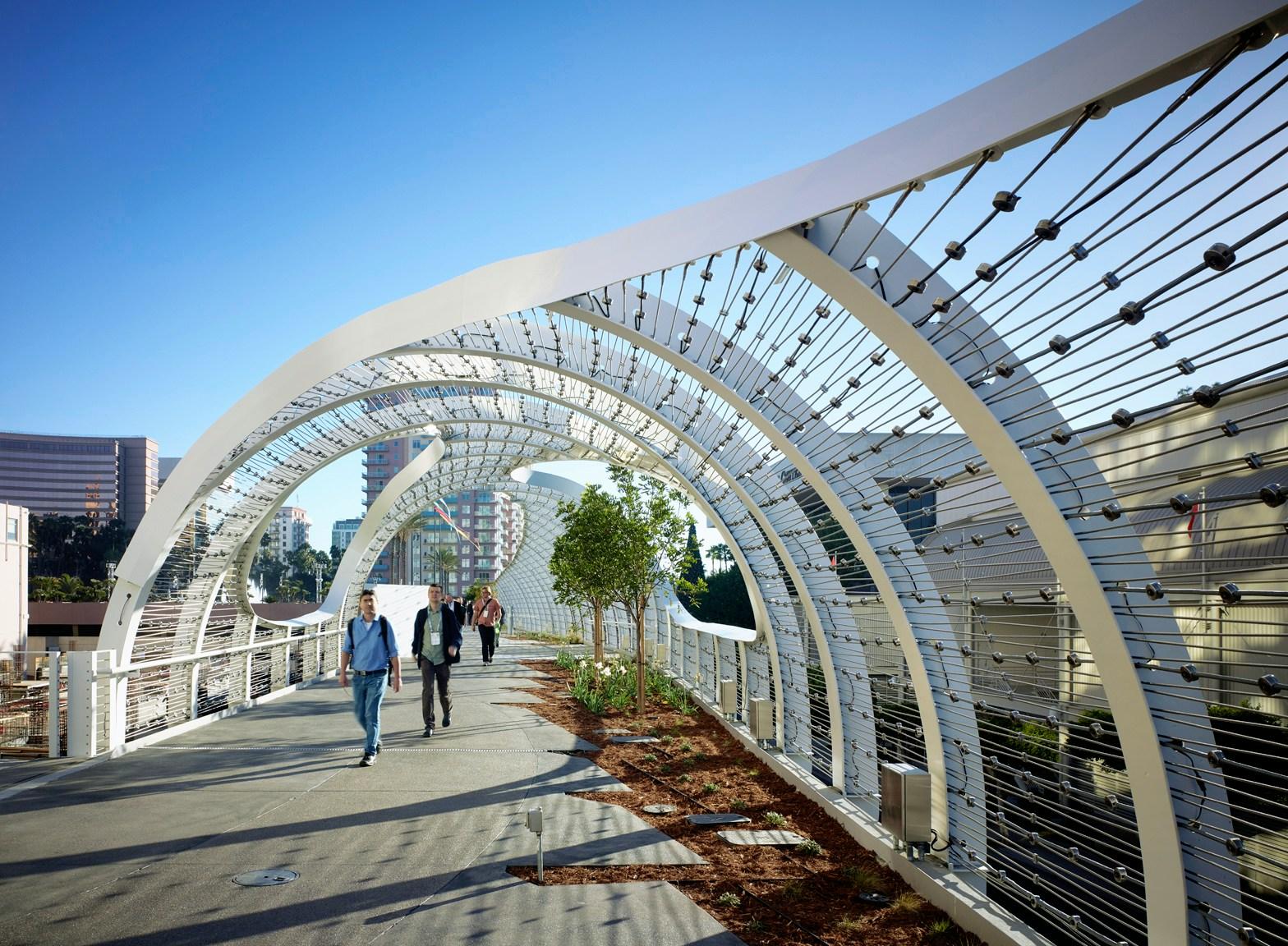

The unique design also allows for ease of installation and replacement flexibility. Power and drainage for the walkway plantings have been hidden within the concrete spine of the bridge. The overall design is heavily influenced by its beach surroundings (the bridge was, in fact, first dubbed “Riptide”). Structural elements such as the hull-like formation have been married with the elegance and uniformity found in waves, while the LEDs were affixed to cables to convey a net-like feeling or the rigging of a ship.

The final form was influenced by budget constraints and SPF:a worked closely with Arup to engineer the bridge in order to bring the overall cost down to $11 million. Prior to construction, the bridge called for 80 or more uniquely formed rib beams, but the team was able to optimize the geometry in such a way that just one shape could achieve a similar dynamic form when placed in repetition. Credits: - SPF:a - Associate - Adam Sauer, AIA - Carl Stahl Architektur - Hood Design Studio - SPF:a - Founding Principal - Zoltan Pali, FAIA - SPF:a - Senior Associate - Siddhartha Majumdar, AIA - SPF:a - President & Creative Director - Judit Fekete, LEED AP - SPF:a - Michael Lindell - SPF:a - Ileana Acevedo - Arup
