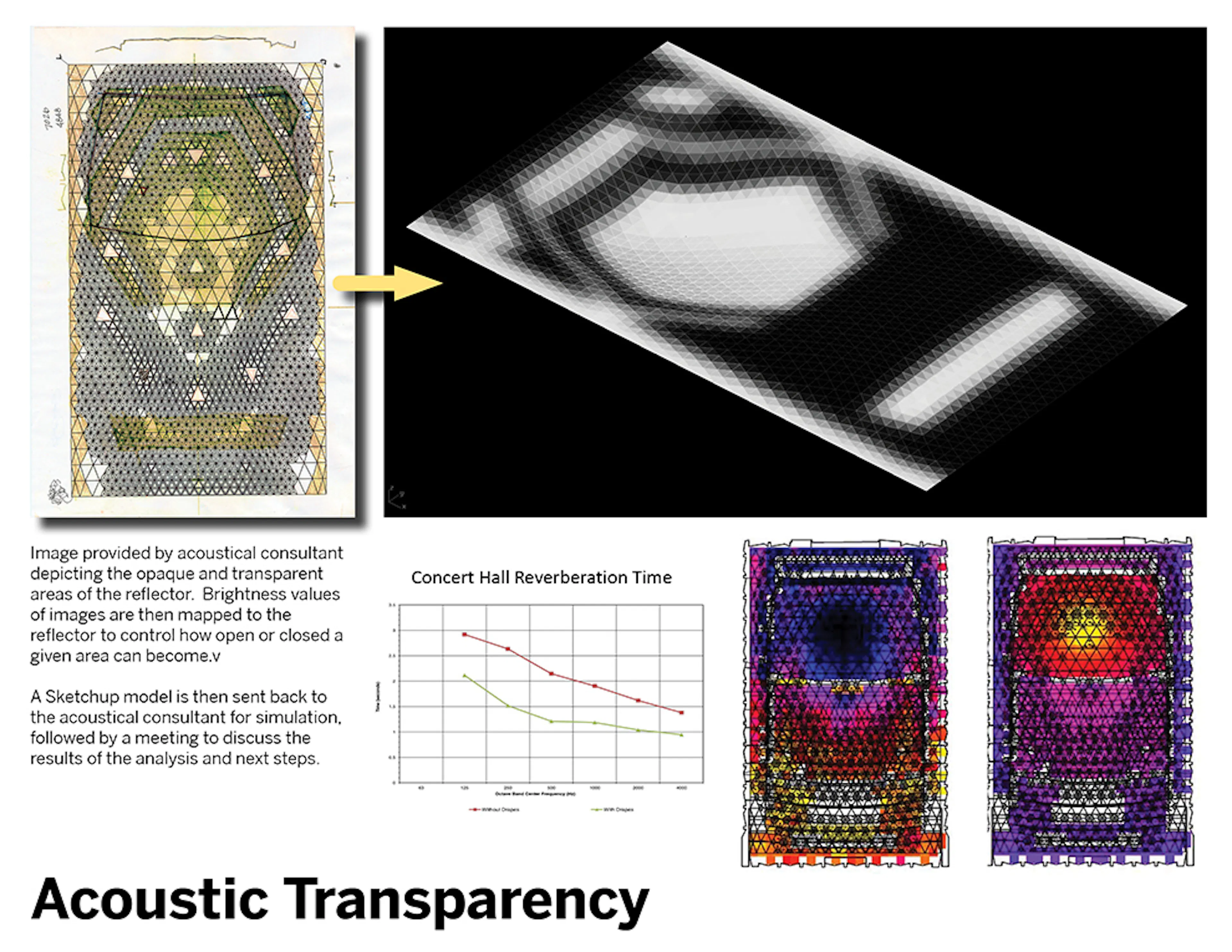

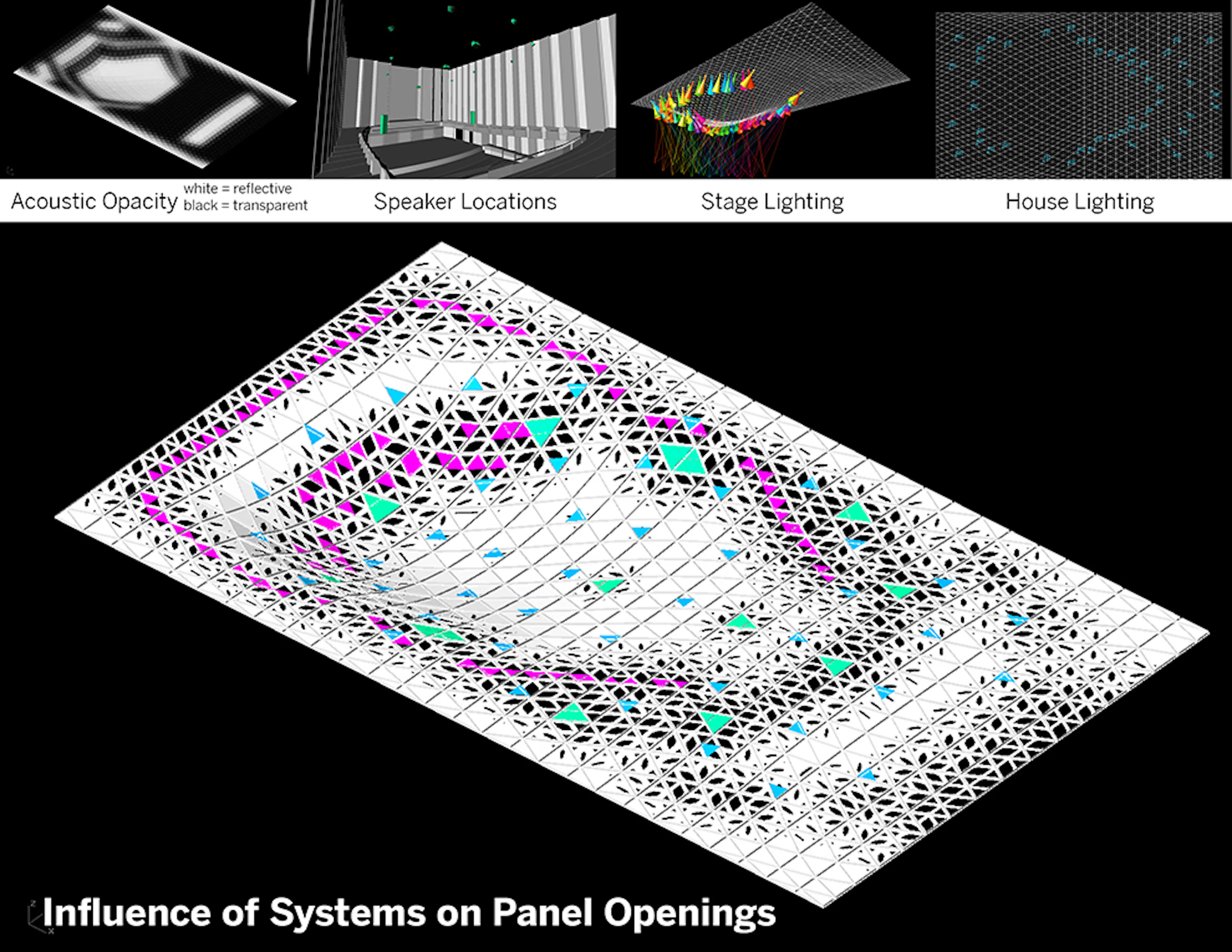

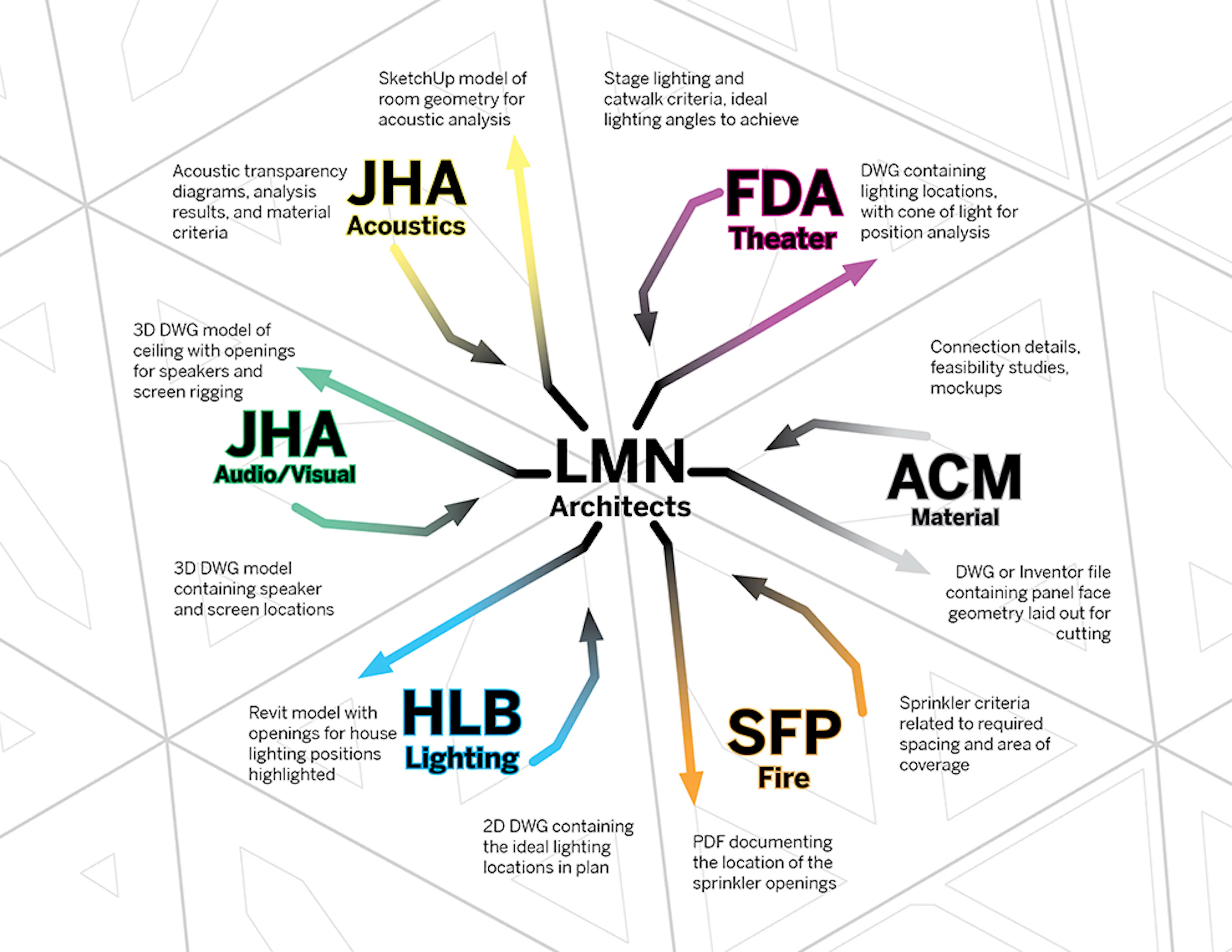

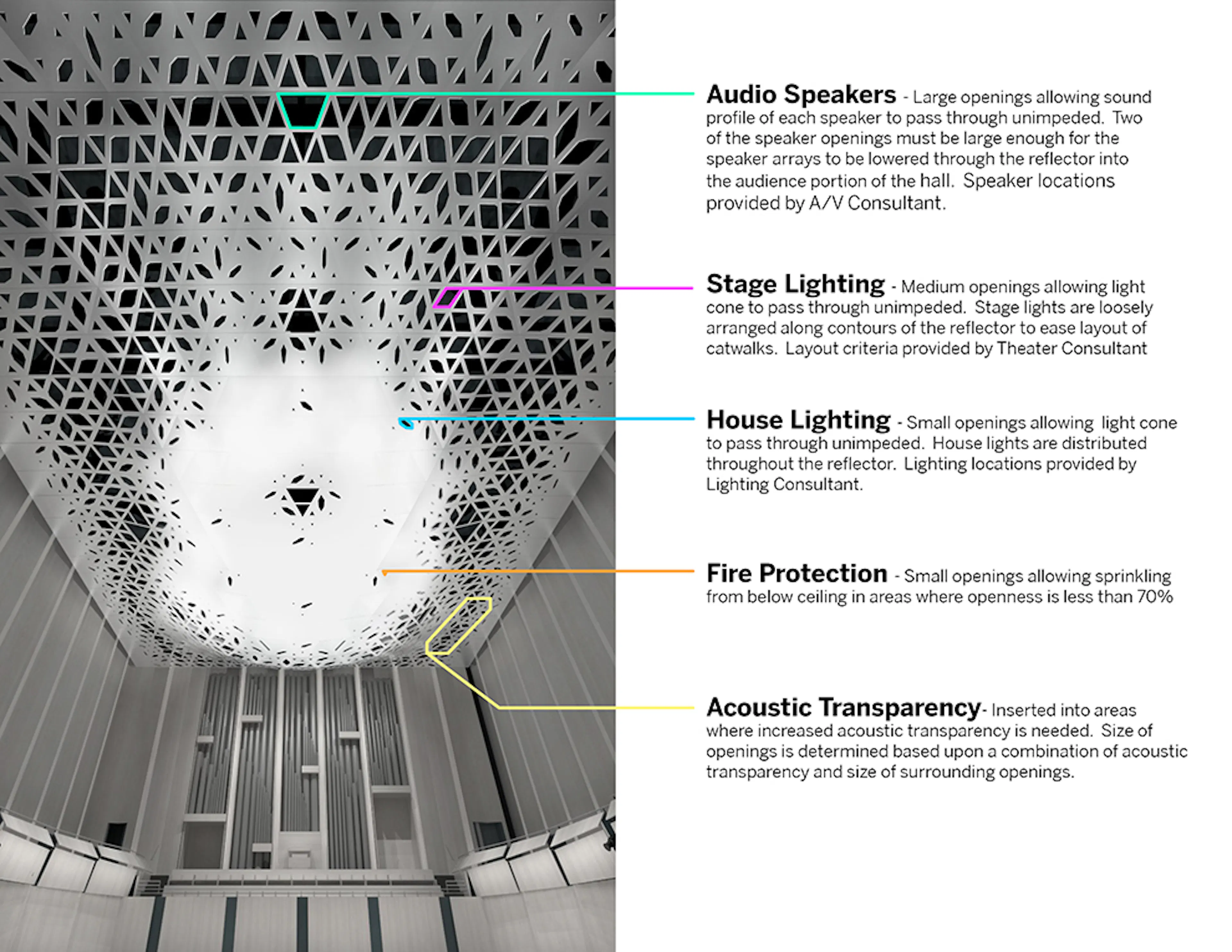

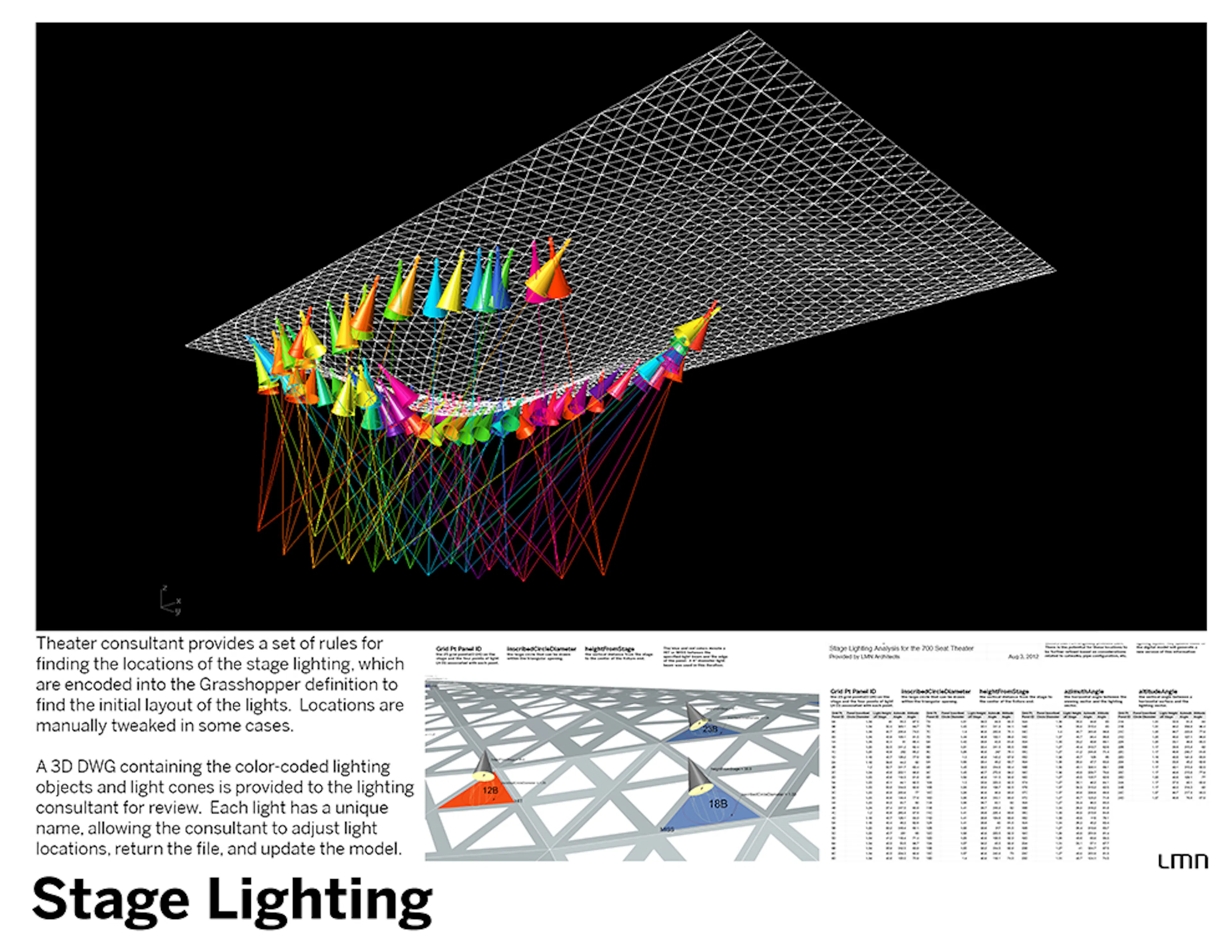

Materially, the system is designed to do the extraordinary with the ordinary, using composite aluminum panel in a unique specialty application. From the initial concept stage, a nimble and robust parametric model became the central generative tool, enabling coordination among disciplines to a level of precision never before possible.Engineers in acoustics, structures, material science, theatrical systems, lighting design, mechanical design, audio/visual design and fire protection were looped into a complex orchestration of coordinating and validating progressive design iterations.

As each input was accommodated and synthesized, the digital model was redistributed to the group in a variety of formats for analysis and validation. Construction managers and fabricators gave critical feedback affecting system detailing, componentry, and construction sequencing. While the optimization of all systems and drivers was paramount to the initial goal of coordination, the agility of our parametric tools further engaged the architects in producing direct-to-fabrication data for construction.

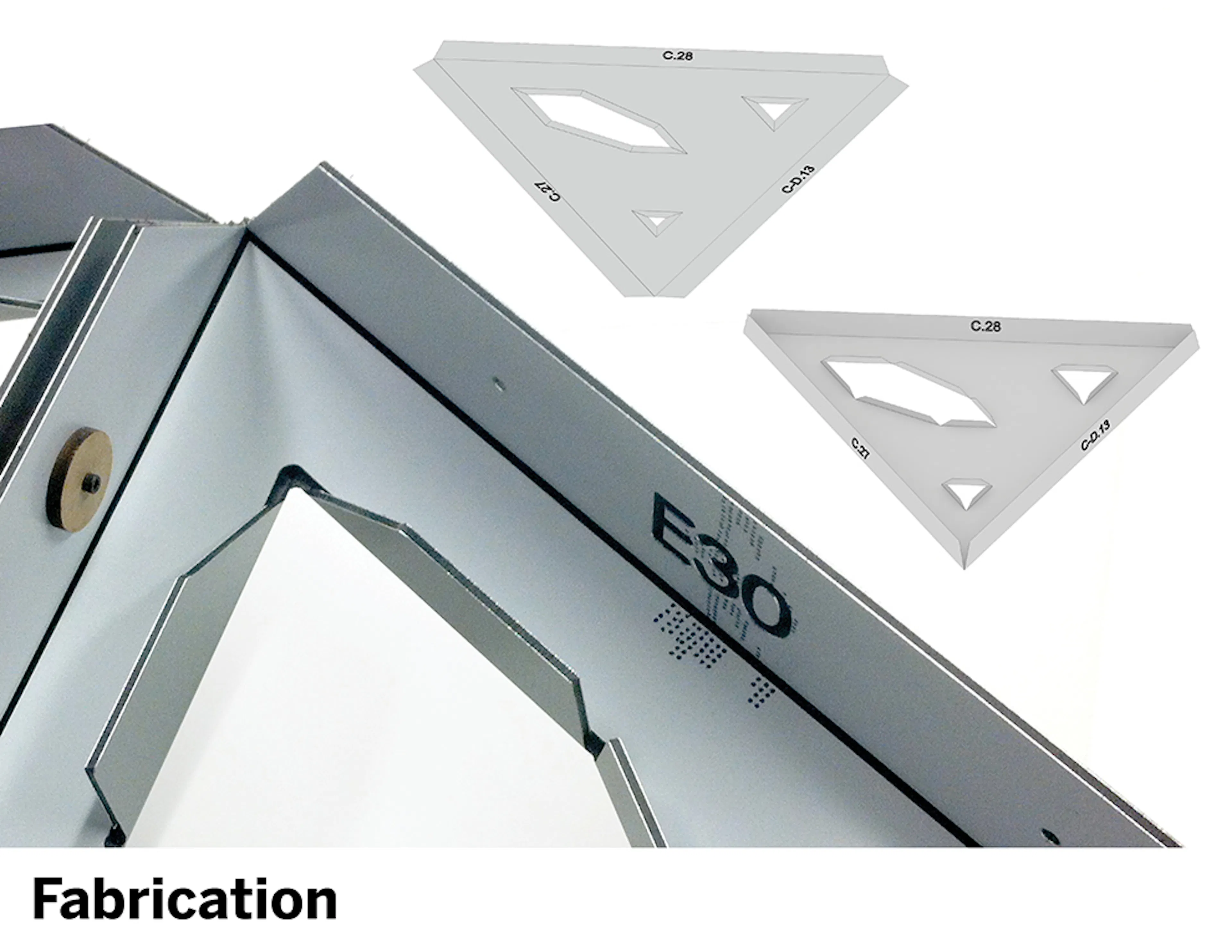

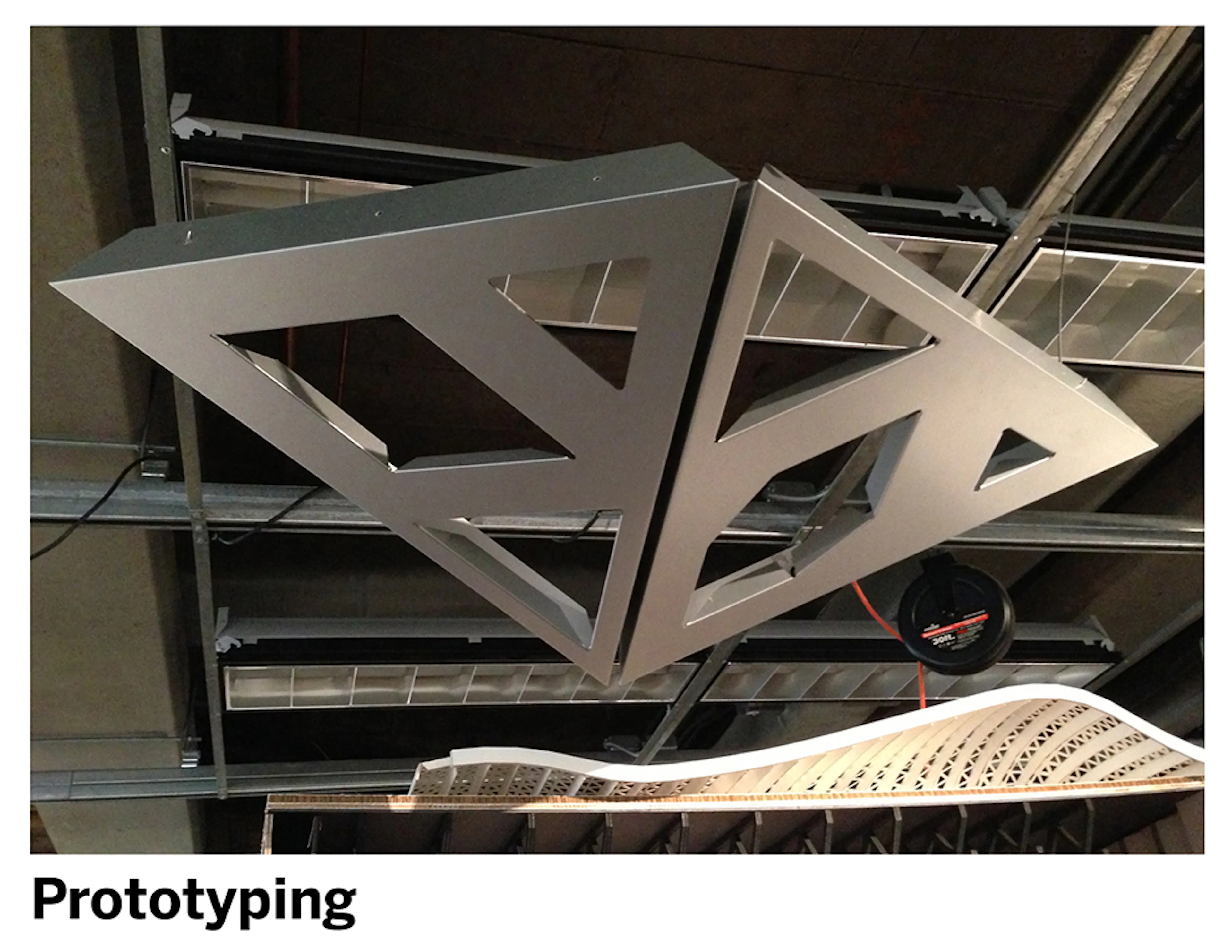

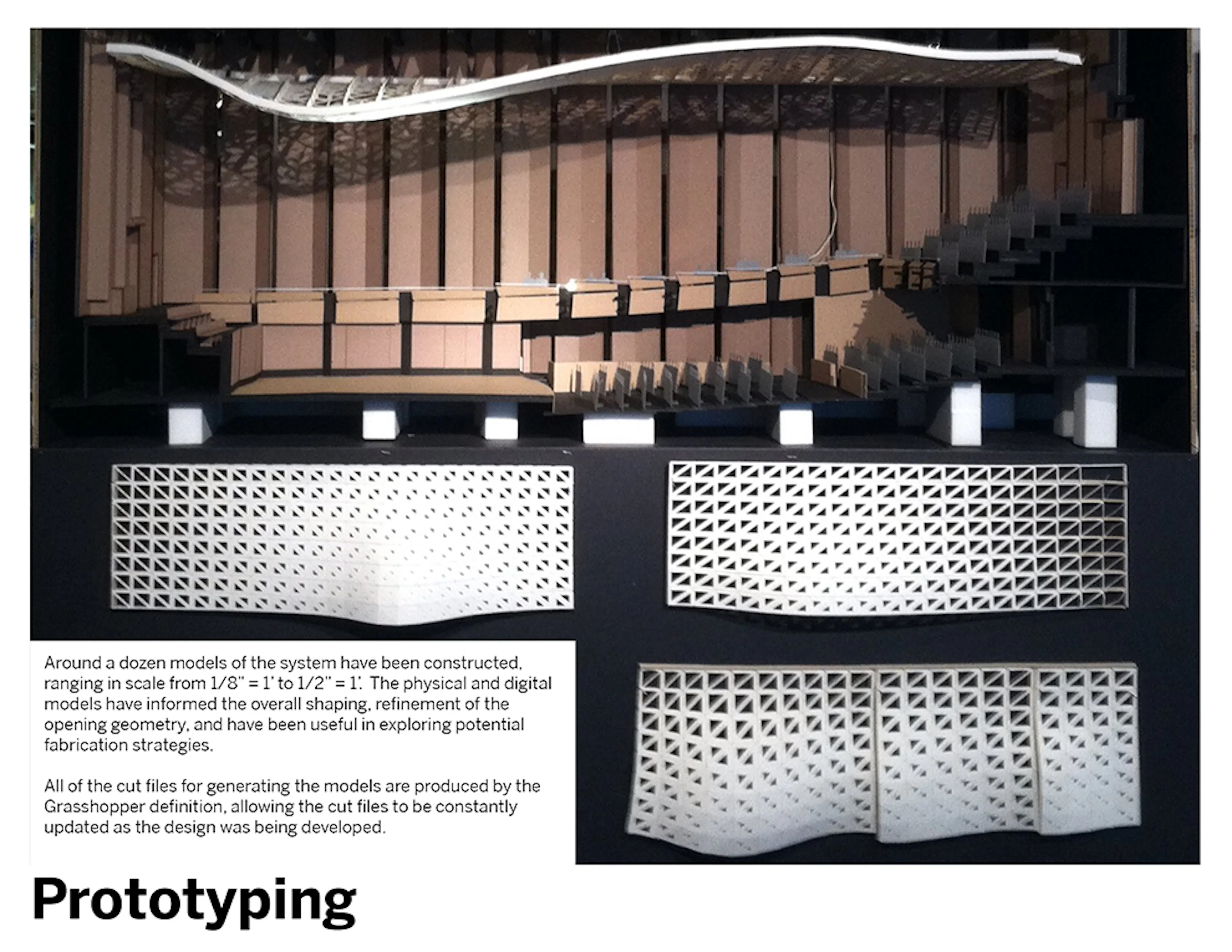

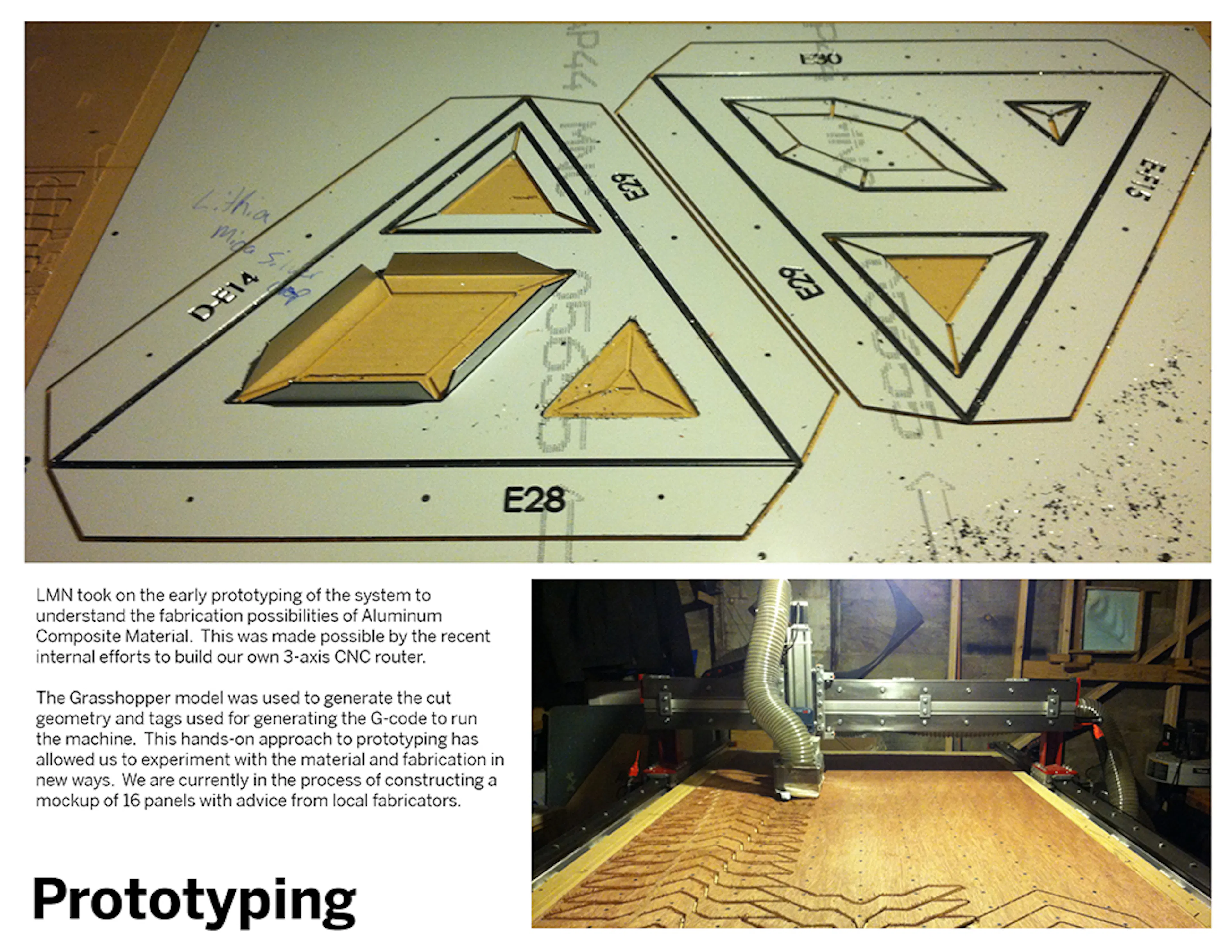

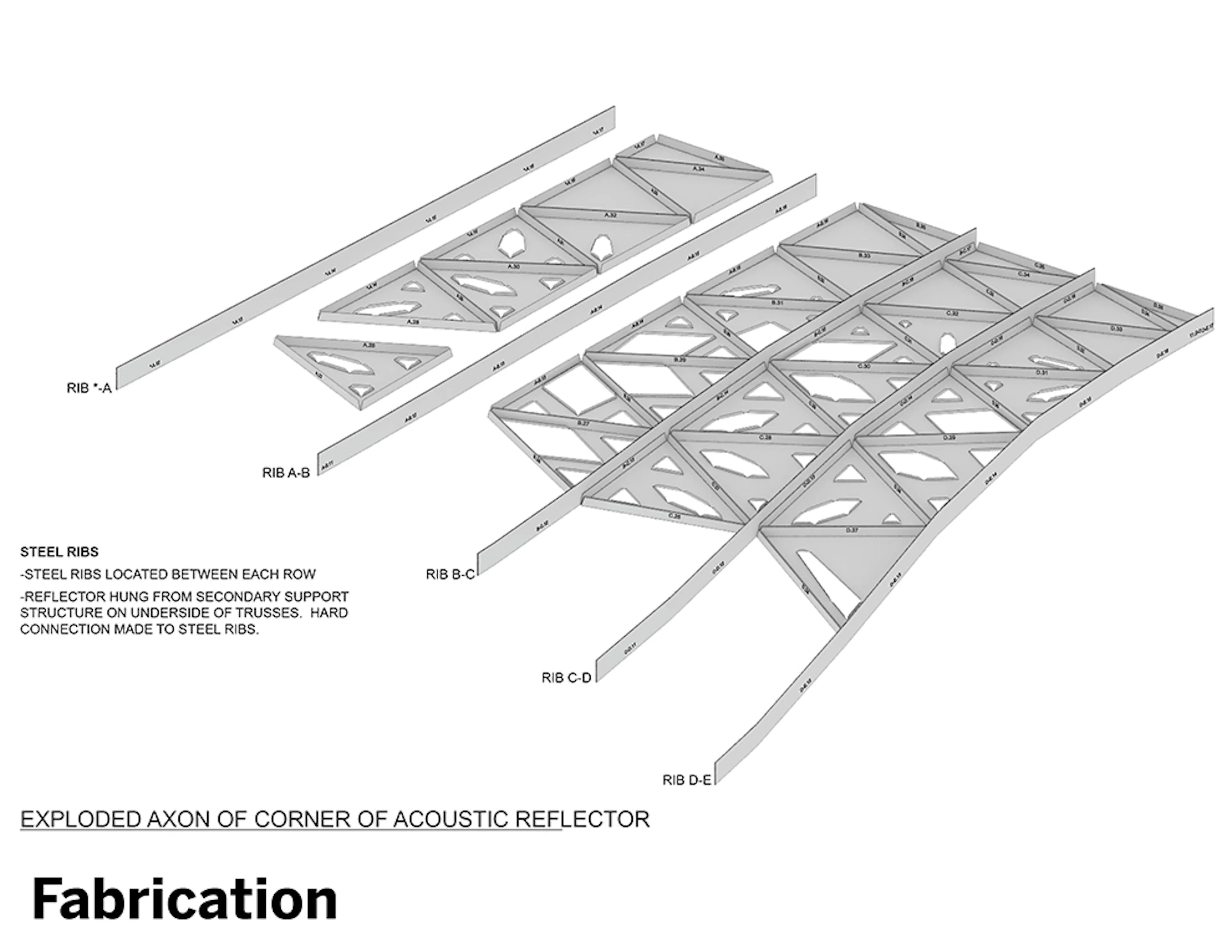

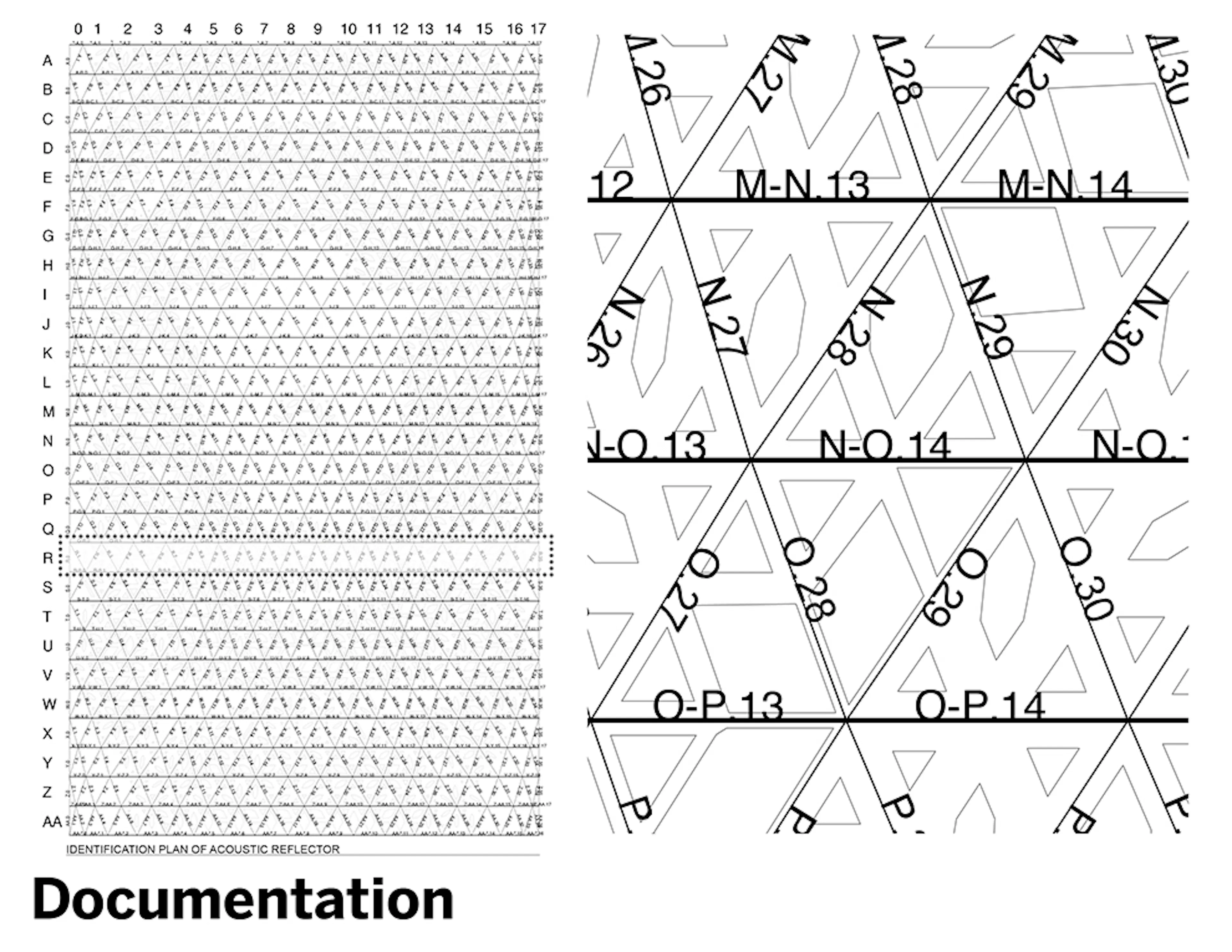

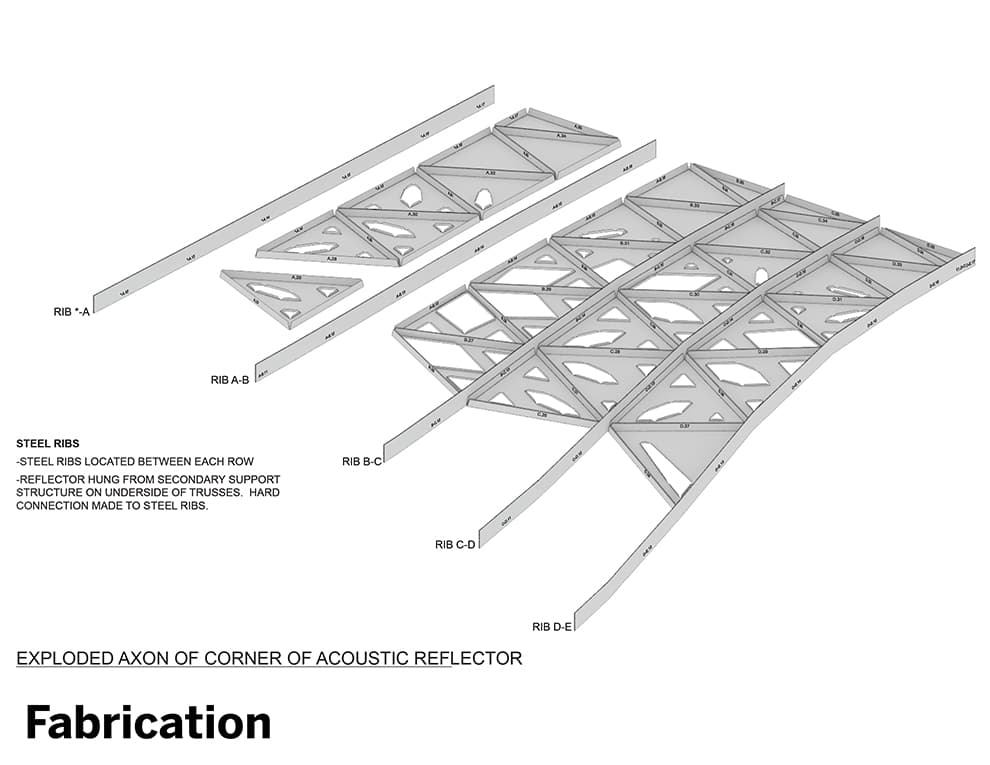

The design team used a 3-axis CNC mill to fabricate prototypes of full-scale components and connections for testing. This unique level of interaction with the tools and materials gave critical feedback for system detailing and construction sequencing. Ultimately, the fabrication data for each of the 946 unique panels is generated by this primary model.
