As a supporting facility of this project, the Research and Education Center was built as an important platform of scientific research monitoring, bird banding, law enforcement of management and protection, science education. Besides, it serve for raising both awareness and display of ecological and environmental protection as well as promoting worldwide cooperation and exchange. The site is situated in a restored reed wetland in the northeast of the Nature Reserve, where the water and the sky merge in one colour, few people tread, flocks of birds perch.

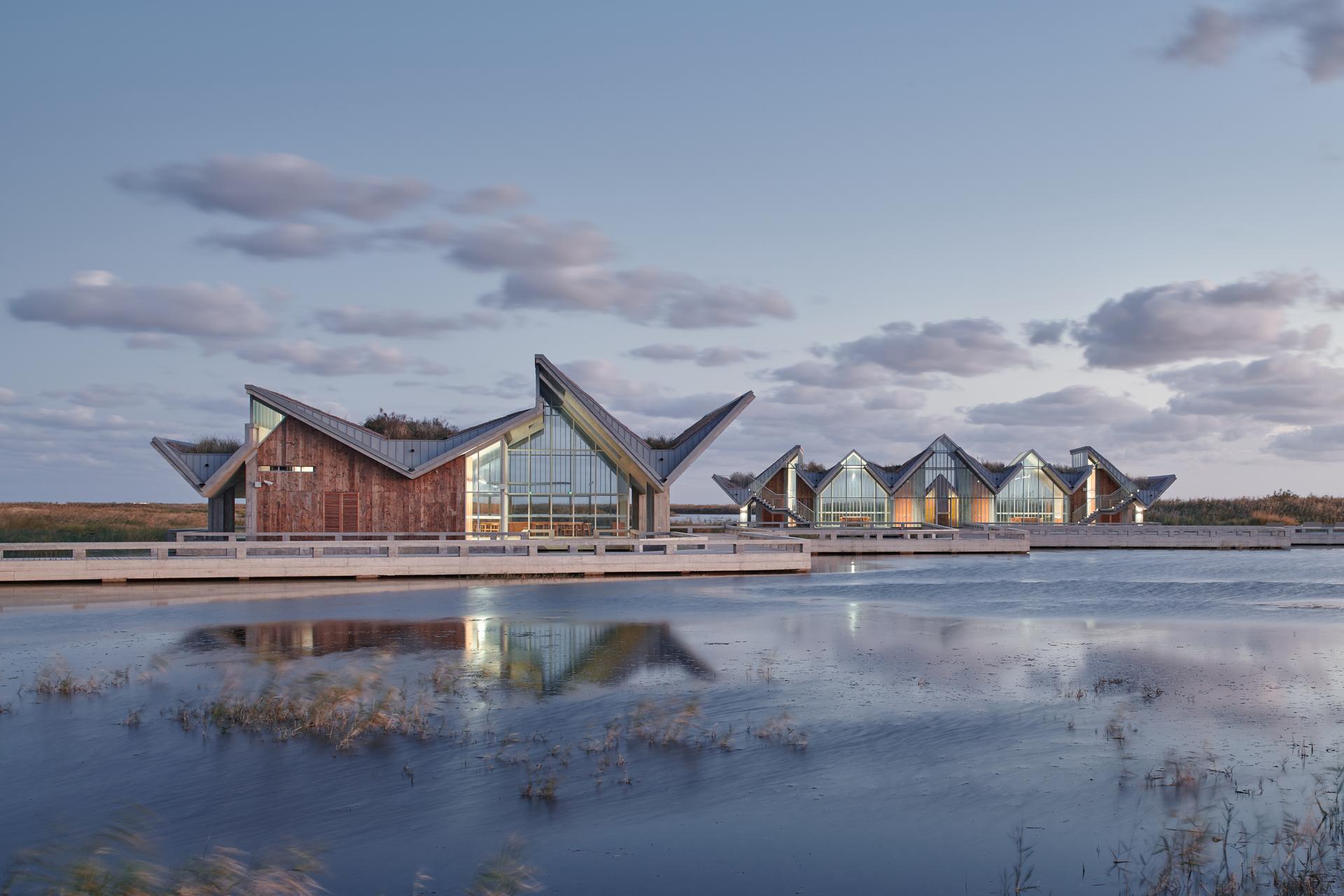

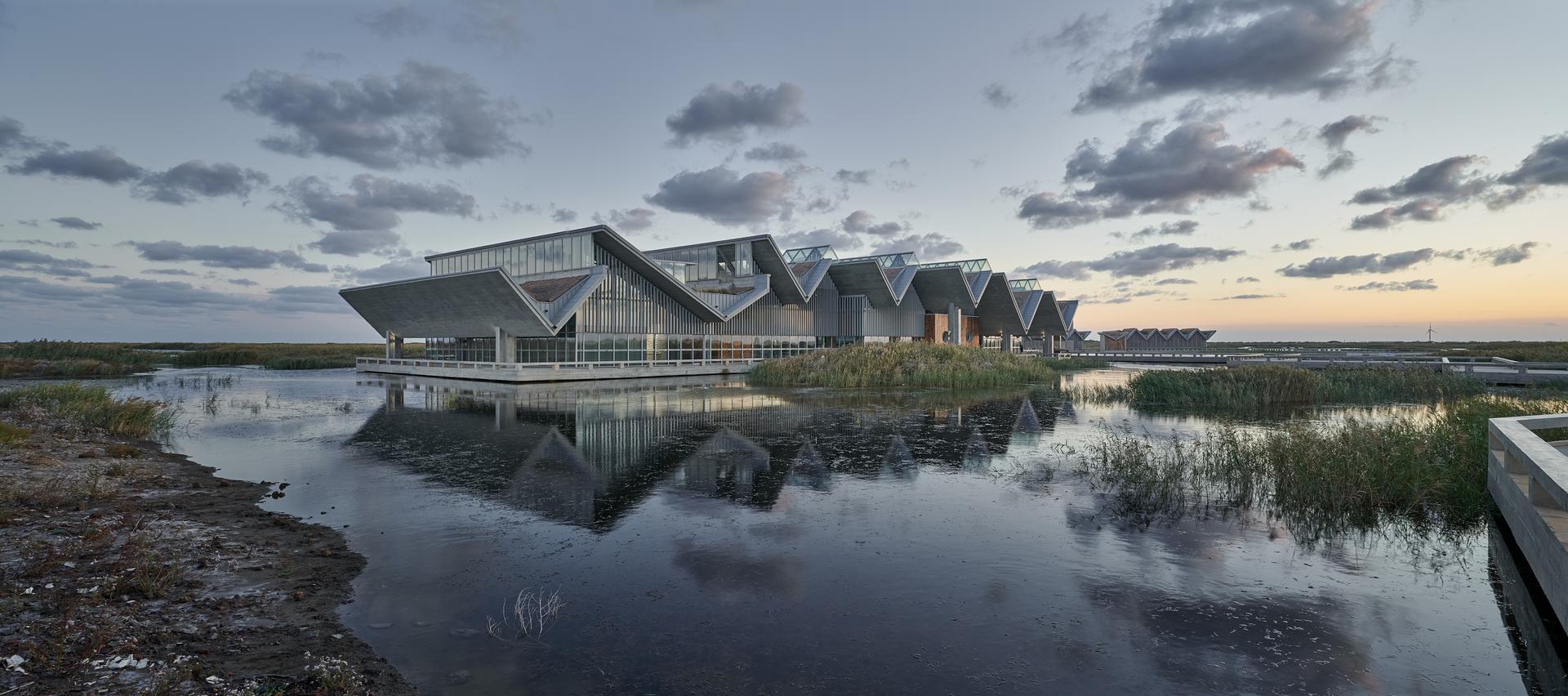

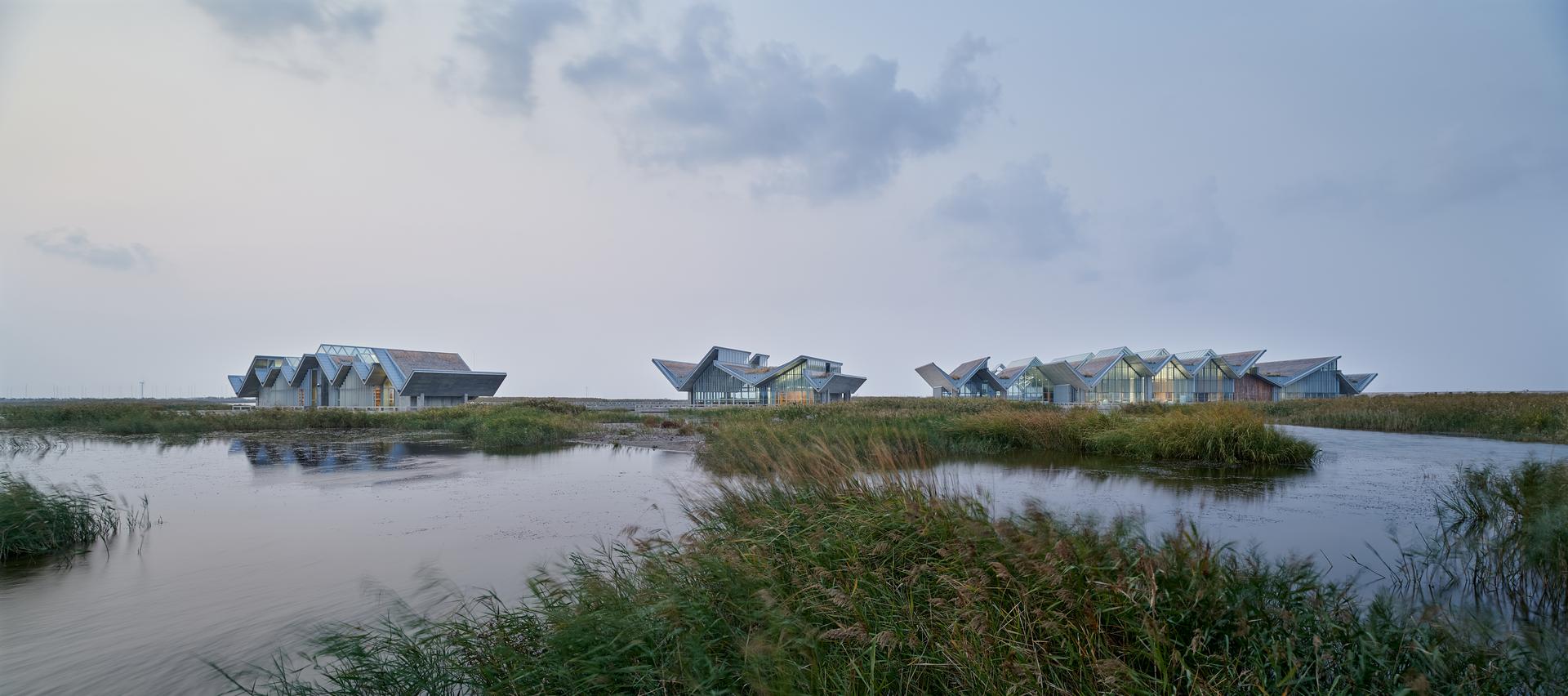

With modesty and respect, we suppose the building would be in harmony with the natural area. The inspiration is from secluded shacks scattering between the mountains and waters, which described by the ancient Chinese landscape painter Wang Meng in fourteenth century. With the intention of minimizing the impact on the local ecosystem whenever this place is under construction or in use, the architectural volume is divided and scattered, forming a group of settlements above the pile platform, floating on the water and hidden among the reeds.

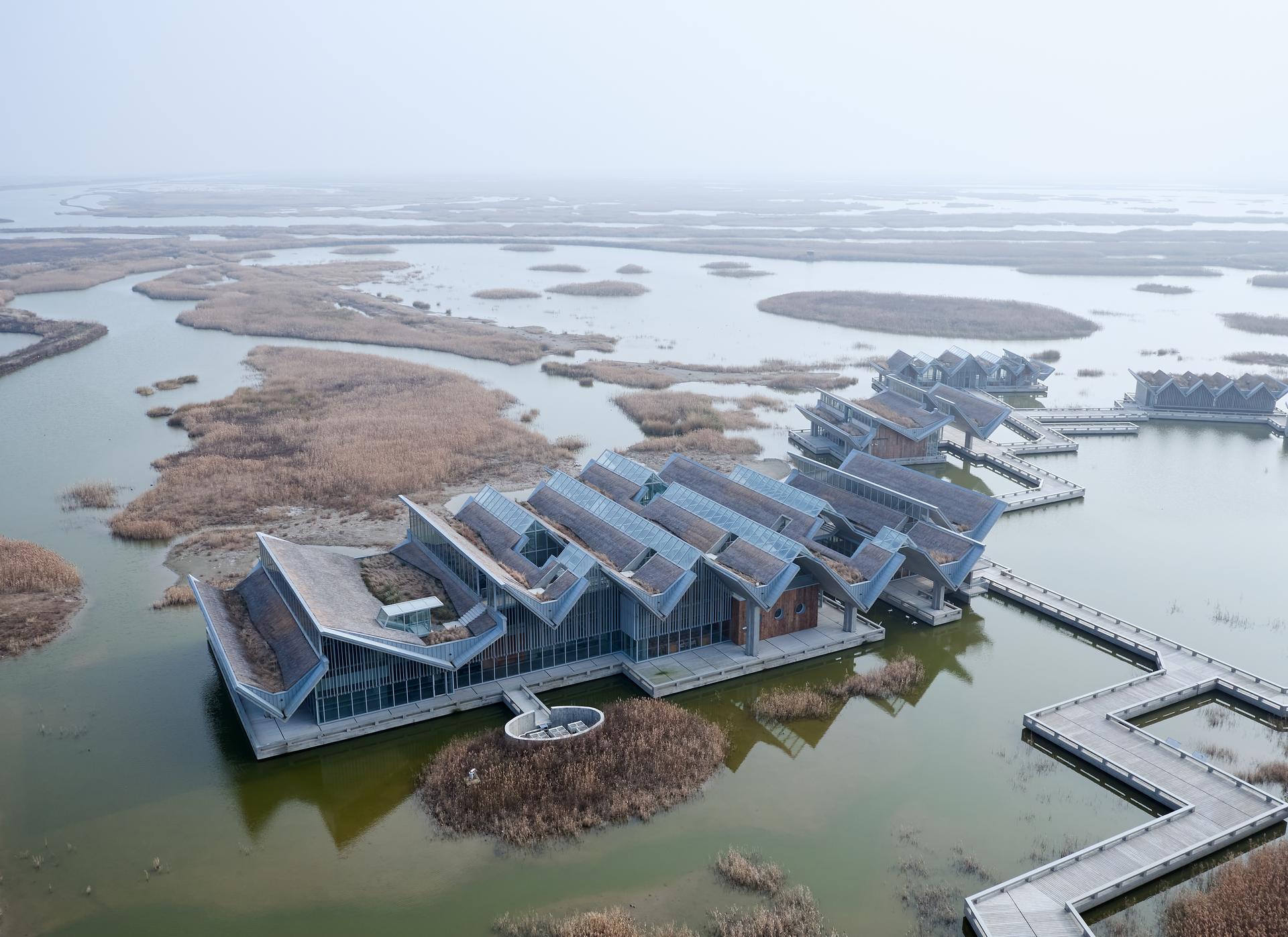

Five buildings of different volume including the conference and exhibition, the canteen, the research, and the dormitory are cross-connected by a zigzag trestle bridge. Through the conversion of prototype and the control of scale, the atmosphere of indoor and outdoor spaces could be in response to the environment specificity such as sky, wetland, reeds and flying birds. Enlightened by the “shack with double pitched roof” in Wang Meng’s painting, we turned the double pitched roof over, made a “Y-shape” cantilever structure, juxtaposed these two “Y-shape” independent units and created a new double Y shape space (YY).

This creative idea has brought this prototype new spatial meaning. Firstly, the space covered by these two Y-shape structures is given a sense of shelter and created a fixed horizontal vision towards the vast wetland, while the openness of ridge is made extend towards sky. Secondly, the counter-slope space above the roof offers the feeling of living in a micro-valley, where visitors can enjoy the cropping and re-composition of broader horizontal vision. Moreover, compared with the veranda of lateral eaves gallery of the double pitched roof prototype, the veranda of the new structure has the space firstly pressing down and then lifting up, creating the feeling of opening to the environment.

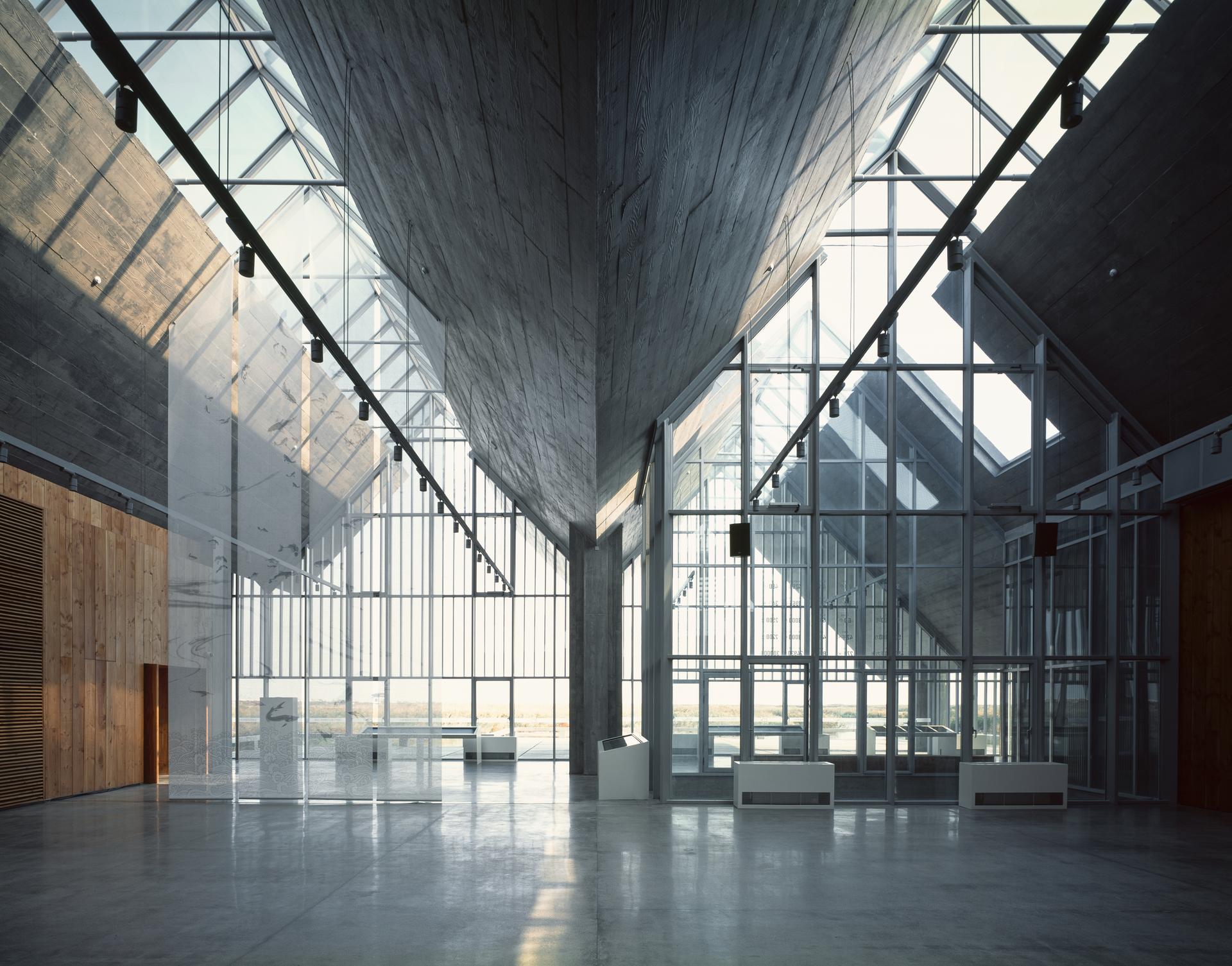

With a series of juxtapositions and variations of Y-shape unit structure, we designed a series of continuous saw-tooth roofs and created covered spaces with scale difference where multi-functional programs are available. With the organization of circulation, distribution of courtyards, variation of transparency of enclosures, differentiation of structural span and height, and the combination of ridge skylights and clerestories, there is none clear boundary between different functional spaces, peoples are encouraged to use them in a flexible way.

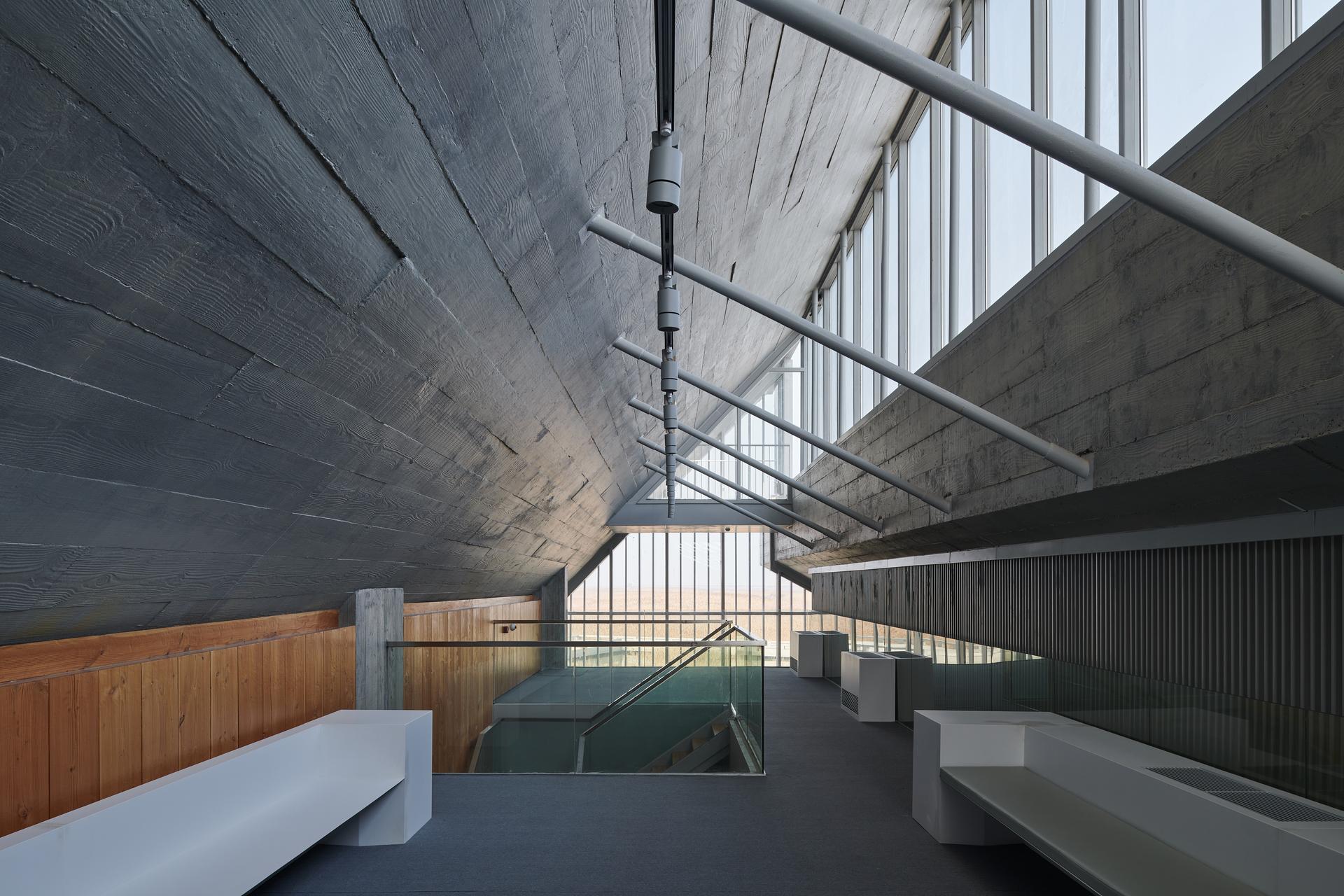

Besides, this special linear pattern of space organization has brought unique indoor experience between in-position view and in-motion view. When staying in a certain space unit, peoples are able to enjoy a body-enveloping experience under the roof with the view parallel to the structural unit, and the external natural scenery in front of the eye; while walking through different space units, with the rhythm of variation in height and light, they will feel as walking in a garden-courtyard house. This unique experience is strongly intensified on the roof of conference & exhibition building: In response to the site features, we have evocated a flashback interpretation through alternating and combining the distant eye-level view of wetland from the “valley” on the roof and the close overlooking view of indoor scene from the skywalk under the roof.

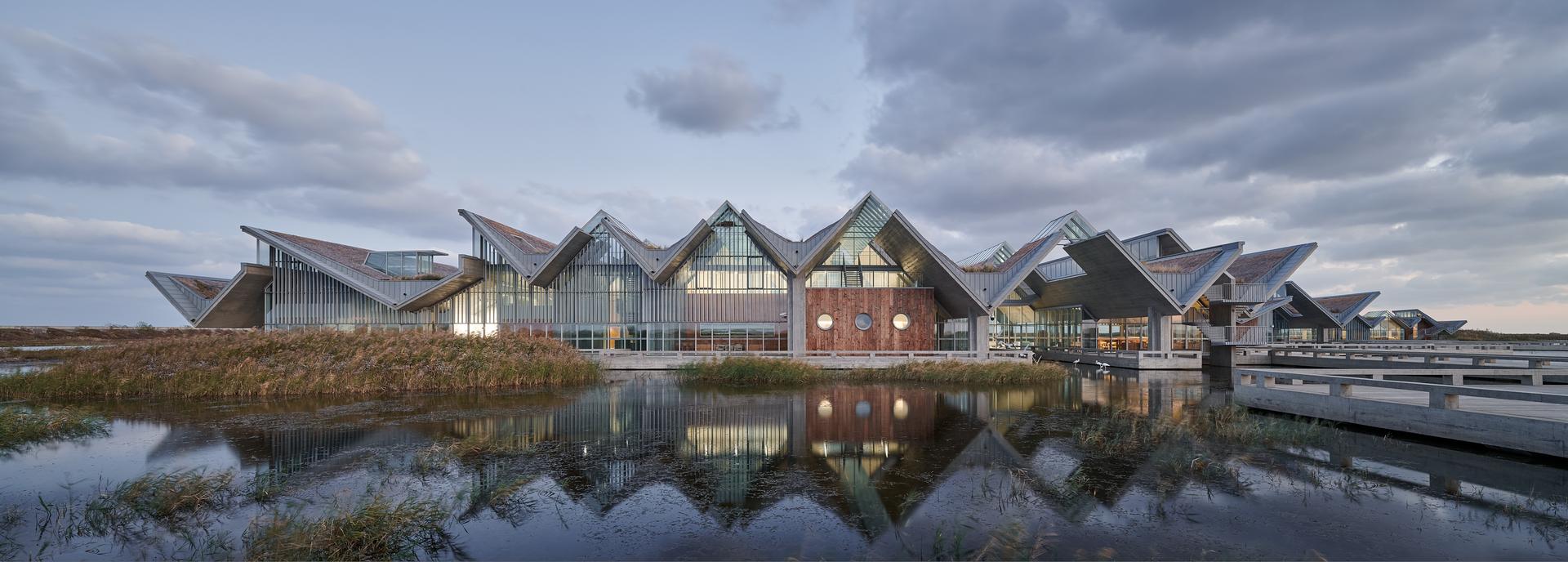

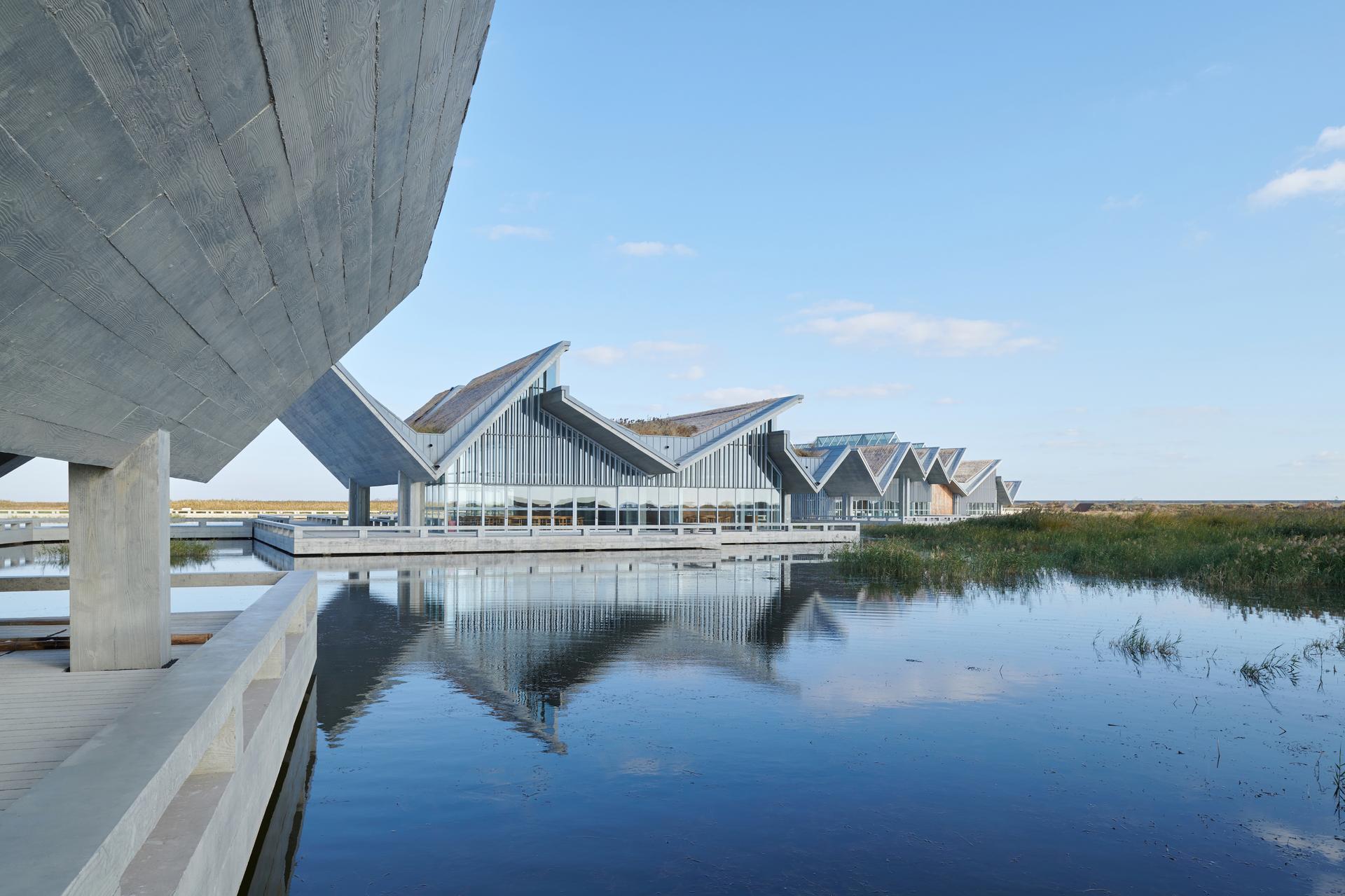

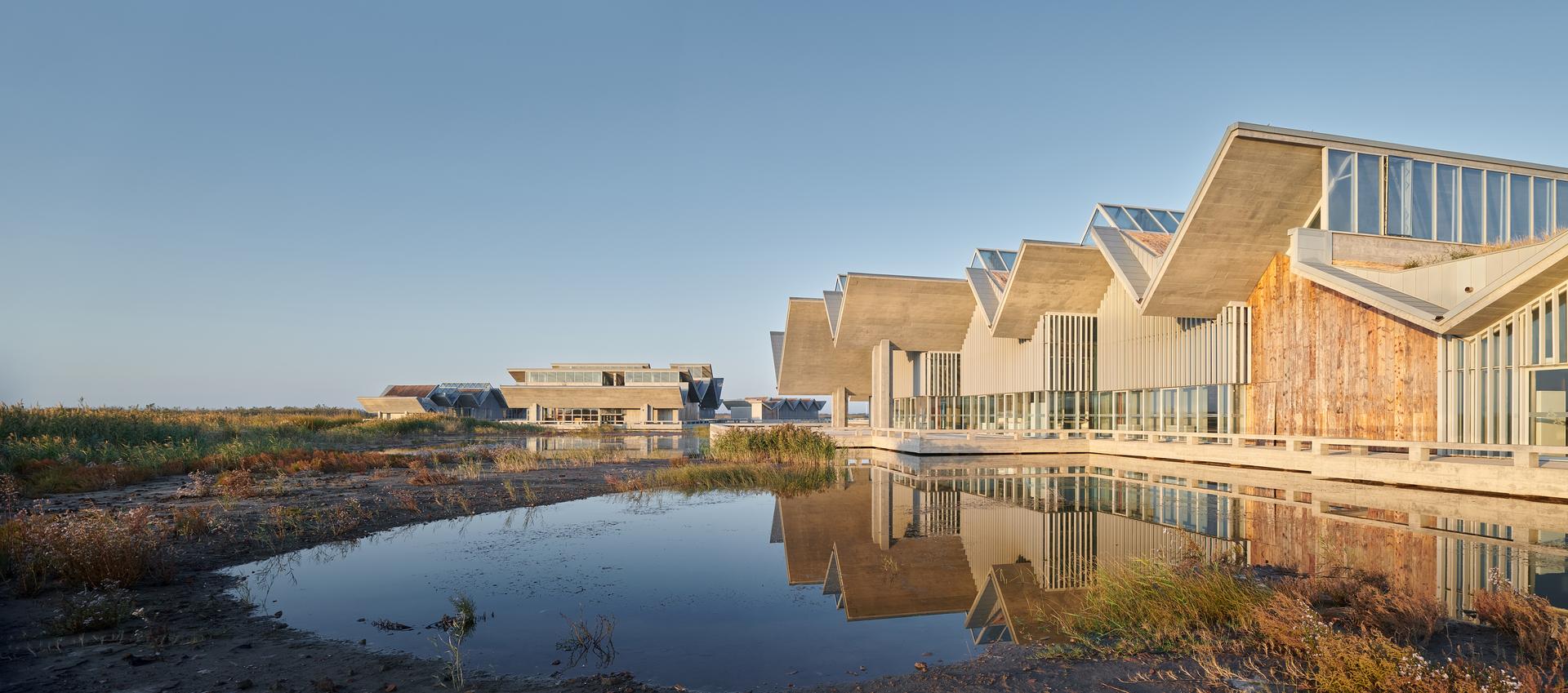

The scattered building volumes are fragmented by the overhanging saw-tooth roofs with deep eave which successfully eliminate the scale difference between buildings, and also are blurred by overlapped deep shadows and reflection above the water. Considering that weather-proof and maintenance of this facility are quit challenging work in high humidity and salinity conditions, the light steel or wooden structure was abandoned in our design. Instead, reinforced concrete is selected to build with the simplicity of tectonics.

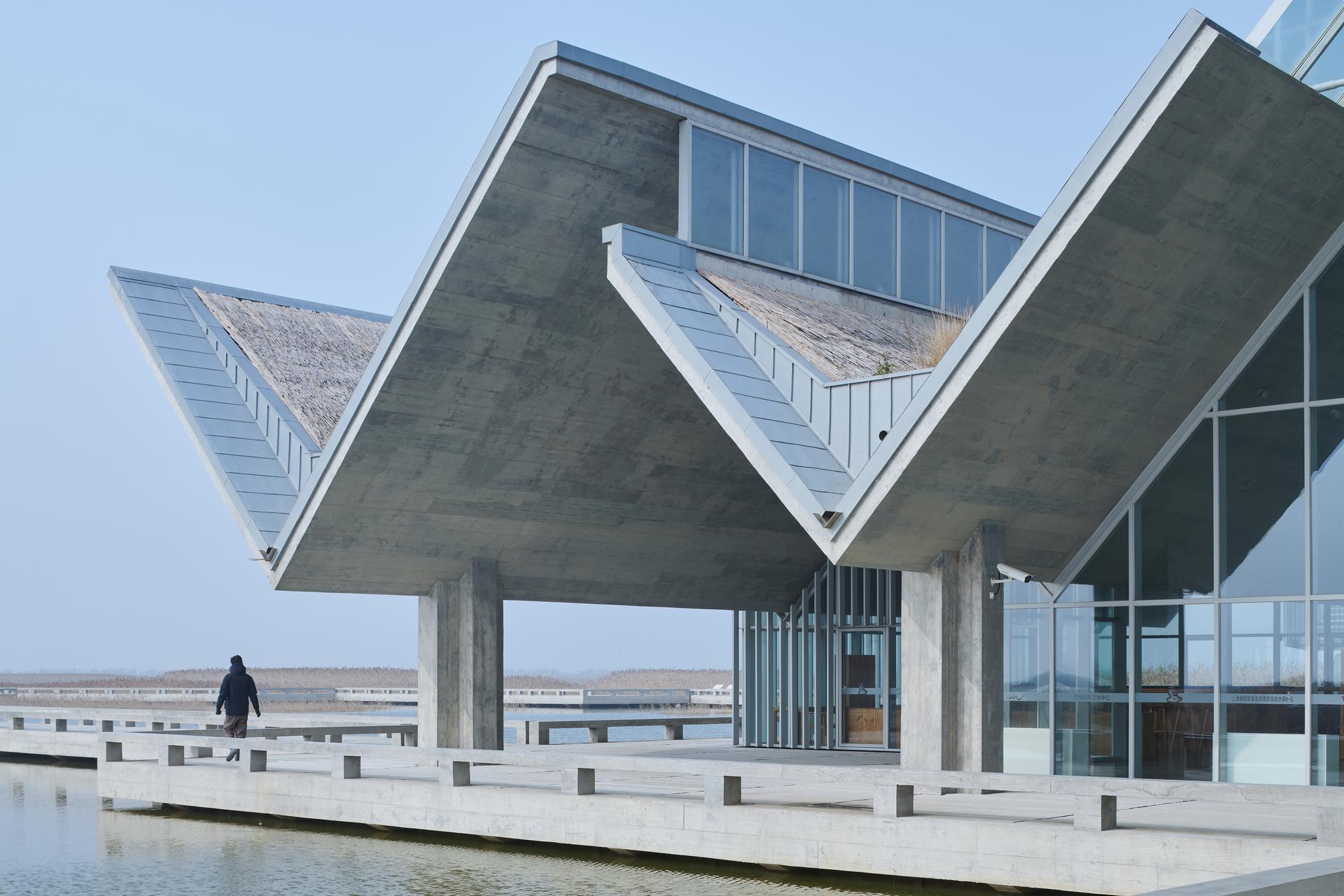

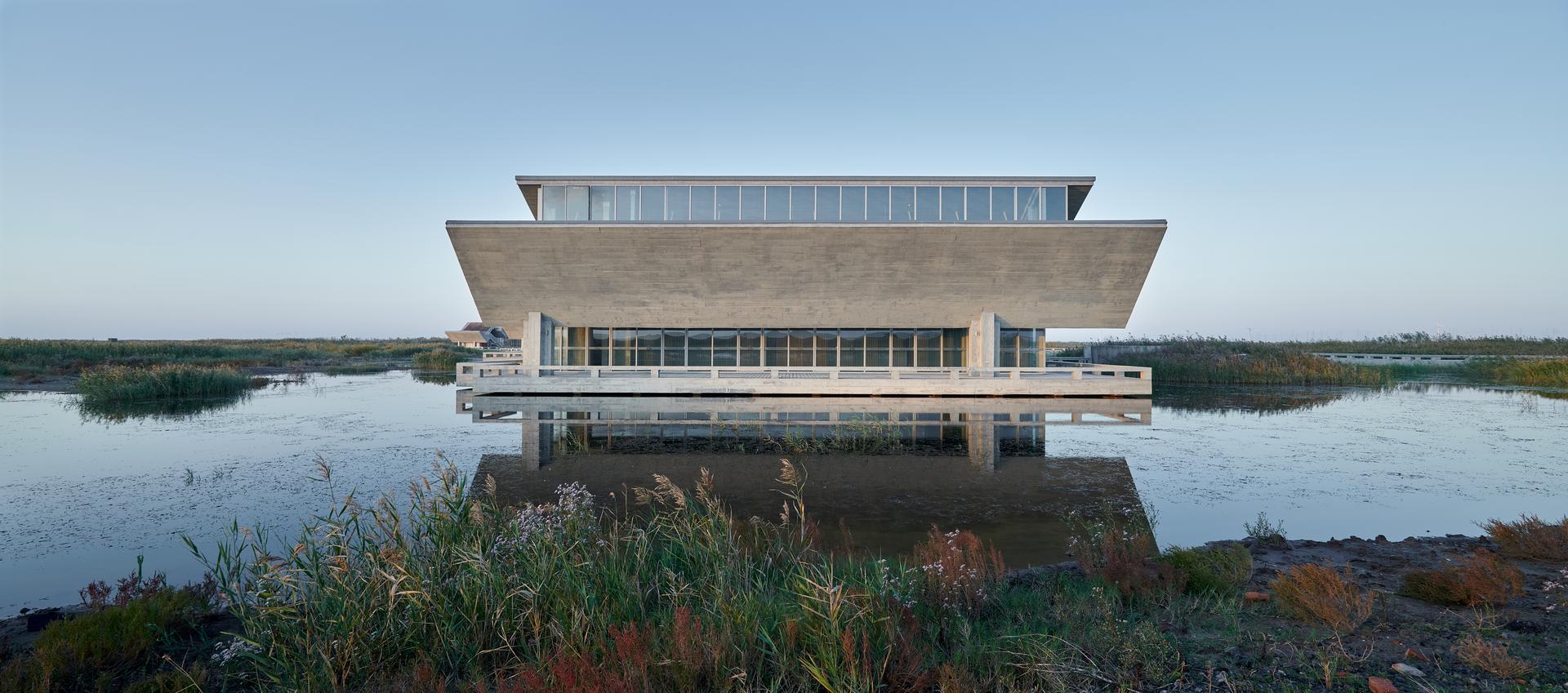

Building A, B, C were built by Y-shaped cantilevered reinforced concrete bent frame structure with crisscross section and partial folded-plate. Among these buildings, the cantilever of building A was so large that the whole structure had to be constructed by steel reinforced concrete and the exhibition hall was partly designed with steel mezzanine; building D and E were constructed with concrete folded-plate structure. In order to expose the crudeness from the concrete structure in wetland, long pine timber formworks were used in the as-cast-finish concrete construction to obtain natural wood texture.

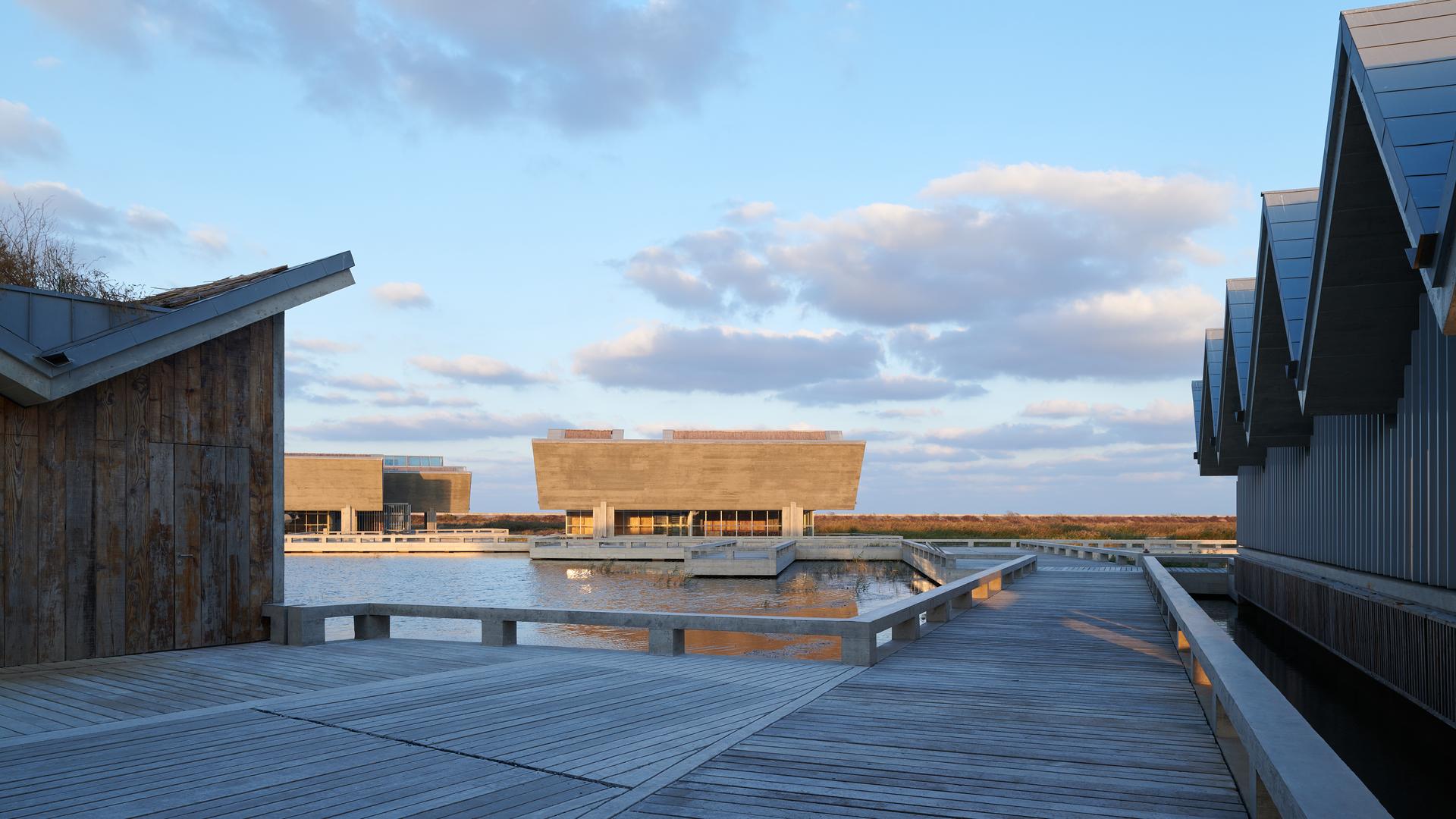

The non-structural enclosure and partition walls were also coated with refurbished recycled timber formworks to unify the material expression. Since sheltered from long overhang eaves, bird-friendly floor-to-ceiling windows with vertical grilles which provide the visitors maximum of field view are used for most external envelop. The trestle bridge and the water platform were paved with precast concrete battens with crack left between each other, which not only enhanced the feeling of walking over water but also made room for reed growth.

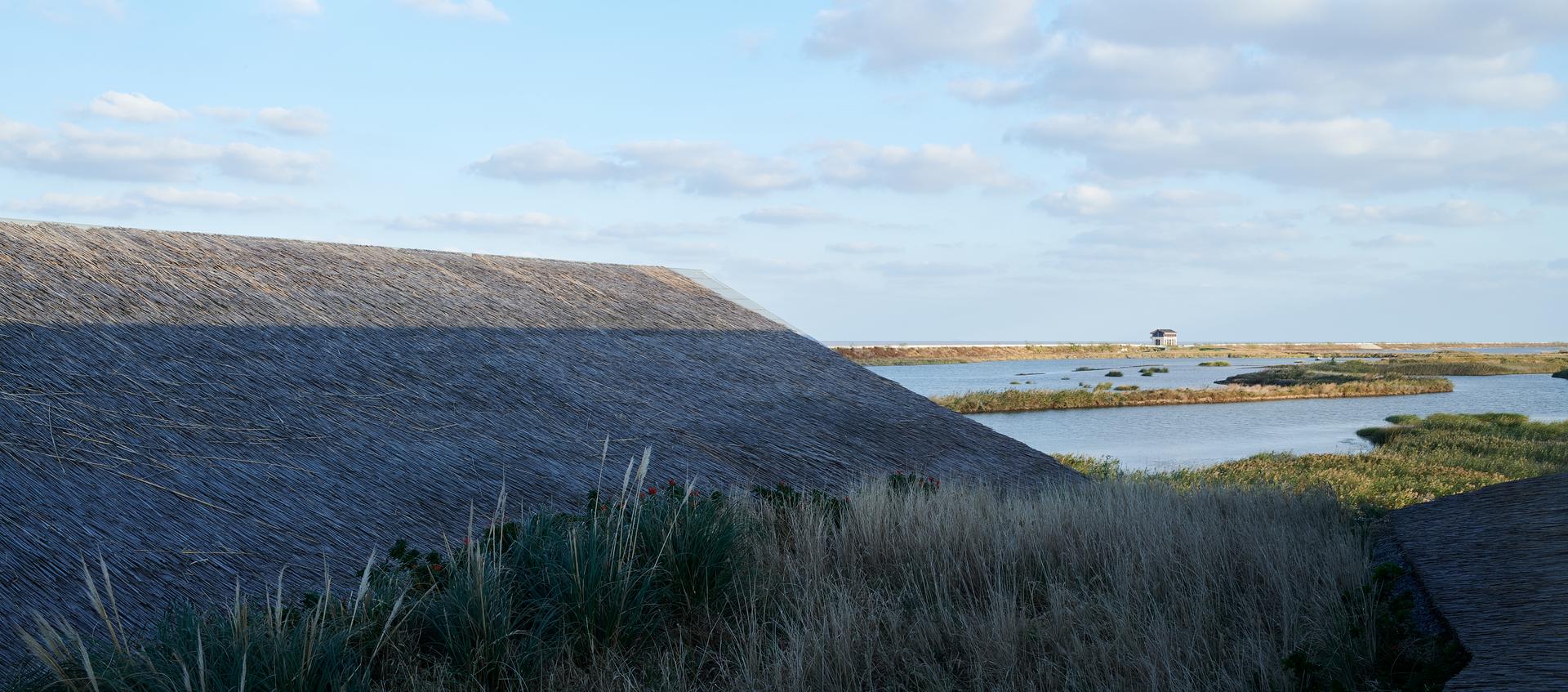

Moreover, all the “valleys” bottom on the roof were covered with slightly undulating soil and low-maintenance planted miscanthus and shurbs. For the purpose of environment integration and sustainable recycling in the future, all the pitched roofs which trimmed with titanium-zinc sheet were covered with indigenous reed straw reaped and processed under the supervision of local experienced reed weavers.
